BR -12

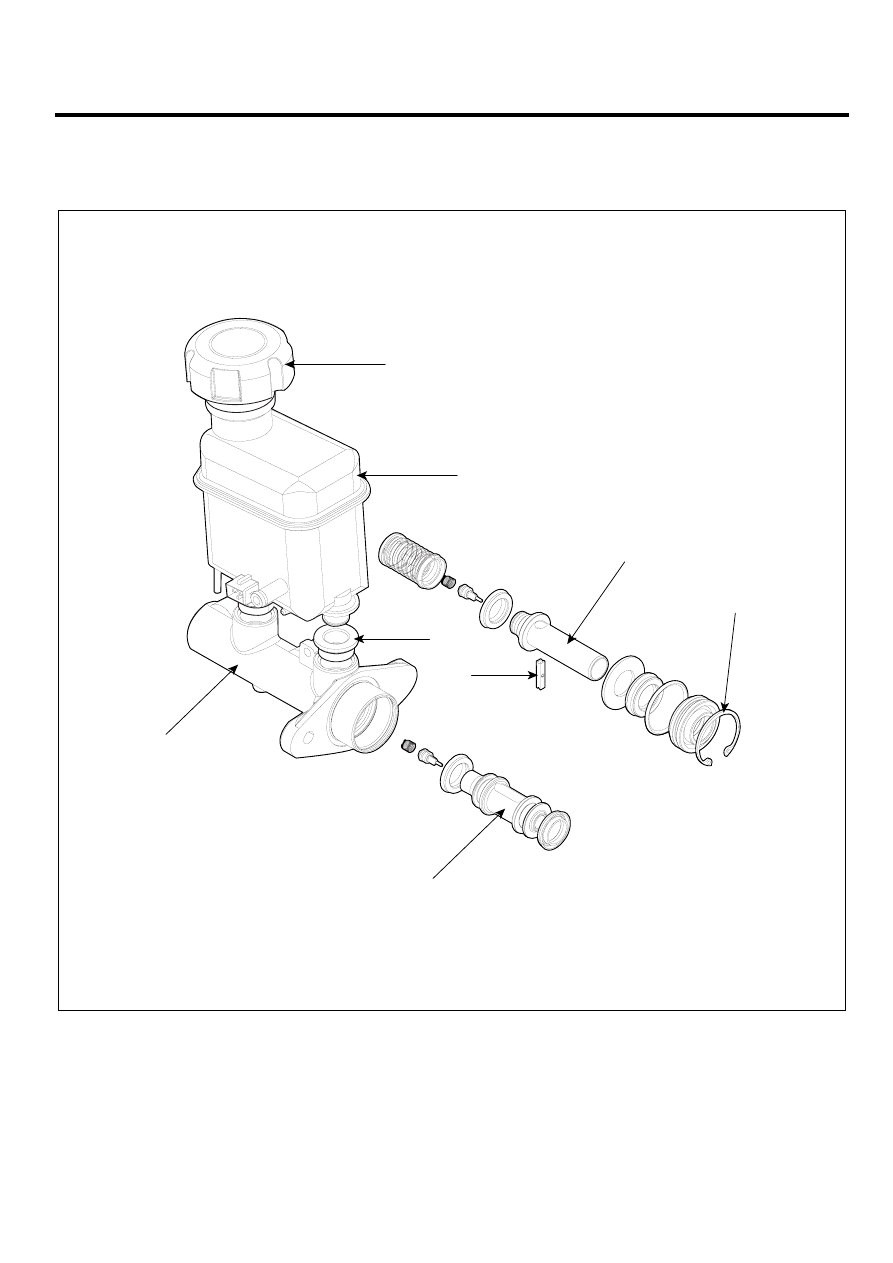

BRAKE SYSTEM

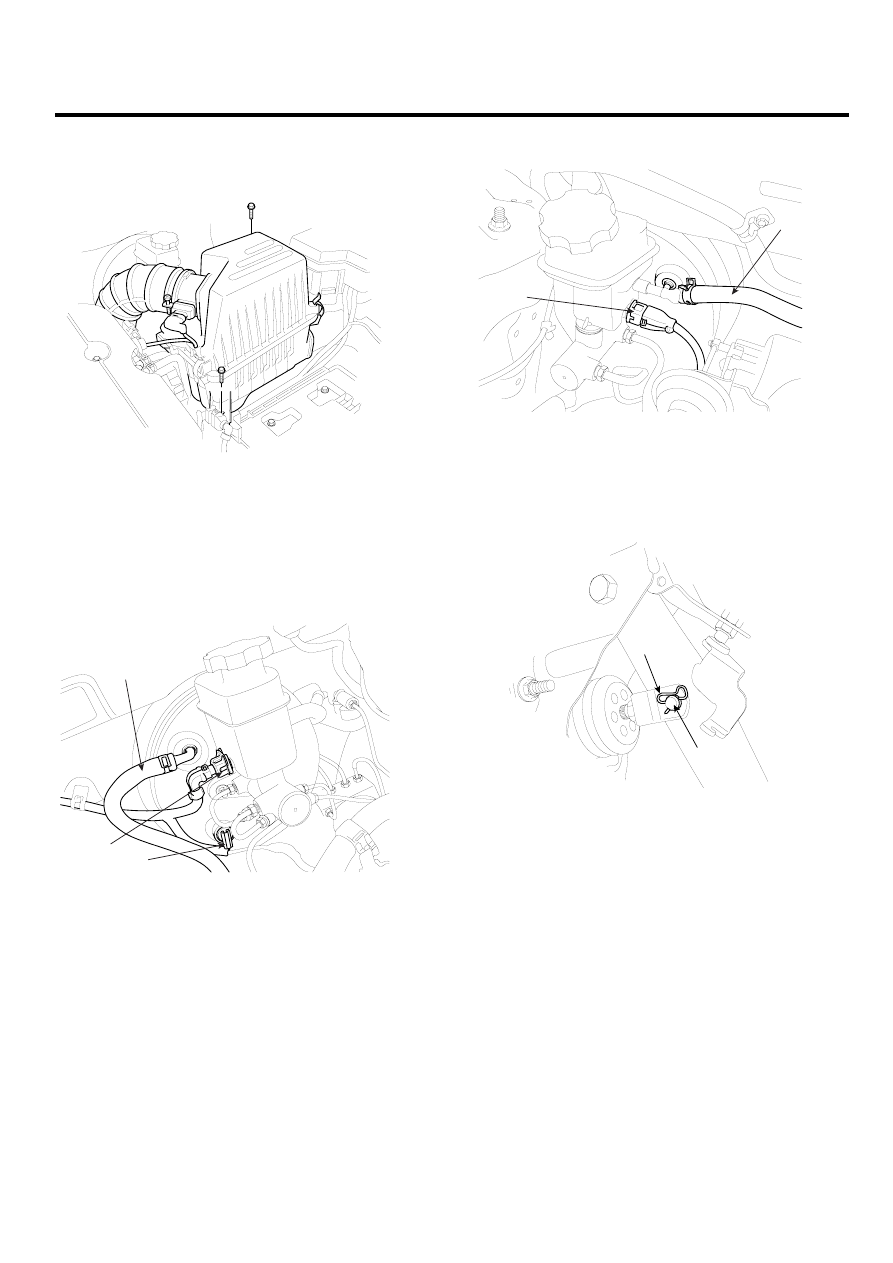

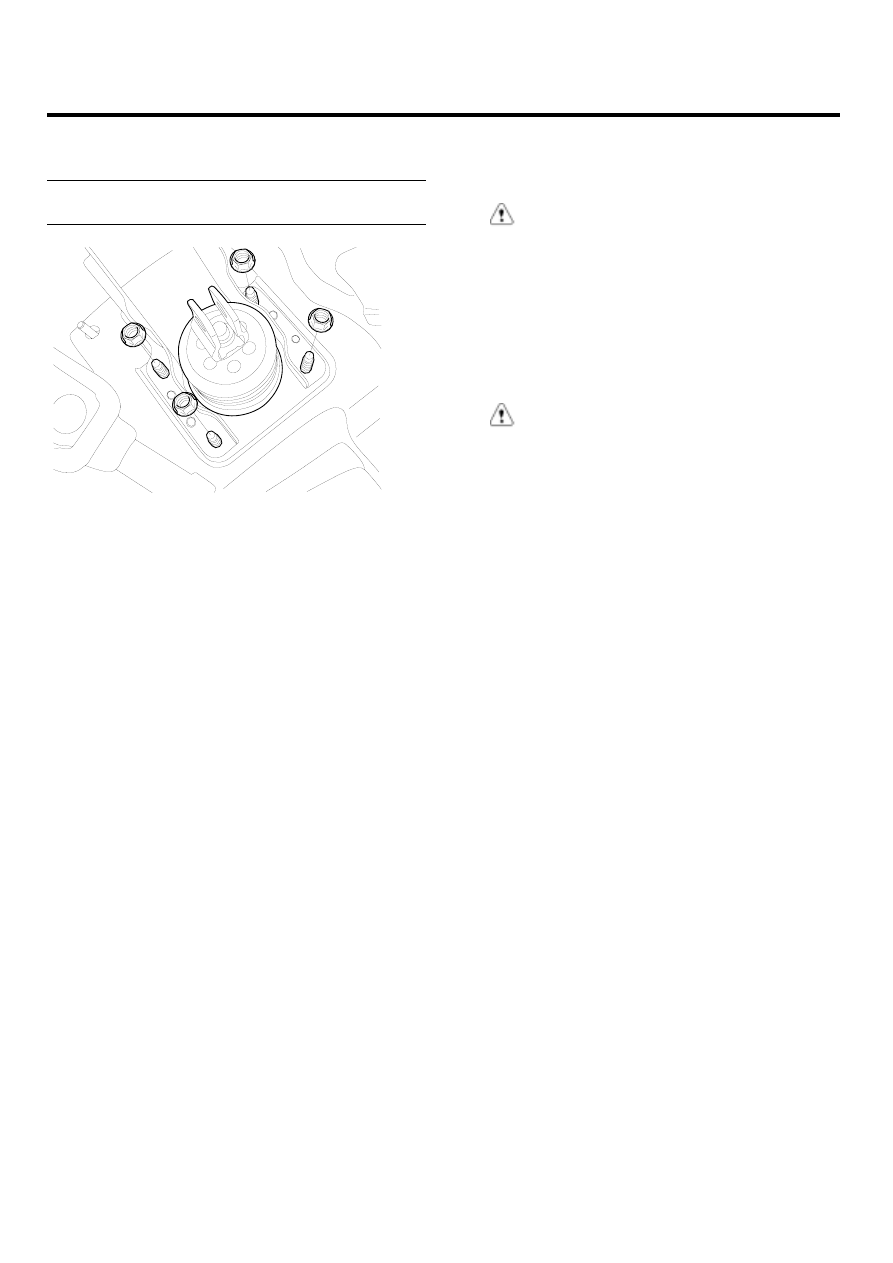

BRAKE BOOSTER OPERATING
TEST
EAC92E97

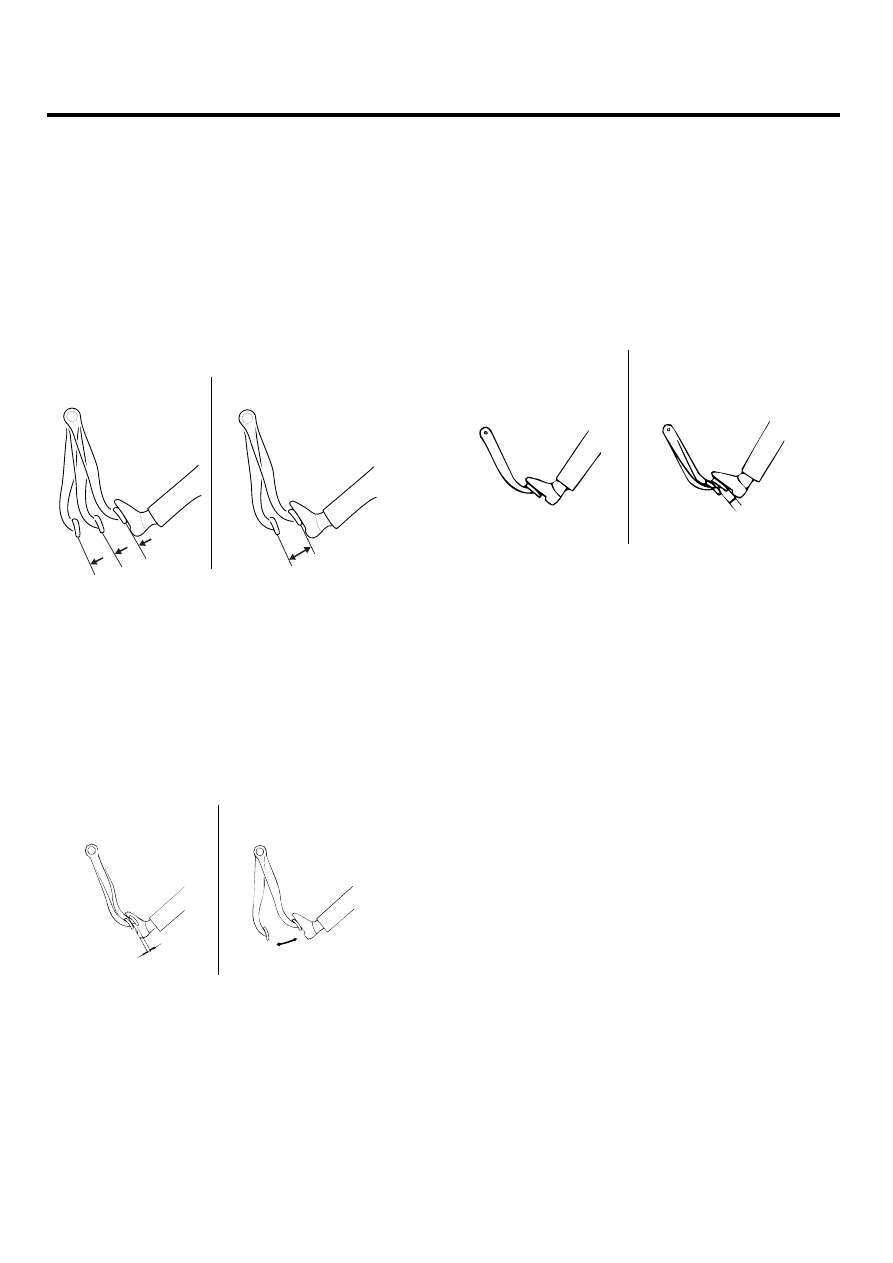

For simple checking of the brake booster operation, carry
out the following tests
1.
Run the engine for one or two minutes, and then stop
it. If the pedal depresses fully the first time but grad-
ually becomes higher when depressed succeeding
times, the booster is operating properly, if the pedal
height remains unchanged, thebooster is inoperative.
Good
No good
1st
2nd
3rd
EJRF500B
2.
With the engine stopped, step on the brake pedal sev-
eral times.
Then step on the brake pedal and start the engine. If
the pedal moves downward slightly, the booster is in
good condition. If there is no change, the booster is
inoperative.
When engine is stopped
When engine is started
SCMBR6500L
3.
With the engine running, step on the brake pedal and
then stop the engine.
Hold the pedal depressed for 30 seconds. If the pedal
height does not change, the booster is in good condi-
tion, if the pedal rises, the booster is inoperative.
If the above three tests are okay, the booster perfor-
mance can be determined as good.
Even if one of the above three tests is not okay, check
the check valve, vacuum hose and booster for mal-
function.
Good
No good
EJRF500C
