SEAT WARMER

BE -197

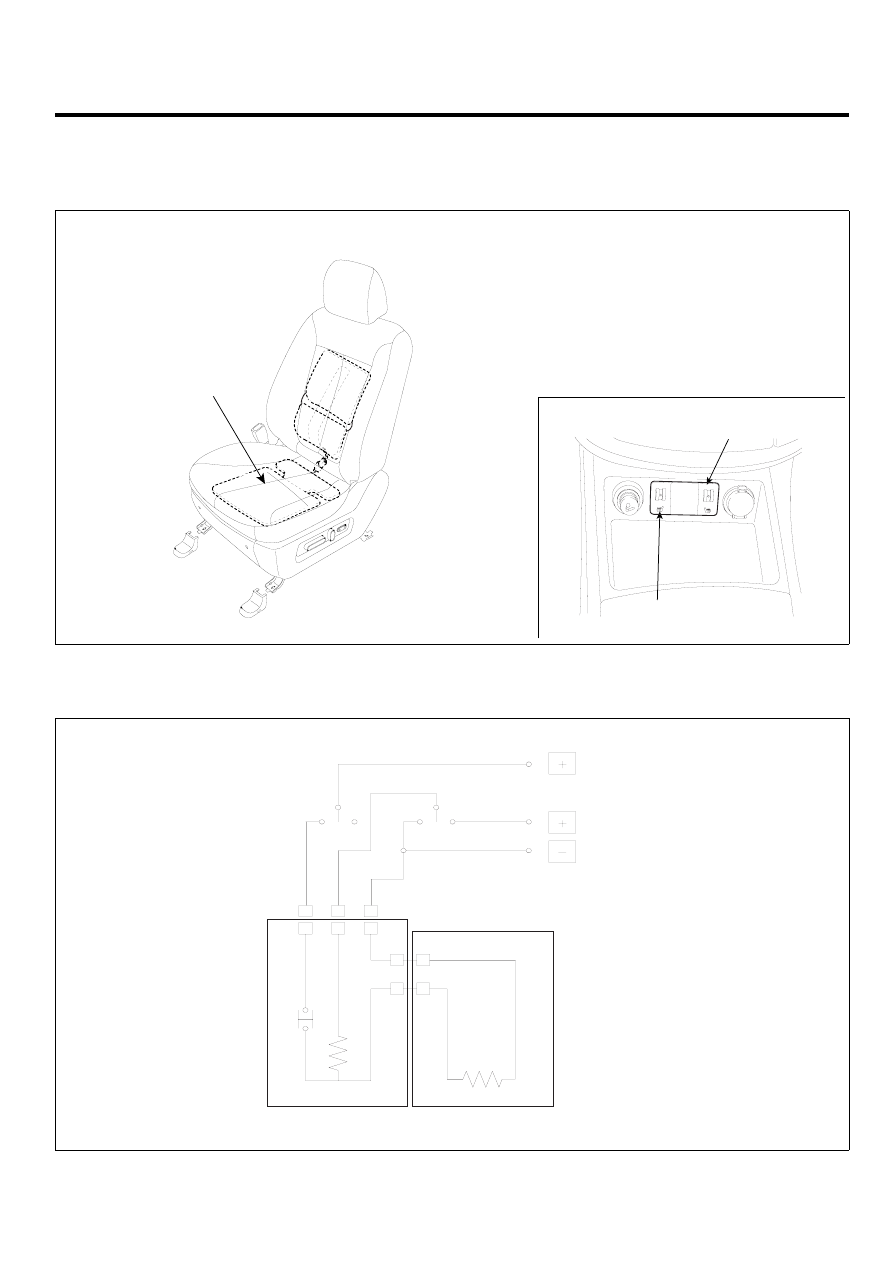

SEAT WARMER

COMPONENT LOCATION

E4F9F24F

Seat warmer switch (RH)

Seat warmer switch (LH)

Seat warmer

4WD

LOCK

POWER

OUTLET

12V 120W

SCMBE6380L

CIRCUIT DIAGRAM

E40A63EF

Hi

1
1

2
2

3
3

3

3

3

3

Lo

Cushion

Back

Hi

(Hi)

(Low)

Lo

1

2

3

SCMBE6381L

BE -198

BODY ELECTRICAL SYSTEM

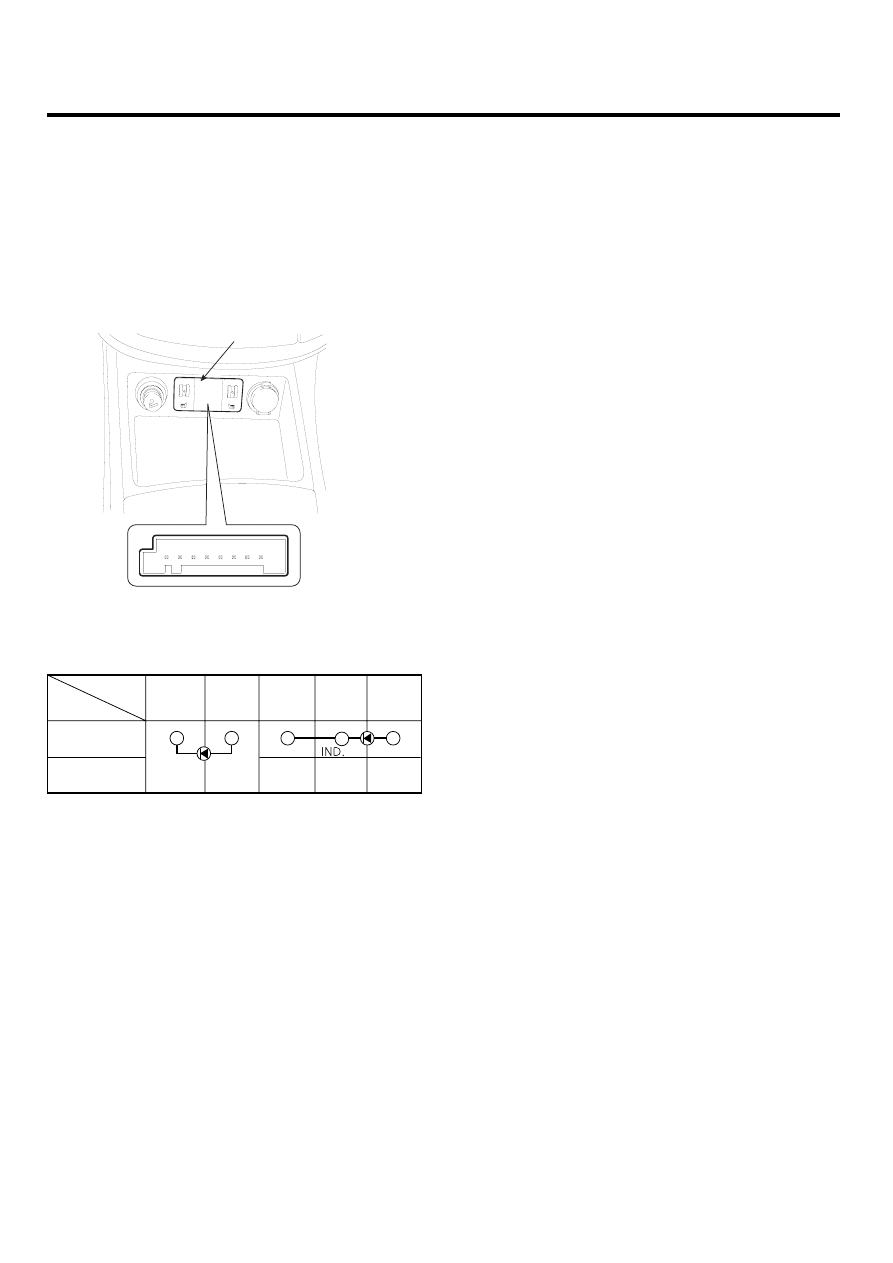

SEAT WARMER SWITCH

INSPECTION

EE2C00FE

FRONT SEAT WARMER SWITCH

1.

Disconnect the negative (-) battery terminal.

2.

Remove the seat warmer switch (A) with scraper.

A

4WD

LOCK

POWER

OUTLET

12V 120W

01 02 03 04 05 06 07 08

SCMBE6382D

3.

Check that continuity exists between the terminals.

OFF

ON

2

6

3

4

1

Terminal

Position

Illumina-
tion

ETRF441B

SEAT WARMER

BE -199

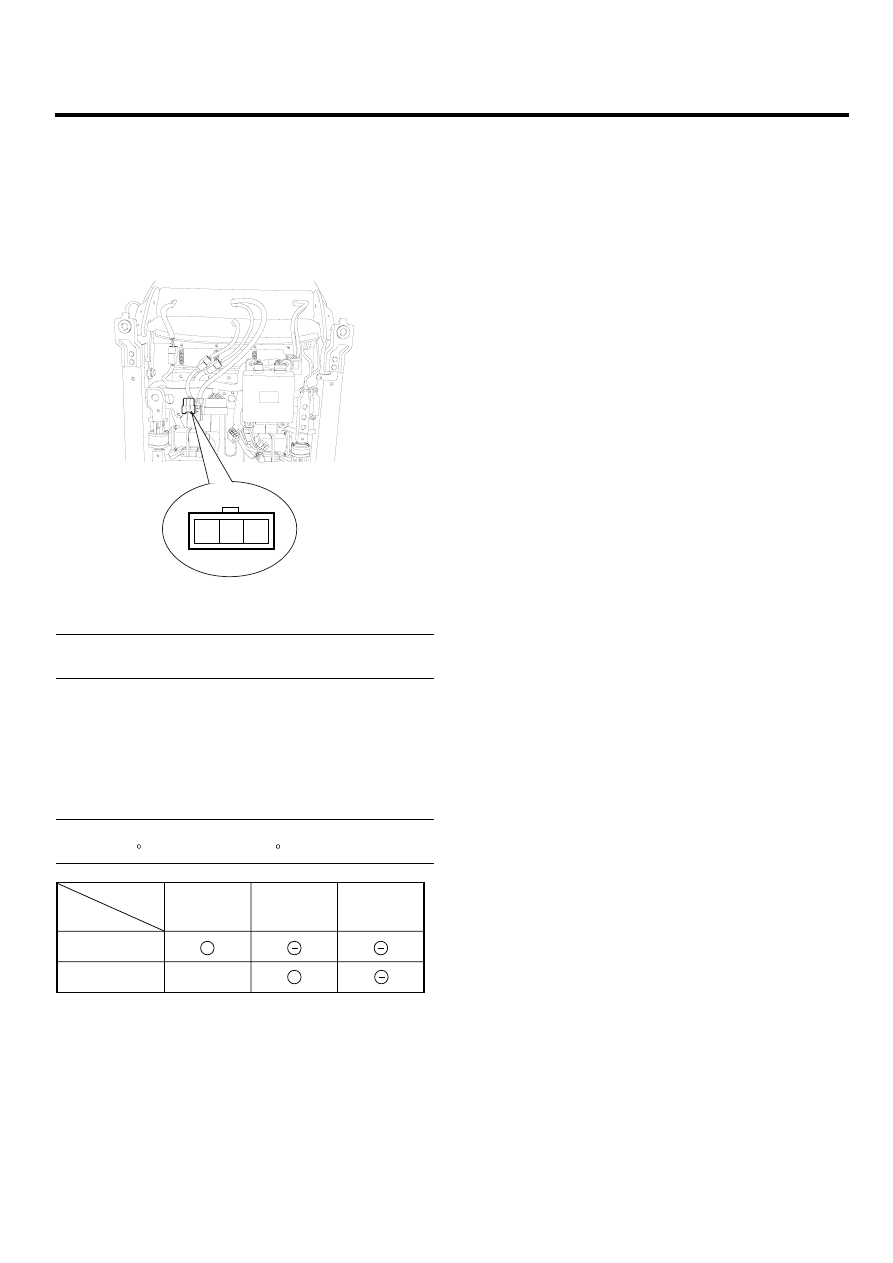

SEAT WARMER

INSPECTION

EBA3D9F7

1.

Check for continuity and measure the resistance be-
tween No.1 and NO.3 terminals.

1

2

3

SCMBE6383D

Standard value
Cushion : 4.73Ω ± 10%, Back : 34.97Ω ± 10%

2.

Operate the seat warmer after connecting the 3P con-
nector, and then check the thermostat by measuring
the temperature of seat surface.

3.

Check for continuity between the terminals after dis-
connecting the connector.

Standard value
HI : 42 ± 2 C (Cushion), 52 ± 2 C (Back)

1

2

3

+

HIGH

LOW

Terminal

Position

+

SCMBE6384L

BE -200

BODY ELECTRICAL SYSTEM

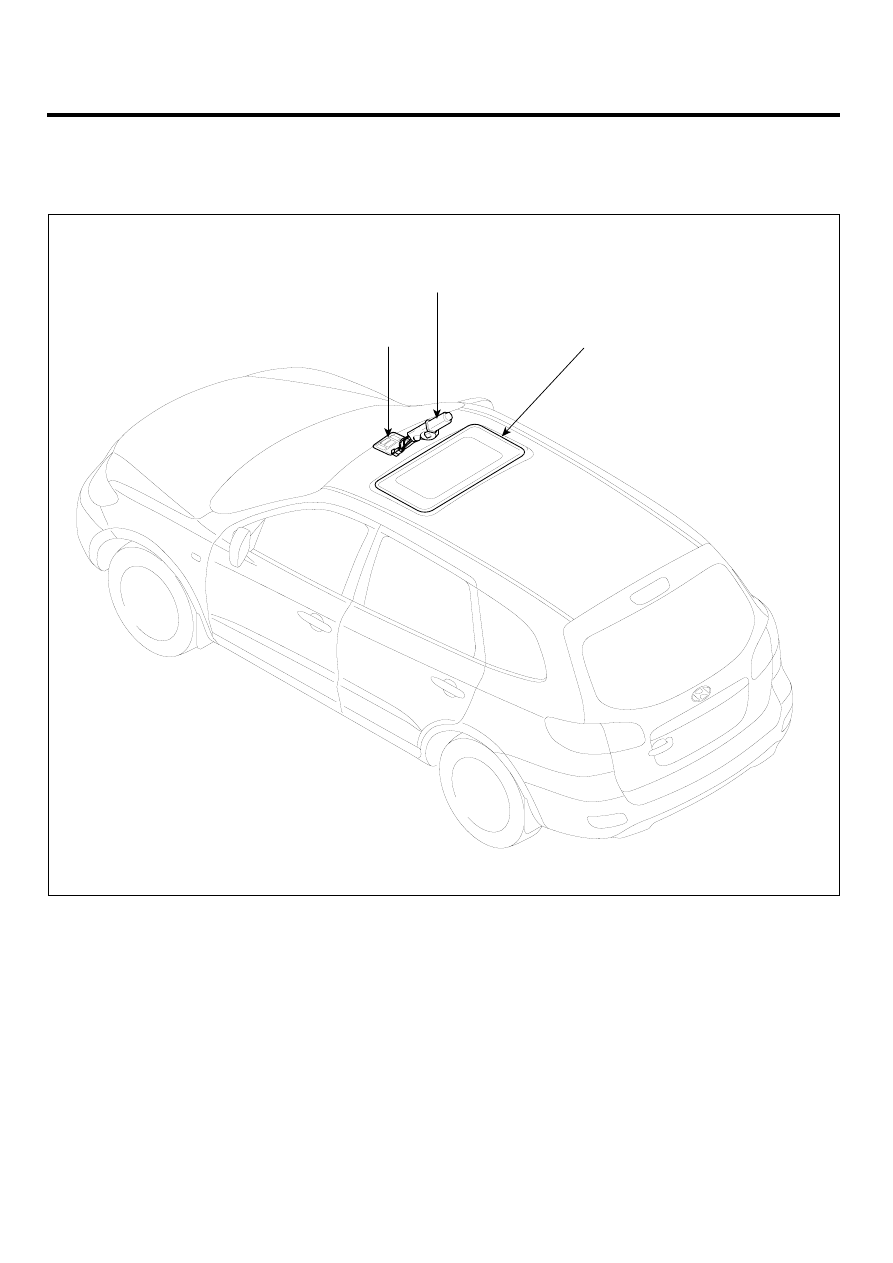

SUNROOF

COMPONENT LOCATION

EFAD0C7C

3

1

2

1.  Sunroof
2.  Sunroof switch

3.  Sunroof motor & controller

SCMBE6420L
