ELECTRO CHROMIC INSIDE REAR VIEW MIRROR

BE -189

COMPASS MIRROR

DESCRIPTION

EDD9985F

The compass feature is designed to be integrated into an
electro chromic interior rearview mirror.

The mirror assembly shall display a compass heading.
The compass mirror then take the sensor information to
determine static field strengths and rotating field informa-
tion to determine an accurate compass heading.

SPECIFICATION

Item

Standard value

Rate voltage

DC 12V

Operating voltage range

DC9 ~ 16V

Operating temperature range

-30 ~ +65 C

Direction display

8

Renewal time

2 sec.

SWITCH POINT ACCURACY

The compass module shall, while compensating for the
vehicle magnetic fields, until the Earth’s varying magnetic
fields to determine direction.

[SWITCH POINTS]

Switch point

Heading ± 10

N - NE

22.5

NE - E

67.5

E - SE

112.5

SE - S

157.5

S - SW

202.5

SW - W

247.5

W - NW

292.5

NW - N

337.5

NOTE

There should be hysteresis at each switch point.
Switch points between the 8 cardinal directions, these
switch points are ± 10

N

22.5

NE

E

NW

SW

SW

S

W

67.5

112.5

157.5

202.5

247.5

292.5

337.5

ETQF241F

BE -190

BODY ELECTRICAL SYSTEM

COMPASS DISPLAY INTERVAL

Compass display should be updated at every two seconds.

FUNCTION

EE94334D

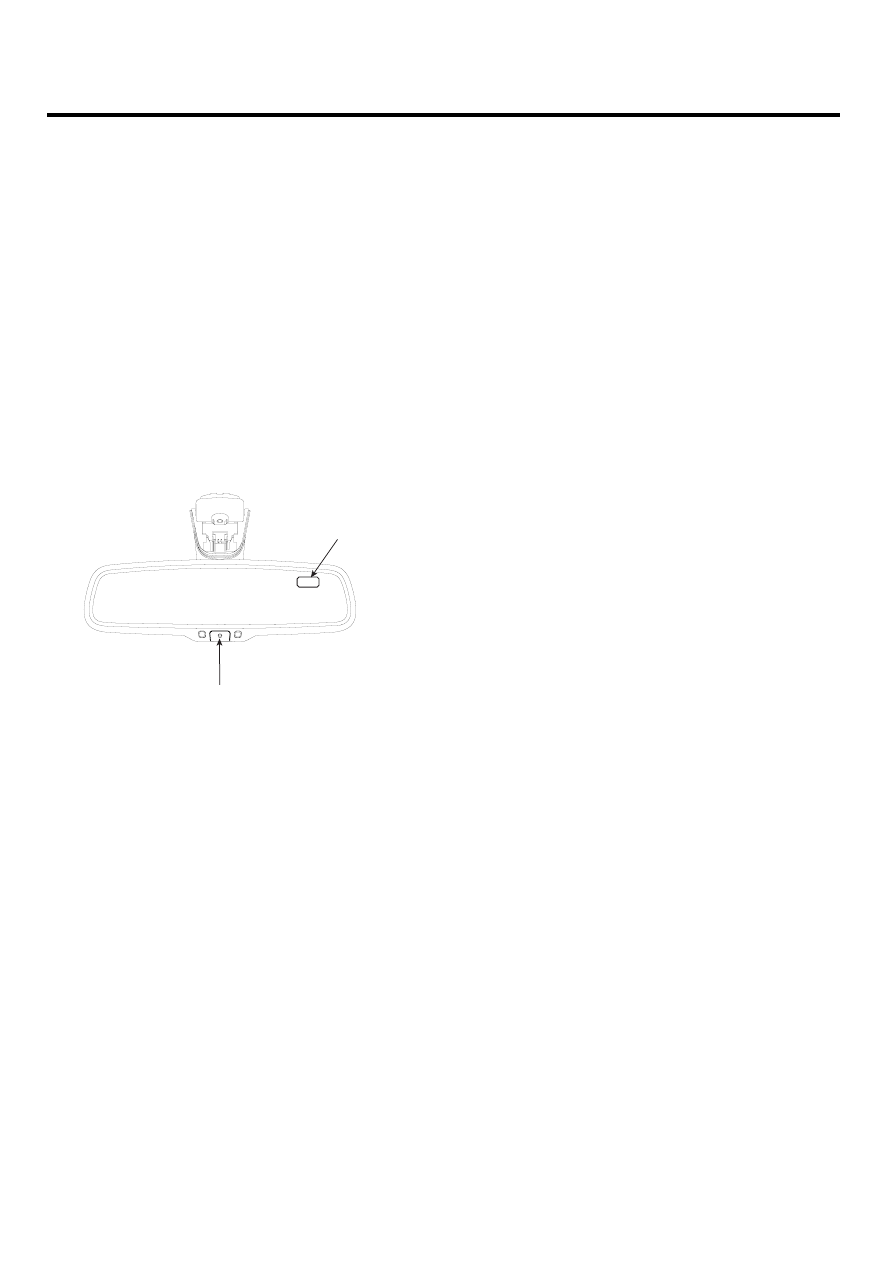

The compass can be turned ON and OFF and will remem-
ber the last state when the ignition is cycled. To turn the
display feature ON/OFF :

1.

Press and release the feature control button (A) to turn
the display feature OFF.

2.

Press and release the feature control button (A) again
to turn the display back ON.
Additional options can be set with press and hold se-
quences of the feature control button (A) and are de-
tailed below.

A

B

ETQF241C

There is a difference between magnetic north and true
north. The compass in the mirror can compensate for
this difference when it knows the magnetic zone in
which it is operating. This is set either by the dealer
or by the user.

ADJUSTMENT

EE10EDCF

CALIBRATION PROCEDURE

If the display read "C", calibrate the compass.

1.

Driving the vehicle in a circle at less than 8km/h 3
times or until the compass heading appears.

2.

Driving in a circle in right-handed direction and op-
posite direction are possible, and if the calibration is
completed, the compass heading will appear.

3.

Keep driving in a circle until a commpass heading ap-
pears.

TO ADJUST THE ZONE SETTING :

1.

Determine the desired zone number based upon your
current location on the zone maps.

2.

Press and hold the Feature Control button for more
than 6 but less than 9 seconds, the current zone num-
ber will appear on the display (B).

3.

Pressing and holding the feature control button (A)
again will cause the numbers to increment (Note: they
will repeat …13, 14, 15, 1, 2,..). Releasing the button
when the desired zone number appears on the display
will set the new zone.

4.

Within about 5 seconds the compass will start display-
ing a compass heading again.

TO RE-CALIBRATE THE COMPASS :

There are some conditions that can cause changes to the
vehicle magnets. Items such as installing a ski rack or a
antenna or even some body repair work on the vehicle can
cause changes to the vehicle’s magnetic field. In these
situations, the compass will need to be re-calibrated to
quickly correct for these changes.

1.

Press and hold the feature control button (A) for
more than 9 seconds. When the compass memory is
cleared, a "C" will appear in the display (B).

2.

To calibrate the compass, drive the vehicle is 2 com-
plete circles at less than 8 KPH (5 MPH).

ELECTRO CHROMIC INSIDE REAR VIEW MIRROR

BE -191

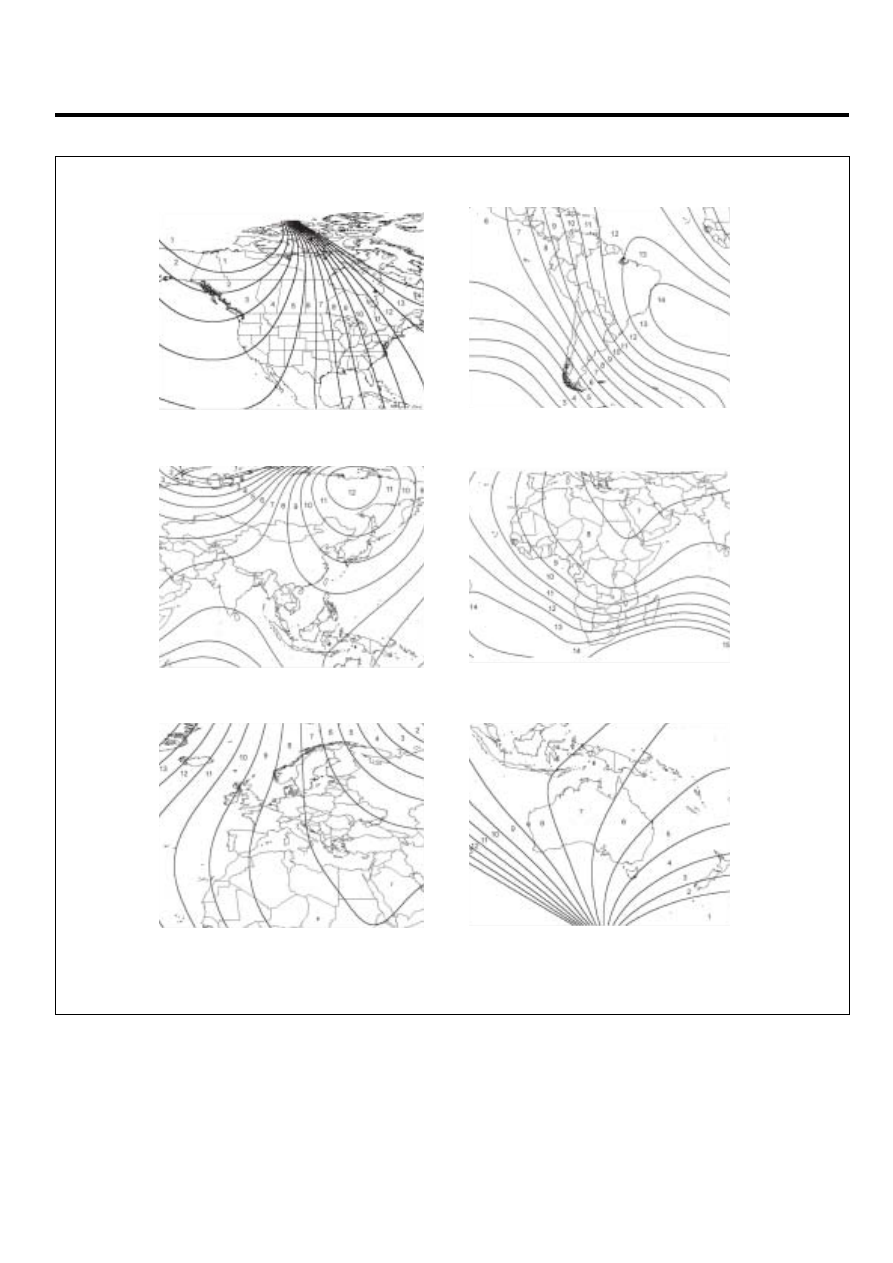

ZONE MAP

NORTH AMERICA

ASIA

EUROPE

AFRICA

AUSTRALIA

SOUTH AMERICA

ETQF241D

BE -192

BODY ELECTRICAL SYSTEM

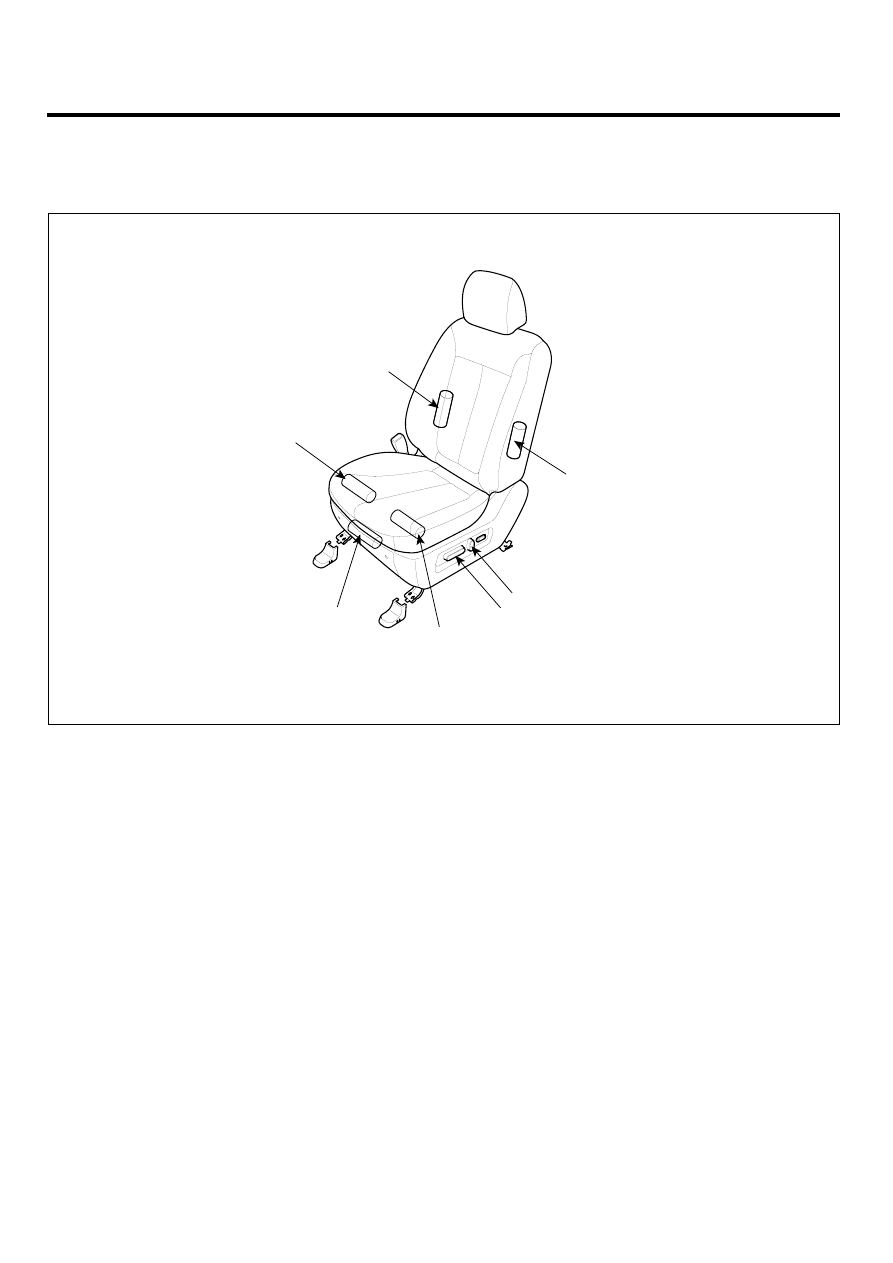

POWER SEAT

COMPONENT LOCATION

EC5CFA07

5

2

1

3

4

6

7

1.  Slide motor
2.  Front height motor
3.  Rear height motor
4.  Reclining motor

5.  Power seat switch
6.  Lumbar support motor
7.  Reclining switch

This illustration shows the LHD type.
RHD type is symmetrical.

SCMBE6390L
