INDICATORS AND GAUGES

BE -125

5.

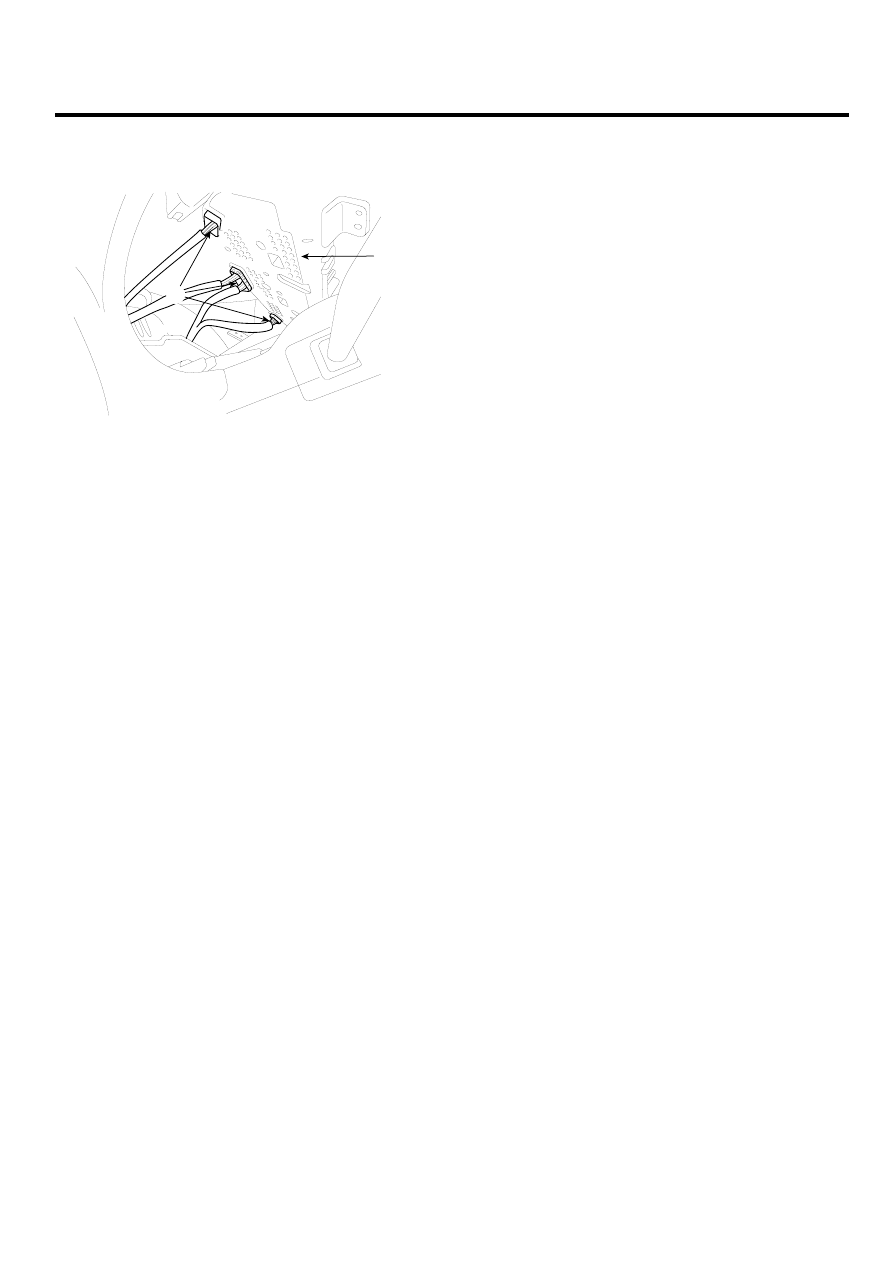

Disconnect the cluster connecters (A) and then re-
move the cluster (B).

A

B

SCMBE6225D

6.

Installation is the reverse of removal.

BE -126

BODY ELECTRICAL SYSTEM

POWER DOOR LOCKS

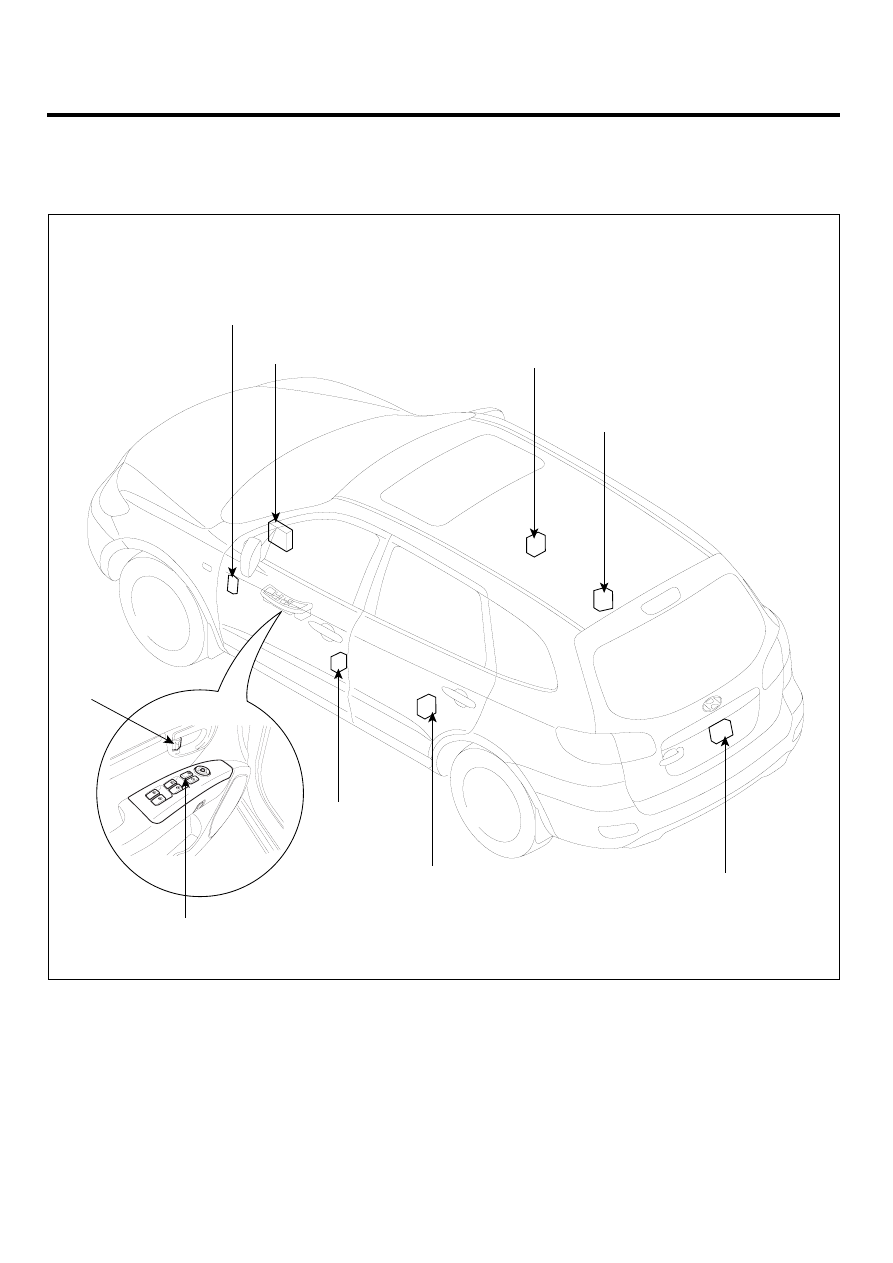

COMPONENT LOCATION

EFF8DAEC

2*

3

4

1*

7*

3

4

5

1. ICM relay box (Door lock/unlock relay)
2. Body control module (BCM)
3. Front door lock actuator & switch
4. Rear door lock actrator & switch

5. Tailgate & switch
6. Door lock knob
7. Door lock switch

6*

AU

TO

The parts with asterisk(*) :
This illustration shows the LHD type.
RHD type is symmetrical.

SCMBE6240L

POWER DOOR LOCKS

BE -127

TROUBLESHOOTING

E3BBBF42

1.

Lock function works but unlock function does not
work.

→ Since door unlock relay is malfunction,

replace the door unlock relay.

2.

Unlock function works but lock function does not work.
→ Since door lock relay is malfunction, replace the
door lock relay.

3.

When passenger side knob is controlled, all doors
locks, but when driver side knob is controlled, all doors
do not lock.

1. Input wiring short of driver's
    side door lock switch

Driver's side door lock switch

inspection

2. Internal switch contact failure
    of driver's side door lock
    actuator

1. Check the wiring between connectors
    BCM-B(6) and drive power door lock
    sw(1) or BCM-B(8) and drive power
    door lock(6).
2. Check the wiring between connector (2)
    and ground.

Measure resistance of actuator by
handling it by the hand after connecting
an ohmmeter to the both ends of actuator
unit.
Locked condition :

Unlocked condition : Normal if it is below 1

Ω

(Connector terminal of driver's
  side door lock actuator)

(Connector terminal of
  left doors' lock actuator)

(Connector terminal of
 right doors' lock actuator)

1. Output wiring short of all
    doors' lock actuator

2. All doors' lock actuator failure

Apply 12V to the both ends under
uninstalled condition, and it's normal if
it operates.

Check the output wiring between door
lock relay and all doors' actuator

NG

OK

[Central Lock]

1 2 3 4 5 6

[Dead Lock]

1 2 3 4 5 6 7

[Dead Lock]

1 2 3 4 5 6 7

[Dead Lock]

1 2 3 4 5 6 7

[Central Lock]

1 2 3 4 5 6

[Central Lock]

1 2 3 4 5 6

[Driver]

[Assist]

[Rear]

SCMBE6252L

BE -128

BODY ELECTRICAL SYSTEM

4.

When driver side knob is controlled. All doors lock.
But when the passenger side knob is controlled, all
doors do not lock.

1. Input wiring short of

passenger's



    side door lock switch

Passenger's side door lock

switch inspection

2. Internal switch contact failure
    of passenger's side door lock
    actuator

1. Check the wiring between connectors
    BCM-B(19) and assist power door lock
    sw(6) or BCM-B(9) and assist power
    door lock(1).
2. Check the wiring between connector
    D04(5) and ground.

Measure resistance of actuator by
handling it by the hand after connecting
an ohmmeter to the both ends of actuator
unit.
Locked condition :

Unlocked condition : Normal if it is below 1

Ω

1. Output wiring short of all
    doors' lock actuator

2. All doors' lock actuator failure

Apply 12V to the both ends under
uninstalled condition, and it's normal if
it operates.

Check the output wiring between door
lock relay and all doors' actuator.

NG

OK

(Connector terminal of
  passenger's side door
  lock actuator)

(Connector terminal of
  left doors' lock actuator)

(Connector terminal of
  right doors'  lock actuator)

[Central Lock]

1 2 3 4 5 6

[Dead Lock]

1 2 3 4 5 6 7

[Dead Lock]

1 2 3 4 5 6 7

[Dead Lock]

1 2 3 4 5 6 7

[Central Lock]

1 2 3 4 5 6

[Central Lock]

1 2 3 4 5

6

[Driver]

[Assist]

[Rear]

SCMBE6253L
