ETACS (ELECTRONIC TIME AND ALARM CONTROL SYSTEM)

BE -97

BCM CURRENT DATA

The body control module can diagnose with the diagnosis
tool more quickly.
The BCM communicates with the diagnosis tool and then
reads the input/output value and drives the actuator.

INPUT/OUTPUT VALUE

SECTION

BCM DISPLAY

ABBREVIATION

UNIT

REMARKS

IGN1

IG1

OFF/ON

INPUT

IGN2

IG2

OFF/ON

INPUT

ALT L

ALT VOLT

OFF/ON

INPUT

KEY IN SW

KEY IN

OUT/IN

INPUT

STARTER INHIBIT RELAY(+RK)

INHIBIT

ENABLE/

STOP

OUTPUT

POWER WINDOW RELAY

P/WDW RLY

OFF/ON

OUTPUT

POWER

AUTO LIGHT POWER

LIGHT PWR

OFF/ON

TAIL LAMP SW

TAIL SW

OFF/ON

INPUT

AUTO LIGHT SW(-DRL)

LIGHT SW

OFF/ON

INPUT

HEAD LAMP SW

HEAD/L SW

OFF/ON

INPUT

FRONT FOG SW

FF FOG SW

OFF/ON

INPUT

H/LAMP HIGH SW

H/LAMP HI

OFF/ON

INPUT

DRL OPTION LINE SW

DRL

NONE/DRL

INPUT

TAIL LAMP RELAY

TAIL RLY

OFF/ON

OUTPUT

HEAD LAMP RELAY

H/L RLY

OFF/ON

OUTPUT

HAZARD LAMP RELAY(+RK)

HAZARD RL

OFF/ON

OUTPUT

DRIVER SEAT BELT IND.

D S/BELT

OFF/ON

OUTPUT

ROOM LAMP

OFF/ON

OUTPUT

IGN KEY HOLE ILL.

KEY ILL.

OFF/ON

OUTPUT

SECURITY INDICATOR

S/IND.

OFF/ON

OUTPUT

DRL RELAY

DRL RLY

OFF/ON

OUTPUT

H/LAMP HIGH RLY

H/L RLY

OFF/ON

OUTPUT

LAMP

H/LAMP HIGH IND.

H/L IND.

OFF/ON

OUTPUT

DRIVER DOOR OPEN SW

D/DOOR SW

CLOSED/

OPEN

INPUT

ASSIST DOOR OPEN SW

A/DOOR SW

CLOSED/

OPEN

INPUT

4 DOOR SWITCH

4DOOR SW

CLOSED/

OPEN

INPUT

TAIL GATE SW

TAIL

CLOSED/

OPEN

INPUT

ENTER ANCE

HOOD SWITCH(+RK)

HOOD SW

CLOSED/

OPEN

INPUT

BE -98

BODY ELECTRICAL SYSTEM

SECTION

BCM DISPLAY

ABBREVIATION

UNIT

REMARKS

DR.DOOR ACT.POSI.SW

D/DR ACT

UNLOCK/

LOCK

INPUT

AS.DOOR ACT.POSI.SW

A/DR ACT

UNLOCK/

LOCK

INPUT

RH,RR,T/GATE ACT POSI.SW

ACT SW

UNLOCK/

LOCK

INPUT

DR.DOOR KEY LOCK SW

DR KEY SW

OFF/ON

INPUT

DR.DOOR KEY UNLOCK SW

D/DR KEY

OFF/ON

INPUT

AS.DOOR KEY UNLOCK SW

A/DR KEY

OFF/ON

INPUT

T/GATE KEY UNLOCK SW

TRUNK SW

OFF/ON

INPUT

CTRL DOOR LOCK SW

CTRL D/LO

OFF/ON

INPUT

CTRL DOOR UNLOCK SW

CTRL D/UN

OFF/ON

INPUT

CRASH UNLOCK SIGNAL

CRASH SIG

OFF/ON

INPUT

DOOR LOCK RELAY

DR L/RLY

OFF/ON

OUTPUT

DOOR UNLOCK RELAY

DR U/RLY

OFF/ON

OUTPUT

T/GATE KEY LOCK SW

TRUNK SW

OFF/ON

OUTPUT

LOCK / UNLOCK

DEAD LOCK RELAY

OFF/ON

OUTPUT

WASHER SWITCH

WASHER SW

OFF/ON

INPUT

INT.WIPER SWITCH

INT SW

OFF/ON

INPUT

REAR DEFOGGER SW

RR DEF SW

OFF/ON

INPUT

H/LAMP WASHER SW

H/WASHER

OFF/ON

INPUT

WIPER RELAY

WIPER RLY

OFF/ON

OUTPUT

REAR DEFOGGER RELAY

RR DEF RLY

OFF/ON

OUTPUT

H/LAMP WASHER RLY

H/L RLY

OFF/ON

OUTPUT

WIPER DEFFO GER

MIST SW

OFF/ON

INPUT

OVER SPEED INPUT

O/SPEED

OFF/ON

INPUT

DRIVER SEAT BELT SW

D S/B SW

UNBUCKLED

/BUCKLED

INPUT

P/BRAKE SW

P/BRAKE

UNPARK/

PARK

INPUT

BUGLAR HORN RELAY

BUR. RLY

OFF/ON

OUTPUT

WARNING

CHIME BELL

CHIM. BELL

OFF/ON

OUTPUT

INT. VOLUME(-RAIN)

INT. VOL

INPUT

AUTO LIGHT SNSR

A/LIGHT

INPUT

ANALOG INPUT
SIGNAL

SPEED SIGNAL

VSS

Km/h

INPUT

ETC

SAFETY P/W ECU

P/W ECU

OFF/ON

INPUT

ETACS (ELECTRONIC TIME AND ALARM CONTROL SYSTEM)

BE -99

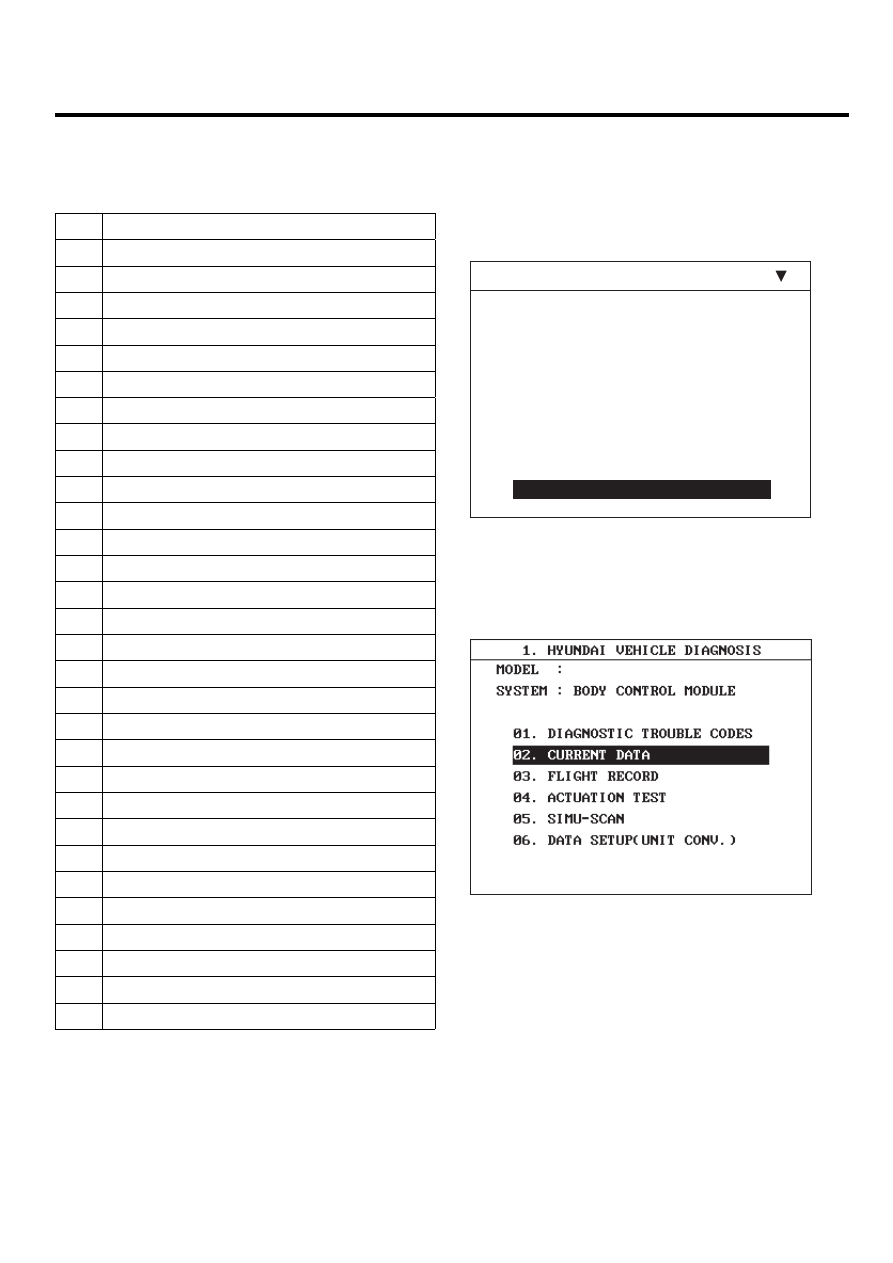

BCM ACTUATOR OPERATION

SCAN tool can operates all actuators controlled by BCM
by force.

NO.

BCM DISPLAY

Tail lamp

Head lamp low

Head lamp high

Head lamp high indicator

Front fog lamp

Front fog lamp indicator

Rear fog lamp

Day Running light

Low speed wiping relay

High speed wiping relay

Defroster relay

Trunk release

B/A Horn

Room Lamp

Hazard Lamp + Flasher Buzzer Output

Left turn signal + Flasher Buzzer Output

Right turn signal + Flasher Buzzer Output

Buzzer

Key illumination

Seat Belt Indicator(Driver side and Assist side)

Head Lamp Washer

Start Inhibition output

External Buzzer output

Security Led output

Rear RH Power window Up

Rear RH Power Window Down

Rear LH Power window Up

Rear LH Power Window Down

Foot lamp output

AV TAIL output

BCM DIAGNOSIS WITH SCAN TOOL

It will be able to diagnose defects of BCM with scan
tool quickly. Scan tool can operates actuator force-
fully, input/output value monitoring and self diagnosis.

Select model and menu.

1. HYUNDAI VEHICLE DIAGNOSIS

MODEL : SANTAFE 06-

01. ENGINE (GASOLINE)

02. ENGINE (DIESEL)

03. AUTOMATIC TRANSAXLE

04. ABS/ESP

05. SRS-AIRBAG

06. ELEC.POWER STEERING

07. FULL AUTO AIR/CON.

08. BODY CONTROL MODULE

SCMBE6385L

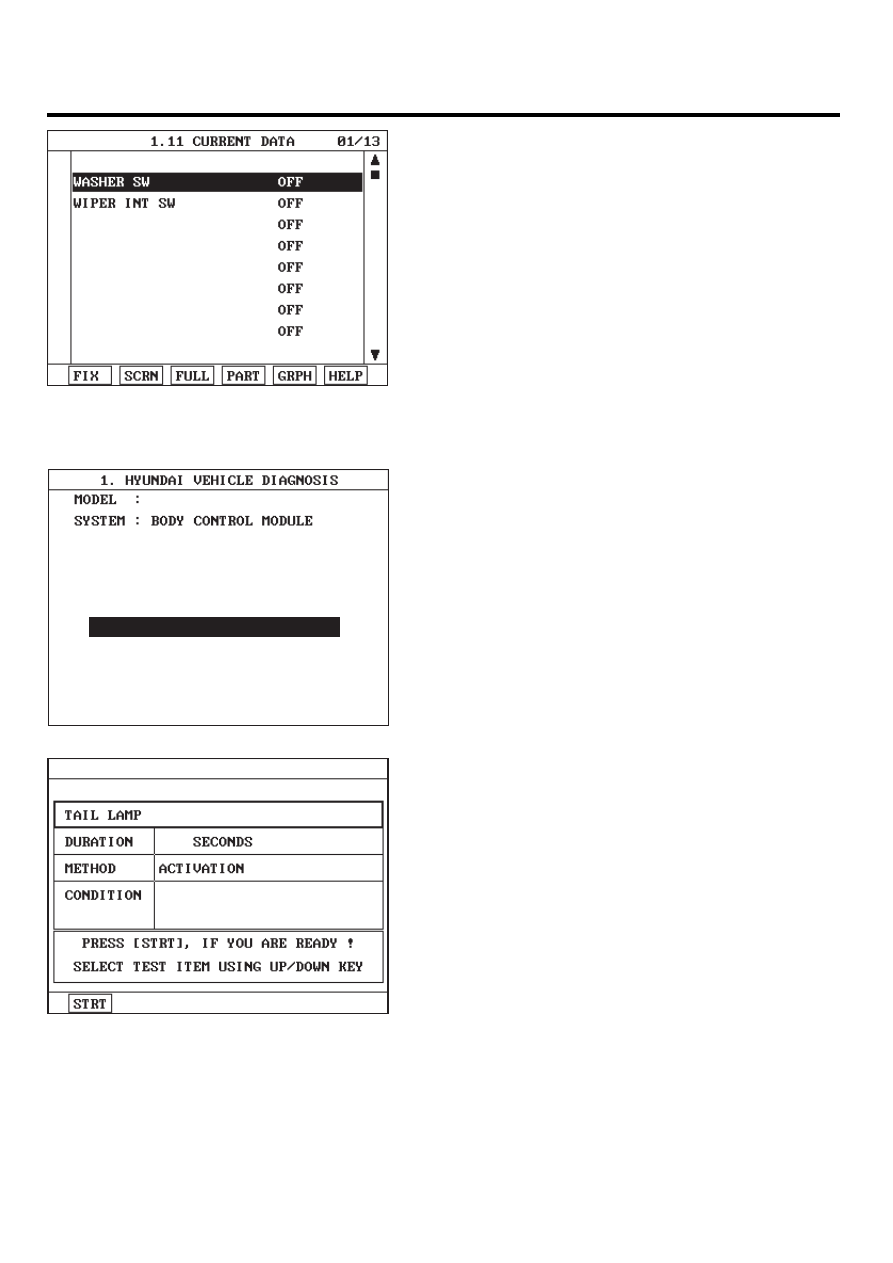

Select "Current data", if you will check current data of
BCM. It provides power supply status, multi function
status, lamp status, door status, lock system status,
wiper, auto light status and so on.

SANTAFE 06-

SCMBE6356L

BE -100

BODY ELECTRICAL SYSTEM

DEFROSTER SW

HEAD LAMP WASH SW

DEFROSTER REPLAY

HEAD LAMP WASH RLY

MIST SW

SCMBE6358L

If you will check BCM data operation forcefully, select
"Actuation test".

SANTAFE 06-

01. DIAGNOSTIC TROUBLE CODES

02. CURRENT DATA

03. FLIGHT RECORD

04. ACTUATION TEST

05. SIMU-SCAN

06. DATA SETUP (UNIT CONV.)

SCMBE6218L

1.3 ACTUATION TEST

RELAY/DRL UNIT

09/21

ENGINE : IDLE
TRANSAXLE RANGE : P

SCMBE6219L

You can turn ON/OFF as below option function with
the user option program.

LOCK / UNLOCK comfirming alarm:

Alarm

sound ON/OFF control when you LOCK/UN-
LOCK doors with transmitter.

Mechanical LOCKING system:

Arm/Disarm

ON/OFF when you lock the door with the me-
chanical key.

AUTO DOOR LOCK/UNLOCK system ON/OFF.
-

Vehicle speed gearing AUTO DOOR LOCK
(more than 20km/h)

AUTO DOOR LOCK non application

Shift lever gearing AUTO DOOR LOCK

Driver seat AUTO DOOR LOCK

AUTO DOOR UNLOCK non application

All doors UNLOCK in the case of driver door
UNLOCK

All doors UNLOCK in the case of IGN key
seperation.

Riding ＆ Getting off gearing
-

Seat installation state ON/OFF

Seat riding ＆ getting off gearing ON/OFF

Column installation state ON/OFF

Column riding ＆ getting off gearing ON/OFF
