ETACS (ELECTRONIC TIME AND ALARM CONTROL SYSTEM)

BE -89

8)

In case of the LOCK/UNLOCK is performed at
the same time, perform the LOCK function first.

9)

In case of entering at the same time by
KEY/TX/DR LOCK SW, the priority order shall
be TX > KEY > DR LOCK SW.

10) In case of the same condition for (8), (9) items is

occurred, (9) item shall be the first.

11) In case of DEAD LOCK is performed, if ACTUA-

TOR UNLOCK SW is lock, and then output the
DEAD LOCK without 200msec delay.

12) In case of DEAD UNLOCK is performed, if ACTU-

ATOR UNLOCK SW is unlock, and then execute
the DEAD UNLOCK, not CENTRAL UNLOCK.

13) In DEAL LOCK state, in case of KEY IN and IGN1

SW state is turned to ON from OFF, and then
output the DEAD UNLOCK for 0.5 seconds.

KEY or
TX(transmitter)
Signal

LOCK

UNLOCK

DRIVER
UNLOCK SW

ON

OFF

DRIVER

LOCK SW

(P/ WDW)

(P/ WDW)

ON

OFF

LOCK RELAY

ON

OFF

DEAD LOCK

RELAY

ON

OFF

T1

T1

T2

T1

UNLOCK

RELAY

ON

OFF

T1

T1

T2

T1

SCMBE6910L

T1 : 0.5 ± 0.1 sec, T2 : 0.2 ± 0.05 sec.

24. 3KM SIGNAL OUTPUT CONTROL

If the vehicle speed is maintained at more than 3km/h
for 2~3 seconds in the IGN1 ON state, the signal of 3
KM Output-port shall be ON.

IGN 1
SW

ON

OFF

VSP

OVER 3 KPH

3KM

OUTPUT

OFF

ON

0KPH

T1

T1

T1

SCMBE6911L

T1 : 2.5 ± 0.5 sec.

BE -90

BODY ELECTRICAL SYSTEM

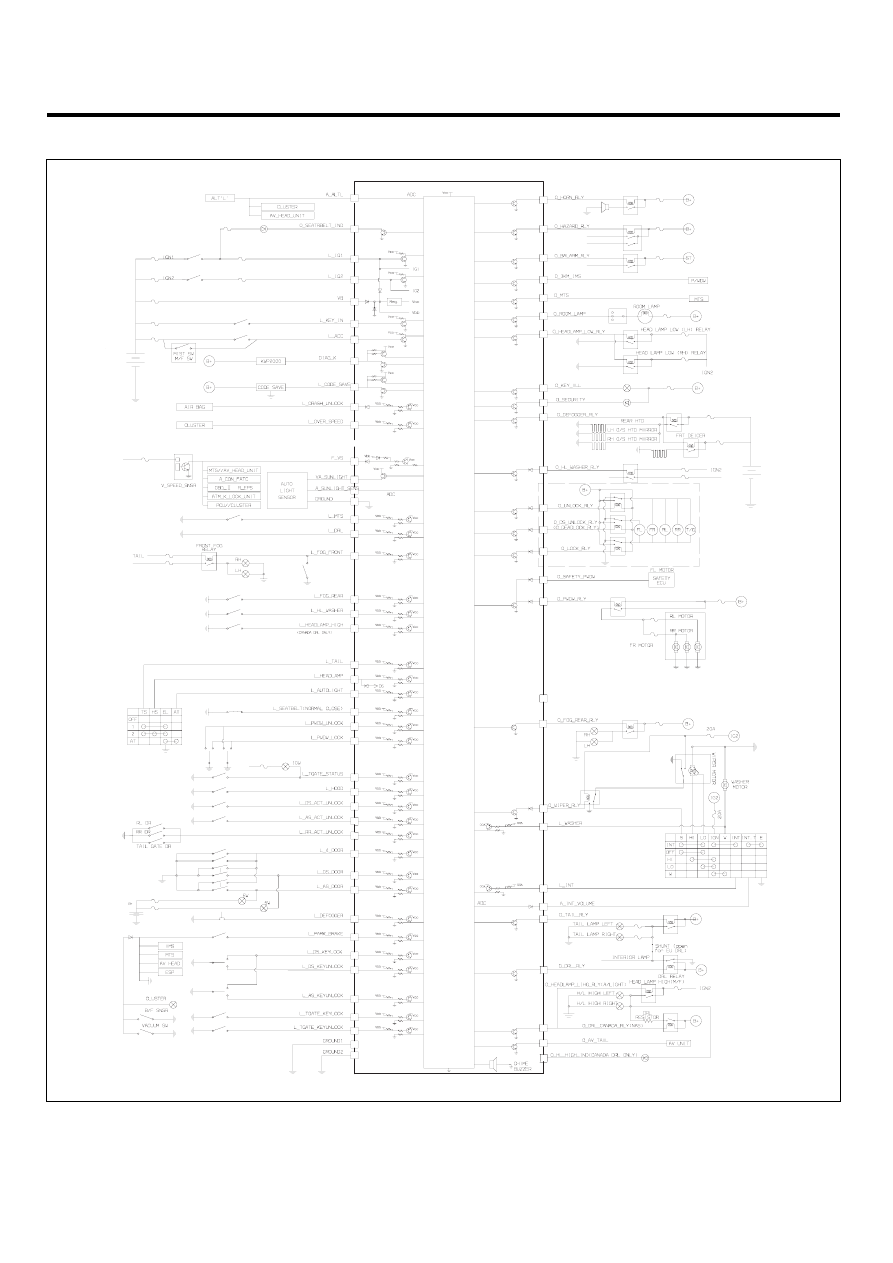

CIRCUIT DIAGRAM

E6C22B36

A5

A6

A1

C7

C8

C6

C1

C9

C3

A9

B1

B24

B25

B14

D19

A12

A11

A10

B10

B11

B13

B12

C12

C11

B26

B7

B20

B17

B4

B6

B19

B18

B15

B3

B16

B22

B23

B8

B21

B9

B2

B5

A3

D22

D17

D7

D12

A14

A13

A4

D5

D10

D20

D1

D8

D2

D13

D3

D21

D18

A2

D16

D6

C10

C2

C13

D14

D4

D15

A8

D9

SCMBE6149D

ETACS (ELECTRONIC TIME AND ALARM CONTROL SYSTEM)

BE -91

INSPECTION

E90F6A81

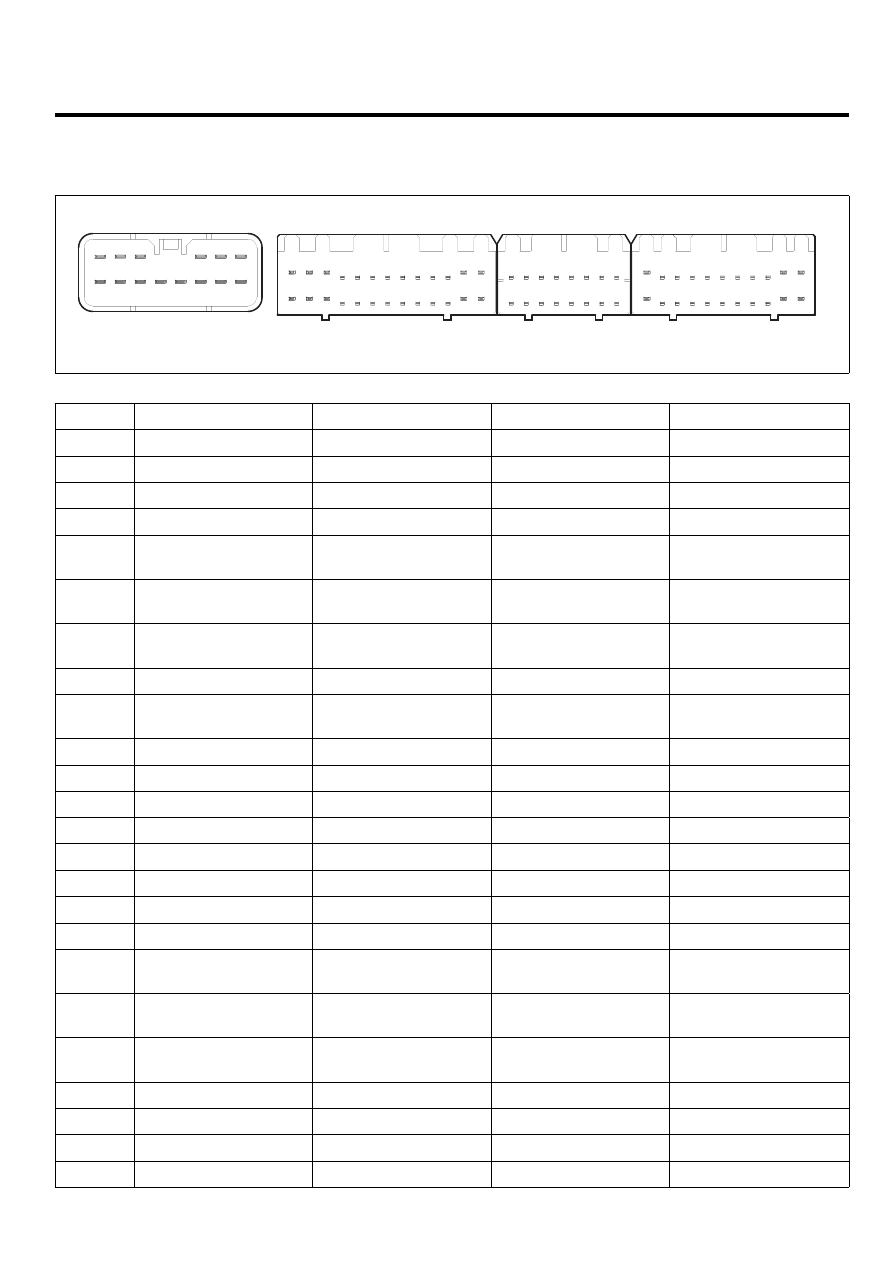

BCM CONNECTORS

A1 A2 A3

A7 A8 A9

A4

A5 A6

A10 A11 A12 A13 A14

B1 B2 B3

C1 C2 C3 C4 C5 C6 C7 C8

C9 C10 C11 C12 C13 C14 C15 C16

B4 B5 B6 B7 B8 B9 B10B11

D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11

D12 D13 D14D15 D16 D17D18 D19 D20 D21 D22

B12 B13

B14 B15 B16B17 B18B19 B20B21B22 B23 B24 B25 B26

Connector A

Connector B

Connector C

Connector D

SCMBE6152L

PIN NO

CONNECTOR A

CONNECTOR B

CONNECTOR C

CONNECTOR D

1

Battery voltage

Tail switch

Front fog lamp switch

Defogger switch

2

-

Tailgate key lock switch

INT switch

Unlock relay

3

Ground 1

Drive door switch

-

Lock relay

4

Room lamp

Hood switch

-

DRL relay

5

ALT "L"

Tailgate key unlock

switch

-

Head lamp low relay

6

IGN1

Drive actuator unlock

switch

Vehicle speed

Wiper relay

7

ARM buzzer

Power window unlock

switch

K-line

Hazard relay

8

AV tail output

Drive key lock switch

Code save

-

9

Head lamp high switch

Assistant key unlock

switch

Rear fog lamp switch

Head lamp high indicator

10

ACC(L_MIST)

Crash unlock

Washer switch

Key illumination lamp

11

Key IN switch

Overspeed input

DRL switch

-

12

IGN2

Sunlight sensor

-

Burglar alarm relay

13

-

Sunlight sensor power

INT volume

Driver unlock relay

14

3KM to IMS

Seat belt switch

-

Tail relay

15

4Door switch

-

Head lamp high relay

16

Assistant door switch

-

Rear fog lamp relay

17

Tailgate switch

Horn relay

18

Rear actuator unlock

switch

Power window relay

19

Assistant actuator

unlock switch

Seat belt indicator

20

Power window lock

switch

Security indicator

21

Driver key unlock switch

Safety power window

22

Defogger switch

Ground 1

23

Parking brake switch

24

Head lamp switch

BE -92

BODY ELECTRICAL SYSTEM

PIN NO

CONNECTOR A

CONNECTOR B

CONNECTOR C

CONNECTOR D

25

Auto light switch

26

Sunlight switch

BCM INPUT/OUTPUT SPECIFICATION

CONNECTOR A

PIN NO.

PIN NAME

Input acquisition threshold voltage

(Operating Voltage 9V to 16V at normal

temperature / Output type)

A01

BATTERY VOLTAGE

9V ~ 16V

A02

-

-

A03

GROUND 1

GND

A04

ROOM LAMP

Low side / FET

A05

ALT "L"

Analog input

ON

6V above

A06

IGN1 SW

OFF

2V below

A07

ARM BUZZER

10V above

A08

AV TAIL OUTPUT

1V below

ON

6V above

A09

HEAD LAMP HIGH SW

OFF

2V below

ON

6V above

A10

ACC (L_MIST)

OFF

2V below

ON

6V above

A11

KEY IN SW

OFF

2V below

ON

6V above

A12

IGN2 SW

OFF

2V below

A13

-

-

A14

3KM TO IMS

Low side / FET
