ATA -98

AUTOMATIC TRANSAXLE (A5HF1)

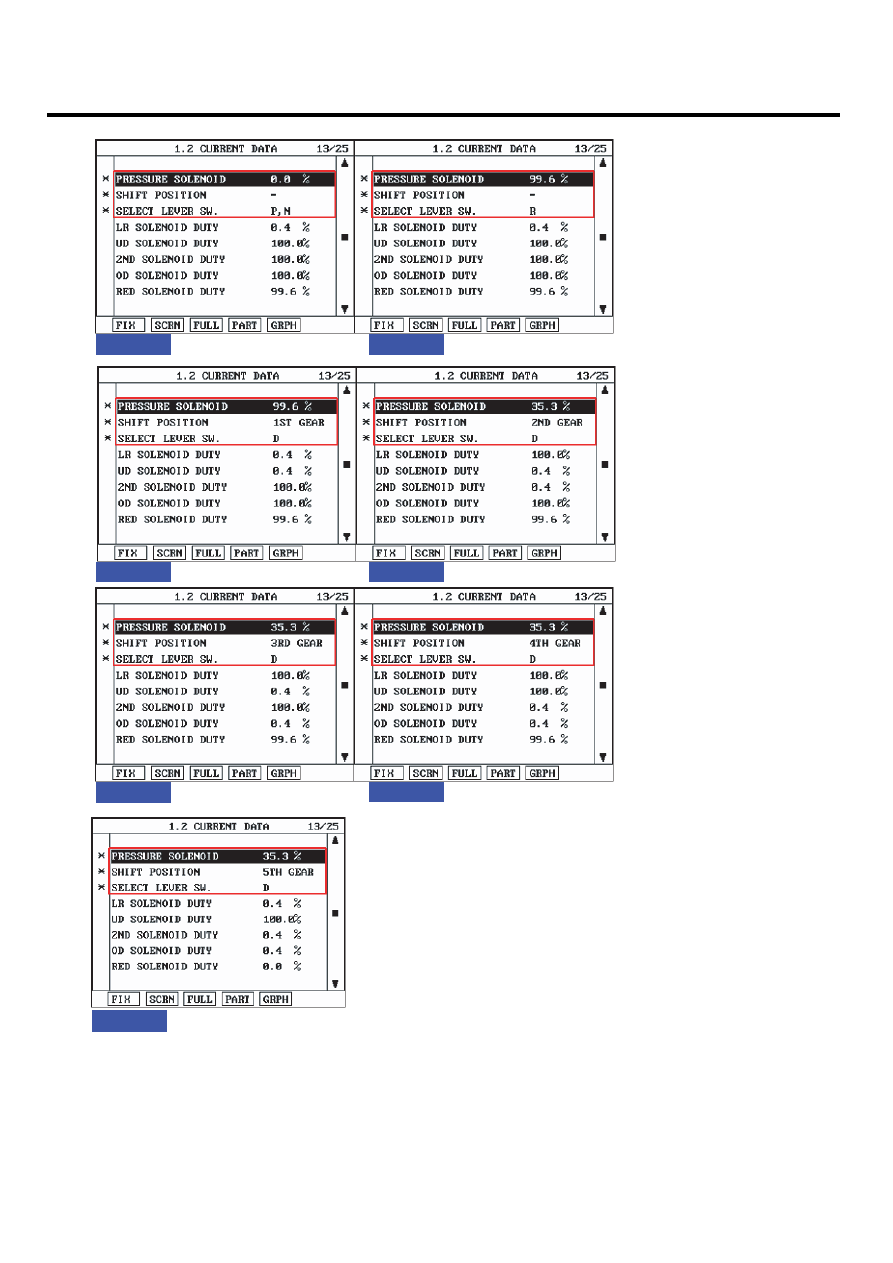

FIG.1)

FIG.2)

FIG. 1) P,N
FIG. 2) "R"
FIG. 3) "D 1st" gear
FIG. 4) "2nd" gear
FIG. 5) "3rd" gear
FIG. 6) "4th" gear
FIG. 7) "5th" gear

FIG.3)

FIG.4)

FIG.5)

FIG.6)

FIG.7)

LKKG209C

AUTOMATIC TRANSAXLE SYSTEM

ATA -99

5.

Does "PRESS CONTROL SOL DUTY " follow the reference data?

YES

▶ Fault is intermittent caused by poor contact in the sensor’s and/or TCM(PCM)’s connector or was repaired and
TCM(PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, cor-
rosion, contamination, deterioration or damage. Repair or replace as necessary and go to "Verification of vehicle
repair" procedure.

NO

▶ Go to "Terminal＆connector inspection" procedure.

TERMINAL & CONNECTOR INSPECTION

E8D66ED7

Refer to DTC P0743.

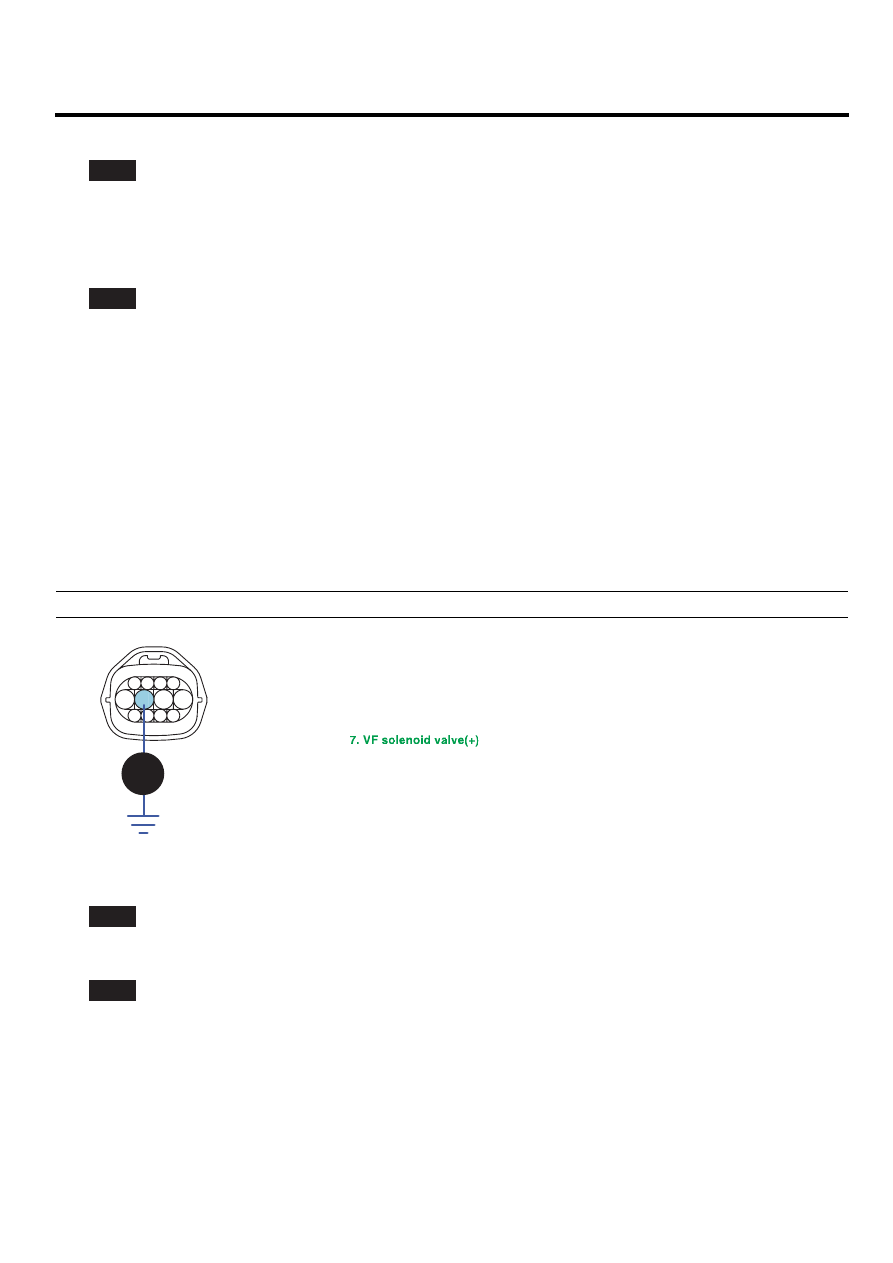

POWER SUPPLY CIRCUIT INSPECTION

E62D4DDE

1.

Disconnect "A/T SOLENOID VALVE" connector.

2.

Measure voltage between terminal "7" of the sensor harness connector and chassis ground.

3.

Measure voltage of VFS solenoid valve.

Specification: Approx.12V

1

2

3

4

5

6

7

8

9

10

11

12

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery

8. VF solenoid valve(-)
9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoide valve

C209

v

SCMAT6365L

4.

Is voltage within specifications?

YES

▶ Go to "Signal circuit inspection" procedure.

NO

▶ Check that A/T-20A fuse in engine room junction is installed or not blown.
▶ Check for open in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

ATA -100

AUTOMATIC TRANSAXLE (A5HF1)

SIGNAL CIRCUIT INSPECTION

EFA578D0

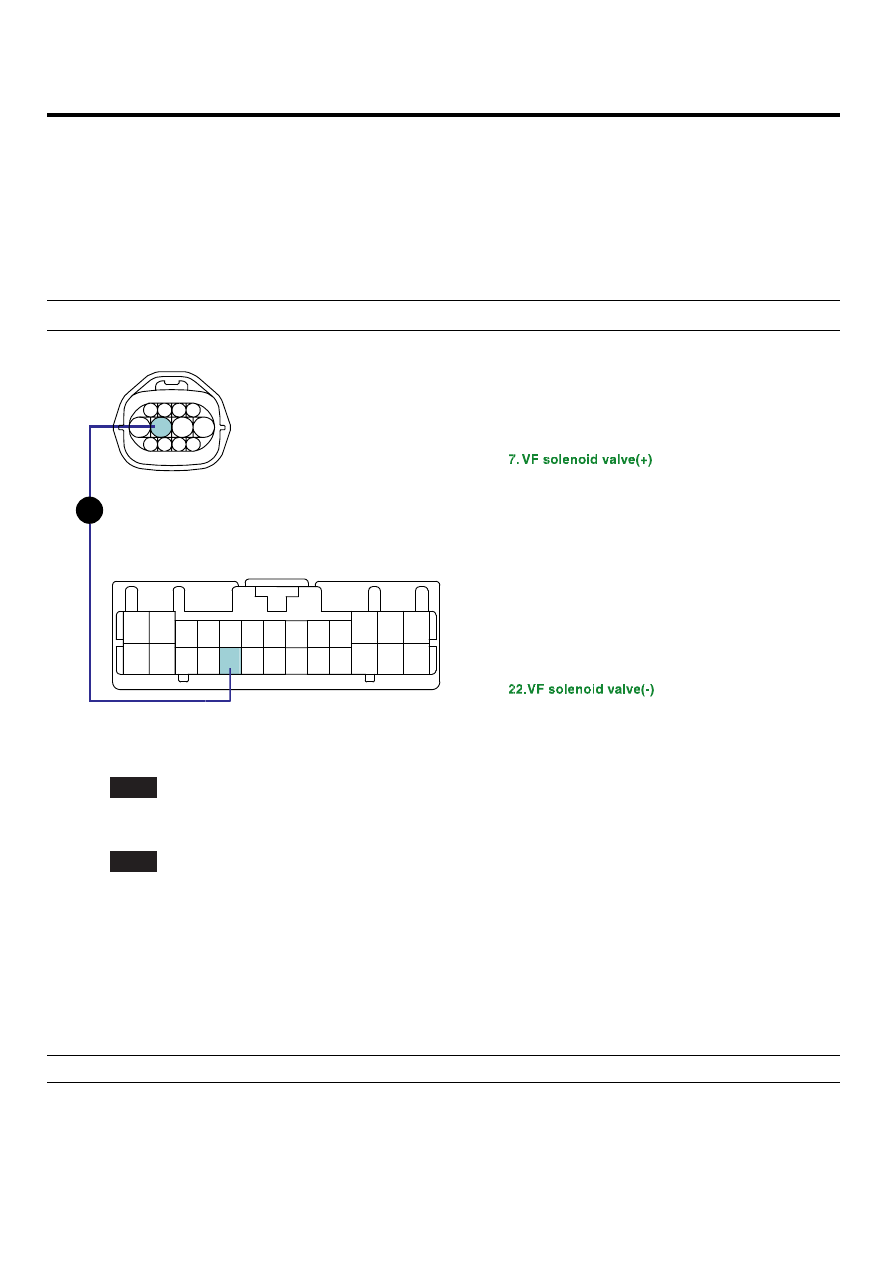

1.

Check signal circuit open inspection.

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.
Measure resistance between terminal "7" of the ATM SOLENOID VALVE harness connector and terminal "22"
of the PCM/TCM harness connector.

Specification: approx. 0 Ω

1

2

3

-

-

-

-

-

-

-

-

-

-

-

11

12

13

26

25

24

22 21

19

16

15

14

1

2

3

4

5

9

10

11

12

6

7

8

Ω

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery

8. VF solenoid valve(-)
9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoide valve

01.UD solenoid valve control
14.OD solenoid valve control
15.DCC solenoid valve control
16.2ND solenoid valve control

C209

C224-A

SCMAT6366L

3)

Is resistance within specifications?

YES

▶ Go to "Check signal circuit short inspection" procedure.

NO

▶ Check for open in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

2.

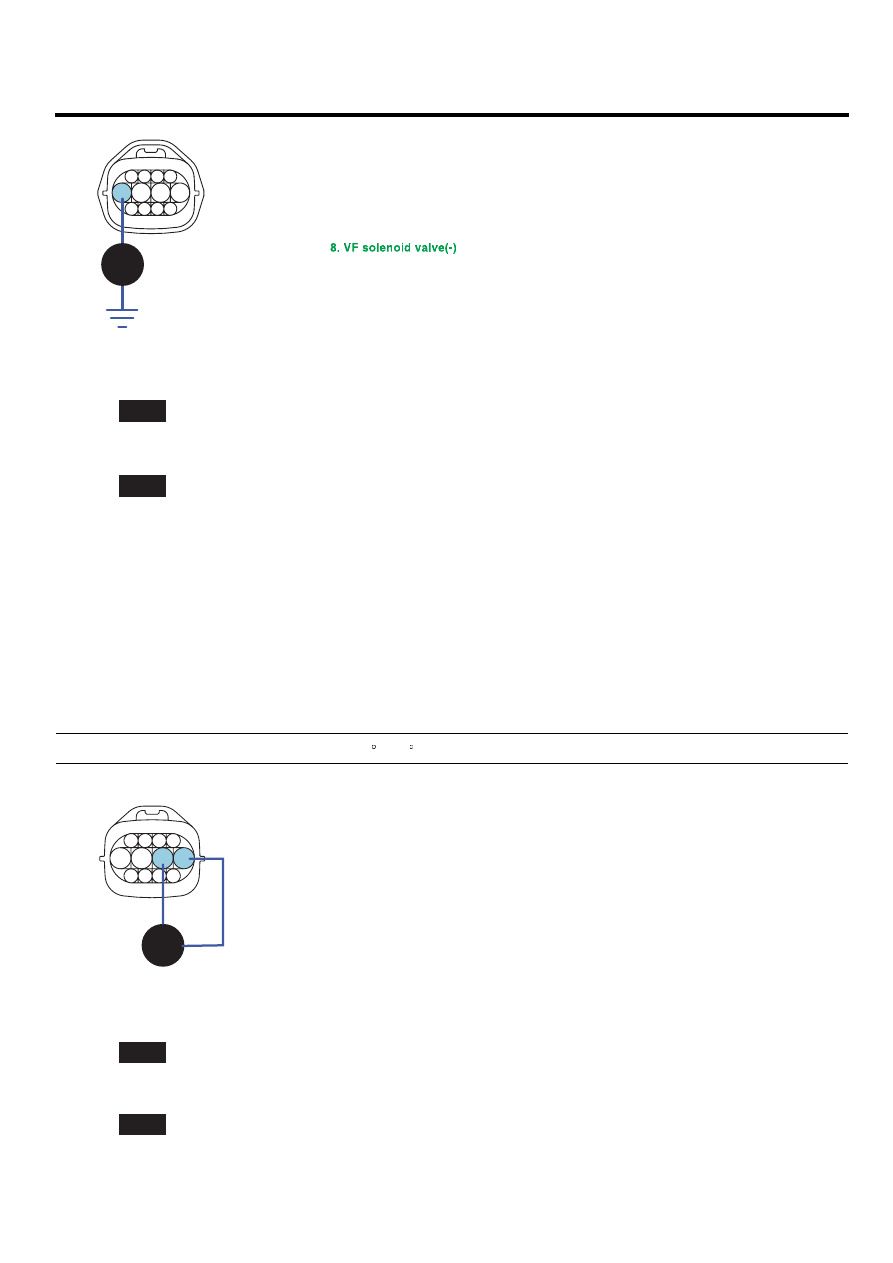

Check signal circuit short inspection

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector

3)

Measure resistance between terminal "8" of the ATM SOLENOID VALVE harness and chassis ground.

Specification: Infinite

AUTOMATIC TRANSAXLE SYSTEM

ATA -101

1

2

3

4

5

6

7

8

9

10

11

12

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery

7. VF solenoid valve(+)

9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoide valve

C209

Ω

SCMAT6367L

4)

Is resistance within specifications?

YES

▶ Go to "Component inspection" procedure.

NO

▶ Check for short to ground in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

COMPONENT INSPECTION

EBB36BC3

1.

CHECK SOLENOID VALVE

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector.

3)

Measure resistance between terminal "7" and terminal "8" of the ATM SOLENOID VALVE harness connector.

Specification: Approximately 4.35±0.35Ω [20 C(68 F)]

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery

7. VF solenoid valve(+)
8. VF solenoid valve(-)

9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoide valve

C209

Ω

1 2 3 4

5

6

7

8

9 10 1112

Component Side

SCMAT6368L

4)

Is resistance within specification?

YES

▶ Go to "CHECK PCM/TCM" as below.

NO

▶ Replace "PRESS CONTROL SOL VALVE(VFS)" as necessary and go to "Verification of vehicle repair" pro-
cedure.
