Hyundai Santa Fe (2006 year). Manual - part 79





ATA -74

AUTOMATIC TRANSAXLE (A5HF1)

OPERATING ELEMENT OF EACH SHIFTING RANGE

ELEMENT

GEAR

POSI-

TION

L/R

BRAKE

2ND

BRAKE

U/D

CLUTCH

O/D

CLUTCH

RED

BRAKE

DIR

CLUTCH

REV

CLUTCH

OWC1

OWC2

1st

O

O

O

2nd

O

O

O

3rd

O

O

O

4th

O

O

O

5th

O

O

O

REV

O

O

O

N,P

O

O

Low & Reverse Brake is released When the vehicle speed over the 5MPH(7km/h)

Stall test procedure in D3 and reason
Procedure
1.

Warm up the engine.

2.

After making 3rd gear hold by disconnecting the solenoid connector, and Then depress the foot brake pedal fully
After that, step on the accelerator pedal to the maximum.
* The slippage of 3rd gear operating parts can be detected by stall test in D3.

Reason for stall test
1.

If there is no mechanical defaults in A/T, all slippages occurrs in torque converter.

2.

Therefore, engine revolution is output, but input and output speed revolution must be "zero" due to wheel’s lock.

3.

If OD clutch system(3rd gear operating part) has faults, input speed revolution will be out of specification.

4.

If output speed revolution is output. It means that the foot brake force is not applied fully. Remeasuring is re-
quired.

5.

Is "STALL TEST " within specification?

YES

▶ Go to "Signal circuit inspection" procedure.

NO

▶ Go to "Component inspection" procedure.

CAUTION

1.

Do not let anybody stand in front of or behind the vehicle while this test is being carried out.

2.

Check the A/T fluid level and temperature and the engine coolant temperature.

• Fluid level : At the hot mark on the oil level gauge.
• Fluid temperature : 176 F~ 212 F (80~100 C).
• Engine coolant temperature : 176 F~ 212 F (80~100 C).

3.

Chock both rear wheel(left and right).

4.

Pull the parking brake lever on with the brake pedal fully depressed.

5.

The throttle should not be left fully open for more than eight second.

6.

If stall test is being performed more than once, move the selector lever to ’N’ and run the engine at 1000
RPM to allow the transaxle fluid to cool prior to subsequent tests.

AUTOMATIC TRANSAXLE SYSTEM

ATA -75

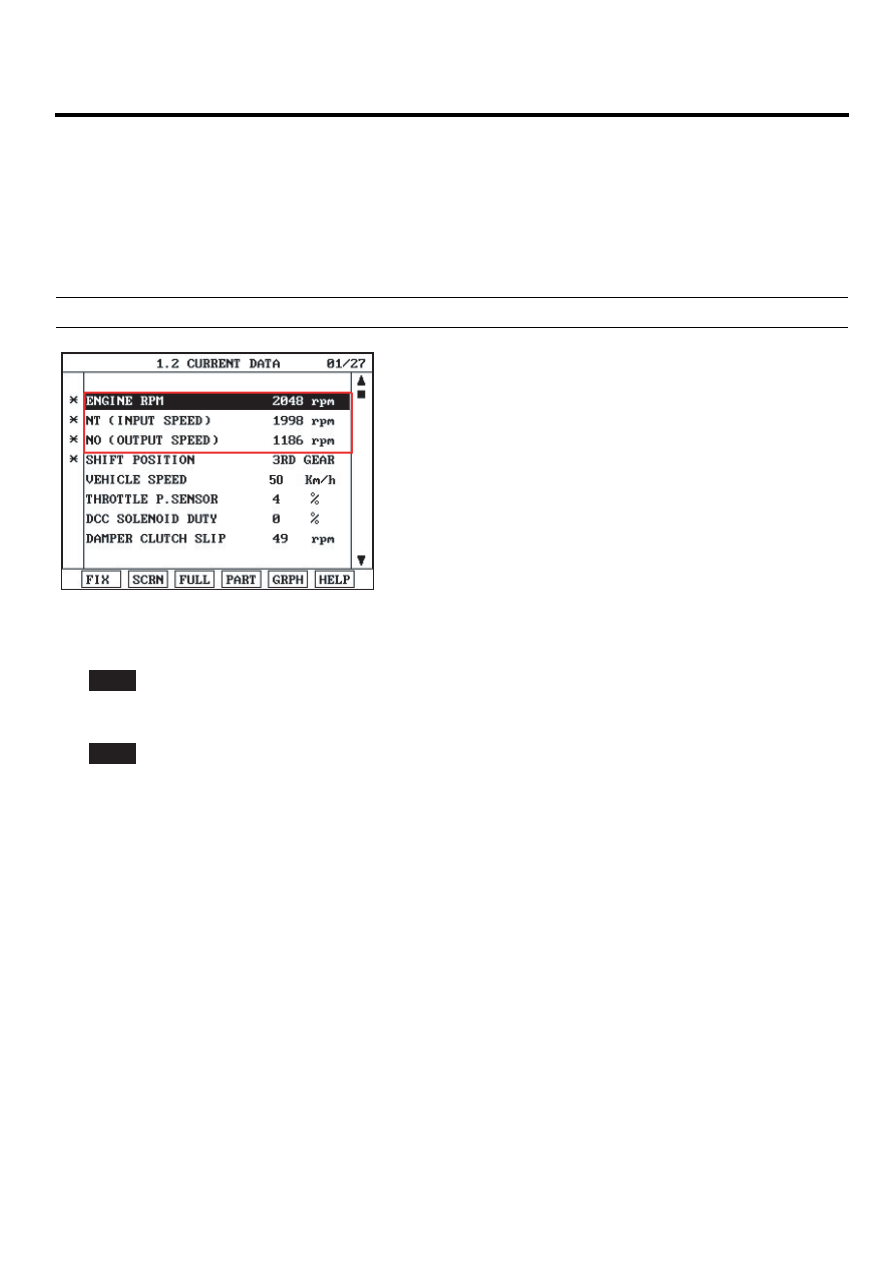

SIGNAL CIRCUIT INSPECTION

E88593BD

1.

Connect Scantool.

2.

Engine "ON".

3.

Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scantool.

4.

Accelerate the Engine speed until about 2000 rpm in the 3rd gear.

Specification : INPUT SPEED - (OUTPUT SPEED × GEAR RATIO) ≤ 200 RPM

EKBF109C

5.

Is "INPUT & OUTPUT SPEED SENSOR" within specifications?

YES

▶ Go to "Component Inspection" procedure.

NO

▶ Check for electrical noise of circuit in INPUT & OUTPUT SPEED SENSOR or Replace INPUT & OUTPUT SPEED
SENSOR. Repair as necessary and Go to "Verification of Vehicle Repair" procedure .

ATA -76

AUTOMATIC TRANSAXLE (A5HF1)

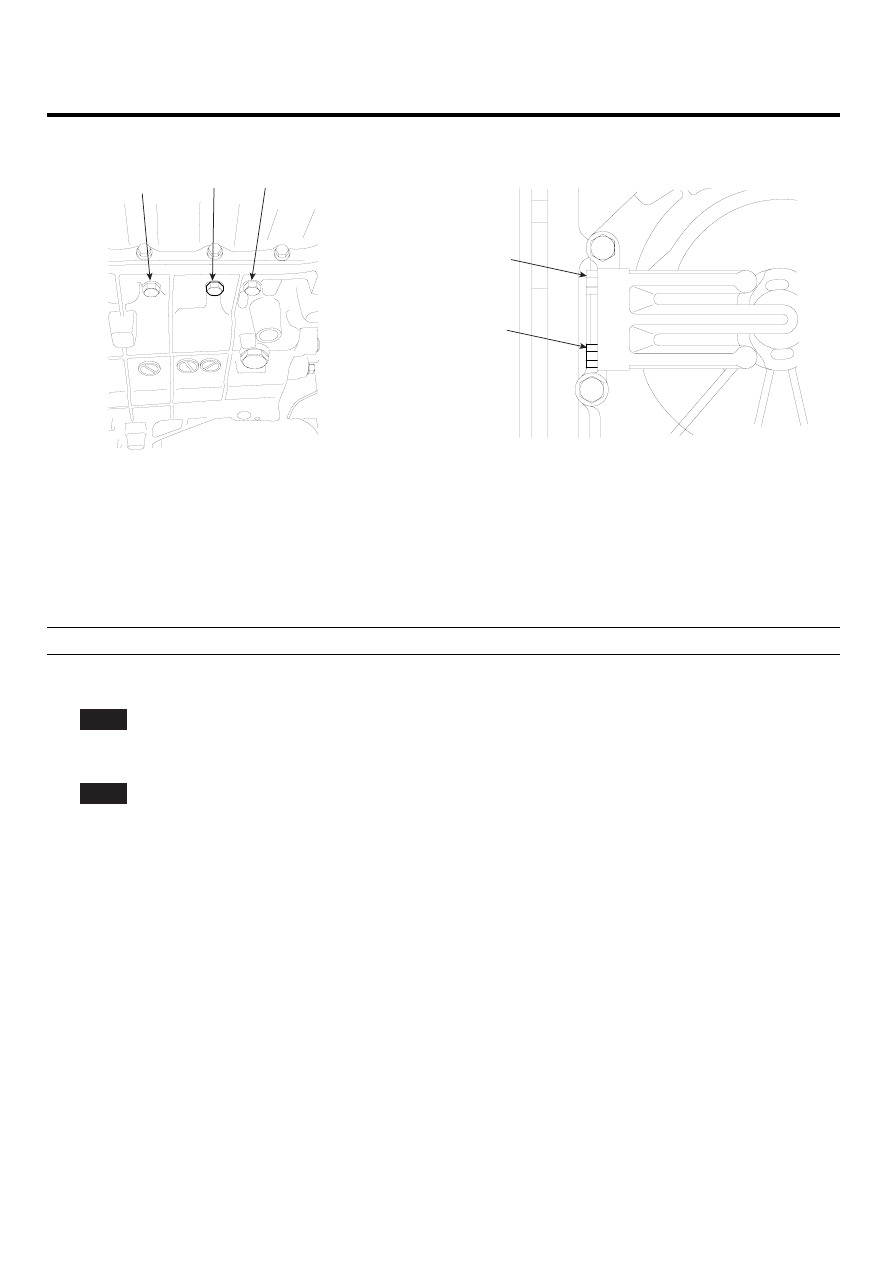

COMPONENT INSPECTION

EBA7A39D

2ND

UD

LR

RVS

OD

EKBF109D

1.

Connect oil pressure gauge to "UD" and "OD" and "RED" port.

2.

Engine "ON".

3.

Drive a car with gear position 3 in "SPORTS MODE".

4.

Compare it with reference data as below.

Specification : Refer to DTC P0731

5.

Is oil pressure value within specifications?

YES

▶ Repair AUTO TRANSAXLE(Clutch or Brake) as necessary and Go to "Verification of Vehicle Repair" procedure.

NO

▶ Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "Verification of Vehicle
Repair" procedure.

VERIFICATION OF VEHICLE REPAIR

E30B2DBE

Refer to DTC P0731.

AUTOMATIC TRANSAXLE SYSTEM

ATA -77

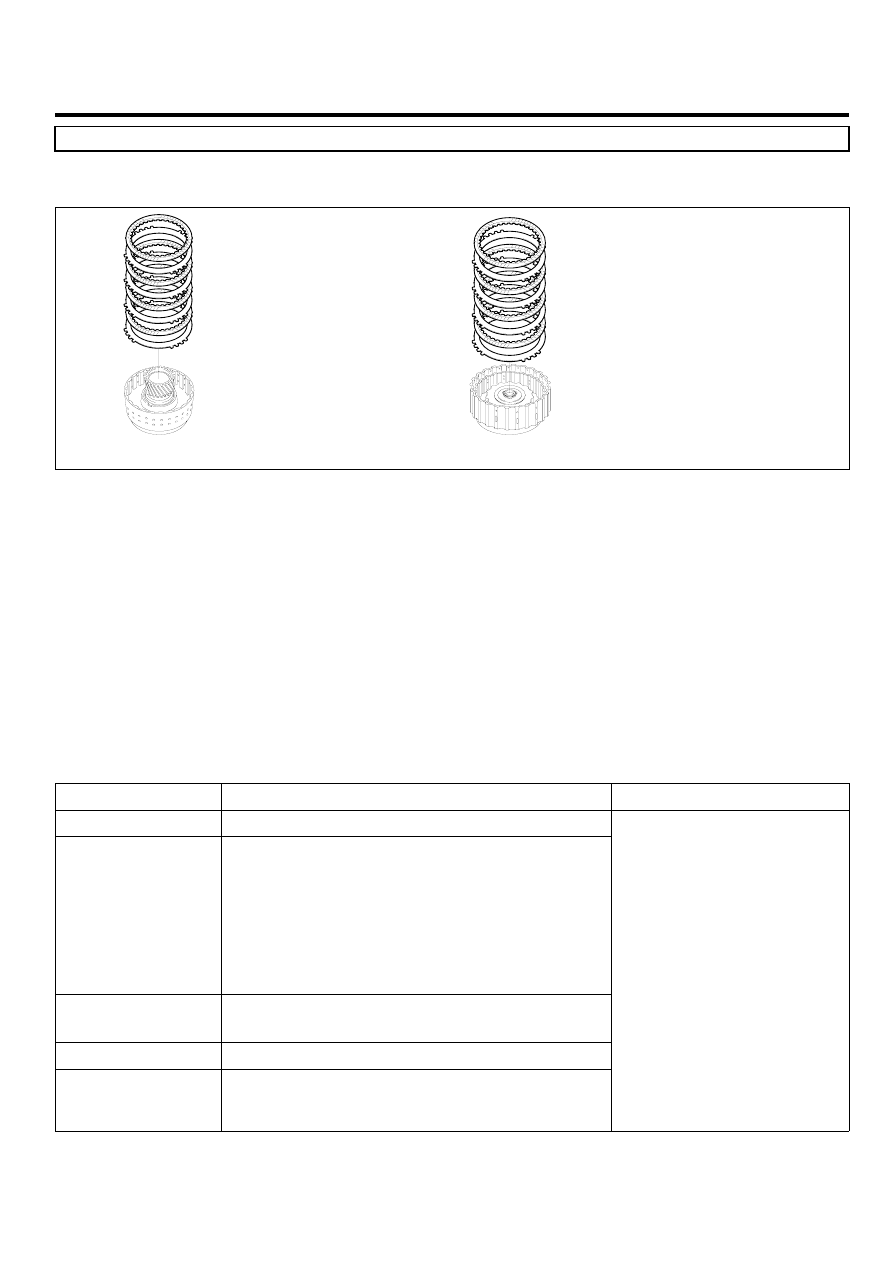

DTC P0734 GEAR 4 INCORRECT RATIO

COMPONENT LOCATION

E32F0641

DIRECT CLUTCH

OD CLUTCH

EKBF300D

GENERAL DESCRIPTION

ECF8BAB8

The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the 4th gear
ratio, while the transaxle is engaged in the 4th gear. For example, if the output speed is 1,000 rpm and the 4th gear ratio
is 1.233, then the input speed is 1,233 rpm.

DTC DESCRIPTION

E1BE8B16

This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the 4th
gear ratio, while the transaxle is engaged in 4th gear. This malfunction is mainly caused by mechanical troubles such as
control valve sticking or solenoid valve malfunctioning rather than an electrical issue.

DTC DETECTING CONDITION

EDC1DA1C

Item

Detecting Condition

Possible cause

DTC Strategy

• 4th gear incorrect ratio

Enable Conditions

• Engine speed >450rpm
• Output speed >900rpm
• After 2 sec is passed from shift finish of

shift to 4th gear

• Input speed > 0rpm
• A/T oil temp sensor voltage <4.5V
• Voltage of Battery >10V
• TRANSAXLE RANGE SWITCH is normal

Threshold value

• ㅣ Input speed/4th gear ratio - output

speed ㅣ ≥ 200rpm

Diagnostic Time

• More than 1sec

Fail Safe

• Locked into 3 rd gear.(If diagnosis code

P0734 is output four times, the transaxle
is locked into 3rd gear)

• Faulty Input speed sensor
• Faulty output speed sensor
• Faulty UD clutch or 2nd brake
