Hyundai Santa Fe (2006 year). Manual - part 76





ATA -62

AUTOMATIC TRANSAXLE (A5HF1)

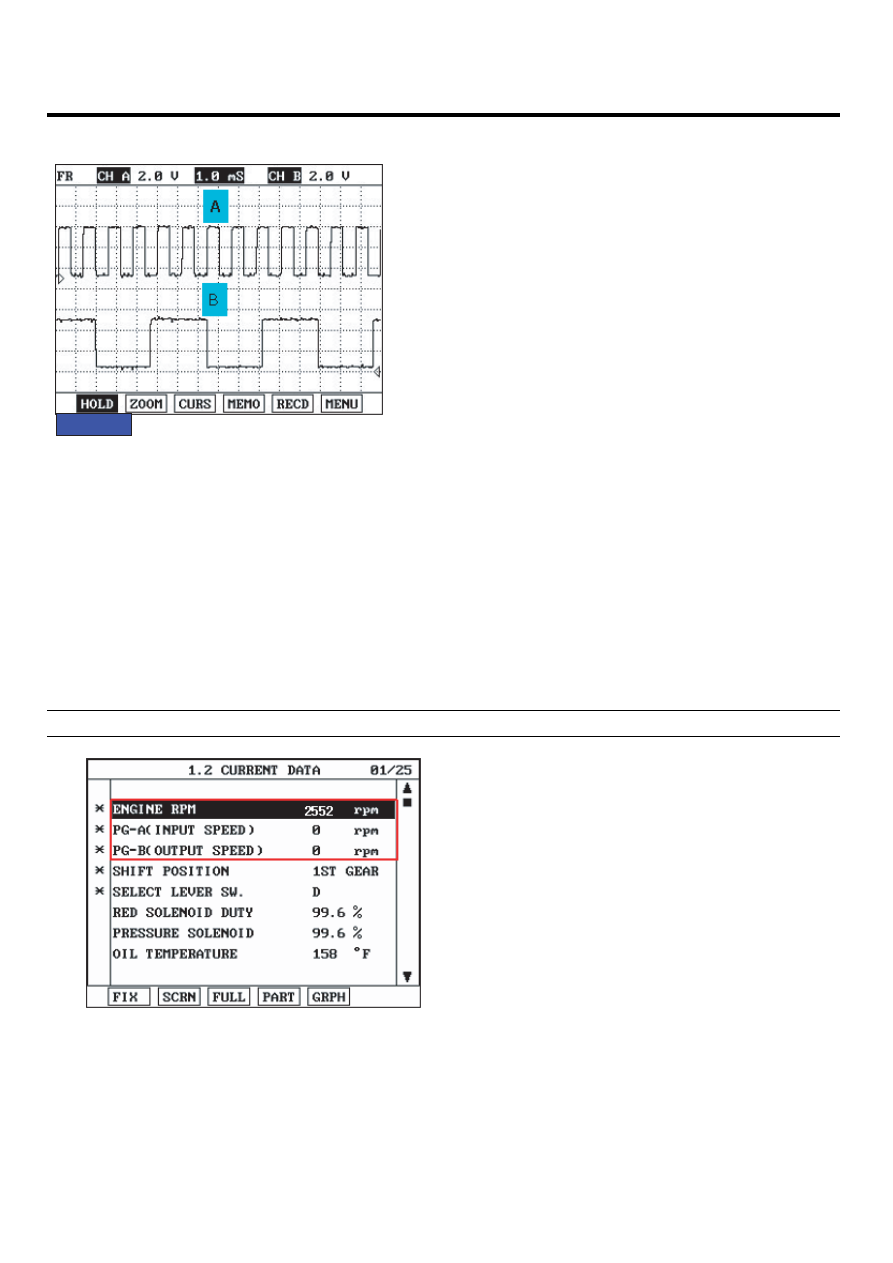

SIGNAL WAVEFORM

E4B9132B

FIG.1)

A : INPUT SPEED SENSOR
B : OUTPUT SPEED SENSOR

EKBF107A

MONITOR SCANTOOL DATA

EEFABBAD

1.

Connect scan tool to data link connector(DLC).

2.

Engine "ON".

3.

Monitor the "ENGINE SPEED, INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, GEAR POSITION" parameter
on the scan tool.

4.

Perform the "STALL TEST" with gear position "1"

Specification : 2100~2800 engine rpm

SCMAT6351L

AUTOMATIC TRANSAXLE SYSTEM

ATA -63

OPERATING ELEMENT OF EACH SHIFTING RANGE

ELEMENT

GEAR

POSI-

TION

L/R

BRAKE

2ND

BRAKE

U/D

CLUTCH

O/D

CLUTCH

RED

BRAKE

DIR

CLUTCH

REV

CLUTCH

OWC1

OWC2

1st

O

O

O

2nd

O

O

O

3rd

O

O

O

4th

O

O

O

5th

O

O

O

REV

O

O

O

N,P

O

O

Low & Reverse Brake is released When the vehicle speed over the 5MPH(7km/h).

Stall test procedure in D1 and reason
Procedure
1.

Warm up the engine.

2.

After positioning the select lever in "D", depress the foot brake pedal fully after that, depress the accelerator
pedal to the maximum.
* The slippage of 1st gear operating parts can be detected by stall test in D

Reason for stall test
1.

If there is no mechanical defaults in A/T, all slippages occurrs in torque converter.

2.

Therefore, engine revolution is output, but input and output speed revolution must be "zero" due to wheel’s lock.

3.

If 1st gear operating part has faults, input speed revolution will be out of specification.

4.

If output speed revolution is output. It means that the foot brake force is not applied fully. Remeasuring is re-
quired.

5.

Is "STALL TEST " within specification?

YES

▶ Go to "Signal circuit inspection" procedure.

NO

▶ Go to "Component inspection" procedure.

CAUTION

1.

Do not let anybody stand in front of or behind the vehicle while this test is being carried out.

2.

Check the A/T fluid level and temperature and the engine coolant temperature.

• Fluid level : At the hot mark on the oil level gauge.
• Fluid temperature : 176 F~ 212 F (80~100 C).
• Engine coolant temperature : 176 F~ 212 F (80~100 C).

3.

Chock both rear wheel(left and right).

4.

Pull the parking brake lever on with the brake pedal fully depressed.

5.

The throttle should not be left fully open for more than eight second.

6.

If stall test is being performed more than once, move the selector lever to ’N’ and run the engine at 1000
RPM to allow the transaxle fluid to cool prior to subsequent tests.

ATA -64

AUTOMATIC TRANSAXLE (A5HF1)

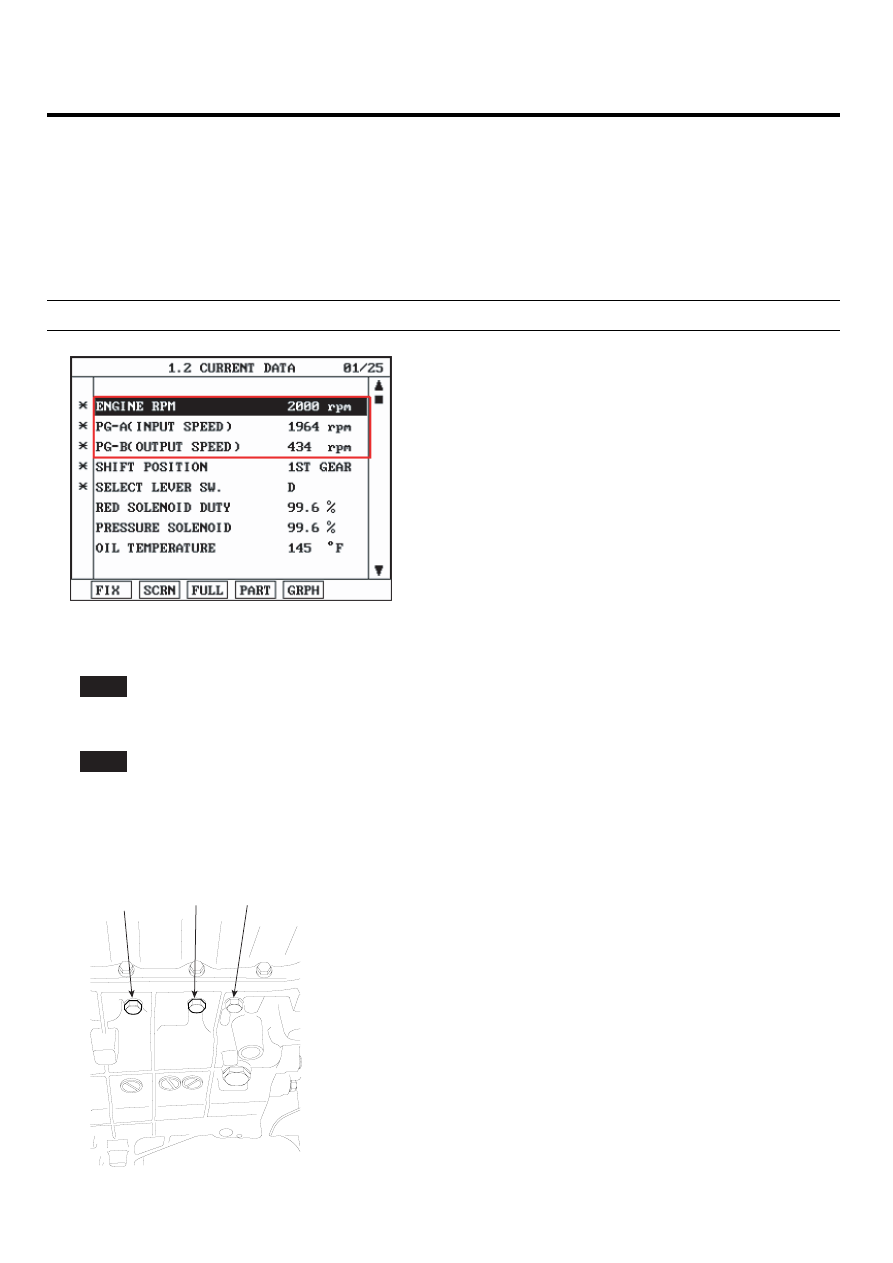

SIGNAL CIRCUIT INSPECTION

EDA47110

1.

Connect Scan tool.

2.

Engine "ON".

3.

Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scan tool.

4.

Accelerate the Engine speed until about 2000 rpm in the 1st gear.

Specification : INPUT SPEED - (OUTPUT SPEED × GEAR RATIO) ≤ 200 RPM

LKKG107E

5.

Does "INPUT & OUTPUT SPEED SENSOR" within specifications?

YES

▶ Go to "Component Inspection" procedure.

NO

▶ Check for electrical noise of circuit in INPUT &OUTPUT SPEED SENSOR or Replace INPUT & OUTPUT SPEED
SENSOR. Repair as necessary and Go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION

E65C8AD4

2ND

UD

LR

EKBF107D

AUTOMATIC TRANSAXLE SYSTEM

ATA -65

1.

Connect oil pressure gauge to "UD" and "L/R" and "RED" port.

2.

Engine "ON".

3.

Drive a car with gear position 1 in "SPORTS MODE".

4.

Compare it with reference data as below.

Specification : refer to Standard Oil Pressure Table as below

 The values are subject to change according to vehicle model or condition.

LR

DCC

2 ND

UD

O D

RED*

D

2500rpm

200mA

0

0

100

0

100

0

1.03 0.02

60

0.52 0.04

75

0.23 0.04

100

0

100

0

0

100

0

1.03 0.02

60

0.55 0.04

75

0.22 0.04

100

0

100

100

0

0

0

1.03 0.02

60

0.52 0.04

75

0.21 0.04

100

0

100

100

0

0

0

1.03 0.02

60

0.47 0.04

75

0.17 0.04

100

0

100

0

100

0

0

1.03 0.02

60

0.54 0.04

75

0.27 0.04

100

0

100

0

100

0

100

0

75

0.27 0.04

60

0.54 0.04

0

1.03 0.02

R

250mA

0

100

100

100

0

LR

1.55 0.25

S O LENO ID VALVE DUTY  ( %)

ELEMENT

P ( MP a)

LR

DIR*

LEVER

P O S ITIO N

VFS

CURRENT

INP UT

S P EED

2ND

OD

UD

RED*

EKBF107E
