ATA -2

AUTOMATIC TRANSAXLE (A5HF1)

GENERAL

SPECIFICATIONS

EA49B794

Engine type

DIESEL(D2.2)

Transaxle type

A5HF1

1ST

4.497

2ND

2.442

3RD

1.686

4TH

1.233

5TH

0.868

Gear ratio

REV.

4.586

Final gear ratio

3.333

T/M oil capacity(ℓ )※

10.9

※ The quantity in the chart above is for the reference. The actual filling quantity of the automatic transaxle fluid must
be set according to ’INSPECTION’ or ’REPLACEMENT’ procesure of the automatic transaxle fluid.

Recommended transaxle oil

Diamond ATF SP Ⅲ or SK ATF SP Ⅲ

Check ＆ Replenishment

Every one year or every 20,000km

Every one year or every 15,000km only for European contries

Normal use

No service required

Every 100,000km only for Australia

Every 90,000km only for European contries

Private use

Severe use(＊)

Replacement

Business use

Every 40,000km

Every 45,000km only for European contries

＊ Severe use(marked ’＊’) is defined as:

1.

Driving on rough road(bumpy road, gravel road,
snowy road, unpaved road etc.).

2.

Driving on mountain road, ascent/descent.

3.

Repetition of short distance driving.

4.

More than 50% operation in heavy city traffic during
hot weather above 32 C(89.6 F).

5.

Police car, Taxi, Commercial type operation or trailer
towing, etc.

GENERAL

ATA -3

TIGHTENING TORQUE

ITEM

Nm

kgf·m

lb-ft

Control cable nut

8 ~ 12

0.8 ~ 1.2

5.8 ~ 8.6

Input shaft speed sensor

10 ~ 12

1.0 ~1.2

7 ~ 8

Output shaft speed sensor

10 ~ 12

1.0 ~1.2

7 ~ 8

Manual control lever

18 ~ 25

1.8 ~ 2.5

13 ~ 18

Transaxle range switch

10 ~ 12

1.0 ~1.2

7 ~ 8

Valve body cover

13 ~ 15

1.3 ~1.5

9.4 ~ 10.8

Valve body mounting bolt

10 ~ 12

1.0 ~1.2

7 ~ 8

Oil temperature sensor

10 ~ 12

1.0 ~1.2

7 ~ 8

Oil filler plug

29 ~ 34

2.9 ~ 3.4

21.4 ~ 25.1

Oil drain plug

40 ~ 50

4.0 ~ 5.0

29 ~ 36

Solenoid valve support

5 ~ 7

0.5 ~ 0.7

4 ~ 5

Pressure check plug

8 ~ 10

0.8 ~ 1.0

6 ~ 7

Transaxle mounting sub bracket nut

60 ~ 80

6.0 ~ 8.0

43 ~ 58

Transaxle mounting bracket bolts

40 ~ 55

4.0 ~ 5.5

29 ~ 40

Transaxle mounting insulator bolt

90 ~ 110

9.0 ~ 11

65 ~ 80

Engine side(4ea)

65 ~ 85

6.5 ~ 8.5

47 ~ 61.5

Transaxle and engine
mounting bolt

Transaxle side(3ea)

43 ~ 55

4.3 ~ 5.5

31.1 ~ 39.7

Drive plate bolt

46 ~ 53

4.6 ~ 5.3

33.3 ~ 38.3

LUBRICANT

EFD4BAE2

Item

Specified lubricant

Quantity

Transmission oil

Diamond ATF SP-III

7.8ℓ (8.2 Us qt, 6.9Imp.qt)

SEALANT

Item

Specified Sealant

Rear cover
Torque converter housing
Valve body cover

Three Bond - TB 1281B or LOCTITE - FMD - 546

Transmission case side cover

Three Bond - TB 1389 or LOCTITE - 518

Side cover

Three Bond - TB 1389 or LOCTITE - 518/587

ATA -4

AUTOMATIC TRANSAXLE (A5HF1)

SPECIAL TOOLS

EE7DCEB2

Tool

(Number and name)

Illustration

Use

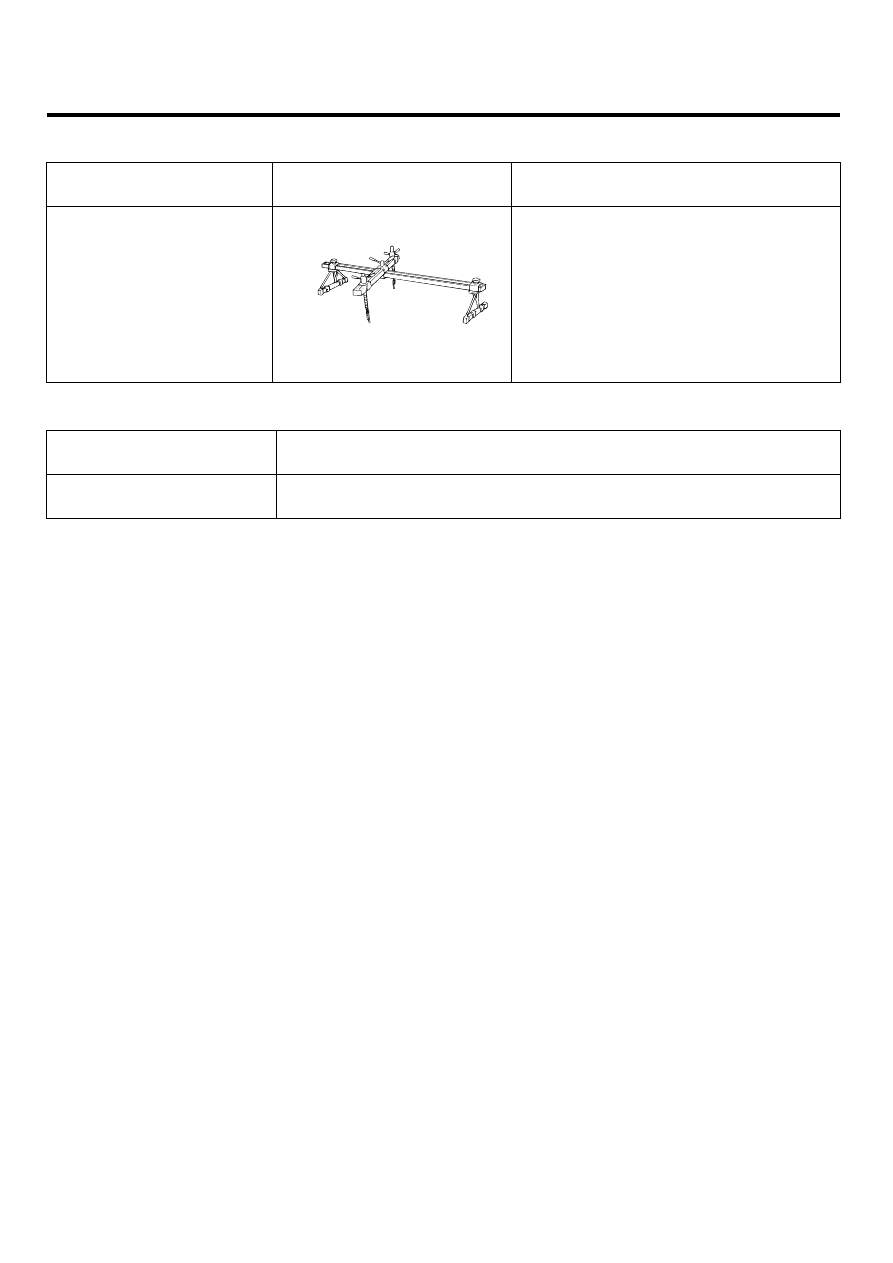

09200-38001
Engine support fixture

KKBF030A

-

Removal and installation of transaxle

REFERENCE SERVICE TOOLS

Tool

(Number and Name)

Remark

TRK00A
Wiring Repair Kit

For more information of the wiring repair kit, please refer to BE group
- "REFERENCE SERVICE TOOLS"

AUTOMATIC TRANSAXLE SYSTEM

ATA -5

AUTOMATIC TRANSAXLE
SYSTEM

DESCRIPTION

E717EDDE

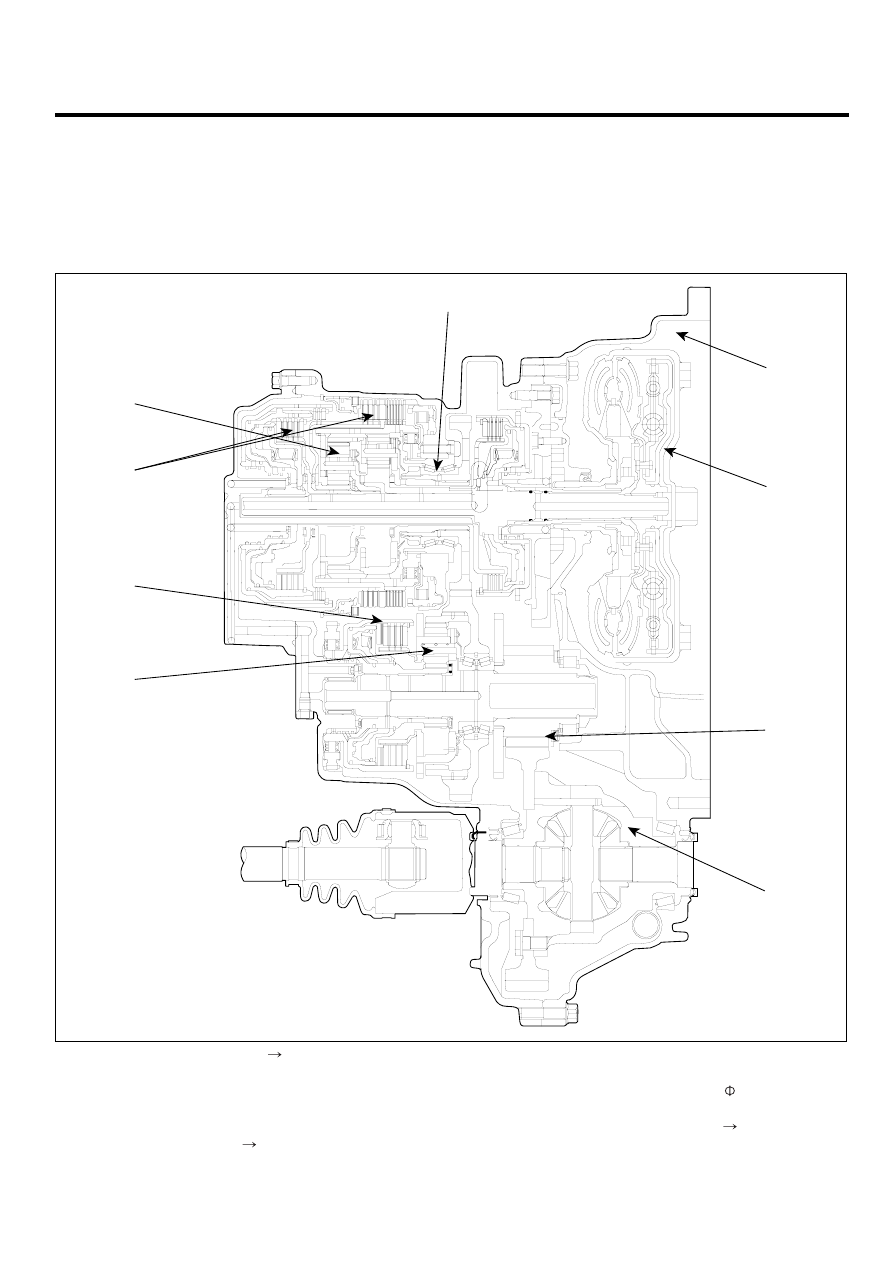

1.

Structure ＆ Technical highlights

5

7

6

1

2

3

4

9

8

1.  Overdrive planetary gear (3

4 pinions)

2.  SSP(Single sided plate)
    -Overdrive clutch
    -2ND brake
3.  Reduction band (Piston increased)
4.  Direct planetary gear (3

4 pinions)

5.  Case/ Housing intensity reinforced & redesigned
6.  High capacity torque converter
7.  Bearing outer diameter increased ( 5 mm)
8.  Differential gear (Increased width by 2mm)
9.  Differential capacity increased (6.1

7)

EKBF002A
