Hyundai Santa Fe (2006 year). Manual - part 47

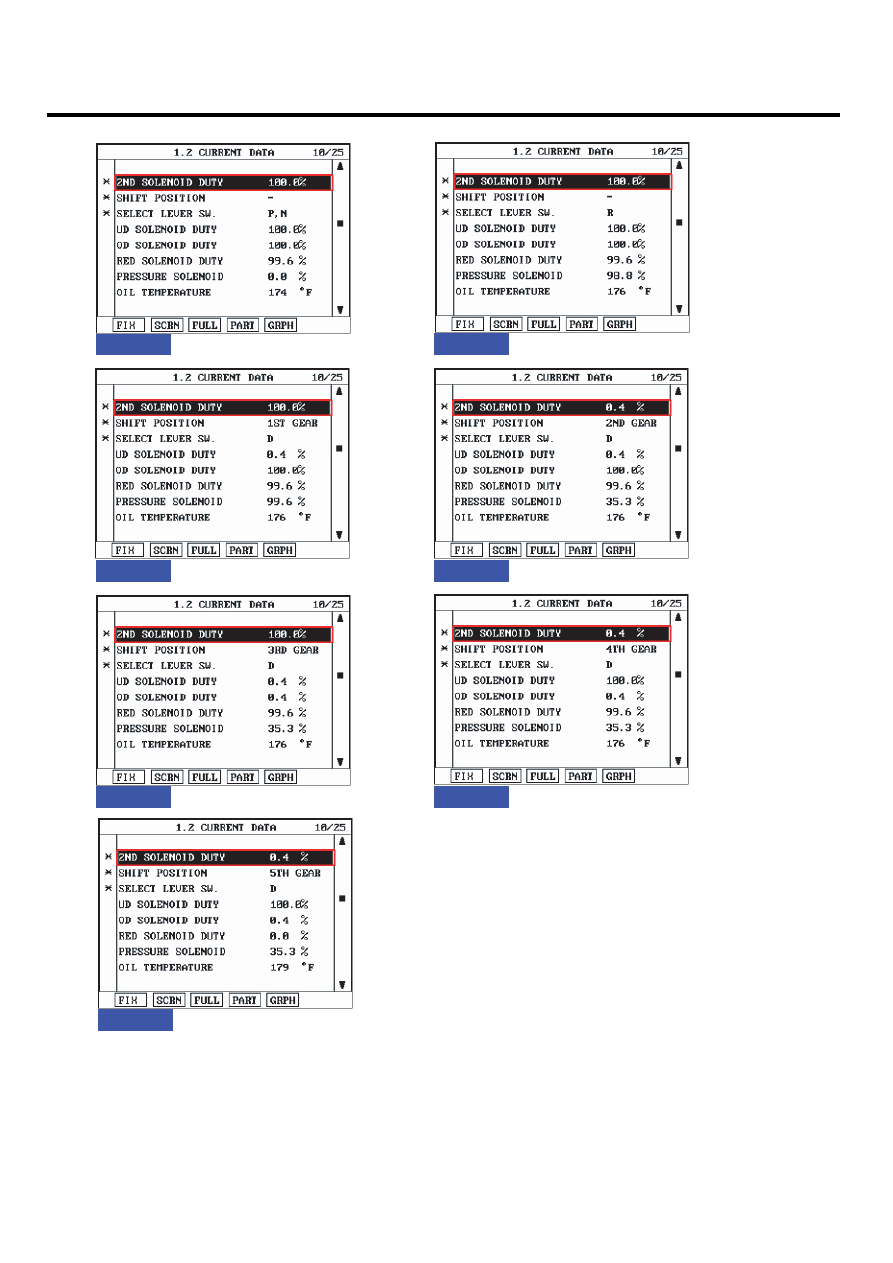

AT -140

AUTOMATIC TRANSAXLE (F4A51)

FIG.1)

FIG.2)

FIG. 1) P,N
FIG. 2) "R"
FIG. 3) "D 1st" gear
FIG. 4) "2nd" gear
FIG. 5) "3rd" gear
FIG. 6) "4th" gear
FIG. 7) "5th" gear

FIG.3)

FIG.4)

FIG.5)

FIG.6)

FIG.7)

SCMAT6750L

AUTOMATIC TRANSAXLE SYSTEM

AT -141

5.

Does "2nd SOLENOID DUTY " follow the reference data?

YES

▶ Fault is intermittent caused by poor contact in the sensor’s and/or TCM(PCM)’s connector or was repaired and
TCM(PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, cor-
rosion, contamination, deterioration or damage. Repair or replace as necessary and go to "Verification of vehicle
repair" procedure.

NO

▶ Go to "Terminal&connector inspection " procedure.

TERMINAL & CONNECTOR INSPECTION

ED8CD3AF

Refer to DTC P0743.

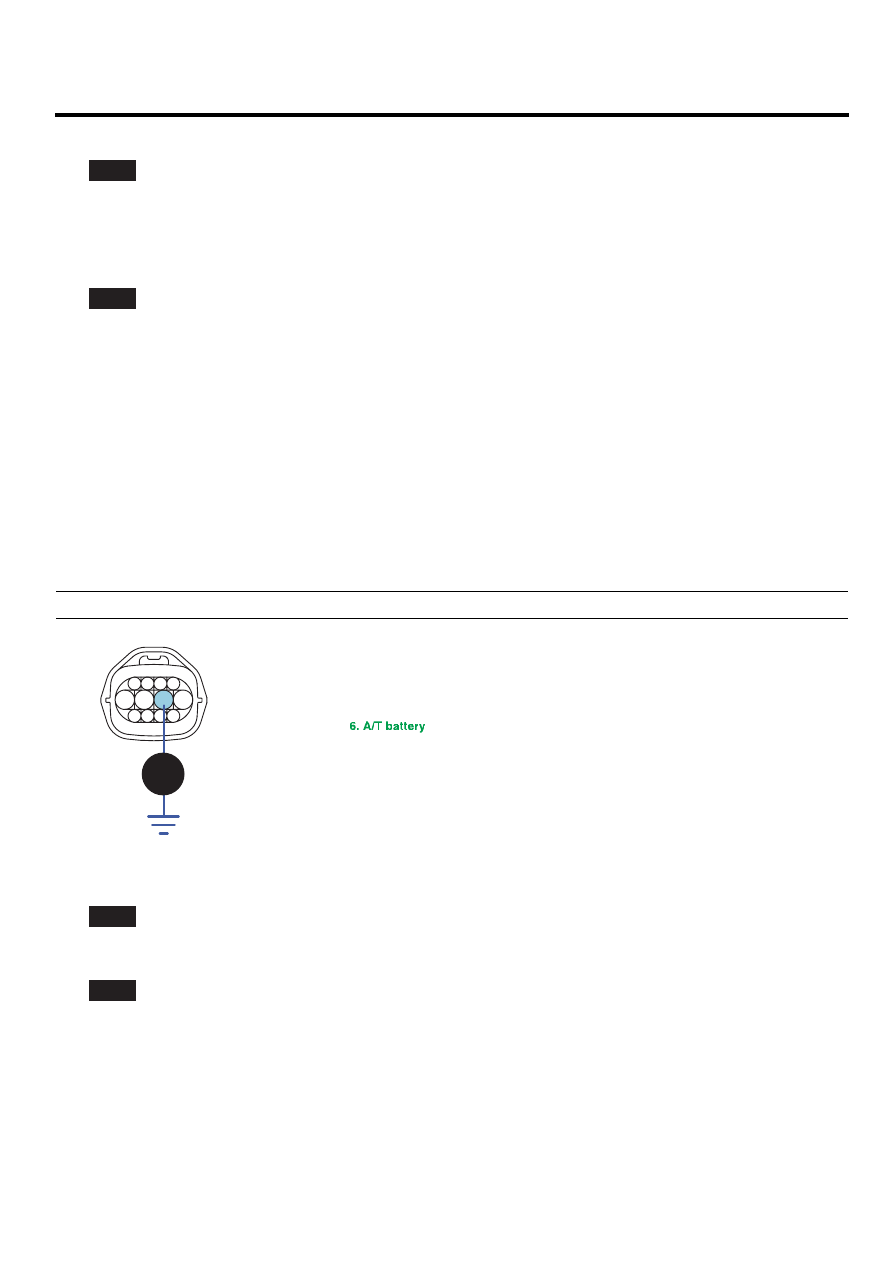

POWER SUPPLY CIRCUIT INSPECTION

EDF39BB7

1.

Disconnect "A/T SOLENOID VALVE" connector.

2.

Measure voltage between terminal "6" of the sensor harness connector and chassis ground.

3.

Turn ignition switch OFF → ON.

Specification: 12V is measured only for approx. 0.5sec

1

2

3

4

5

6

7

8

9

10

11

12

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery

7. VF solenoid valve(+)
8. VF solenoid valve(-)
9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoid valve

C09

v

SCMAT6746L

4.

Is voltage within specifications?

YES

▶ Go to "Signal circuit inspection" procedure.

NO

▶ Check that A/T-20A fuse in engine room junction is installed or not blown.
▶ Check for open in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

AT -142

AUTOMATIC TRANSAXLE (F4A51)

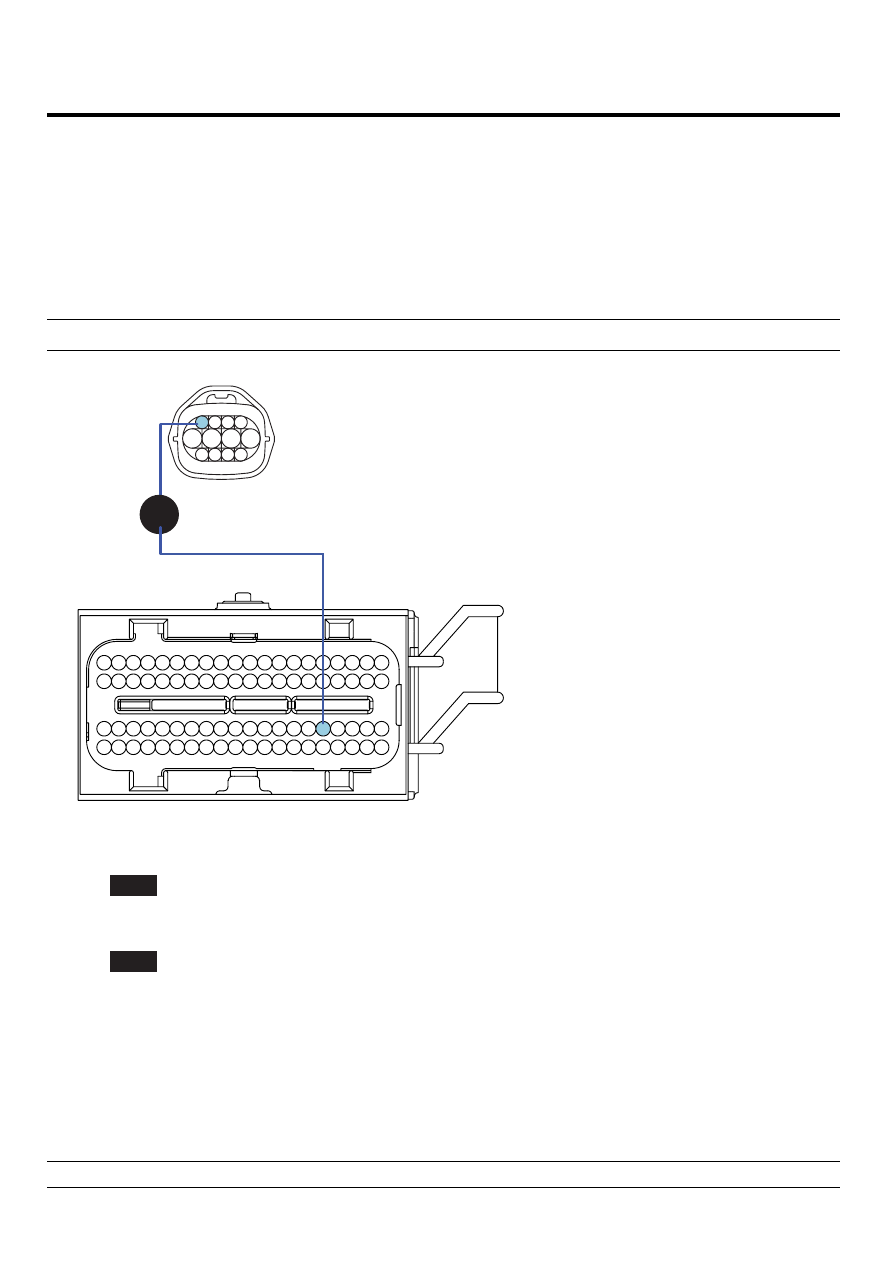

SIGNAL CIRCUIT INSPECTION

EBE86DF0

1.

Check signal circuit open inspection

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector and "PCM" connector.

3)

Measure resistance between terminal "4" of the ATM SOLENOID VALVE harness connector and terminal "45"
of the PCM/TCM harness connector.

Specification: approx. 0 Ω

1

2

3

4

5

6

7

8

9

10

11

12

C09

3. UD solenoid valve

4. 2ND solenoid valve

5. A/T battery
6. A/T battery
7. VF solenoid valve(+)
8. VF solenoid valve(-)
9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoid valve

42.OD solenoid valve control

45.2ND solenoid valve control

43.DCC solenoid valve control
44.RED solenoid valve
75.VF solenoid valve(+)
59.VF solenoid valve(-)
22.LR solenoid valve control
03.UD solenoid valve control

C30-B

3 2 1

6

4

9

21

22

23

16 15

17

18

19

11 10

12

13

14

38 37

39

40

25 24

28

29

48

49

68 67

69

70

42 41

43

44

62 61

63

64

45

56

57

58

59

60

78

79

52 51 50

53

72 71

73

74

76 75

77

54

55

32

33

30

31

35

36

34

*

*

*

*

*

*

*

*

*

8 7

SCMAT6751L

4)

Is resistance within specifications?

YES

▶ Go to "Check signal circuit short inspection" procedure.

NO

▶ Check for open in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

2.

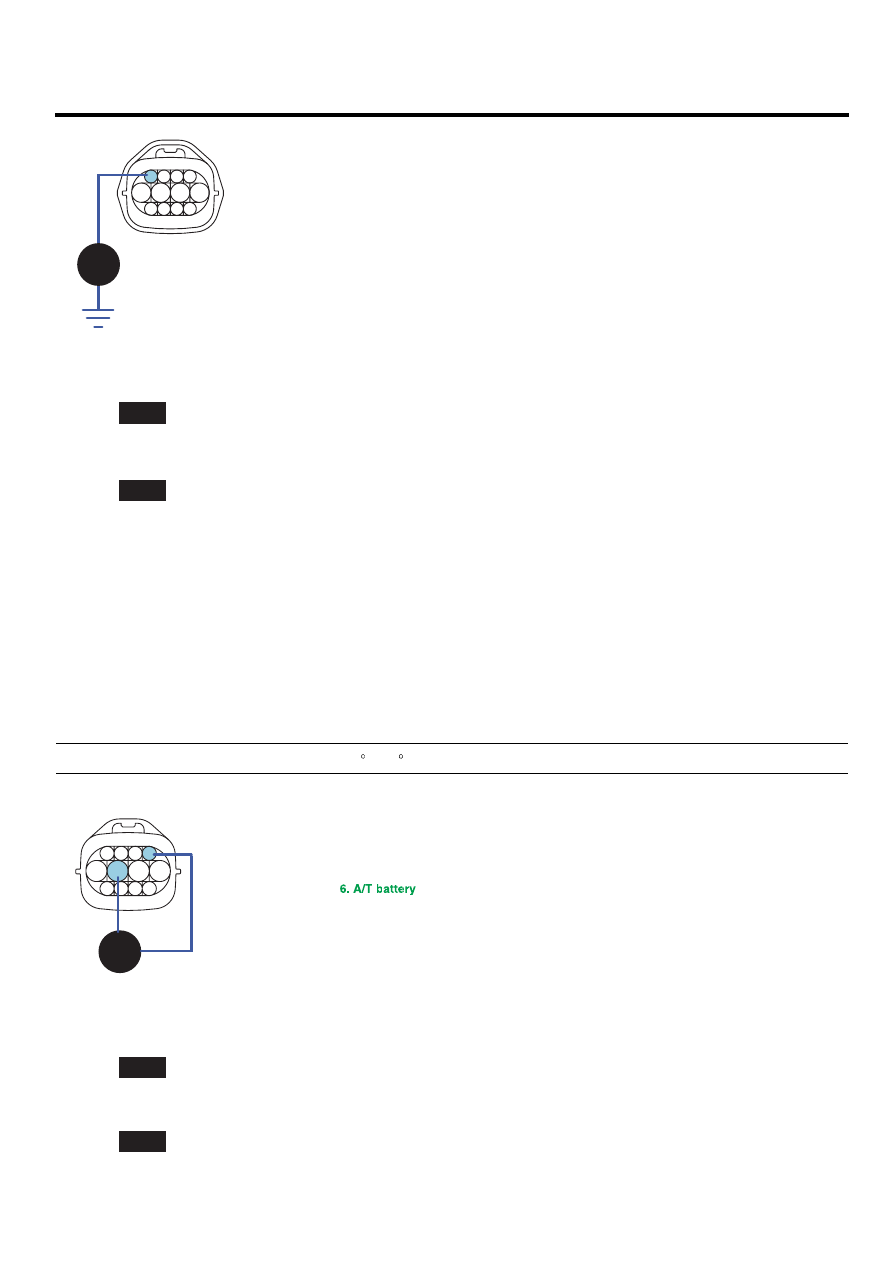

Check signal circuit short inspection

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3)

Measure resistance between terminal "4" of the ATM SOLENOID VALVE harness and chassis ground.

Specification: Infinite

AUTOMATIC TRANSAXLE SYSTEM

AT -143

1

2

3

4

5

6

7

8

9

10

11

12

3. UD solenoid valve

4. 2ND solenoid valve

5. A/T battery
6. A/T battery
7. VF solenoid valve(+)
8. VF solenoid valve(-)
9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoid valve

C09

SCMAT6752L

4)

Is resistance within specifications?

YES

▶ Go to "Component inspection" procedure.

NO

▶ Check for short to ground in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

COMPONENT INSPECTION

E4CEF6BC

1.

CHECK SOLENOID VALVE

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector.

3)

Measure resistance between terminal "4" and terminal "6" of the ATM SOLENOID VALVE harness connector.

Specification: Approximately 2.7~3.4 Ω [20 C(68 F)]

3. UD solenoid valve

4. 2ND solenoid valve

5. A/T battery

7. VF solenoid valve(+)
8. VF solenoid valve(-)
9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoid valve

C09

1 2 3 4

5

6

7

8

9 10 1112

Component Side

SCMAT6753L

4)

Is resistance within specification?

YES

▶ Go to "CHECK PCM/TCM" as below.

NO

▶ Replace 2nd SOLENOID VALVE as necessary and go to "Verification of vehicle repair" procedure.
