Hyundai Santa Fe (2006 year). Manual - part 44





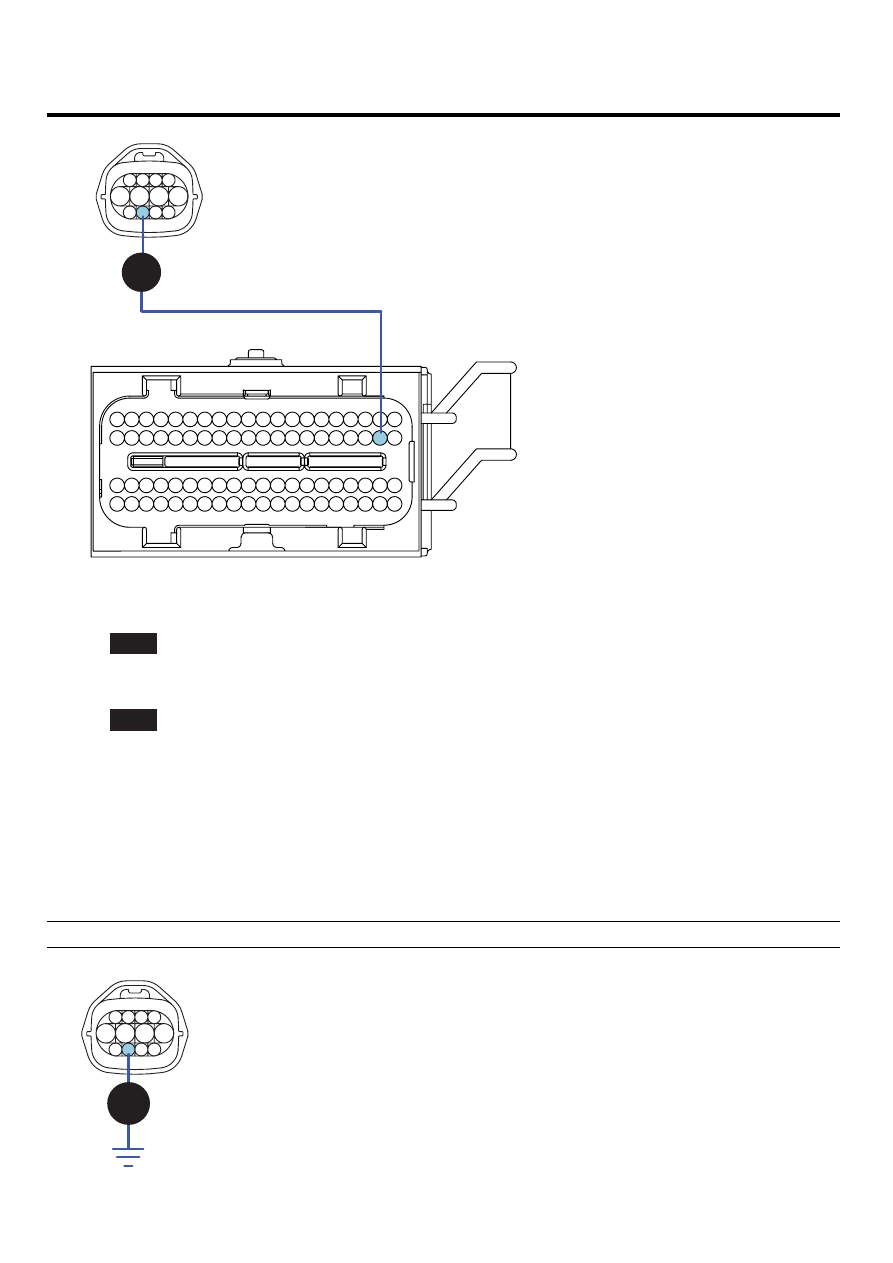

AT -128

AUTOMATIC TRANSAXLE (F4A51)

1

2

3

4

5

6

7

8

9

10

11

12

C09

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery
7. VF solenoid valve(+)
8. VF solenoid valve(-)
9. DCC solenoid valve
10.RED solenoid valve

11. LR solenoid valve

12. OD solenoid valve

42.OD solenoid valve control
45.2ND solenoid valve control
43.DCC solenoid valve control
44.RED solenoid valve
75.VF solenoid valve(+)
59.VF solenoid valve(-)

22.LR solenoid valve control

03.UD solenoid valve control

C30-B

3 2 1

6

4

9

21

22

23

16 15

17

18

19

11 10

12

13

14

38 37

39

40

25 24

28

29

48

49

68 67

69

70

42 41

43

44

62 61

63

64

45

56

57

58

59

60

78

79

52 51 50

53

72 71

73

74

76 75

77

54

55

32

33

30

31

35

36

34

*

*

*

*

*

*

*

*

*

8 7

SCMAT6742L

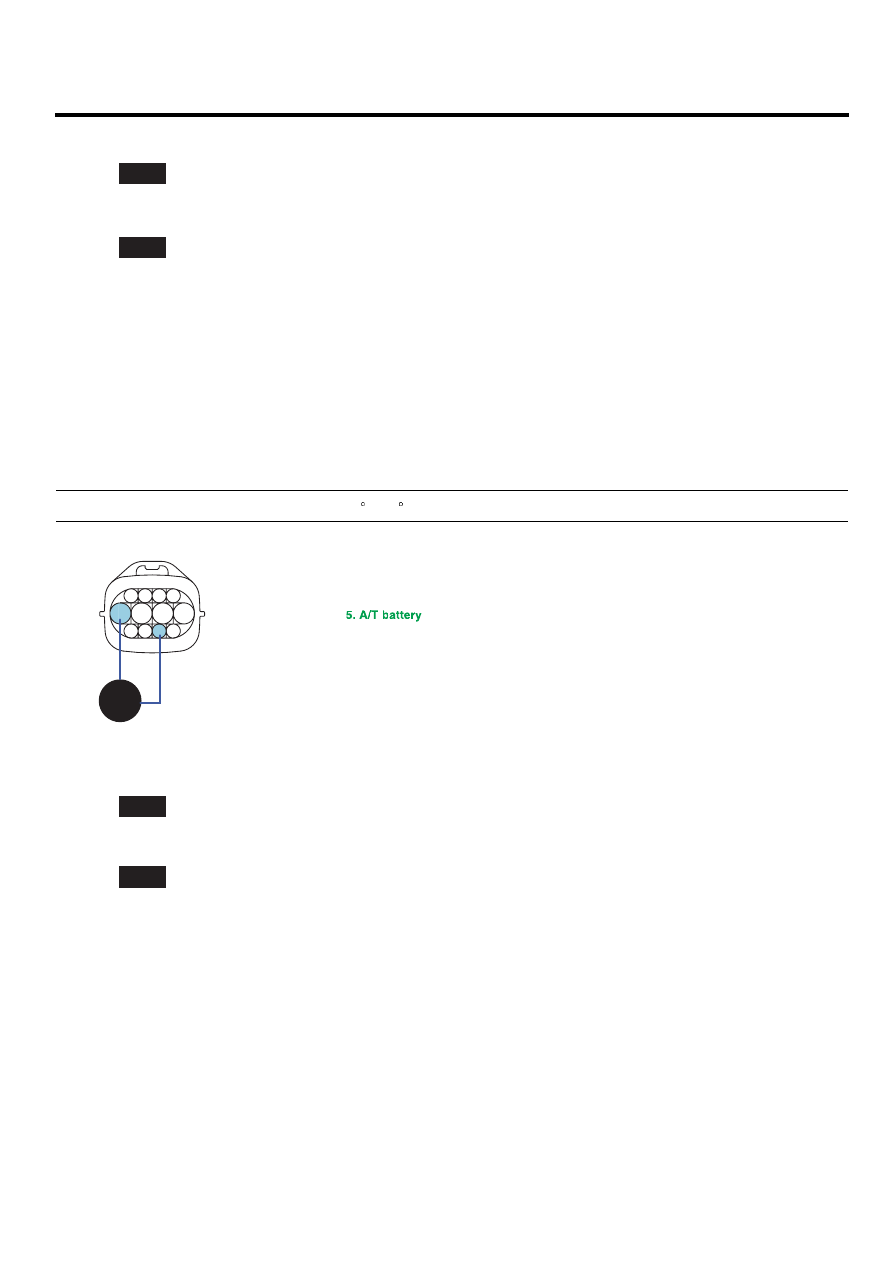

4)

Is resistance within specifications?

YES

▶ Go to "Check signal circuit short inspection" procedure.

NO

▶ Check for open in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

2.

Check signal circuit short inspection

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3)

Measure resistance between terminal "11" of the ATM SOLENOID VALVE harness and chassis ground.

Specification: Infinite

1

2

3

4

5

6

7

8

9

10

11

12

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery
7. VF solenoid valve(+)
8. VF solenoid valve(-)
9. DCC solenoid valve
10.RED solenoid valve

11. LR solenoid valve

12. OD solenoid valve

C09

SCMAT6743L

AUTOMATIC TRANSAXLE SYSTEM

AT -129

4)

Is resistance within specifications?

YES

▶ Go to "Component inspection" procedure.

NO

▶ Check for short to ground in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

COMPONENT INSPECTION

E6D76BCE

1.

CHECK SOLENOID VALVE

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector.

3)

Measure resistance between terminal "5" and terminal "11" of the ATM SOLENOID VALVE harness connector.

Specification: Approximately 2.7~3.4 Ω [20 C(68 F)]

3. UD solenoid valve
4. 2ND solenoid valve

6. A/T battery
7. VF solenoid valve(+)
8. VF solenoid valve(-)
9. DCC solenoid valve
10.RED solenoid valve

11. LR solenoid valve

12. OD solenoid valve

C09

1 2 3 4

5

6

7

8

9 10 1112

Component Side

SCMAT6744L

4)

Is resistance within specification?

YES

▶ Go to "CHECK PCM/TCM" as below.

NO

▶ Replace LR SOLENOID VALVE as necessary and go to "Verification of vehicle repair" procedure.

AT -130

AUTOMATIC TRANSAXLE (F4A51)

2.

CHECK PCM/TCM

1)

Connect scantool to data link connector(DLC).

2)

Ignition "ON" & Engine "OFF".

3)

Select A/T solenoid valve actuator test and operate actuator test.

4)

Can you hear operating sound for LR SOLENOID VALVE actuator testing function?

YES

▶ Go to "Verification of vehicle repair" procedure.

NO

▶ Replace PCM/TCM as necessary and go to "Verification of vehicle repair" procedure.

ACTUATOR TEST CONDITION
1.

IG SWITCH ON

2.

TRANSAXLE RANGE SWITCH is normal

3.

P RANGE

4.

Vehicle Speed 0mph(0km/h)

5.

Throttle position sensor < 1V

6.

IDLE SWITCH ON

7.

ENGINE RPM 0

VERIFICATION OF VEHICLE REPAIR

EB0D2E1E

Refer to DTC P0743.

AUTOMATIC TRANSAXLE SYSTEM

AT -131

DTC P0755 SHIFT CONTROL SOLENOID VALVE B CIRCUIT MALFUNCTION

COMPONENT LOCATION

E89B6127

Refer to DTC P0743.

GENERAL DESCRIPTION

EC5FC358

The Automatic transmission changes the gear position of the transmission by utilizing a combination of clutches and
brakes, which are controlled by solenoid valves. This automatic transmission consists of a: LR (Low and Reverse Brake),
2ND (2nd Brake), UD (Under Drive Clutch), OD (Over Drive Clutch), REV (Reverse Clutch), and RED (Reduction Brake,
only for 5 speed transmissions).
The UD Clutch is engaged in the 1st gear, 2nd gear and 3rd gear positions.

DTC DESCRIPTION

EEB2AA3F

The TCM checks the Under Drive Clutch Control Signal by monitoring the feedback signal from the solenoid valve drive
circuit. If an unexpected signal is monitored (for example, high voltage is detected when low voltage is expected, or low
voltage is detected when high voltage is expected), the TCM judges that Under Drive control solenoid circuit is malfunc-
tioning and sets this code.

DTC DETECTING CONDITION

EFEA610C

Item

Detecting Condition

Possible cause

DTC Strategy

• Check voltage range

Enable Conditions

• 16V > Voltage Battery >11V
• In gear state(no gear shifting) 500msec is

passed from turn on the relay

• A/T Relay = ON
• Engine state = RUN

Threshold value

• Out of available voltage range

Diagnostic Time

• More than 2 seconds

Fail Safe

• Locked in 3rd gear.(Control relay off)

• Open or short in circuit
• Faulty UD SOLENOID VALVE
• Faulty PCM/TCM

SPECIFICATION

E690711E

Refer to DTC P0743.
