AUTOMATIC TRANSAXLE (F4A51)

5.

Does "PRESS CONTROL SOL DUTY " follow the reference data?

YES

▶ Fault is intermittent caused by poor contact in the sensor’s and/or TCM(PCM)’s connector or was repaired and
TCM(PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, cor-
rosion, contamination, deterioration or damage. Repair or replace as necessary and go to "Verification of vehicle
repair" procedure.

NO

▶ Go to "Terminal＆connector inspection" procedure.

TERMINAL & CONNECTOR INSPECTION

E9A1C782

Refer to DTC P0743.

POWER SUPPLY CIRCUIT INSPECTION

EE693FC6

1.

Disconnect "A/T SOLENOID VALVE" connector.

2.

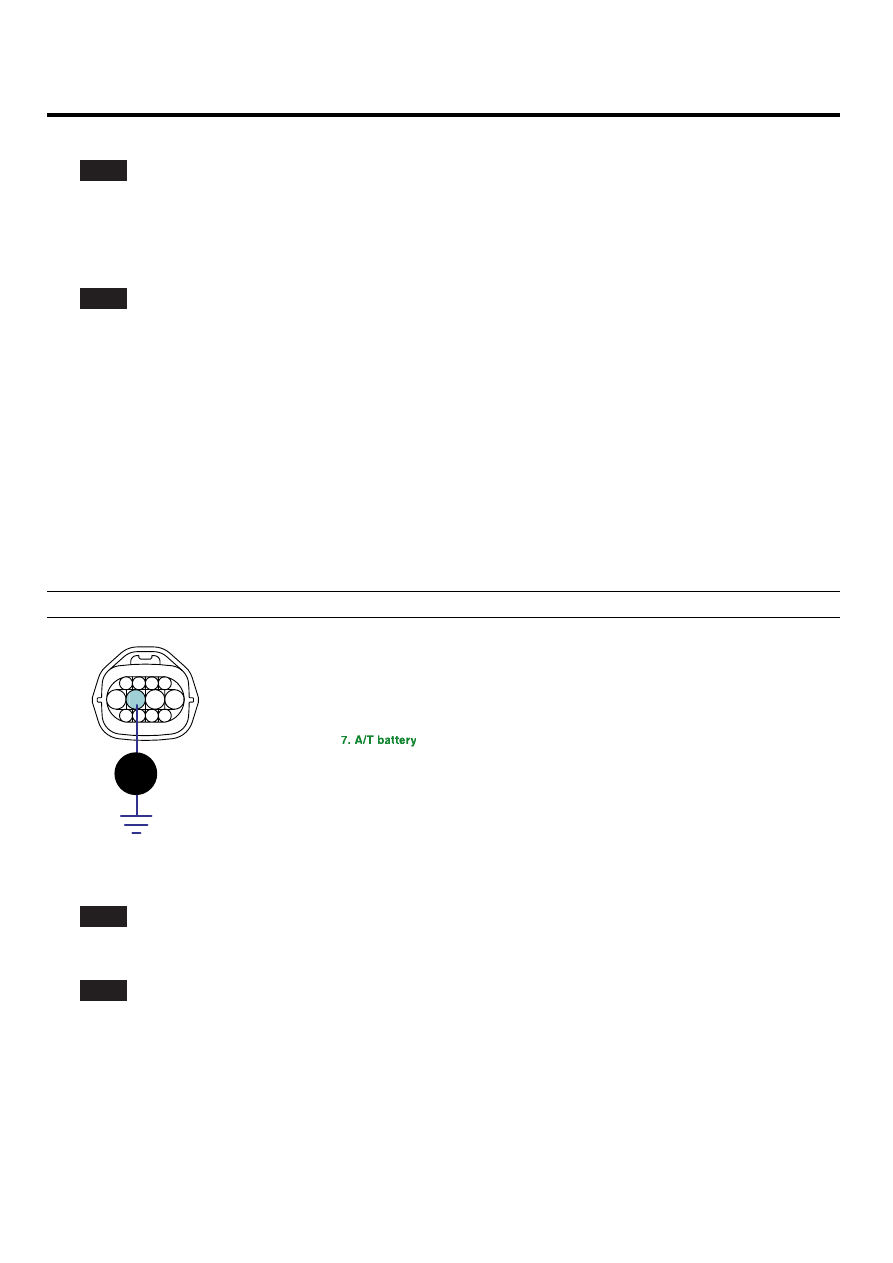

Measure voltage between terminal "7" of the sensor harness connector and chassis ground.

3.

Measure voltage of VFS solenoid valve.

Specification: Approx.12V

1

2

3

4

5

6

7

8

9

10

11

12

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery

8. VF solenoid valve
9. DCC solenoid valve
11. LR solenoid valve
12. OD solenoid valve

C09

v

SCMAT6737L

4.

Is voltage within specifications?

YES

▶ Go to "Signal circuit inspection" procedure.

NO

▶ Check that A/T-20A fuse in engine room junction is installed or not blown.
▶ Check for open in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

AUTOMATIC TRANSAXLE SYSTEM

AT -121

SIGNAL CIRCUIT INSPECTION

E6B9E4FC

1.

Check signal circuit open inspection.

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3)

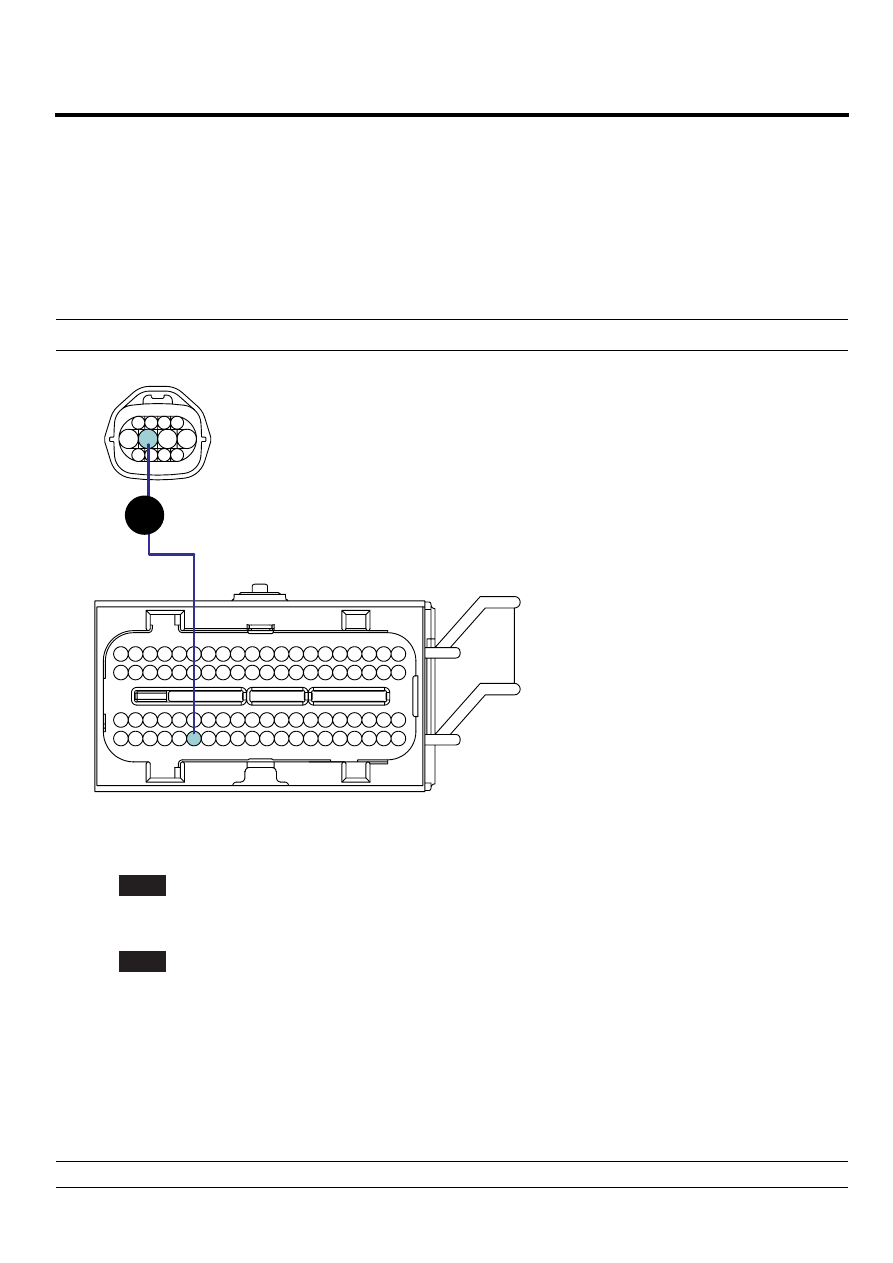

Measure resistance between terminal "7" of the ATM SOLENOID VALVE harness connector and terminal "75"
of the PCM/TCM harness connector.

Specification: approx. 0 Ω

1

2

3

4

5

6

7

8

9

10

11

12

C09

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery

7. VF solenoid valve(+)

8. VF solenoid valve(+)
9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoid valve

42.OD solenoid valve control
45.2ND solenoid valve control
43.DCC solenoid valve control
44.RED solenoid valve

75.VF solenoid valve(+)

59.VF solenoid valve(-)
22.LR solenoid valve control
03.UD solenoid valve control

Ω

C30-B

3 2 1

6

4

9

21

22

23

16 15

17

18

19

11 10

12

13

14

38 37

39

40

25 24

28

29

48

49

68 67

69

70

42 41

43

44

62 61

63

64

45

56

57

58

59

60

78

79

52 51 50

53

72 71

73

74

76 75

77

54

55

32

33

30

31

35

36

34

*

*

*

*

*

*

*

*

*

8 7

SCMAT6738L

4)

Is resistance within specifications?

YES

▶ Go to "Check signal circuit short inspection" procedure.

NO

▶ Check for open in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

2.

Check signal circuit short inspection

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector

3)

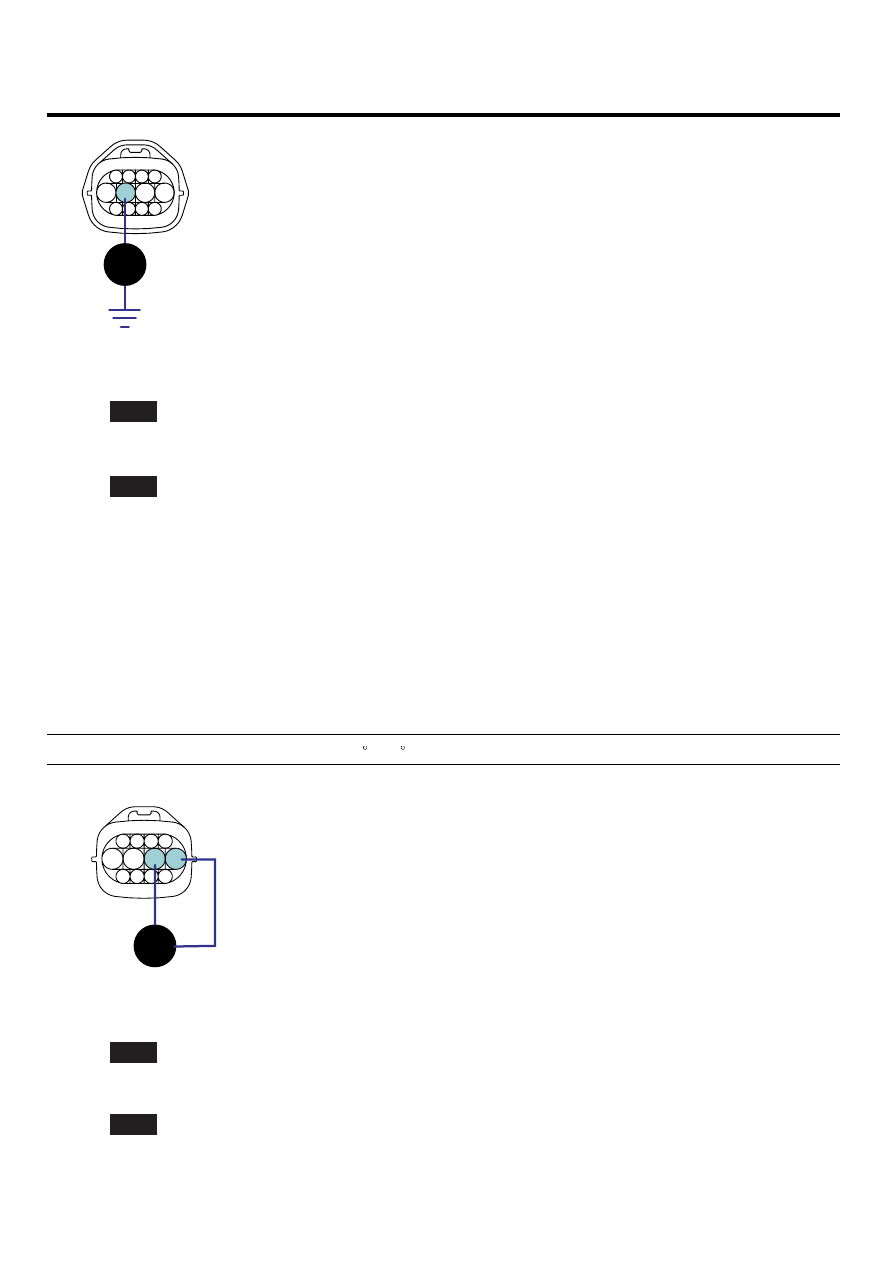

Measure resistance between terminal "7" of the ATM SOLENOID VALVE harness and chassis ground.

Specification: Infinite

AT -122

AUTOMATIC TRANSAXLE (F4A51)

1

2

3

4

5

6

7

8

9

10

11

12

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery

7. VF solenoid valve(-)

8. VF solenoid valve(+)
9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoid valve

C09

Ω

SCMAT6739L

4)

Is resistance within specifications?

YES

▶ Go to "Component inspection" procedure.

NO

▶ Check for short to ground in harness. Repair as necessary and go to "Verification of vehicle repair" procedure.

COMPONENT INSPECTION

E836FB63

1.

CHECK SOLENOID VALVE

1)

Ignition "OFF".

2)

Disconnect "A/T SOLENOID VALVE" connector.

3)

Measure resistance between terminal "7" and terminal "8" of the ATM SOLENOID VALVE harness connector.

Specification: Approximately 4.35±0.35Ω [20 C(68 F)]

3. UD solenoid valve
4. 2ND solenoid valve
5. A/T battery
6. A/T battery

7. VF solenoid valve(+)
8. VF solenoid valve(-)

9. DCC solenoid valve
10.RED solenoid valve
11. LR solenoid valve
12. OD solenoid valve

C09

Ω

1 2 3 4

5

6

7

8

9 10 1112

Component Side

SCMAT6740L

4)

Is resistance within specification?

YES

▶ Go to "CHECK PCM/TCM" as below.

NO

▶ Replace "PRESS CONTROL SOL VALVE(VFS)" as necessary and go to "Verification of vehicle repair" pro-
cedure.

AUTOMATIC TRANSAXLE SYSTEM

AT -123

2.

CHECK PCM/TCM

1)

Connect scantool to data link connector(DLC).

2)

Ignition "ON" ＆ Engine "OFF".

3)

Select A/T Solenoid valve Actuator test and Operate Actuator test.

4)

Can you hear operating sound for "PRESS CONTROL SOL VALVE(VFS)" Actuator testing function?

YES

▶ Go to "Verification of vehicle repair" procedure.

NO

▶ Replace PCM/TCM as necessary and go to "Verification of vehicle repair" procedure.

ACTUATOR TEST CONDITION
1.

IG SWITCH ON

2.

TRANSAXLE RANGE SWITCH is normal

3.

P RANGE

4.

Vehicle Speed 0mph(0km/h)

5.

Throttle position sensor＜ 1V

6.

IDLE SWITCH ON

7.

ENGINE RPM 0

VERIFICATION OF VEHICLE REPAIR

E0EAF7CB

Refer to DTC P0743.
