DIESEL CONTROL SYSTEM

FLA -159

SPECIFICATION

EBF7483D

1ATM IS SAME AS

hpa (hecto pascal)

mb

mmHg

1013

1013

760

MONITOR SCANTOOL DATA

E78F5B38

1.

Connect scantool to Data Link Cable. (DLC)

2.

Warm engine up to normal operating temperature.

3.

Turn "OFF" electrical devices and A/C.

4.

Monitor "ATMOSPHERIC PRESS. SNSR" parameter on the scantool.

Specification : Approx. 1 atm is displayed

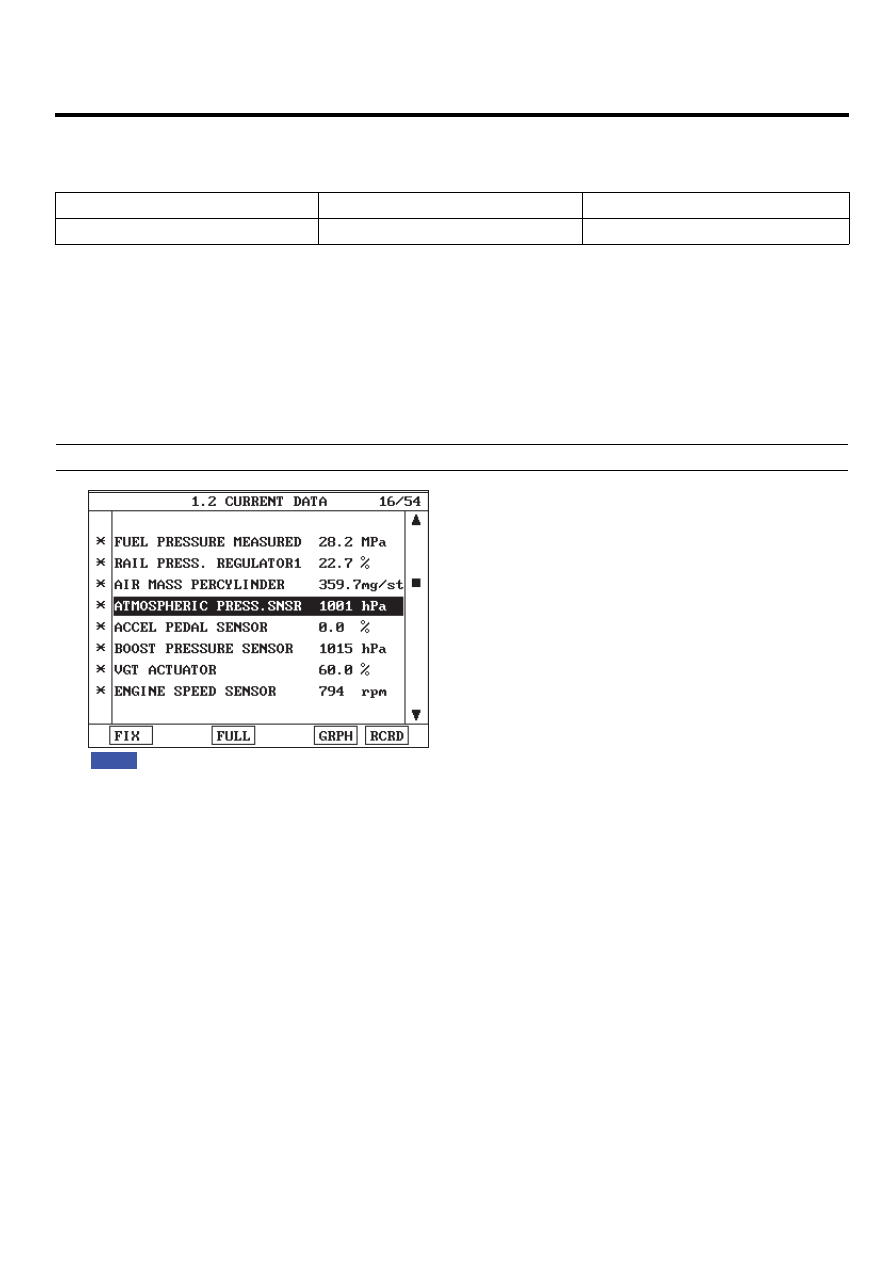

Fig.1

Fig.1) The atmospheric pressure where the vehicle is displayed.  atmospheric pressure decreases as vehicle going up to higher
          altitude.  The pressure at average level of sea surface is regarded as 1atm and, check if the pressure different from 1 atm
          is displayed. ( 1 atm is correct pressure)

EGNG003B

COMPONENT INSPECTION

EAAC0D94

1.

ECM Component Inspection

1)

IG KEY "OFF", ENGINE "OFF".

2)

Disconnect ECM.

3)

Replace ECM, check if abnormal operations disappear.

4)

If problems are corrected, replace ECM.

VERIFICATION OF VEHICLE REPAIR

E5134CBF

After a repair, it is essential to verify that the fault is corrected.

1.

After connecting Scantool select "DIAGNOSTIC TROUBLE CODES(DTCs)" mode.

FLA -160

FUEL SYSTEM

2.

Clear recorded DTC using Scantool.

3.

Drive the vehicle within DTC "Enable conditions" in "General information".

4.

After selecting "DIAGNOSTIC TROUBLE CODES(DTCs)" mode and check if DTC is recorded again.

5.

Are any DTCs recorded ?

YES

▶ Go to the DTC guide of recorded NO. in Scantool.

NO

▶ System operates within specification.

DIESEL CONTROL SYSTEM

FLA -161

DTC P0108 ATMOSPHERIC PRESSURE CIRCUIT HIGH INPUT

COMPONENT LOCATION

E5427083

Refer to DTC P0107.

GENERAL DESCRIPTION

E71F32EE

Refer to DTC P0107.

DTC DESCRIPTION

E1469A98

P0108 is set when the voltage above 4.85V - maximum output voltage of Atmospheric pressure sensor - is detected for
more than 0.4 sec.. This code is due to fhe failure of the sensor inside of ECM.

DTC DETECTING CONDITION

E72A4CA4

Item

Detecting Condition

Possible Cause

DTC Strategy

• Voltage monitoring

Enable Conditions

• IG KEY "ON"

ThresholdValue

• When output voltage is above the maximum

value. (above 4.85V)

DiagnosticTime

• 2.0 sec.

Fuel Cut

NO

EGR Off

YES

Fuel Limit

YES

Fail Safe

MIL

NO

• Atmospheric pressure is

fixed at 1000hpa.

• Atmospheric pressure

sensor (ECM component)

SPECIFICATION

E6934E71

Refer to DTC P0107.

MONITOR SCANTOOL DATA

EDE8D891

Refer to DTC P0107.

COMPONENT INSPECTION

E44AF3D4

1.

ECM Component Inspection

1)

IG KEY "OFF", ENGINE "OFF".

2)

Disconnect ECM.

3)

Replace ECM, check if abnormal operations disappear.

4)

If problems are corrected, replace ECM.

FLA -162

FUEL SYSTEM

VERIFICATION OF VEHICLE REPAIR

E8B258F2

Refer to DTC P0107.
