CP-14

CORROSION PROTECTION

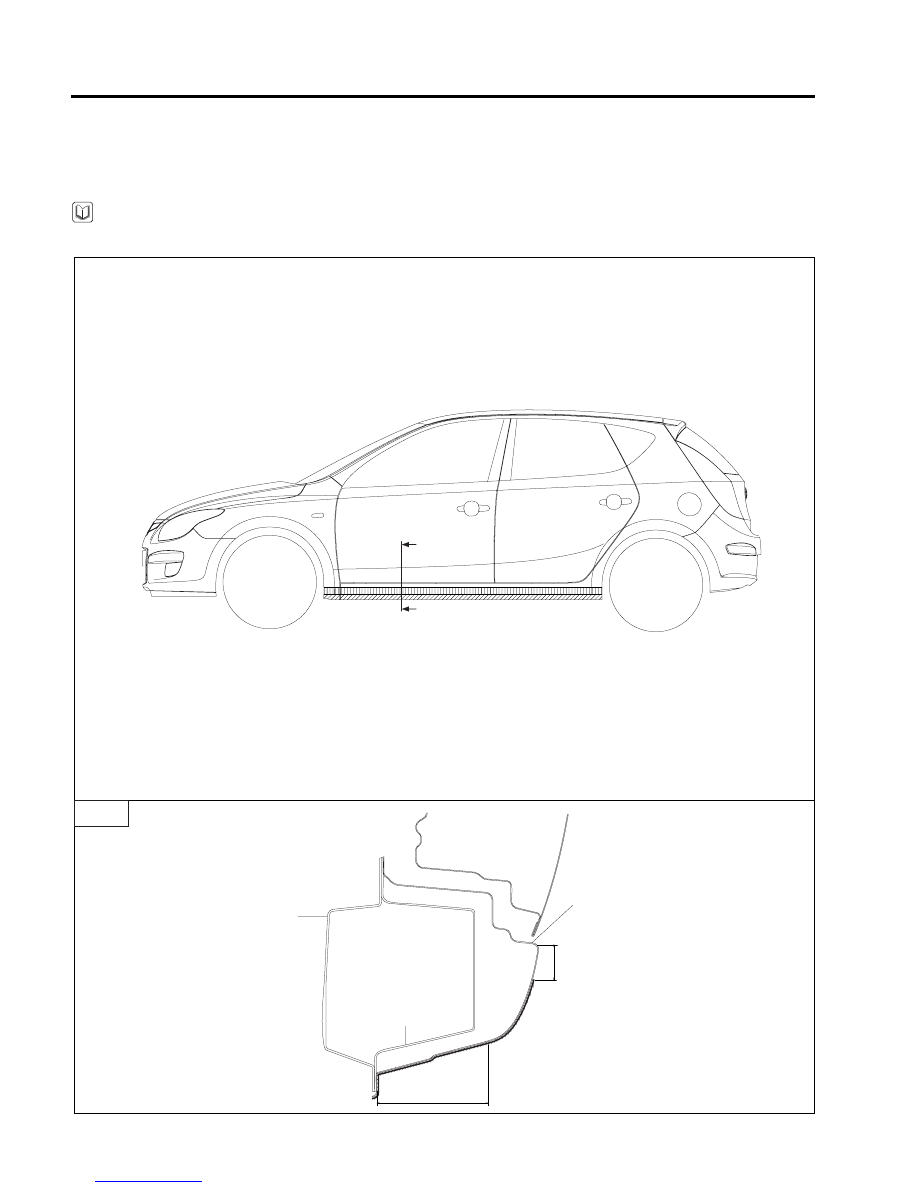

UNDER BODY ANTI-CORROSION AGENT

The undersides of the floor and wheel house are undercoated to provide greater corrosion resistance. Therefore, when such
panel is replaced or repaired, apply under body anti-corrosion agent to that part.

NOTE

Do not apply the under body anti-corrosion agent to come in contact with tires, muffler and exhaust pipe.

BFDCP6115

BFDCP6114

A - A

A

A

25mm

80mm

Side sill inner panel

Side outer panel

Side sill outer

front reinforcement

Body Modification

Tools

BT

MODIFICATION TOOLS

.............................. BT - 2

CUT AND DISASSEMBLY TOOLS

......... BT - 3

ASSEMBLY TOOLS

....................................... BT - 4

MEASUREMENT TOOLS

............................ BT - 4

WELDING MACHINE

.................................... BT - 5

BUFFING AND GRINDING TOOLS

........ BT - 6

HANDHELD TOOLS

..................................... BT - 8

REPAIR TOOLS SET

.................................... BT - 9

BT-2

BODY MODIFICATION TOOLS

Frame straightener

Port power

Body puller

Modify twisted or bent body

Push out, stretch, pull in damaged area

Stretch damaged area

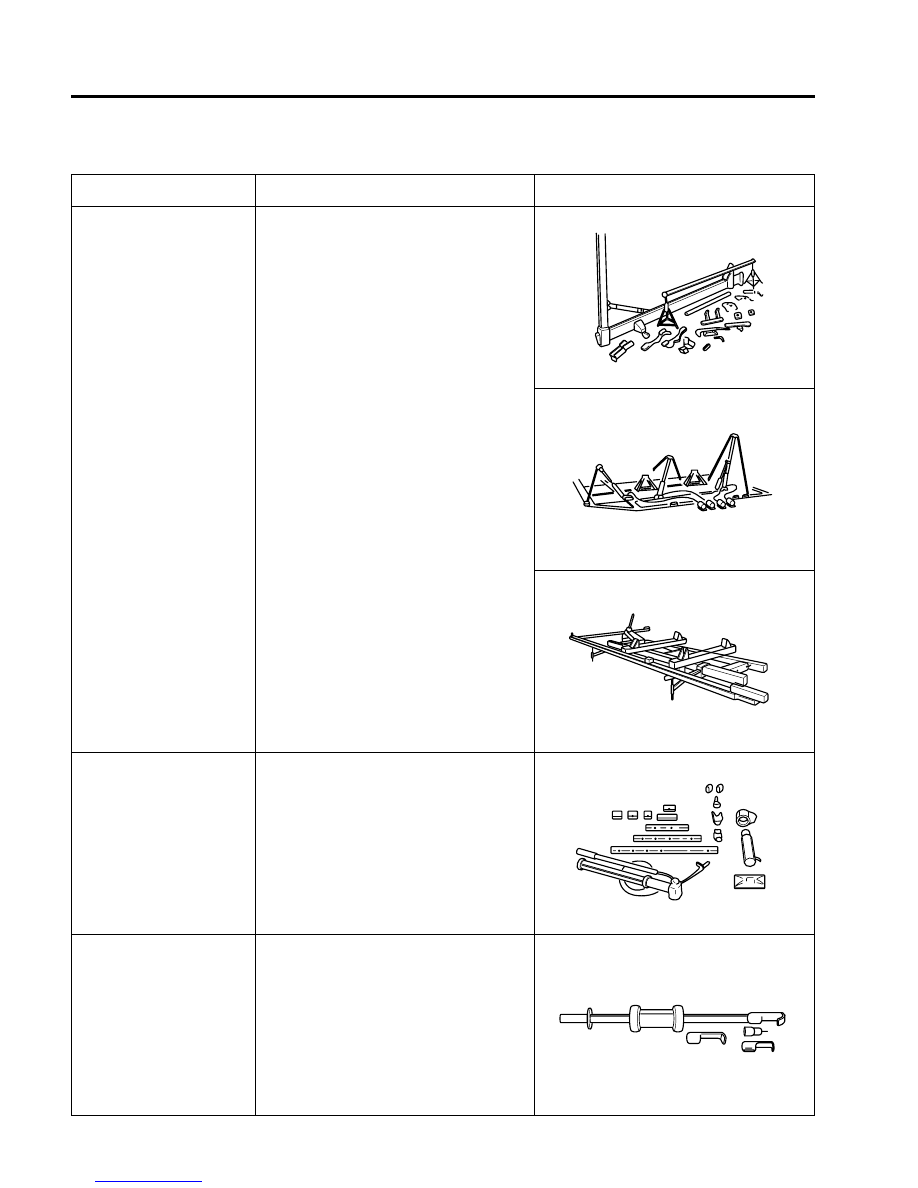

BODY MODIFICATION TOOLS

MODIFICATION  TOOLS

A3EB3501

A3EB3502

A3EB3503

A3EB3504

A3EB3505

Name

Used for

Figure

BODY MODIFICATION TOOLS

BT-3

Air saw

Air chisel

Rotary cutter

Air drill

Spot cutter

Cut a panel

Cut a panel

Cut a panel

Cut and disassemble spot welded area

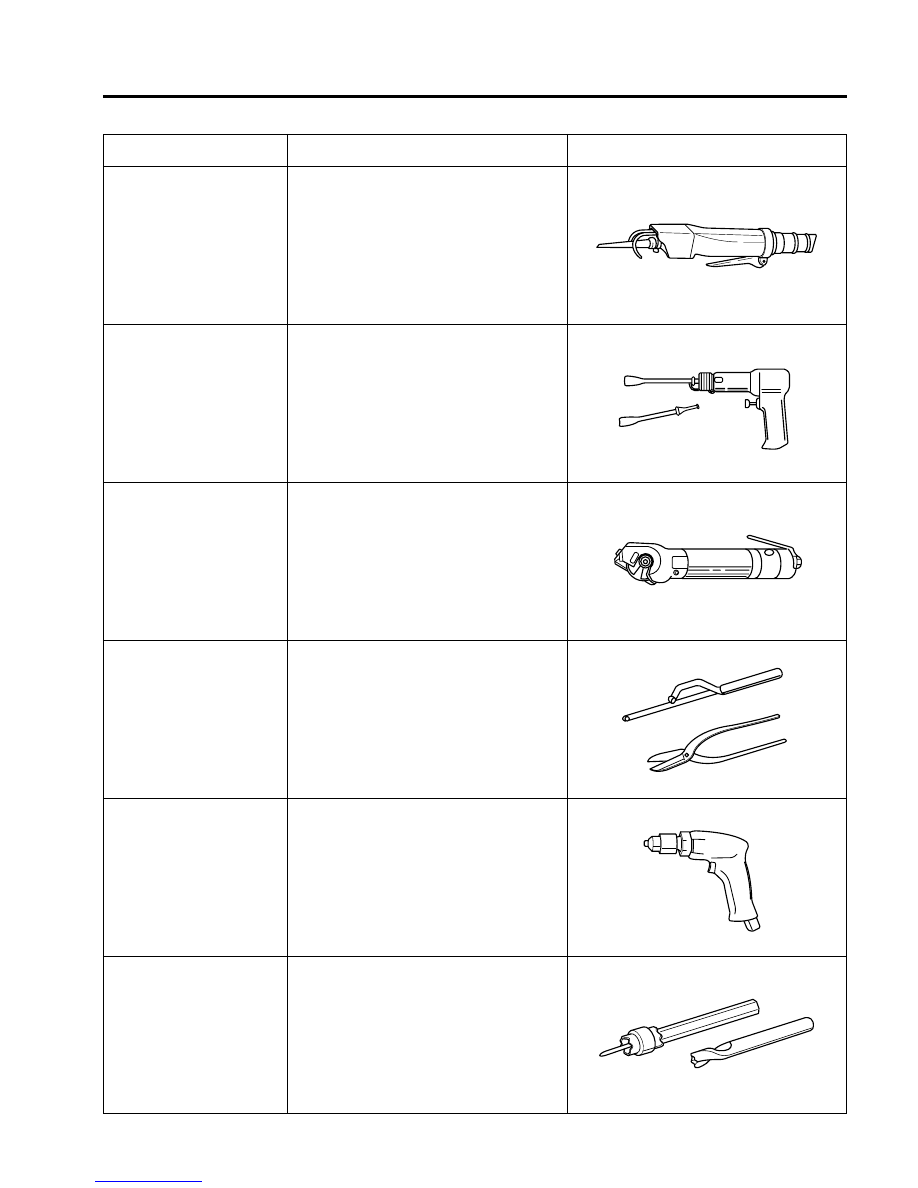

CUT AND DISASSEMBLY TOOLS

Name

Used for

Figure

Hand saw and

metal scissors

Cut or bend a panel, cut and

disassemble spot welded area

Fix a spot cutter or drill to cut or

disassembly spot welding area, to

finish a hole

A3EB3506

A3EB3507

A3EB3508

A3EB3509

A3EB3510

A3EB3511
