Hyundai Getz: Body Repair Manual - part 34

142

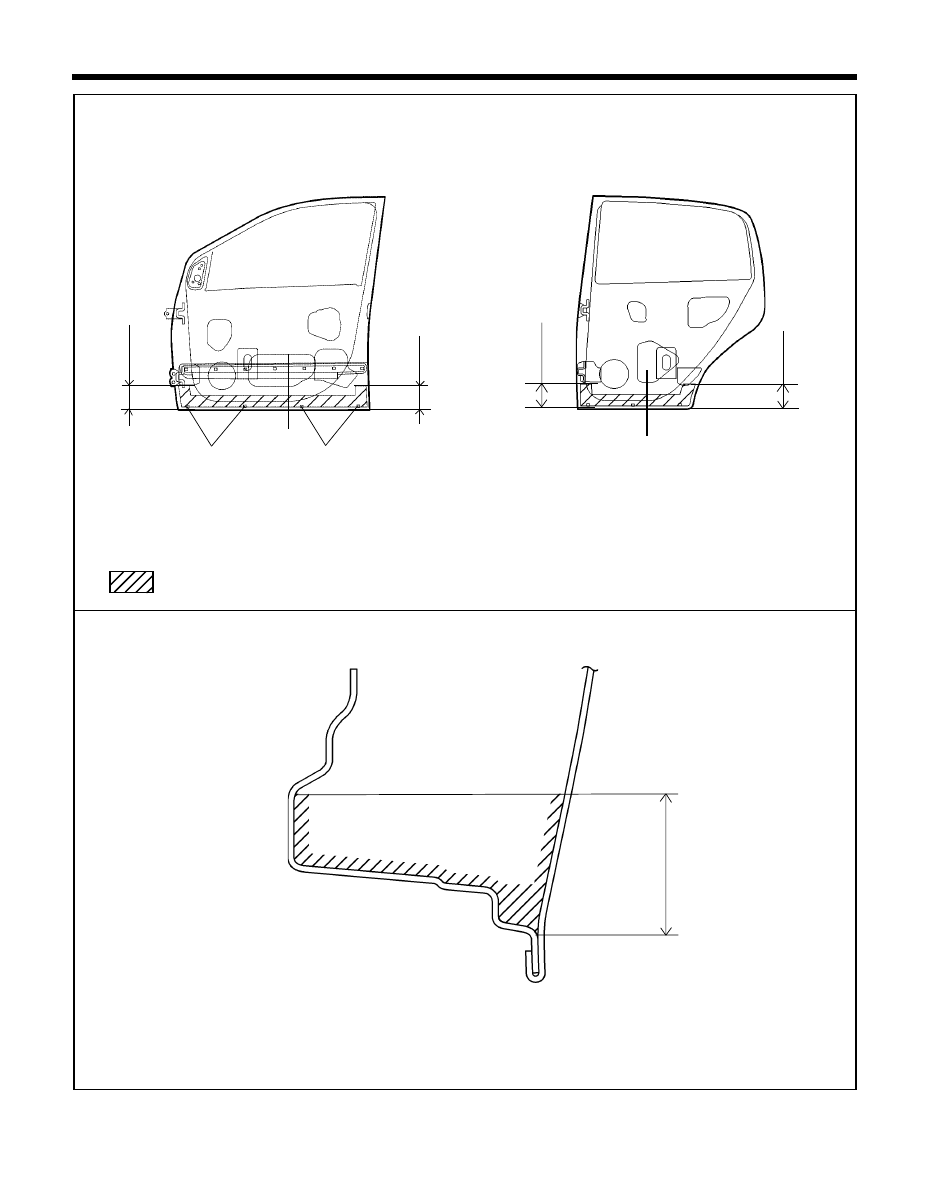

CORROSION PROTECTION - Cavity wax injection

Wax injection must be done through access holes marked.



COR-0060/0070

Cavity wax injection (Thickness 40

µ

 - 50

µ

)

SECTION A-A'

A

Í

A'

Í

130mm

(MIN)

130mm

(MIN)

REAR DOOR

FRONT DOOR

A

Í

A'

Í

130mm

(MIN)

130mm

(MIN)

COR-0062





















60mm

(MIN)
