Hyundai Getz: Body Repair Manual - part 12

52

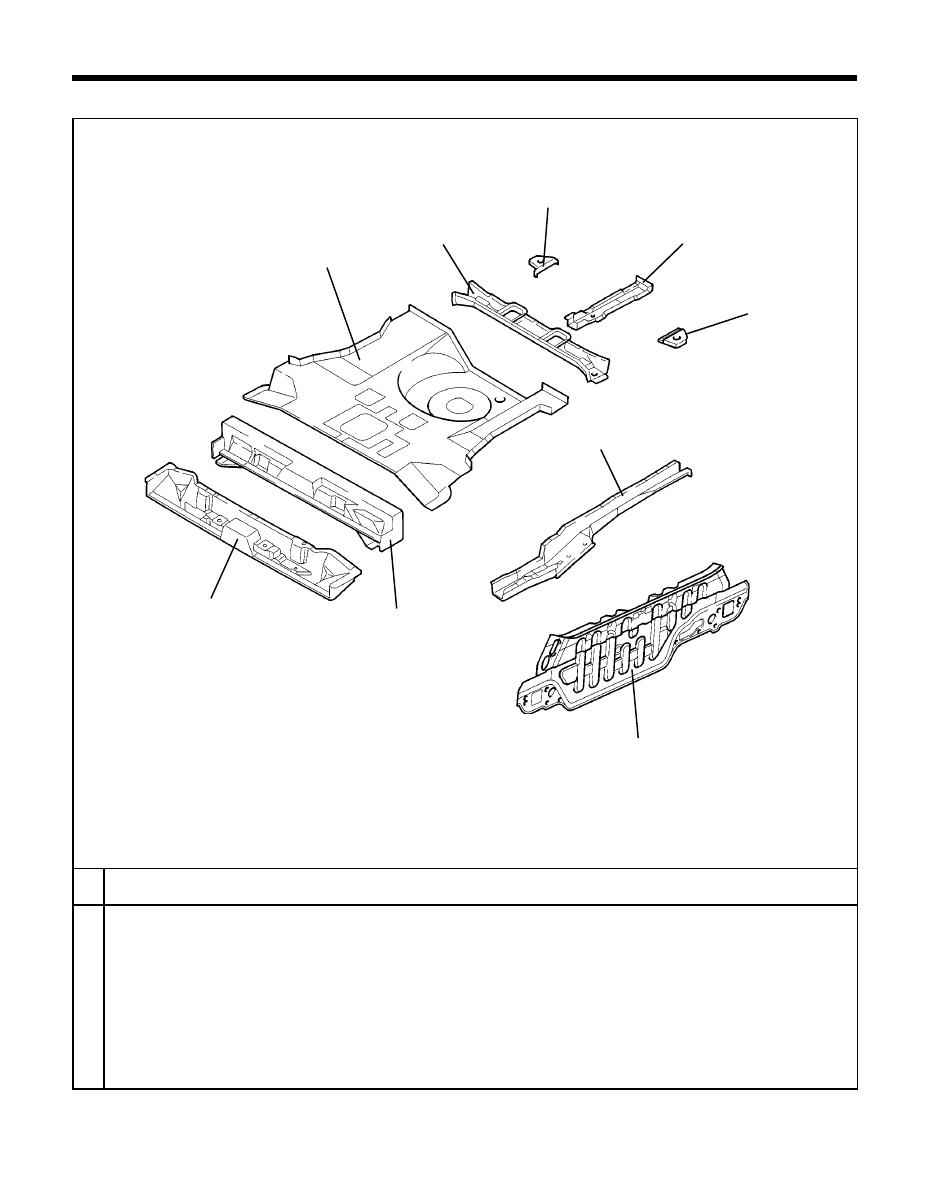

REPLACEMENT PARTS - Rear body

REAR BODY

A

B

C

D

E

F

G

H

REAR FLOOR FRONT MEMBER ASSEMBLY

REAR FLOOR FRONT EXTENSIOR ASSEMBLY

REAR FLOOR PANEL

REAR FLOOR SIDE COMPLETE MEMBER ASSEMBLY,

LH/RH

REAR FLOOR CENTER CROSS MEMBER ASSEMBLY

GUSSET,

LH/RH

REAR TOWING HOOK BRACKET ASSEMBLY

BACK PANEL ASSEMBLY

PART NAME

TB-830

C

B

A

E

D

F

G

F

H

53

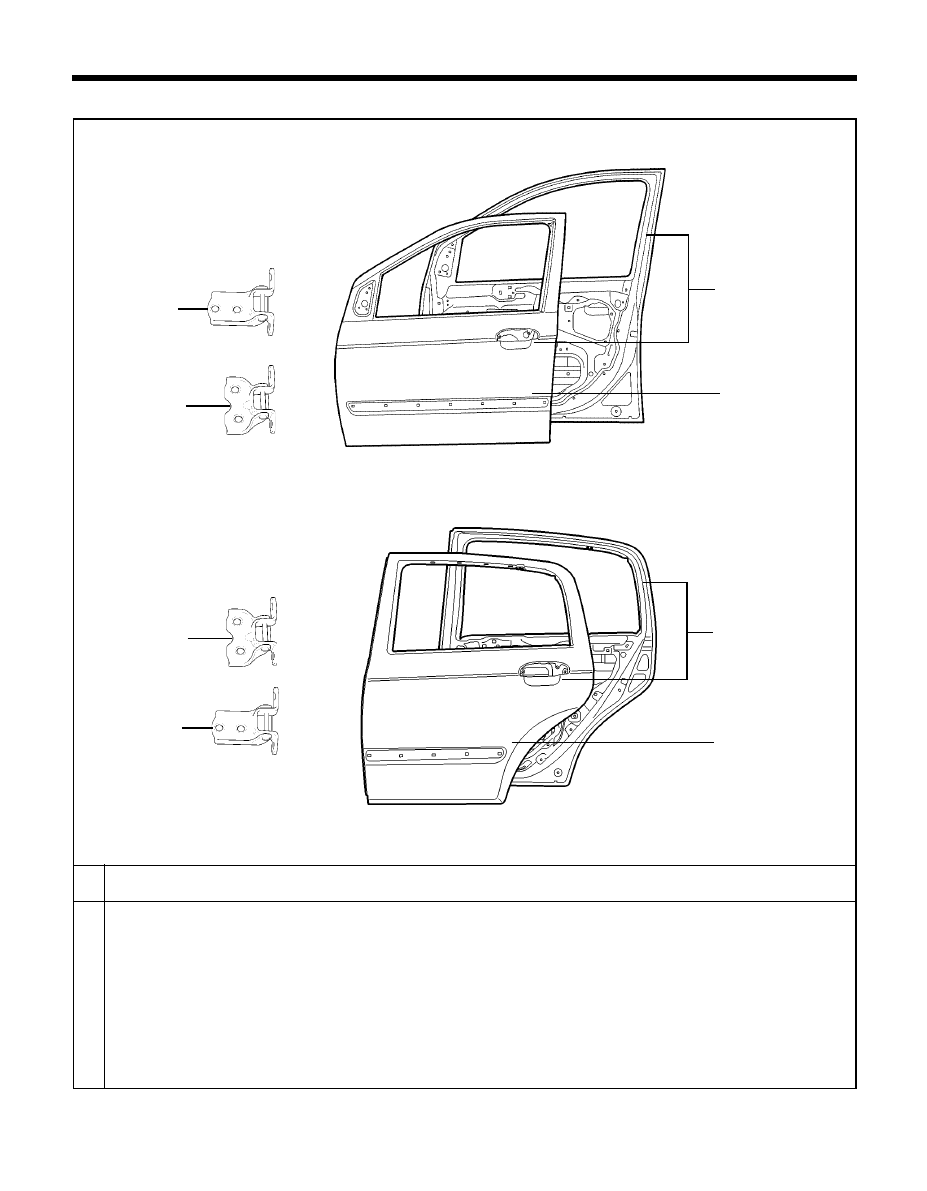

REPLACEMENT PARTS - Door

DOOR

A

B

C

D

E

F

G

H

FRONT DOOR PANEL ASSEMBLY,

LH/RH

FRONT DOOR OUTER PANEL,

LH/RH

FRONT DOOR UPPER HINGE ASSEMBLY,

LH/RH

FRONT DOOR LOWER HINGE ASSEMBLY,

LH/RH

REAR DOOR PANEL ASSEMBLY,

LH/RH

REAR DOOR OUTER PANEL,

LH/RH

REAR DOOR UPPER HINGE ASSEMBLY, LH/RH

REAR DOOR LOWER HINGE ASSEMBLY, LH/RH

PART NAME

TB-7113,7112/TB-RR

TB-7112,113/TB-FRT

A

C

D

H

G

B

E

F

BODY
DIMENSIONS

56

GENERAL

1.

Basically, all measurements in this manual are taken with a
tracking gauge.

2.

When a measuring tape is used, check to be sure there is no
elongation, twisting or bending.

3.

For measuring dimensions, both projected dimension and ac-
tual-measurement dimension are used in this manual.

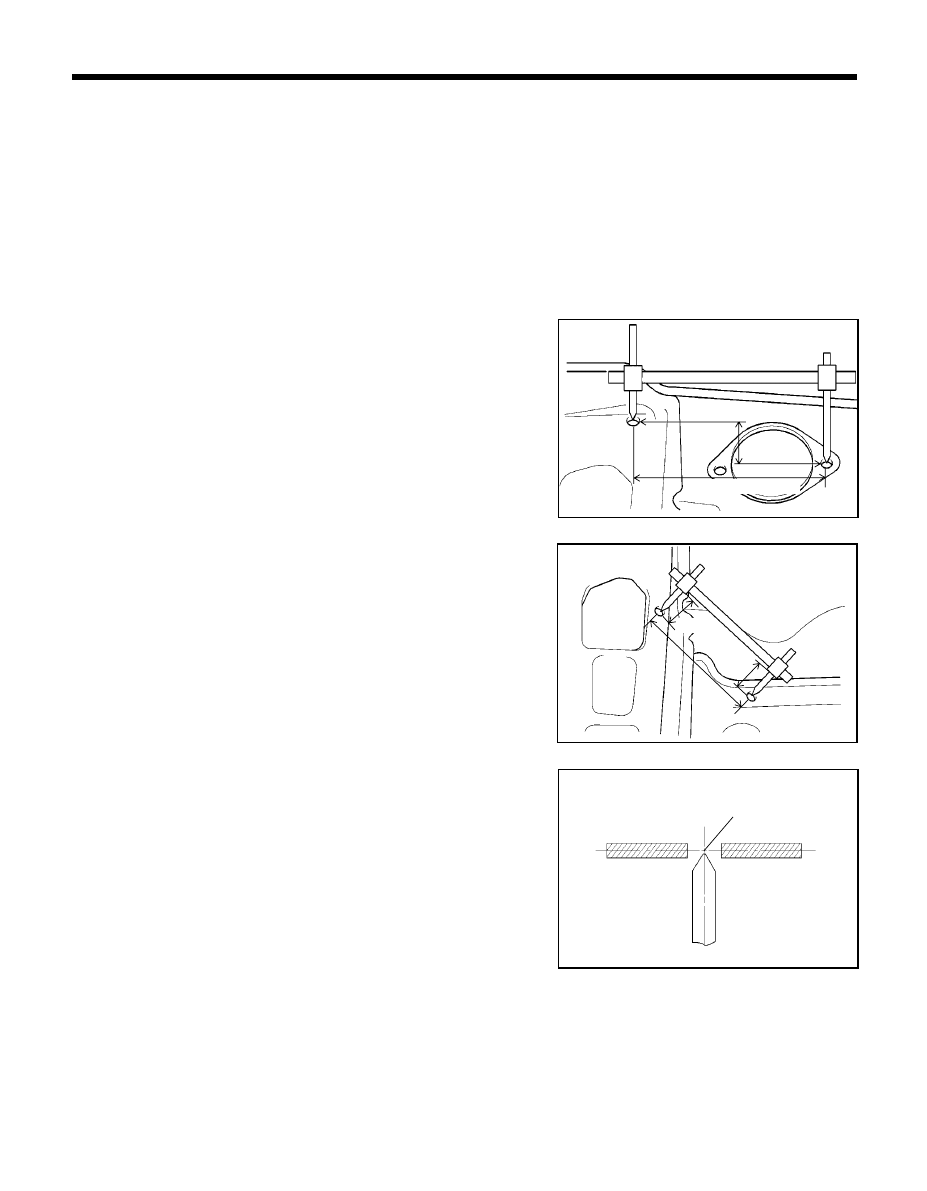

ACTUAL-MEASUREMENT DIMENSIONS

1.

These dimensions indicate the actual linear distance between
measurement points, and are the reference dimensions for use
if a tracking gauge is used for measurement.

2.

Measure by first adjusting both probes to the same length (A=A')

NOTE
Check the probes and gauge itself to make sure there is no
free play.

MEASUREMENT POINT

1.

Measurements should be taken at the hole center.

MEASUREMENT METHOD

PROJECTED DIMENSIONS

1.

These are the dimensions measured when the measurement
points are projected into the reference plane, and are the
reference dimensions used for body alterations.

2.

If  the length of the tracking gauge probes are adjustable, make
the measurement by lengthening one probe by the amount
equivalent to the difference in height of  the two surfaces.

Actually-measured dimension

BODY DIMENSIONS - General

A'

DIM0010

DIM0020

DIM0030

Height

Hole center

Projected dimension

A

A'
