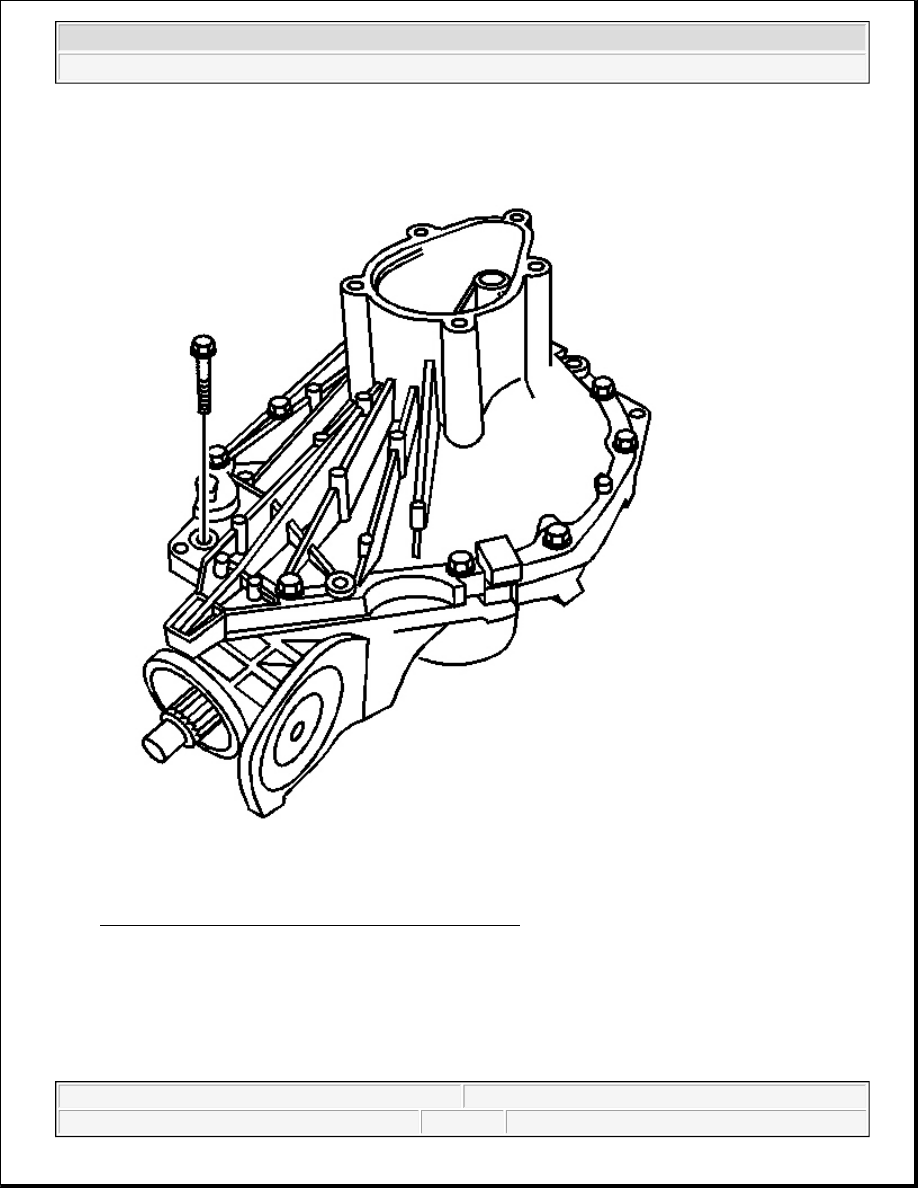

Fig. 75: Removing Differential Carrier Assembly Bolts
Courtesy of GENERAL MOTORS CORP.

22. Remove the differential carrier assembly bolts.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

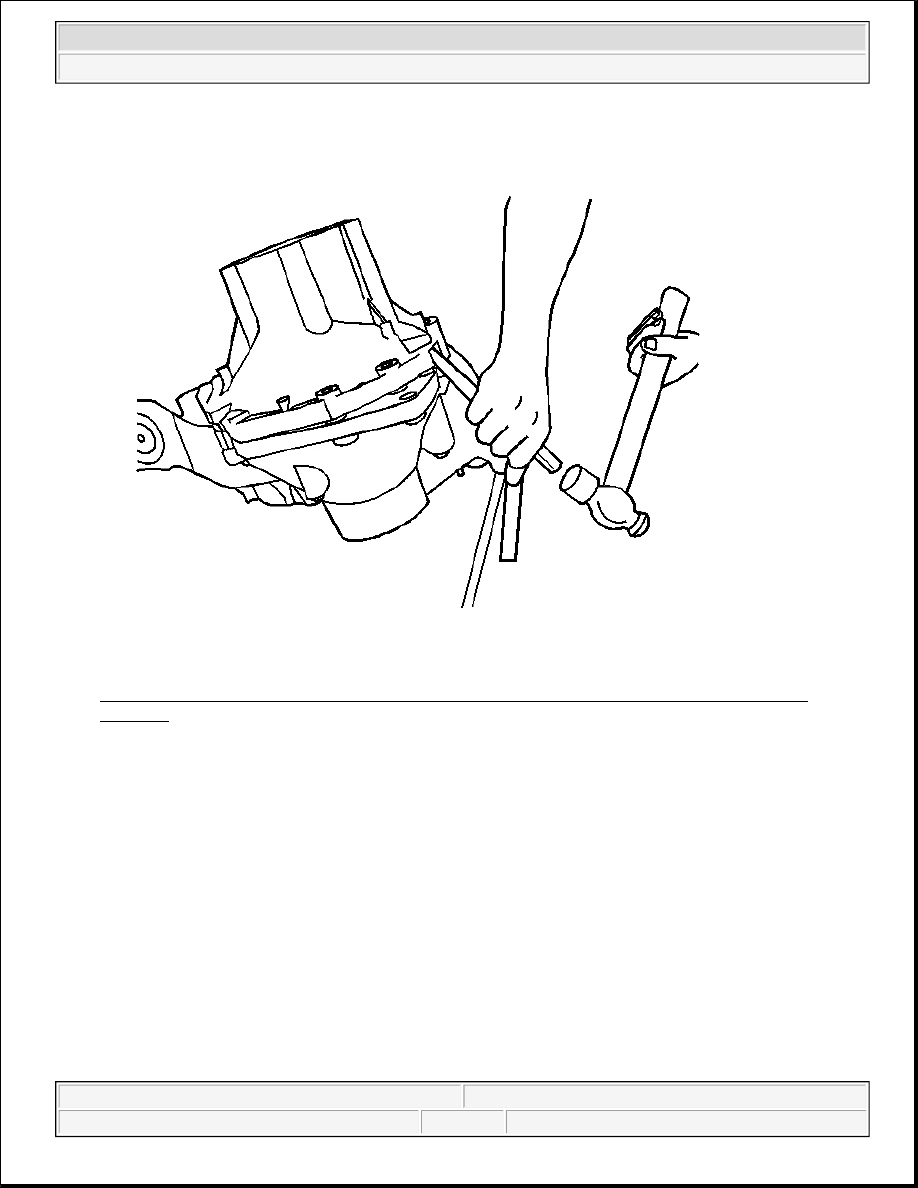

Fig. 76: Separating Left & Right Carrier Case Half By Tapping On Carrier Case Lugs With
Hammer
Courtesy of GENERAL MOTORS CORP.

23. Separate the left carrier case half from the right carrier case half by tapping on the carrier case lugs with a

brass drift and a hammer.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

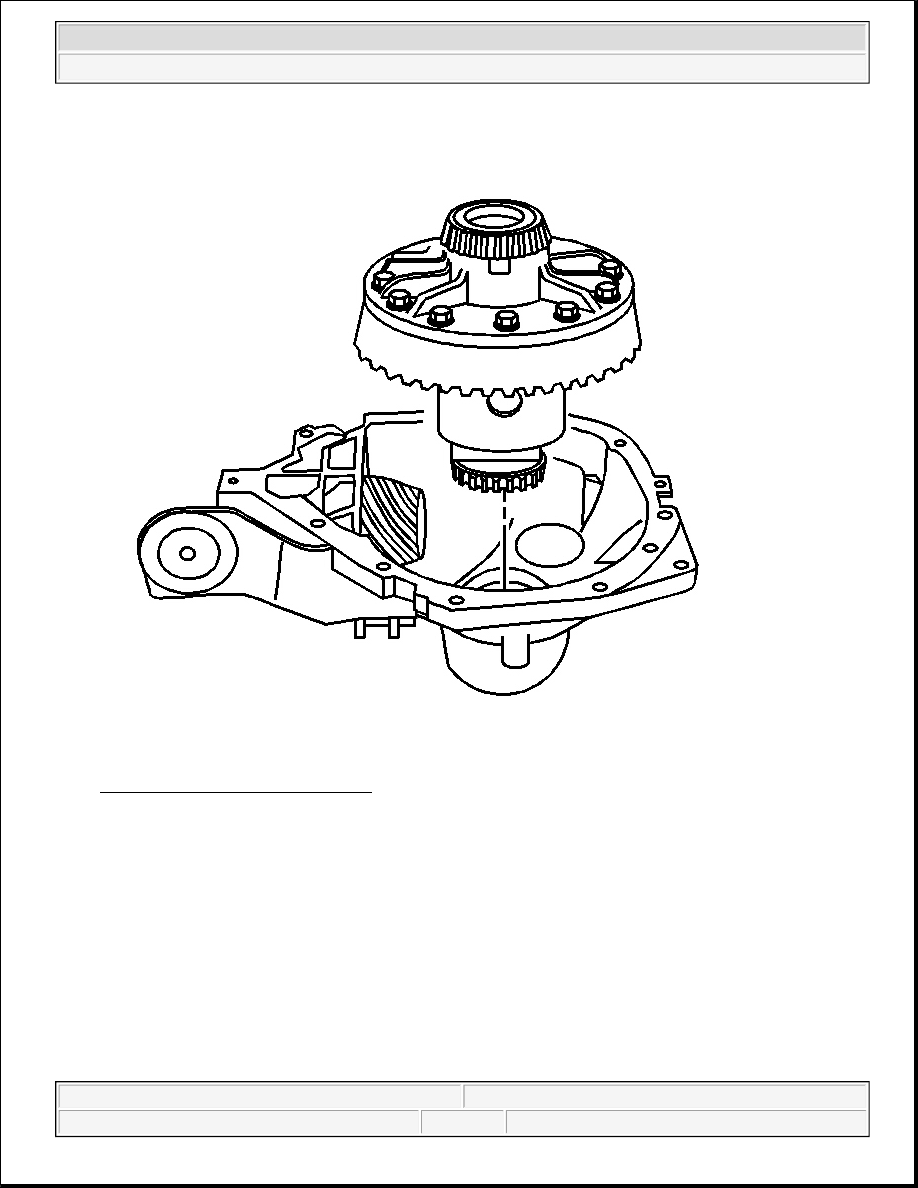

Fig. 77: Differential Case Assembly
Courtesy of GENERAL MOTORS CORP.

24. Remove the differential case assembly.

25. Disconnect the right side differential bearing adjuster nut lock from the differential bearing adjuster nut

by prying up on the lock.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2

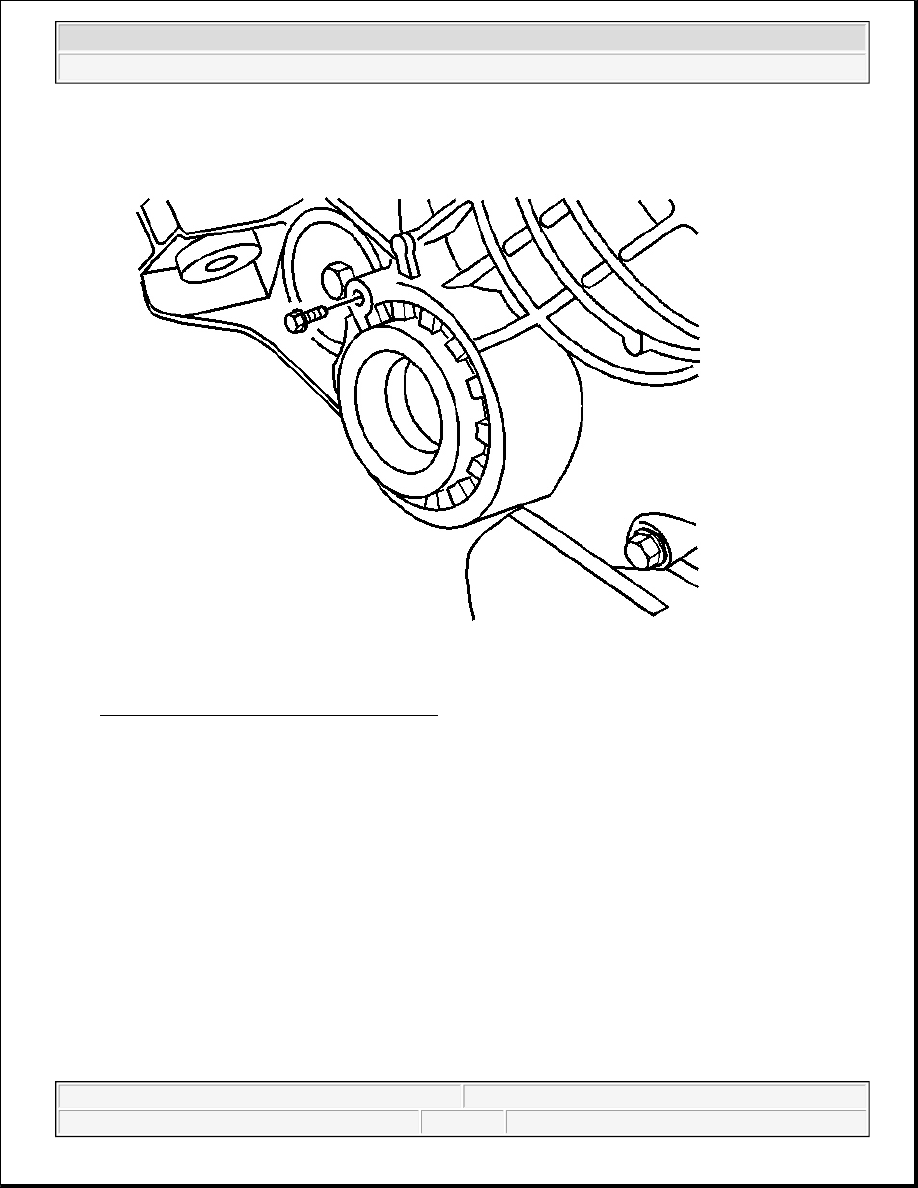

Fig. 78: Differential Adjuster Nut Lock Bolt
Courtesy of GENERAL MOTORS CORP.

26. Remove the differential bearing adjuster nut lock bolt from the differential bearing adjuster nut.
