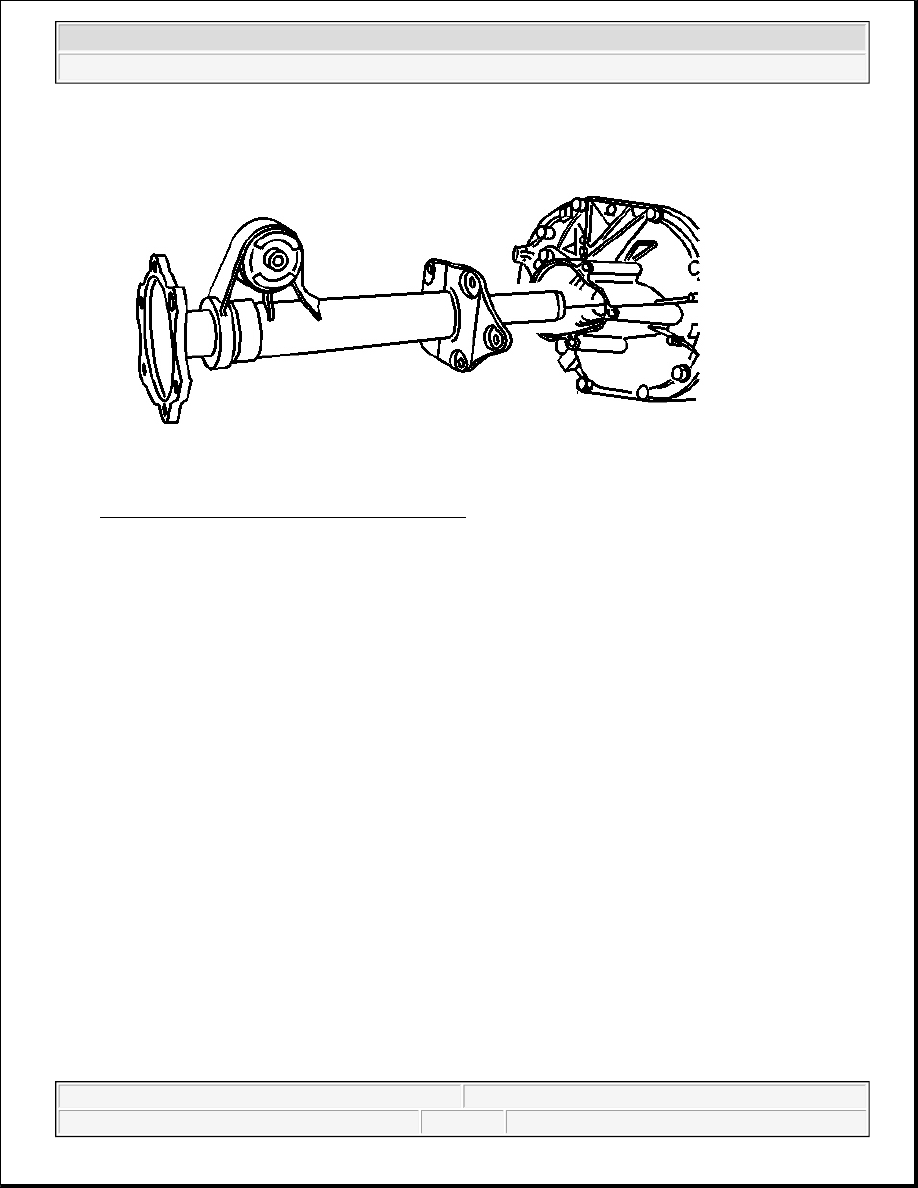

Fig. 67: Inner Axle Housing & Inner Axle Shaft
Courtesy of GENERAL MOTORS CORP.

2. Remove the inner axle housing with the inner axle shaft.

3. Install the inner axle shaft housing into a vise.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



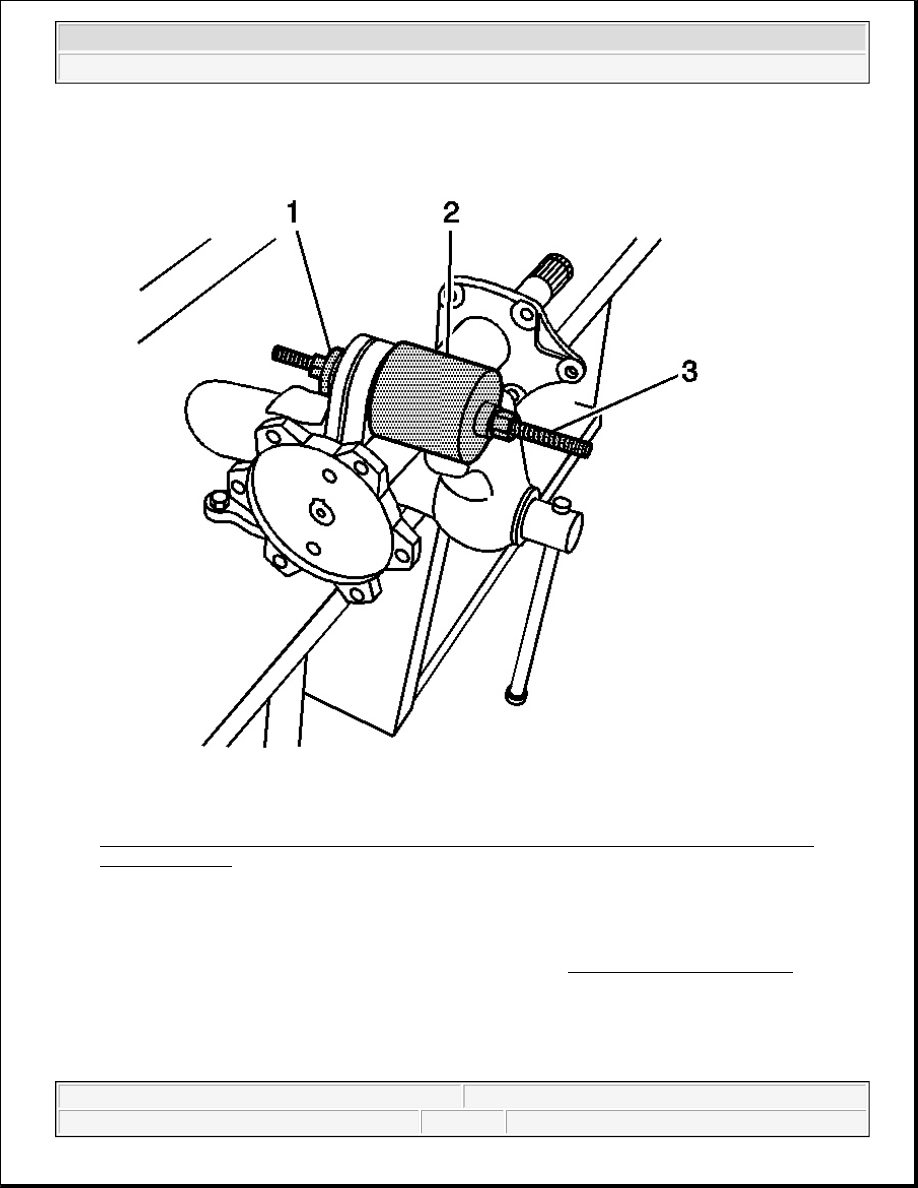

Fig. 68: Installing J 45755-2, J 45755-1, Forcing Screw, Bearing & Washers Over Inner Shaft
Housing Bushing
Courtesy of GENERAL MOTORS CORP.

4. Install the J 45755-2 (2), J 45755-1 (1), and the forcing screw, bearing and washers (3) over the inner

shaft housing bushing as shown.

5. Remove the inner shaft housing bushing using the J 45755 . See Special Tools and Equipment .

6. Remove the inner axle shaft from the inner axle housing using a hammer and brass drift.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



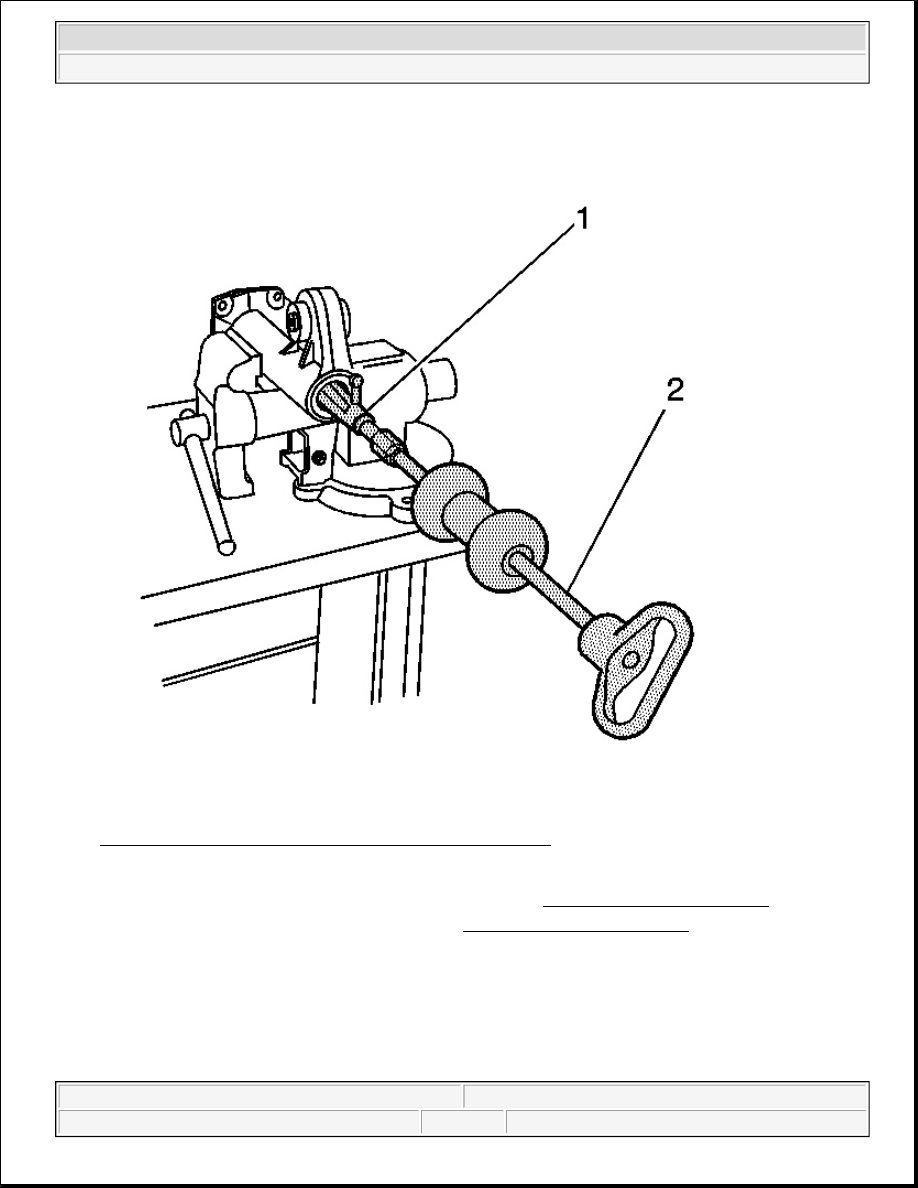

Fig. 69: View Of J 29369-2 & J 2619-01
Courtesy of GENERAL MOTORS CORP.

7. Install the J 29369-2 behind the inner axle shaft seal. See Special Tools and Equipment .

8. Install the J 2619-01 (2) to the J 29369-2 (1). See Special Tools and Equipment .

9. Remove the inner axle shaft seal using the J 2619-01 .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



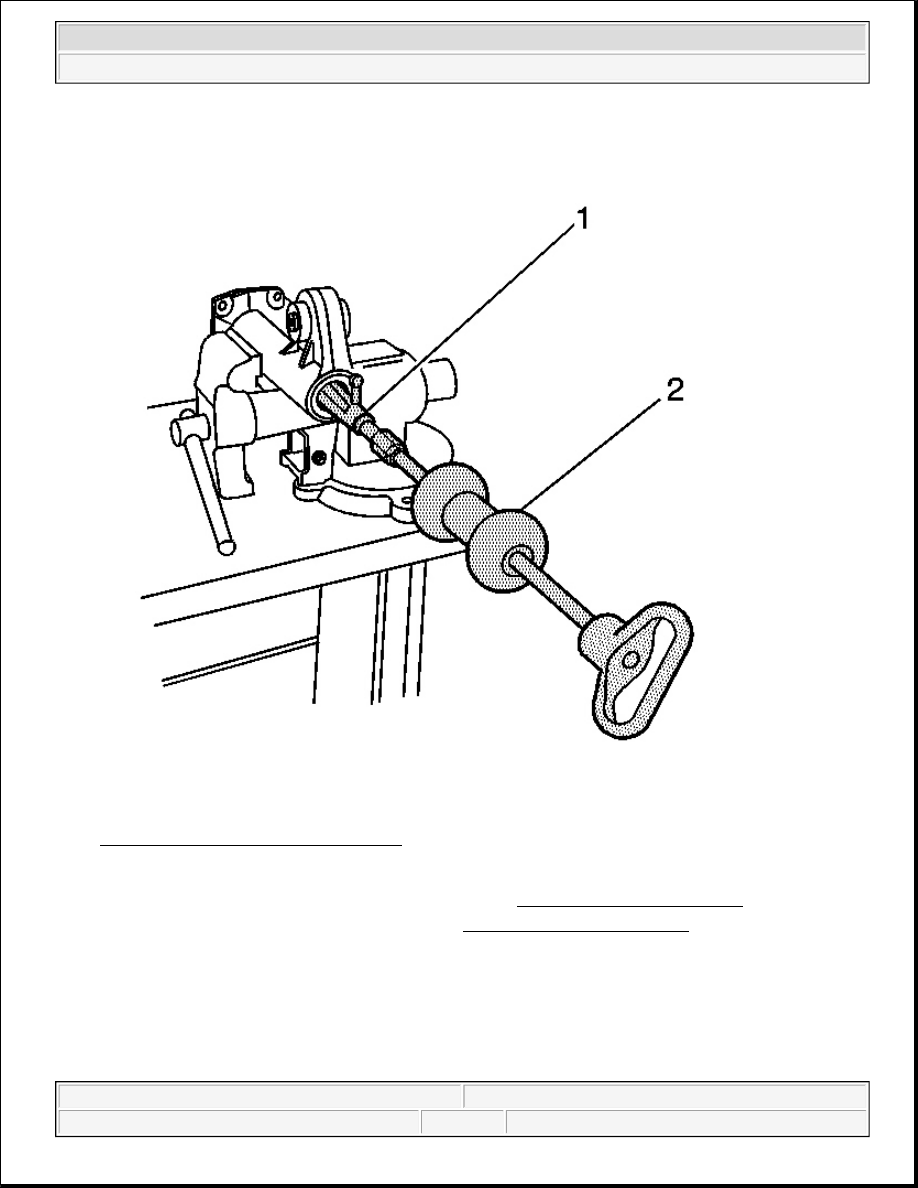

Fig. 70: Installing J 29369-02 Behind Inner Axle Shaft Seal
Courtesy of GENERAL MOTORS CORP.

10. Install the J 29369-2 behind the inner axle shaft bearing. See Special Tools and Equipment .

11. Install the J 2619-01 (2) to the J 29369-2 (1). See Special Tools and Equipment .

12. Remove the inner axle shaft bearing using the J 2619-01 .

13. Place the differential carrier assembly into a vise.

Clamp only on the mounting flange of the differential carrier assembly case.
