Removal Procedure

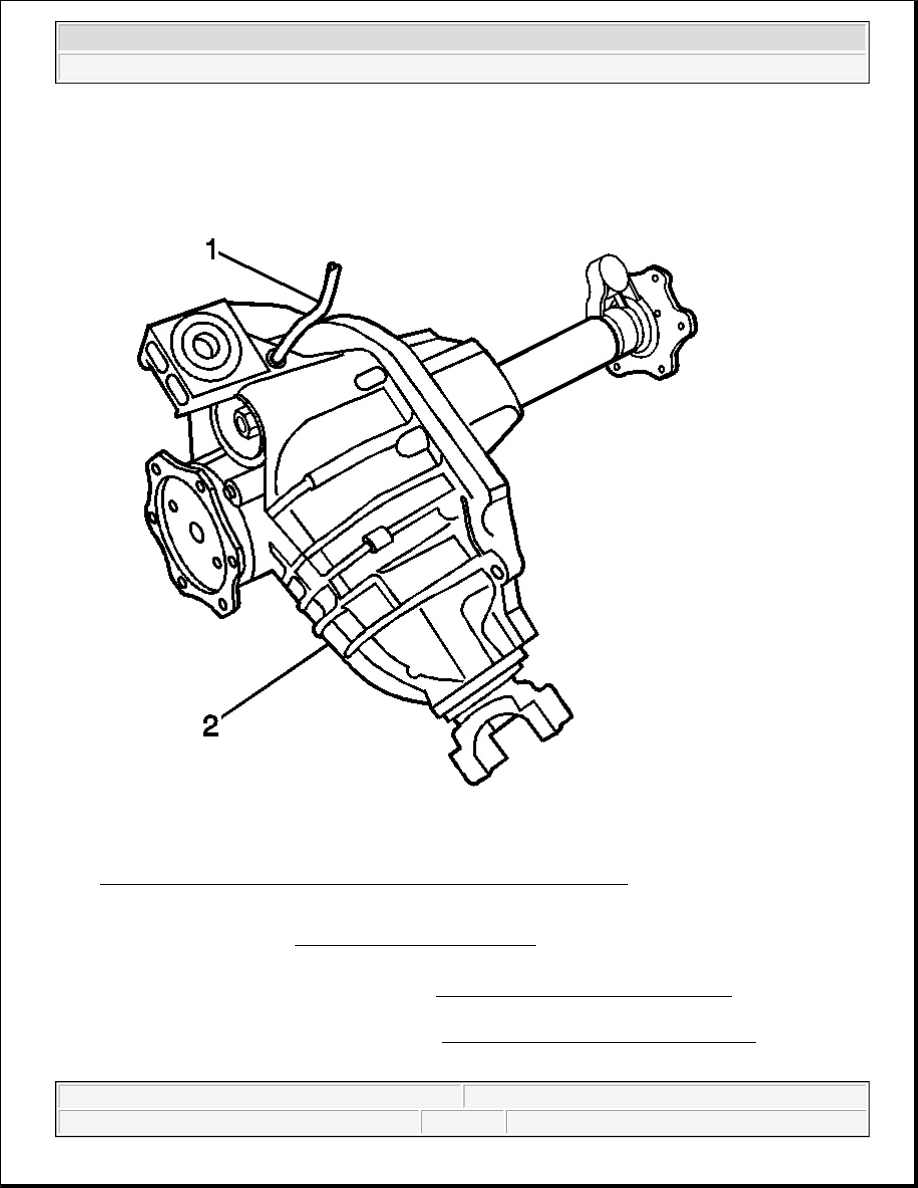

Fig. 62: Identifying Vent Hose & Differential Carrier Case Assembly
Courtesy of GENERAL MOTORS CORP.

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Support the rear end of the vehicle with jack or utility stands.

3. Remove the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

4. Remove the catalytic converter guard. Refer to Catalytic Converter Guard Replacement in Frame and

Underbody.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



5. Drain the front drive axle. Refer to Lubricant Replacement - Front Drive Axle .

6. Disconnect the front propeller shaft from the differential carrier assembly. Refer to Propeller Shaft

Replacement - Front in Propeller Shaft.

7. Remove the wheel drive shafts from the differential carrier assembly and secure out of the way. Refer to

Wheel Drive Shaft Replacement in Wheel Drive Shafts.

8. Disconnect the vent hose (1) from the differential carrier assembly (2).

9. Remove the lower control arm crossmember. Refer to Crossmember Replacement (Lower Control

Arm) in Frame and Underbody.

10. Attach a transmission jack to the differential carrier assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



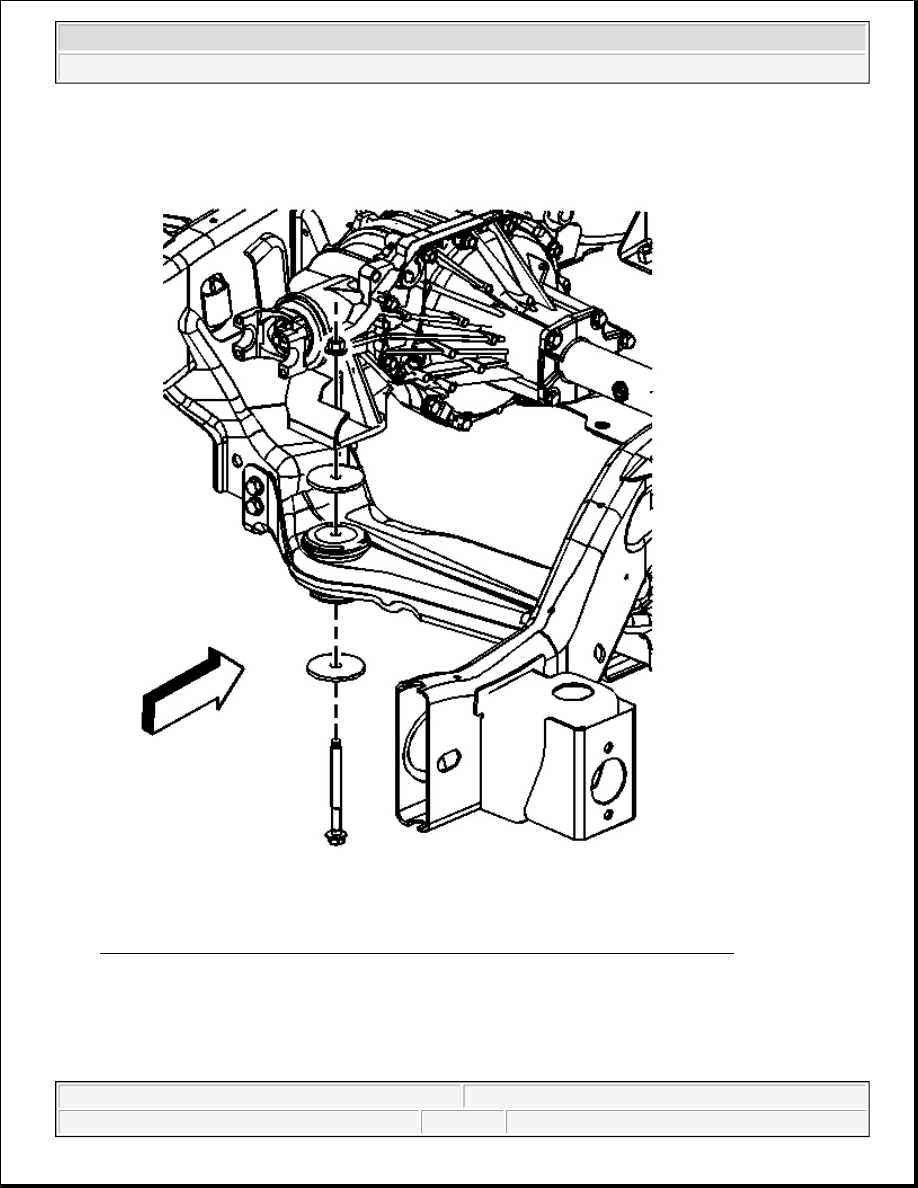

Fig. 63: Differential Carrier Assembly Left & Right Side Axle Mount Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.

11. Remove the differential carrier assembly left side axle mount bolt and nut.

12. Remove the differential carrier assembly right side axle mount bolt and nut.

13. Remove the differential carrier assembly from the vehicle.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



Installation Procedure

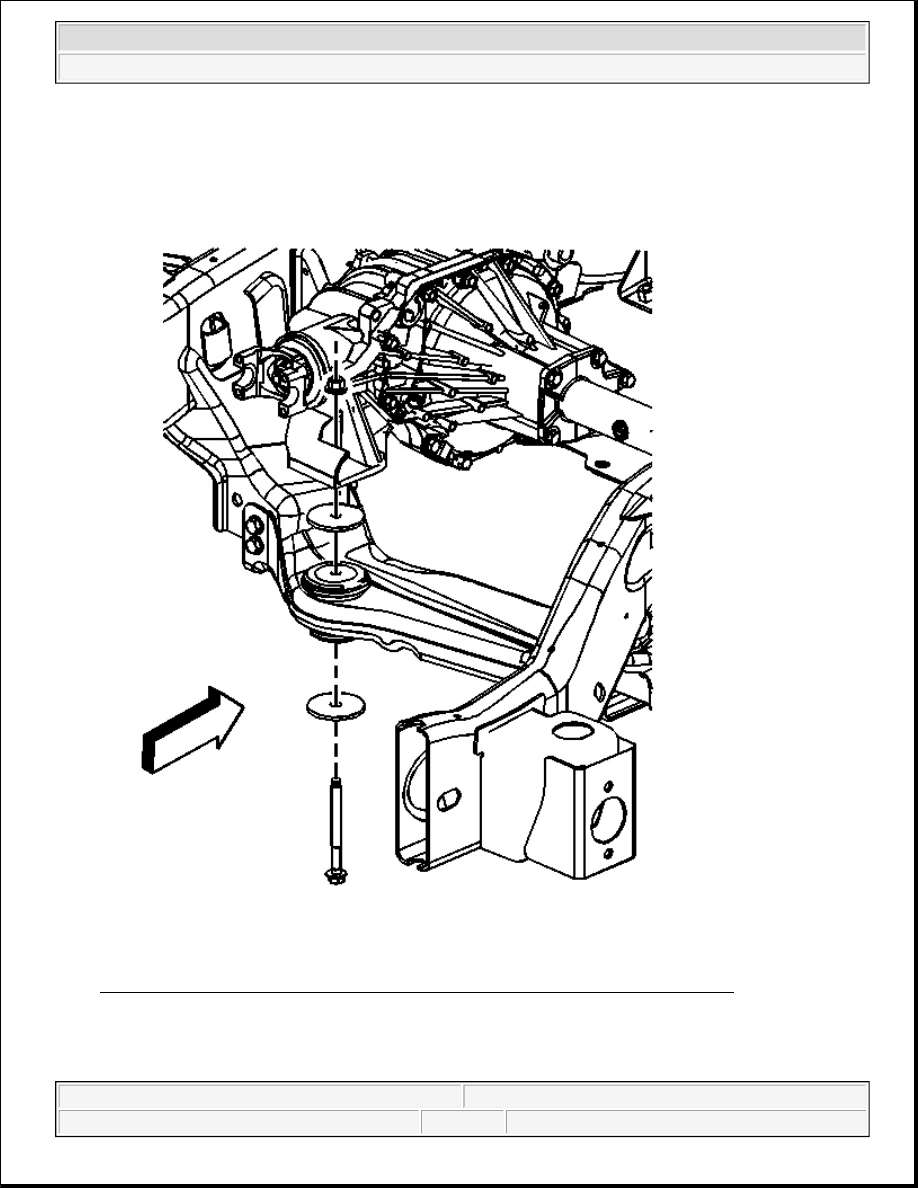

Fig. 64: Differential Carrier Assembly Left & Right Side Axle Mount Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.

1. Install the differential carrier assembly to the vehicle.

2. Perform the following procedure before installing the axle mounting bolts.
