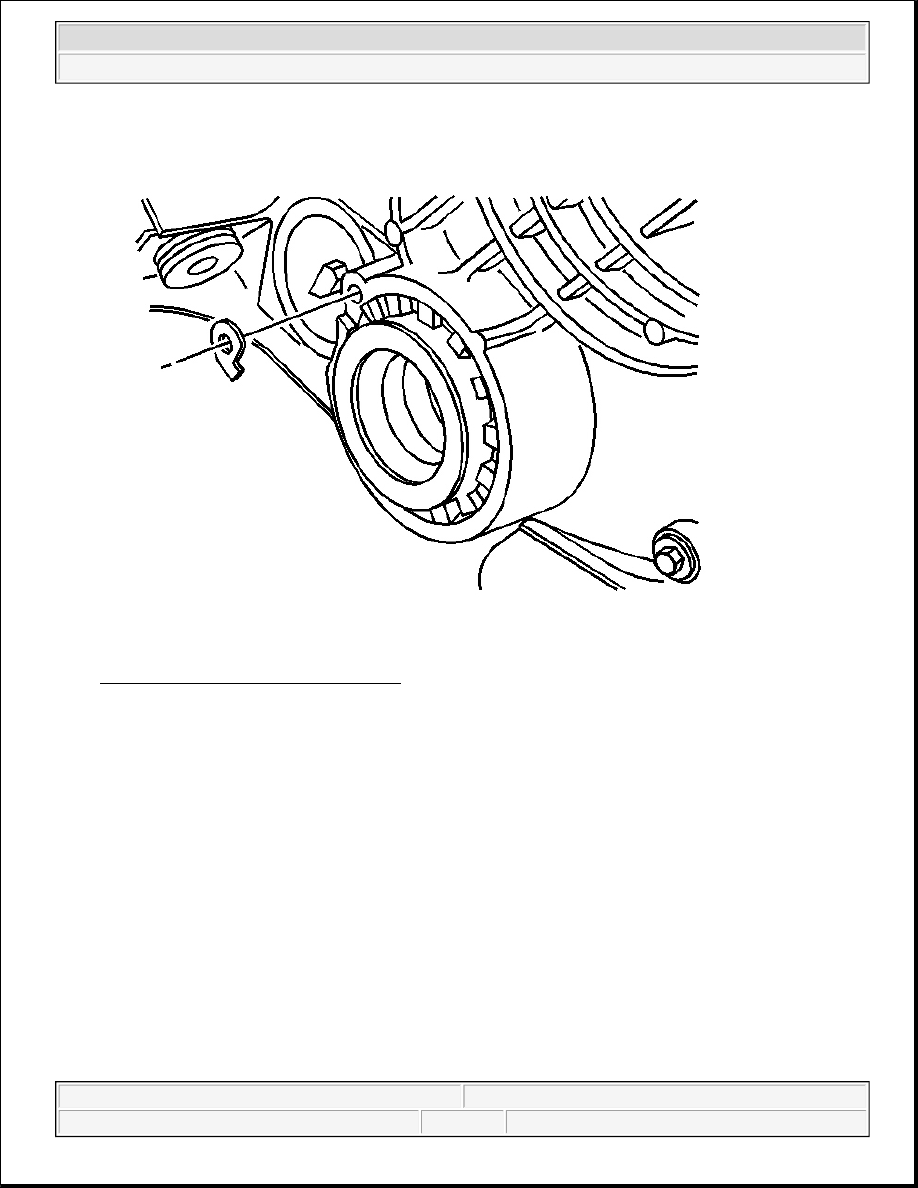

Fig. 79: Differential Adjuster Nut Lock
Courtesy of GENERAL MOTORS CORP.

27. Remove the differential bearing adjuster nut lock from the differential bearing adjuster nut.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



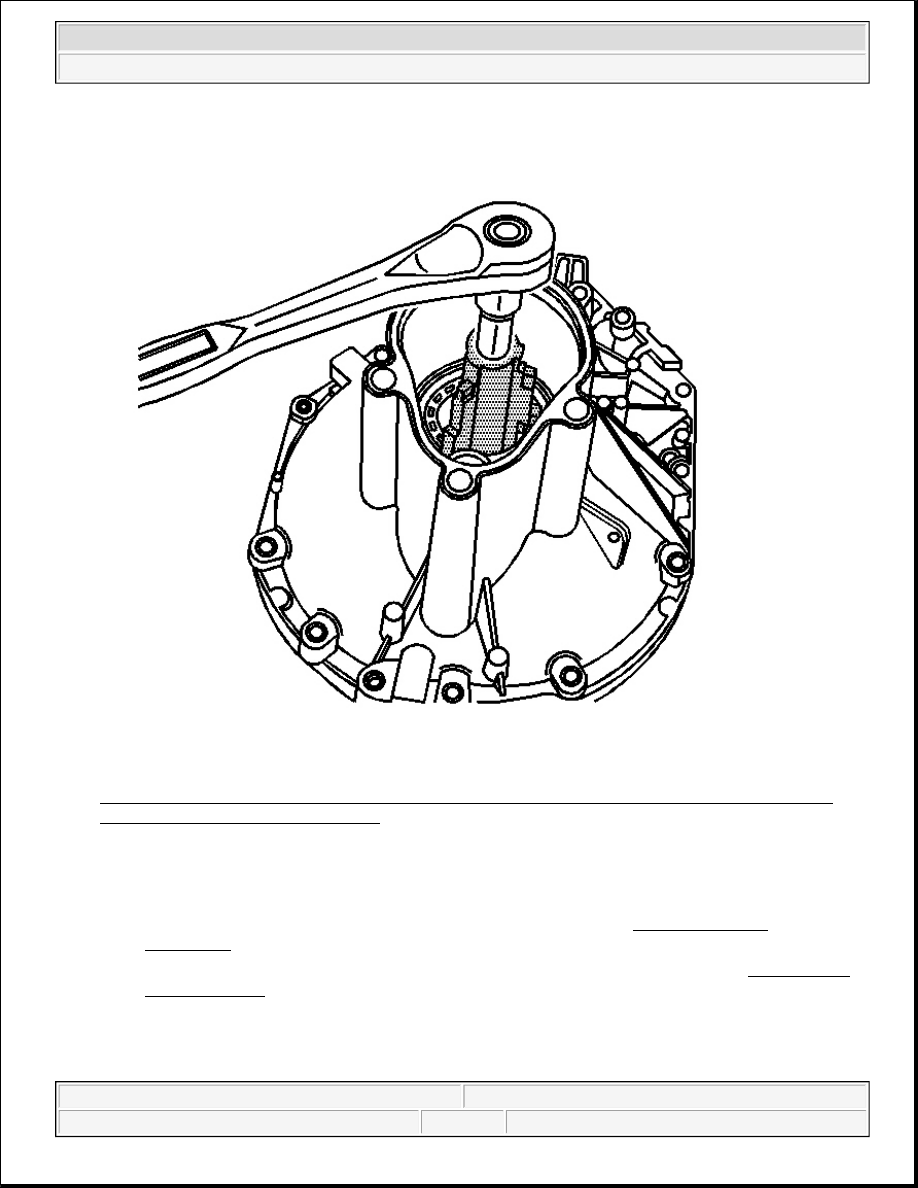

Fig. 80: Remove Right Side Differential Side Bearing Cup, Differential Bearing Adjuster Nut &
Differential Bearing Adjuster Sleeve
Courtesy of GENERAL MOTORS CORP.

28. Remove the right side differential side bearing cup, the differential bearing adjuster nut, and the

differential bearing adjuster sleeve by doing the following:

1. Install the J 36599-A onto the differential bearing adjuster nut. See Special Tools and

Equipment .

2. Turn the J 36599-A clockwise in order to push the bearing cup out of the bore. See Special Tools

and Equipment .

3. Remove the differential bearing adjuster sleeve using a hammer and a brass drift.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



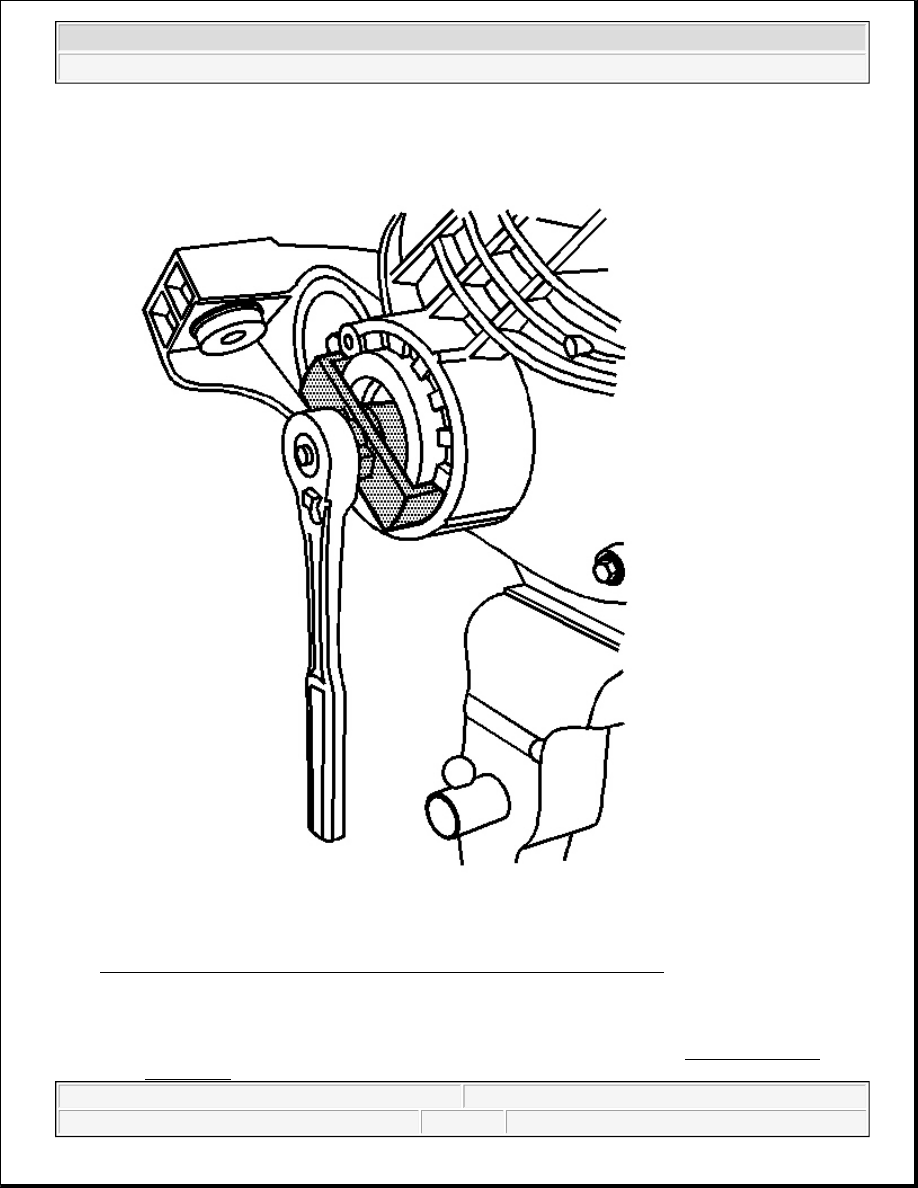

Fig. 81: Turning Left Side Differential Adjuster Nut Sleeve Using J 36615
Courtesy of GENERAL MOTORS CORP.

29. Remove the left side differential bearing adjuster by doing the following:

1. Install the J 36615 onto the differential bearing adjuster nut as shown. See Special Tools and

Equipment .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



2. Turn the J 36615 counterclockwise in order to remove the differential bearing adjuster nut, the O-

ring seal and the differential side bearing cup. See Special Tools and Equipment .

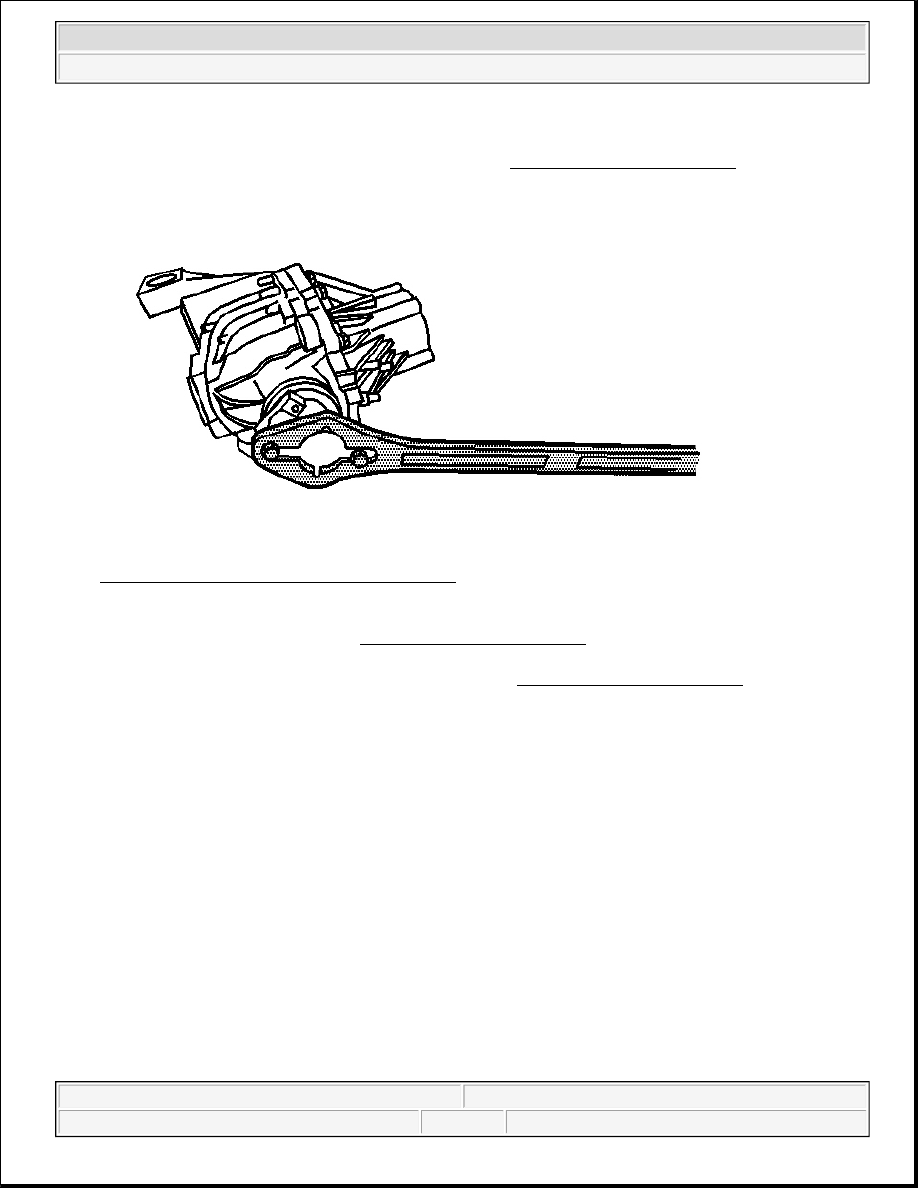

Fig. 82: Installing J 8614-01 Onto Pinion Yoke
Courtesy of GENERAL MOTORS CORP.

30. Install the J 8614-01 as shown. See Special Tools and Equipment .

Remove the pinion nut while holding the J 8614-01 . See Special Tools and Equipment .
