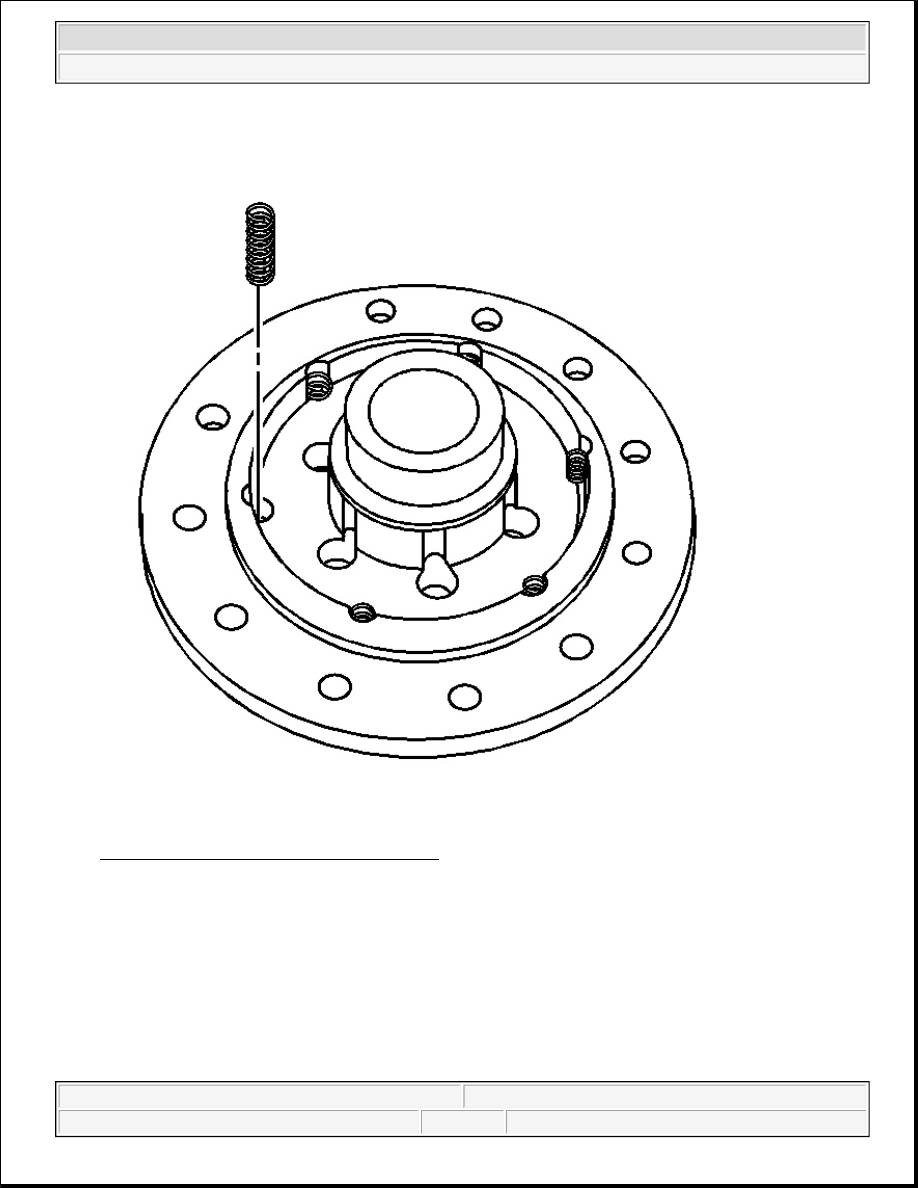

Fig. 16: Locking Differential Clutch Springs
Courtesy of GENERAL MOTORS CORP.

12. Remove the locking differential clutch springs.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



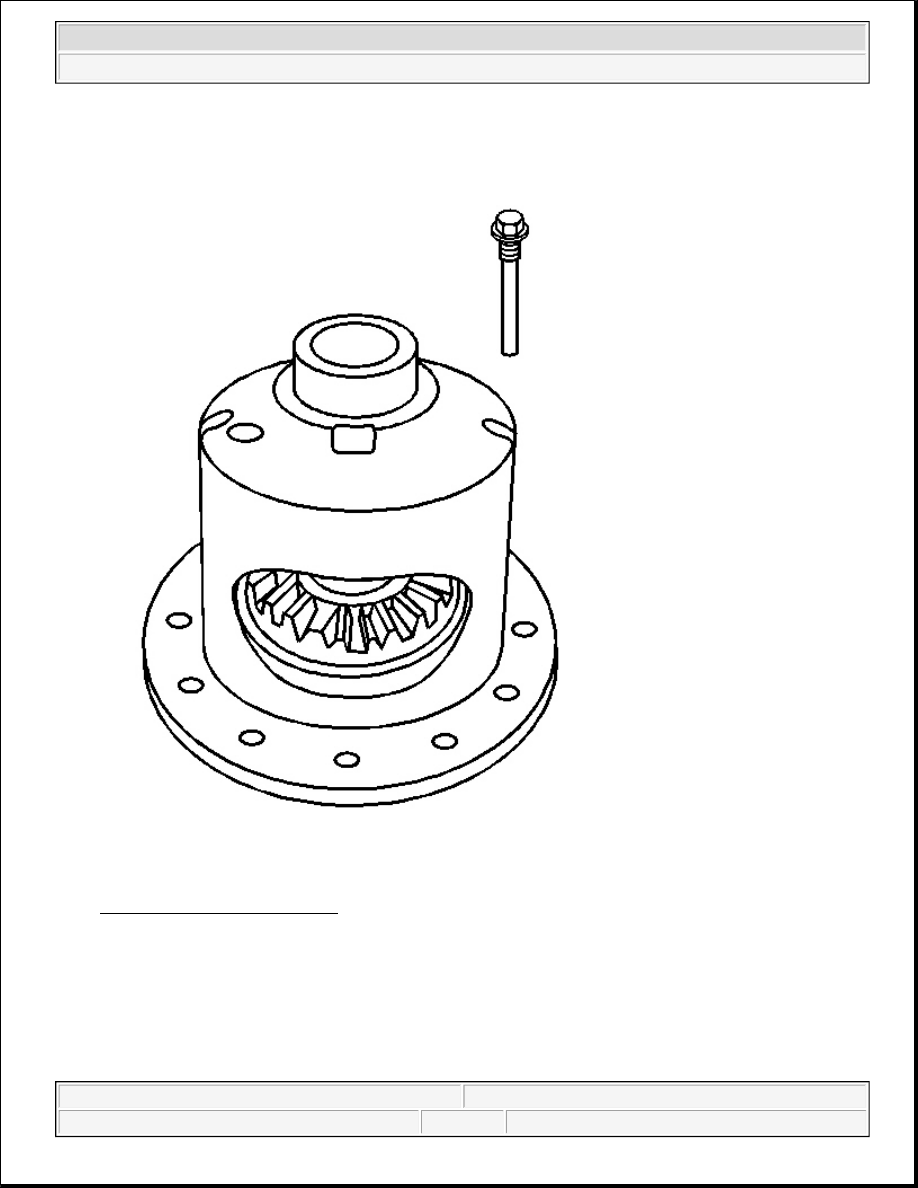

Fig. 17: Pinion Shaft Lock Bolt
Courtesy of GENERAL MOTORS CORP.

13. Remove the pinion shaft lock screw.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



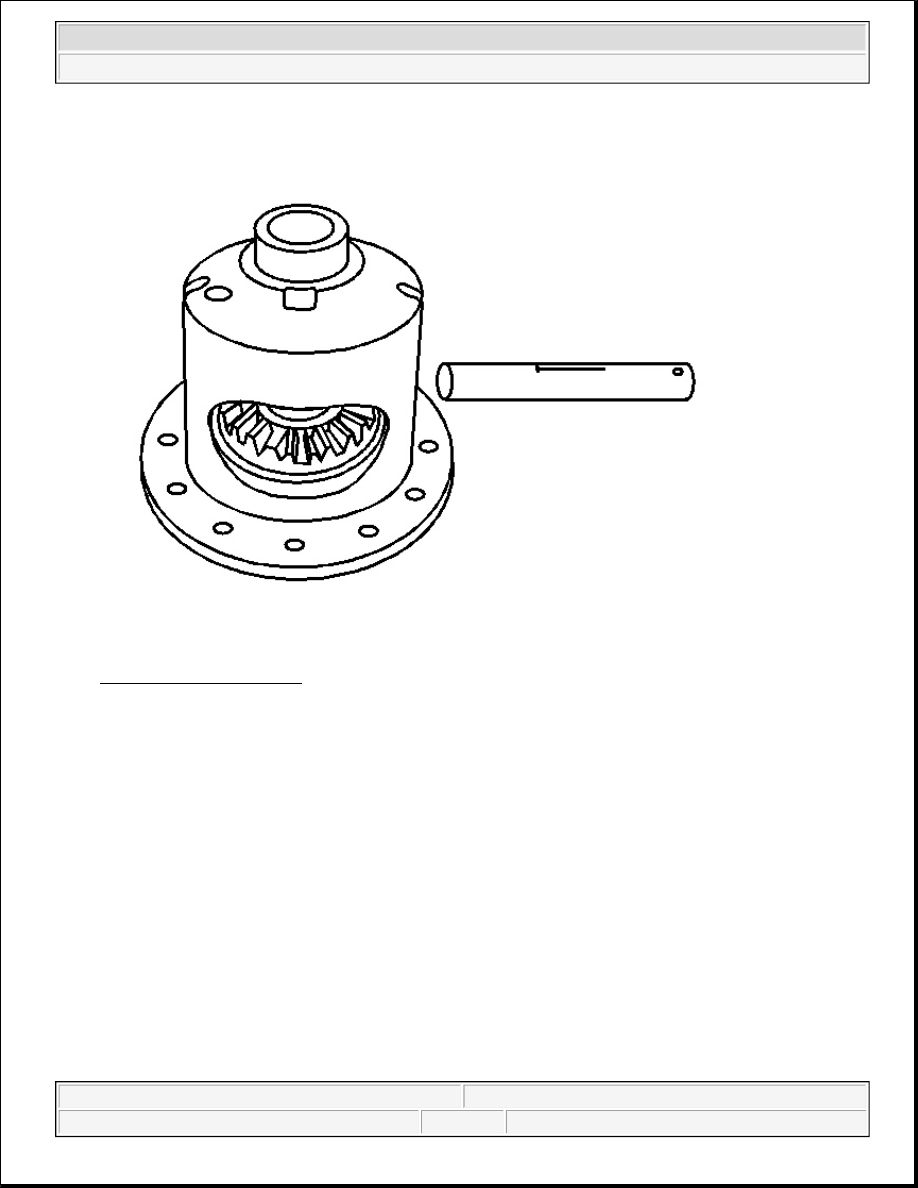

Fig. 18: Pinion Gear Shaft
Courtesy of GENERAL MOTORS CORP.

14. Remove the pinion gear shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



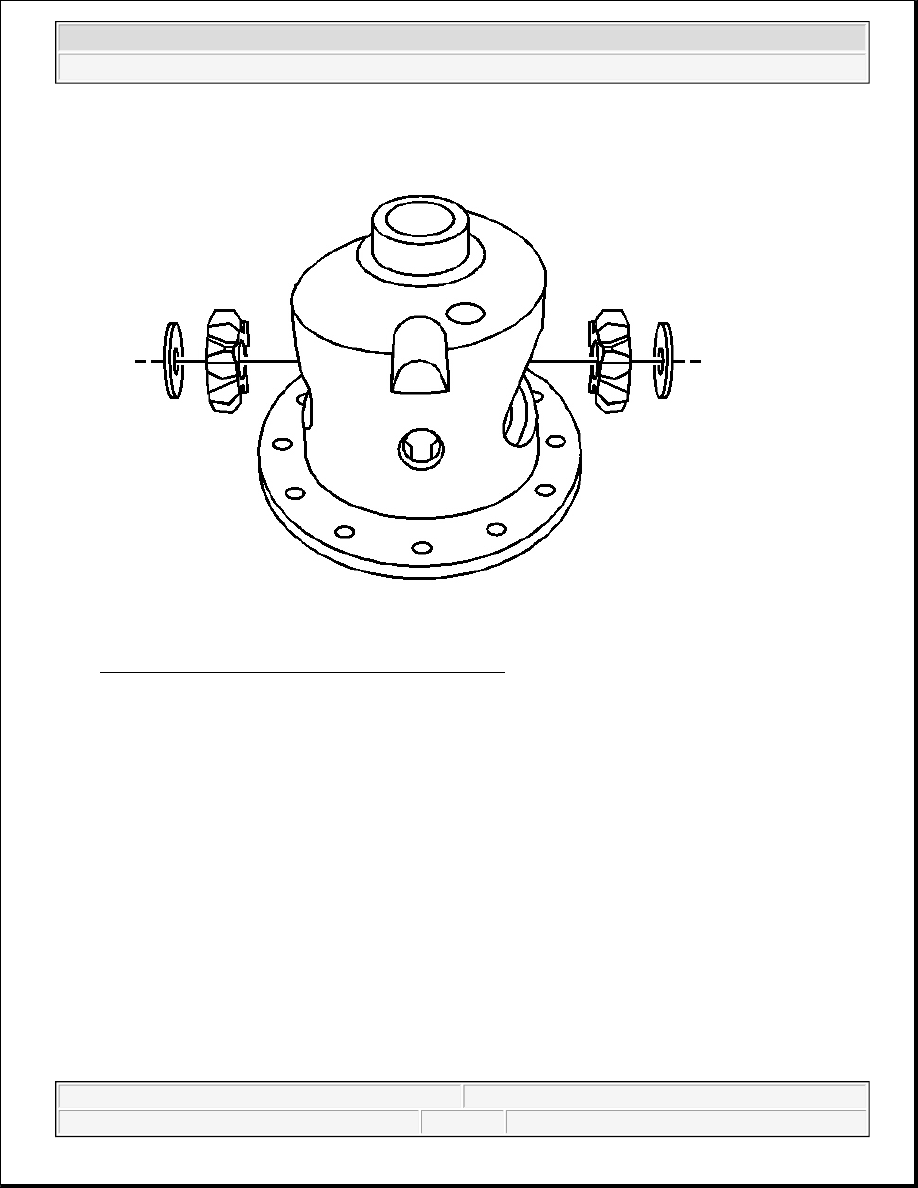

Fig. 19: Differential Pinion Gears & Thrust Washers
Courtesy of GENERAL MOTORS CORP.

15. Remove the two differential pinion gear thrust washers.

Drive the pinion gear thrust washers out using a brass drift and a hammer.

16. Remove the two differential pinion gears.

Rotate the differential side gears in opposite directions in order to remove the differential pinion gears.

Mark the differential pinion gears and the thrust washers top and bottom.
