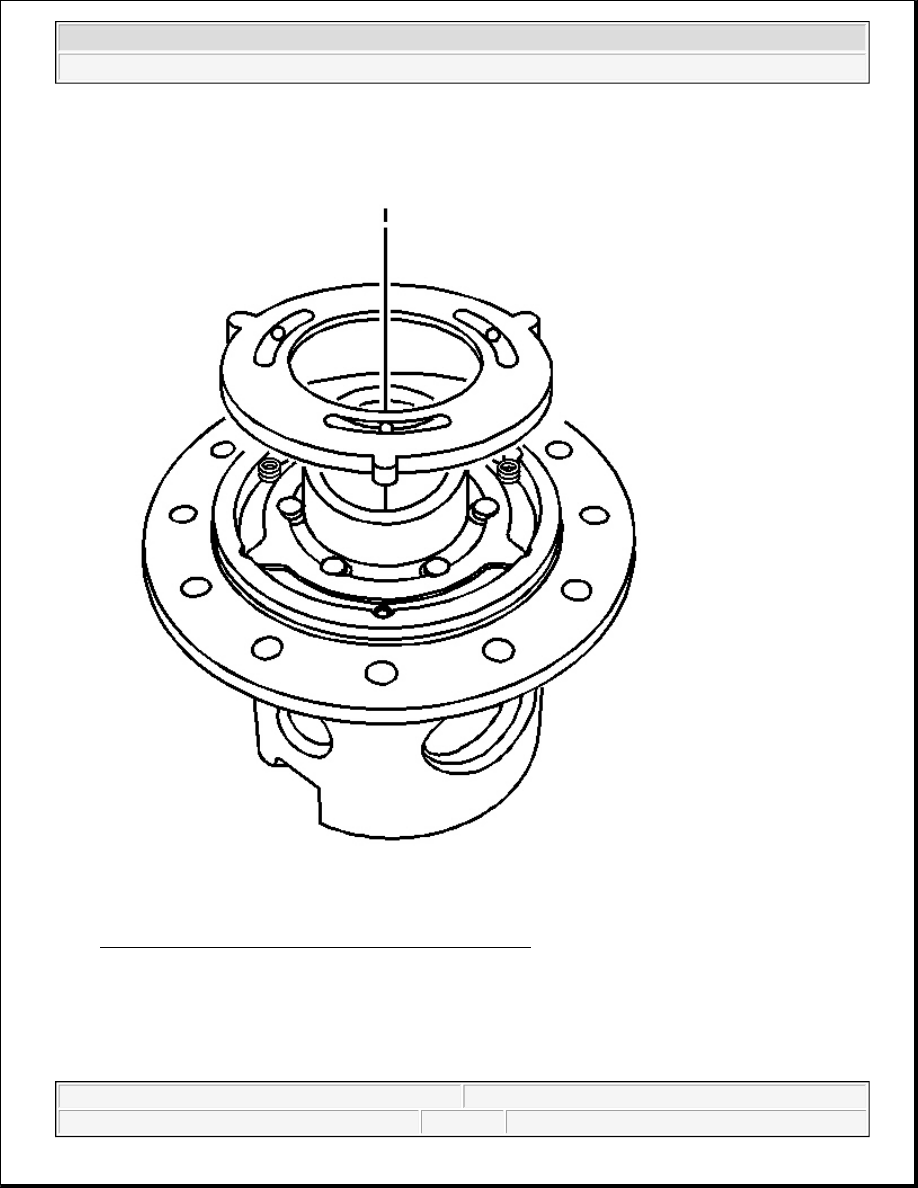

Fig. 12: Outboard Locking Differential Ball Bearing Plate
Courtesy of GENERAL MOTORS CORP.

8. Remove the outboard locking differential ball bearing plate.

2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2

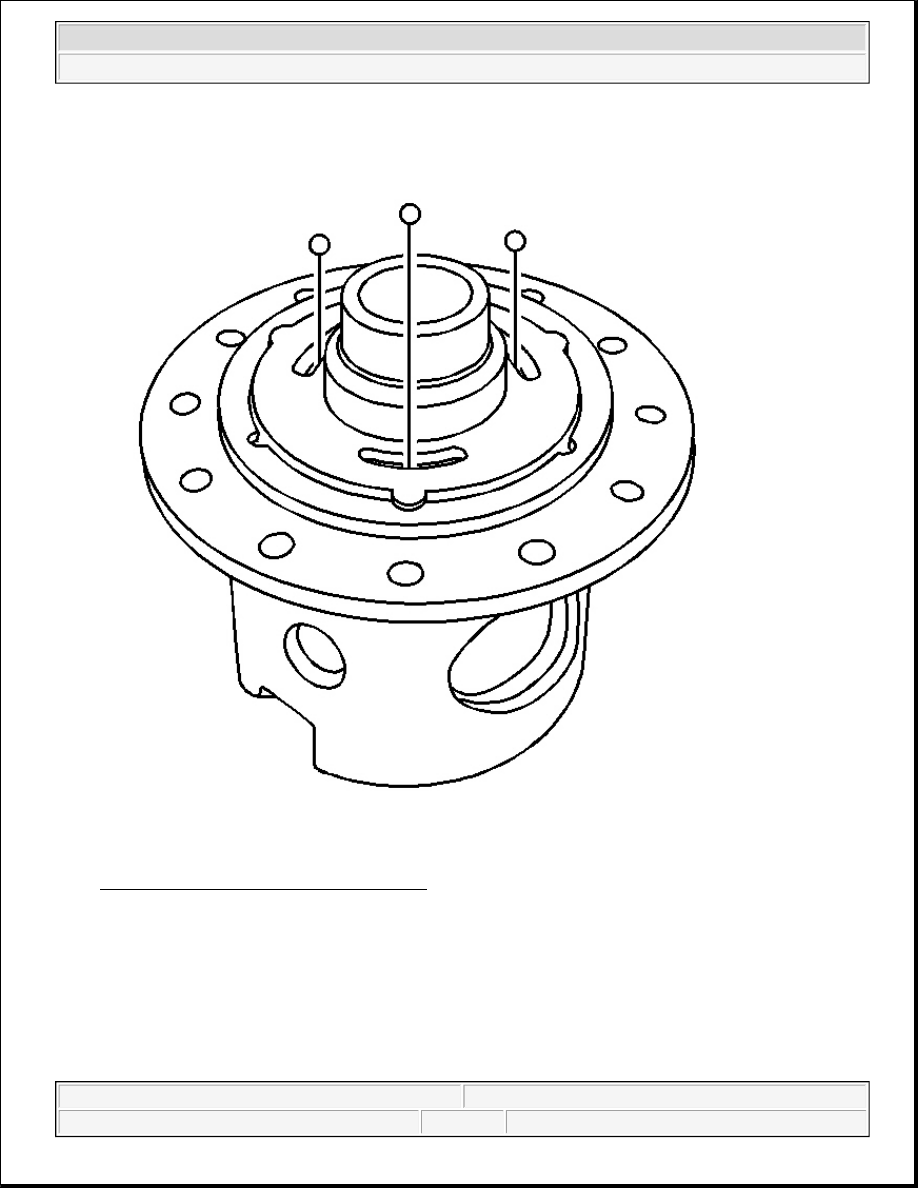

Fig. 13: Locking Differential Ball Bearings
Courtesy of GENERAL MOTORS CORP.

9. Remove the locking differential ball bearings.

2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2

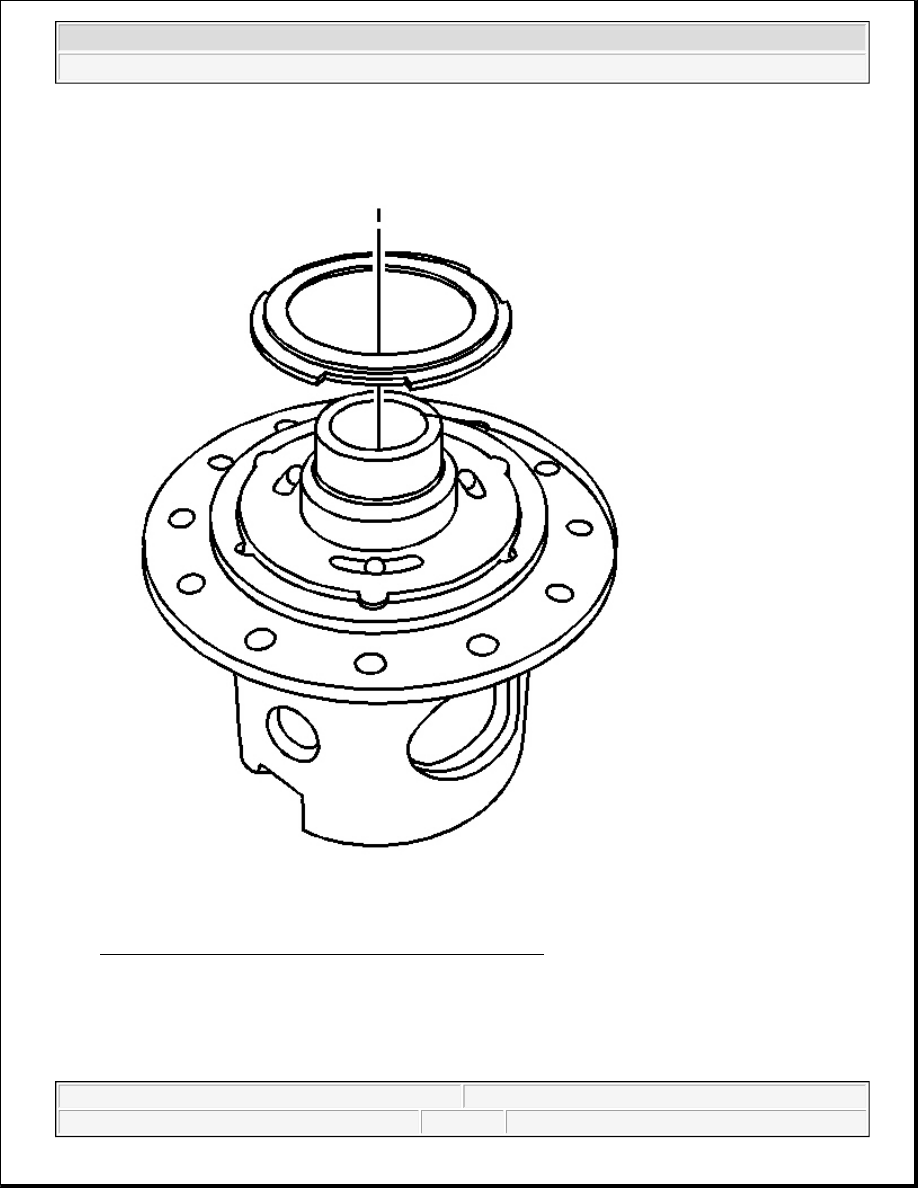

Fig. 14: Inboard Locking Differential Ball Bearing Plate
Courtesy of GENERAL MOTORS CORP.

10. Remove the inboard locking differential ball bearing plate.

2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2

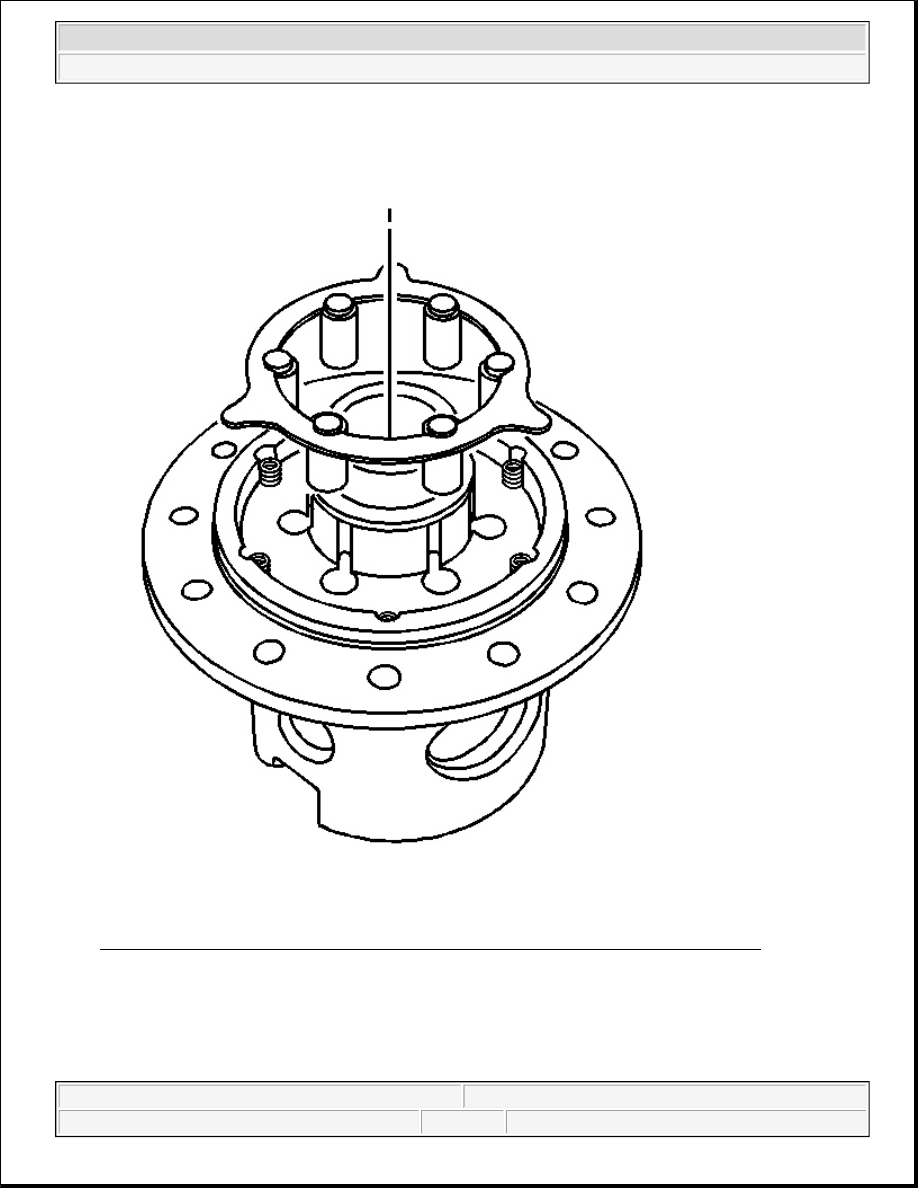

Fig. 15: Locking Differential Clutch Spring Retainer & Differential Carrier Lock Pins
Courtesy of GENERAL MOTORS CORP.

11. Remove the locking differential clutch spring retainer and the differential carrier lock pins.
