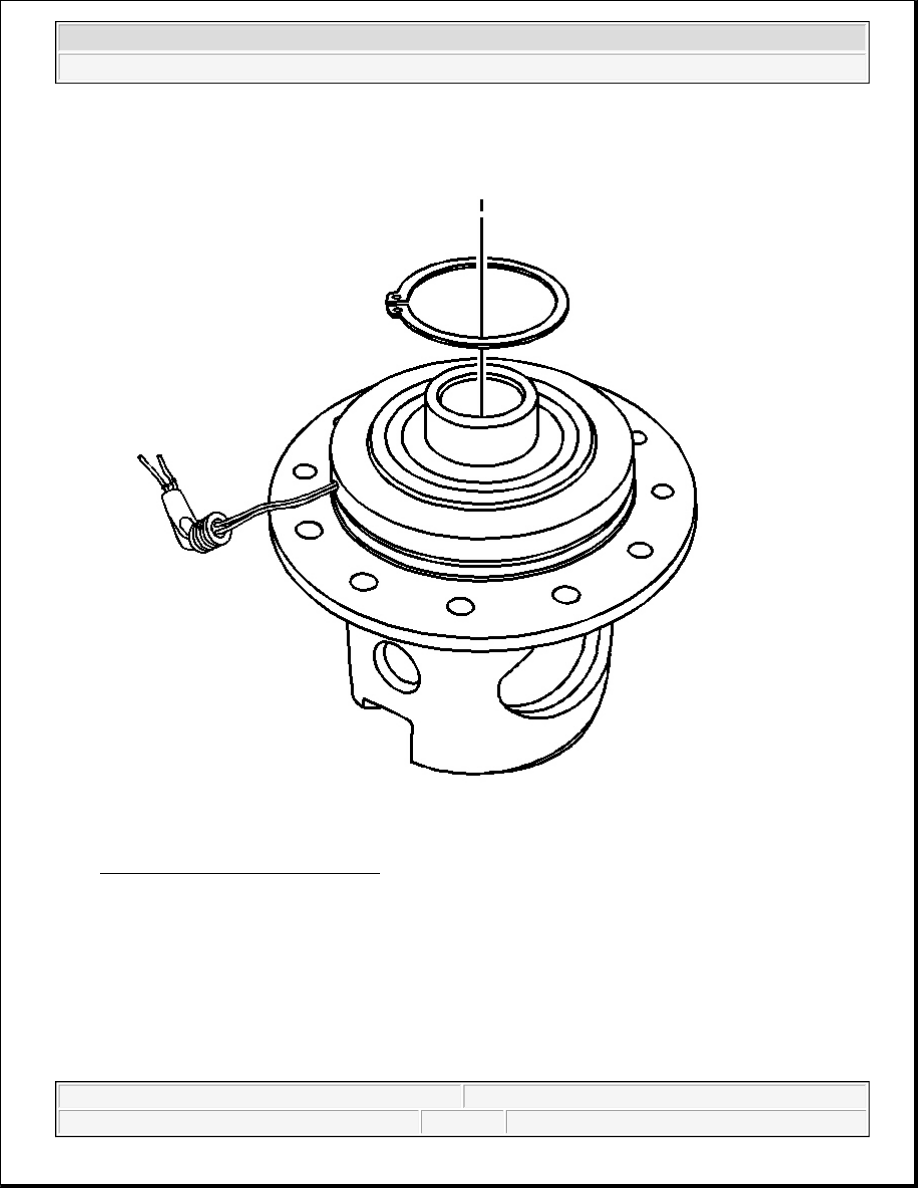

Fig. 8: Differential Bearing Retainer
Courtesy of GENERAL MOTORS CORP.

3. Remove the differential bearing retainer by performing the following steps:

1. With the aid of an assistant, push the differential bearing race down towards the differential case in

order to relieve the pressure against the differential bearing retainer.

2. Remove the differential bearing retainer.

IMPORTANT: The differential bearing race must be compressed in order to remove the

differential bearing retainer.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



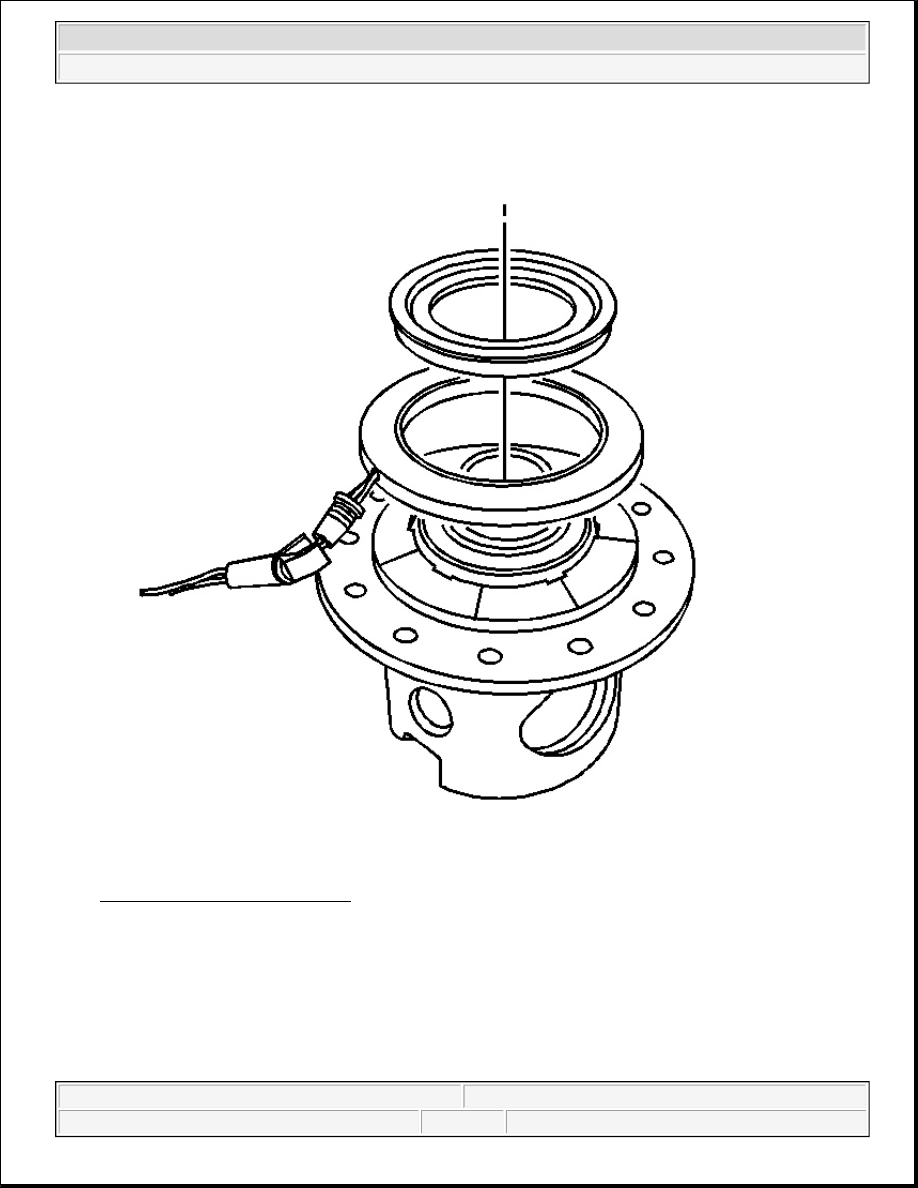

Fig. 9: Differential Bearing Race
Courtesy of GENERAL MOTORS CORP.

4. Remove the differential bearing race.

5. Remove the locking differential coil assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



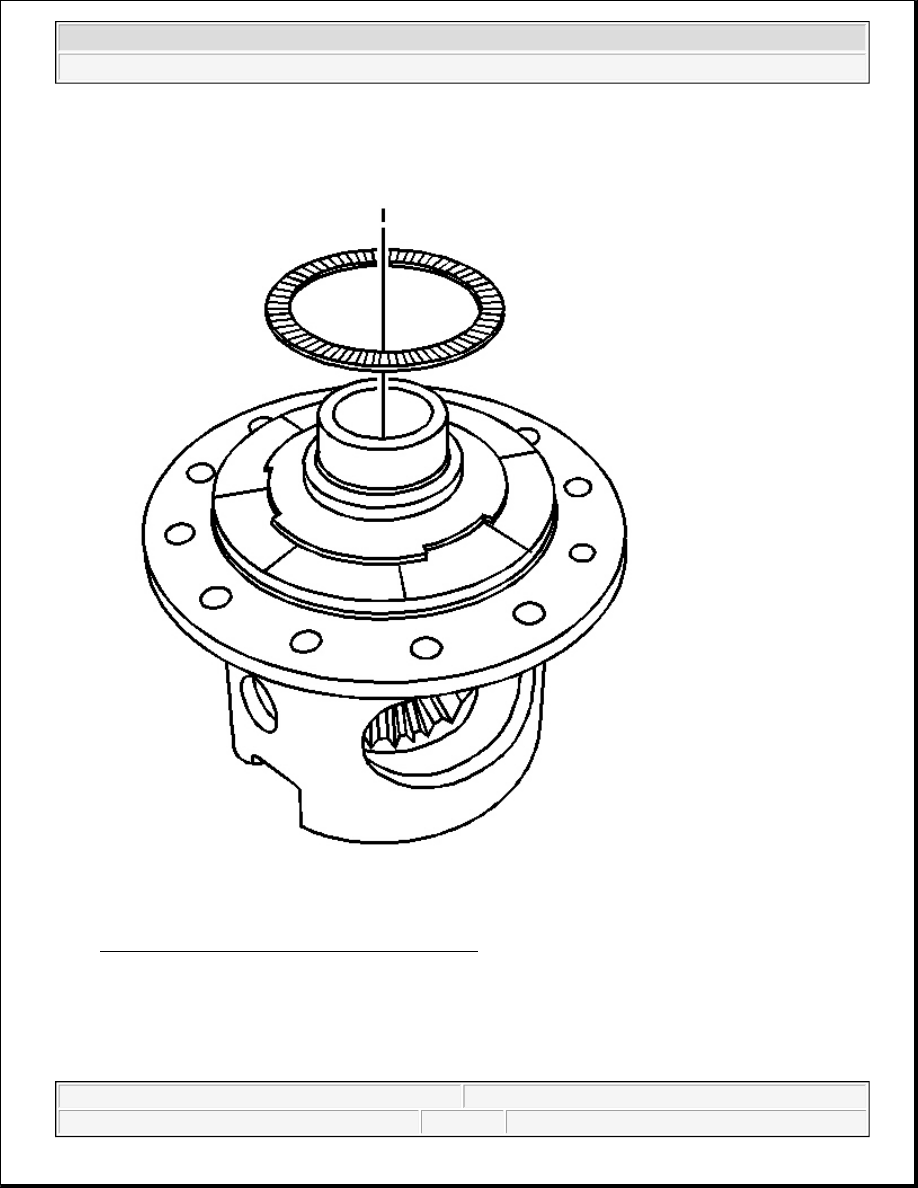

Fig. 10: Removing Differential Bearing Assembly
Courtesy of GENERAL MOTORS CORP.

6. Remove the differential bearing assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



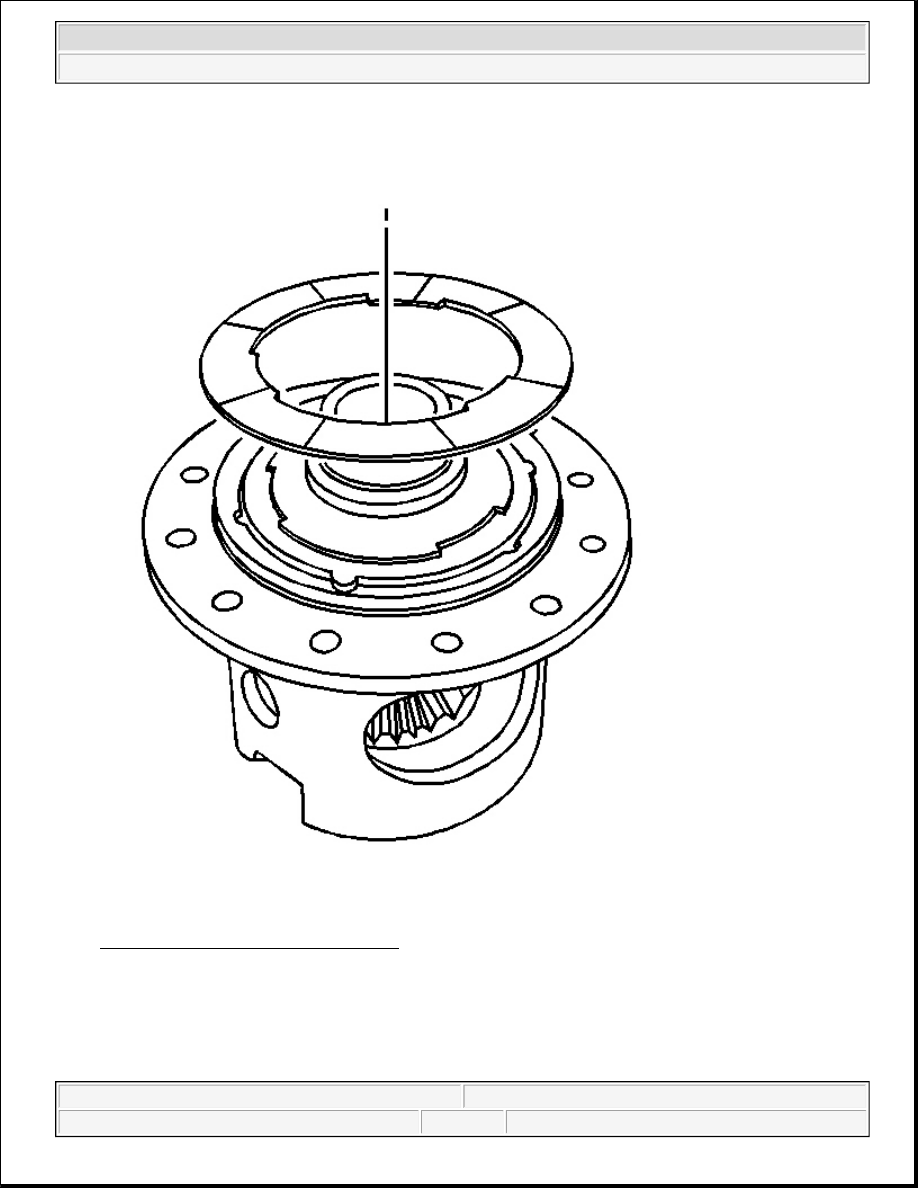

Fig. 11: Locking Differential Coil Plate
Courtesy of GENERAL MOTORS CORP.

7. Remove the locking differential coil plate.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2
