1. Install the rear axle assembly to the vehicle.

2. Install the coil springs, if equipped. Refer to Coil Spring Replacement in Rear Suspension.

If equipped with air suspension, ensure that the air springs are seated properly on the rear axle.

3. Position the bottoms of the rear shocks in the rear axle shock brackets and install the lower shock bolts

and nuts.

Tighten: Tighten the nuts to 105 N.m (77 lb ft).

4. Connect the upper control arms to the rear axle. Refer to Rear Axle Upper Control Arm Replacement

in Rear Suspension.

5. Connect the lower control arms to the rear axle. Refer to Rear Axle Lower Control Arm Replacement

in Rear Suspension.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



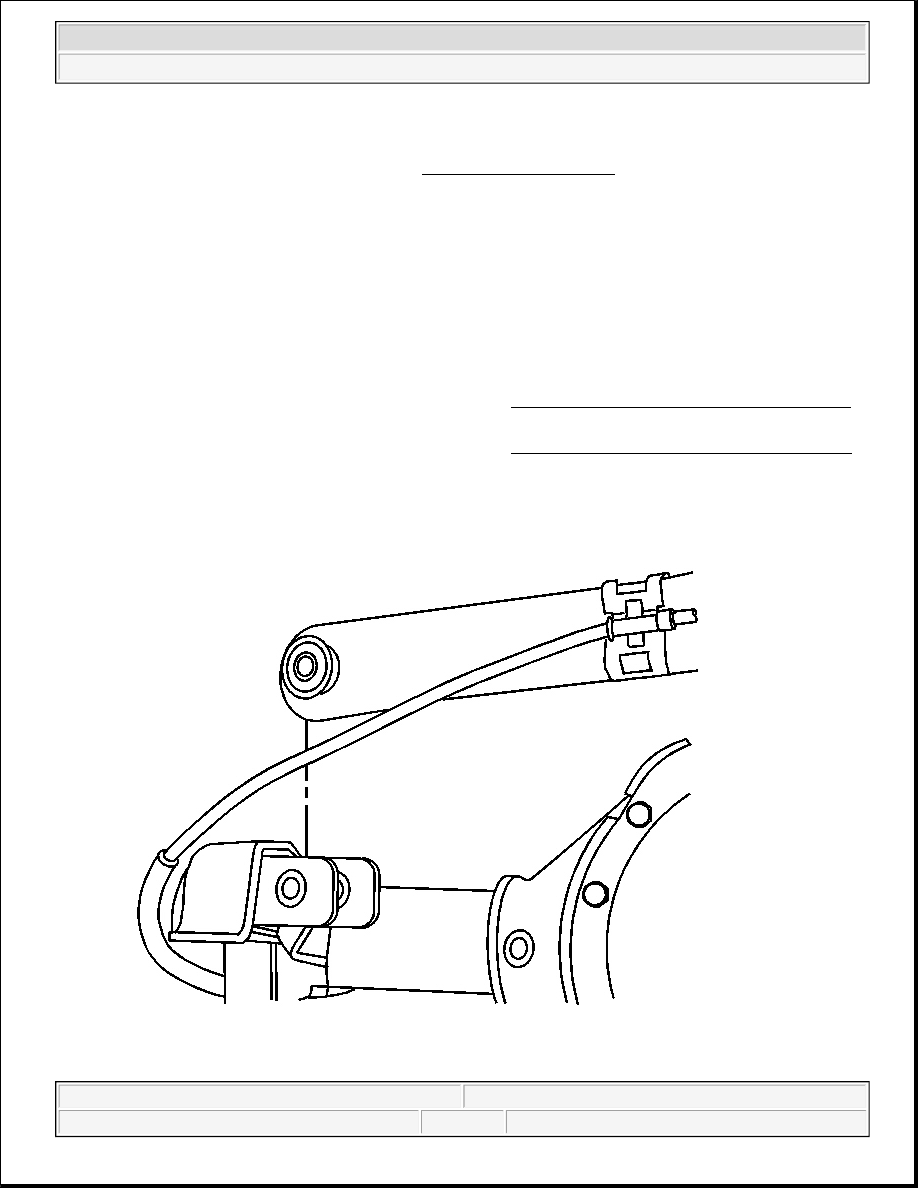

Fig. 103: Track Bar & Rear Axle
Courtesy of GENERAL MOTORS CORP.

6. Position the track bar in the bracket and install the bolt and nut.

Tighten: Tighten the nut to 105 N.m (77 lb ft).

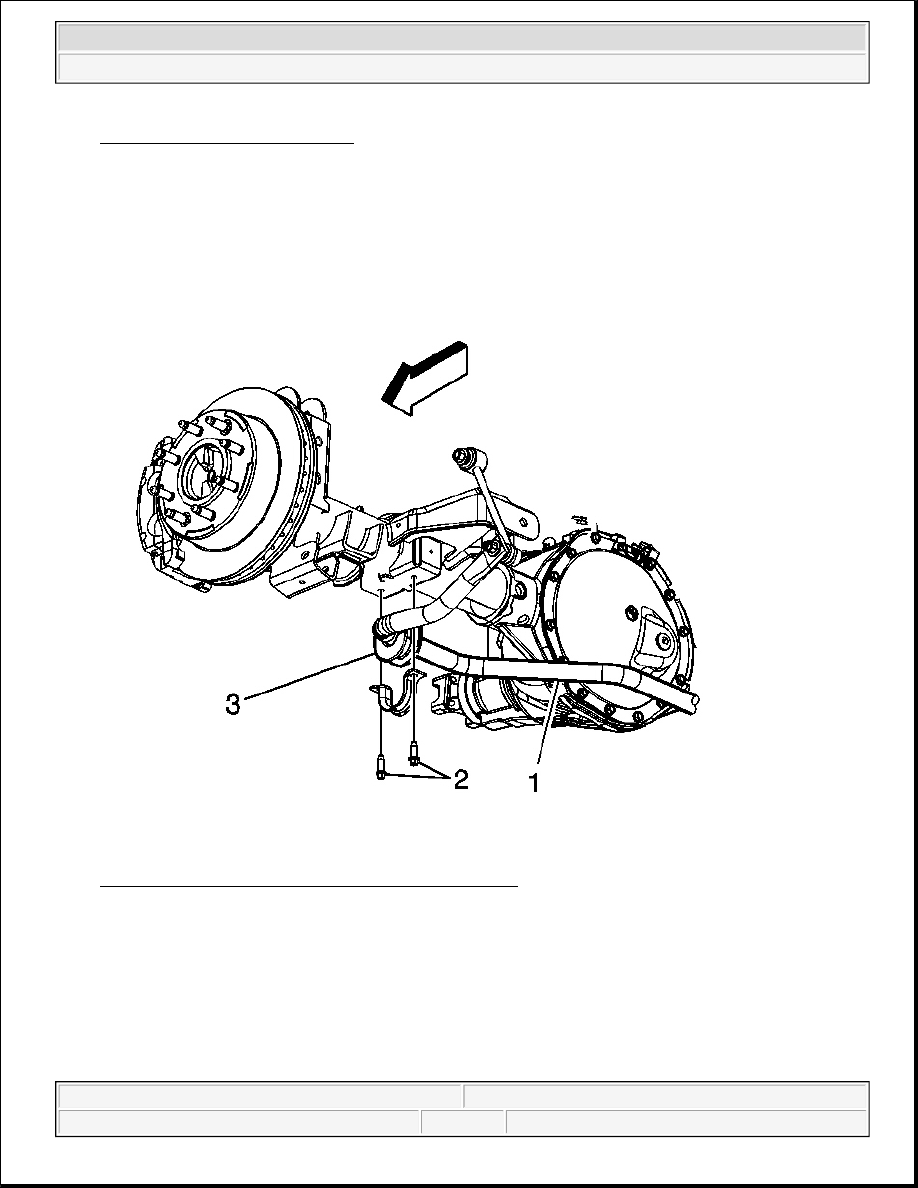

Fig. 104: Rear Stabilizer Shaft Insulator Bracket Bolts
Courtesy of GENERAL MOTORS CORP.

7. Pivot the stabilizer shaft (1) forward and position the insulator brackets to the rear axle.

8. Install the stabilizer shaft insulator bracket bolts (2).

Tighten: Tighten the bolts to 33 N.m (24 lb ft).



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



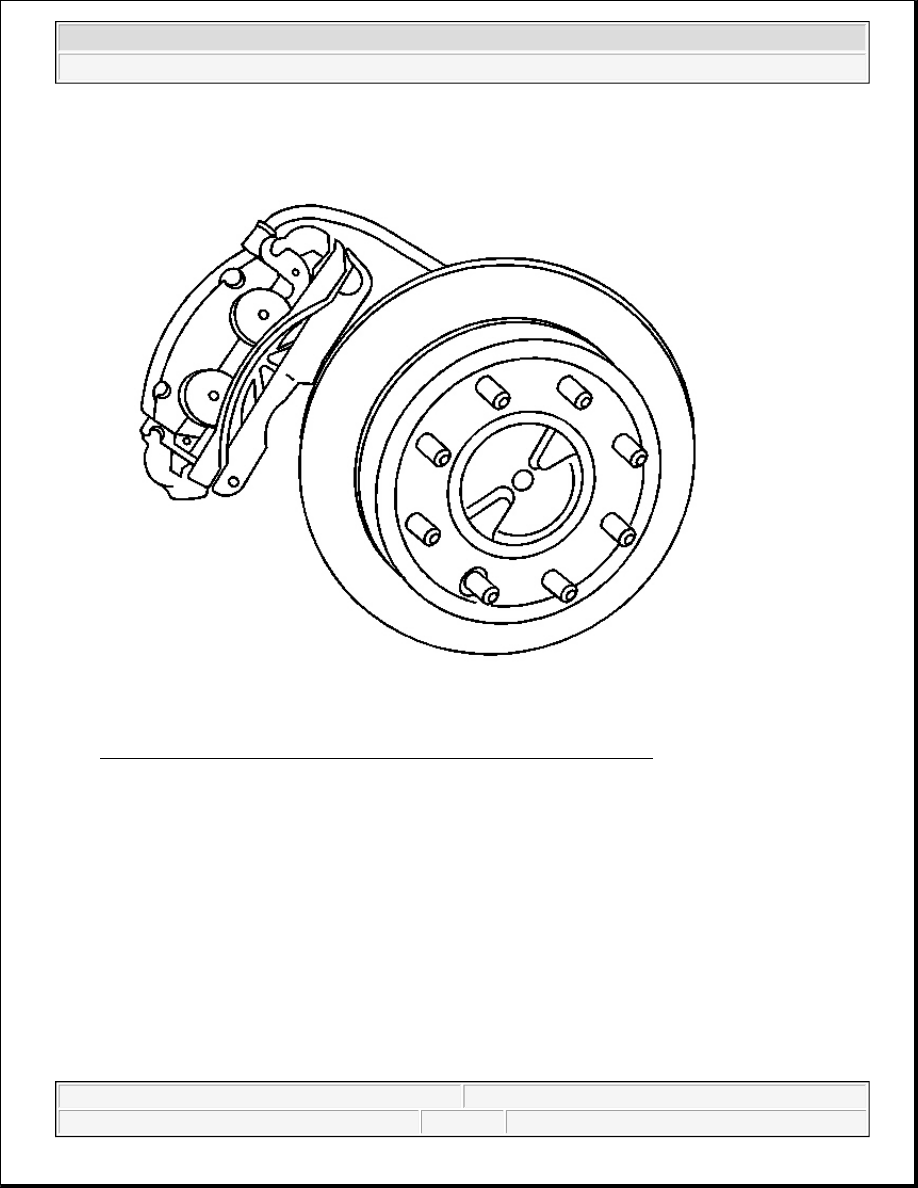

Fig. 105: Brake Caliper & Bracket - Rear (Except Dual Wheels or NYS)
Courtesy of GENERAL MOTORS CORP.

9. Install the caliper and bracket assemblies to the rear axle.

Tighten: Tighten the brake caliper bracket bolts to 165 N.m (122 lb ft).



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



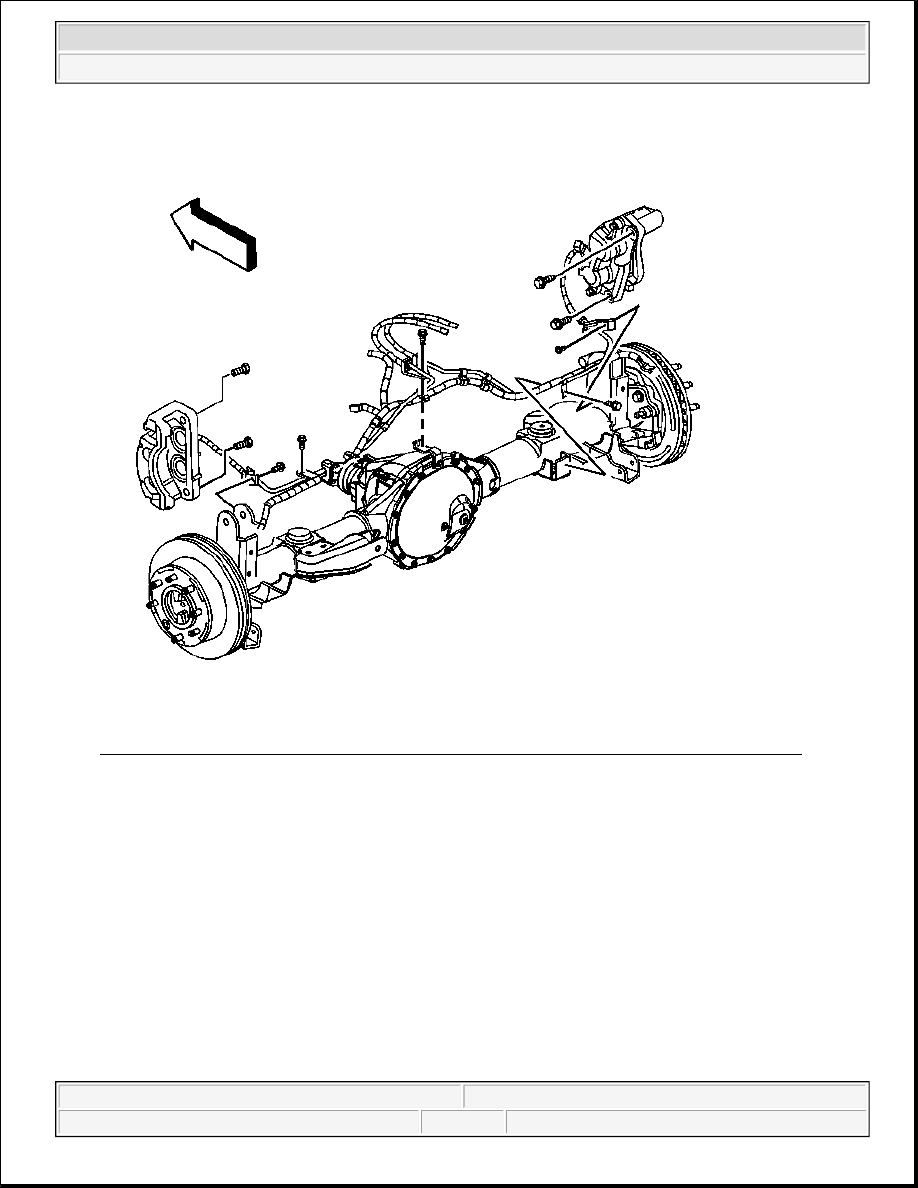

Fig. 106: Brake Crossover Pipe, Wheel Speed Sensor Harness & Electronic Locker Harness
Courtesy of GENERAL MOTORS CORP.

10. Install the electronic locker harness, wheel speed sensor harness, and the brake crossover pipe to the rear

axle.

Tighten: Tighten the brake crossover pipe bracket bolt to 22 N.m (16 lb ft).
