Hummer H2. Manual - part 876

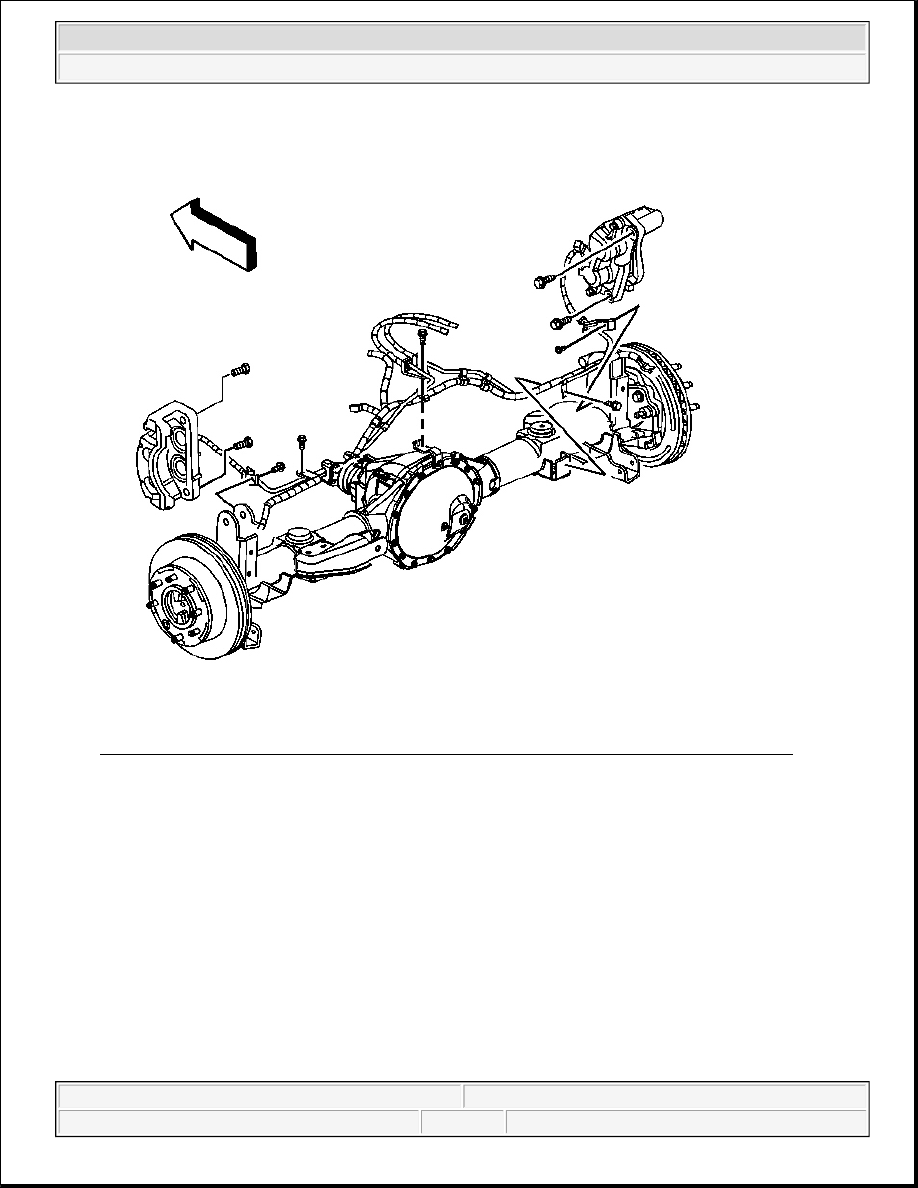

Fig. 99: Brake Crossover Pipe, Wheel Speed Sensor Harness & Electronic Locker Harness
Courtesy of GENERAL MOTORS CORP.

12. Remove the brake crossover pipe bracket bolt.

13. Remove the brake crossover pipe, wheel speed sensor harness, and electronic locker harness from the rear

axle and secure them to the body or frame.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2

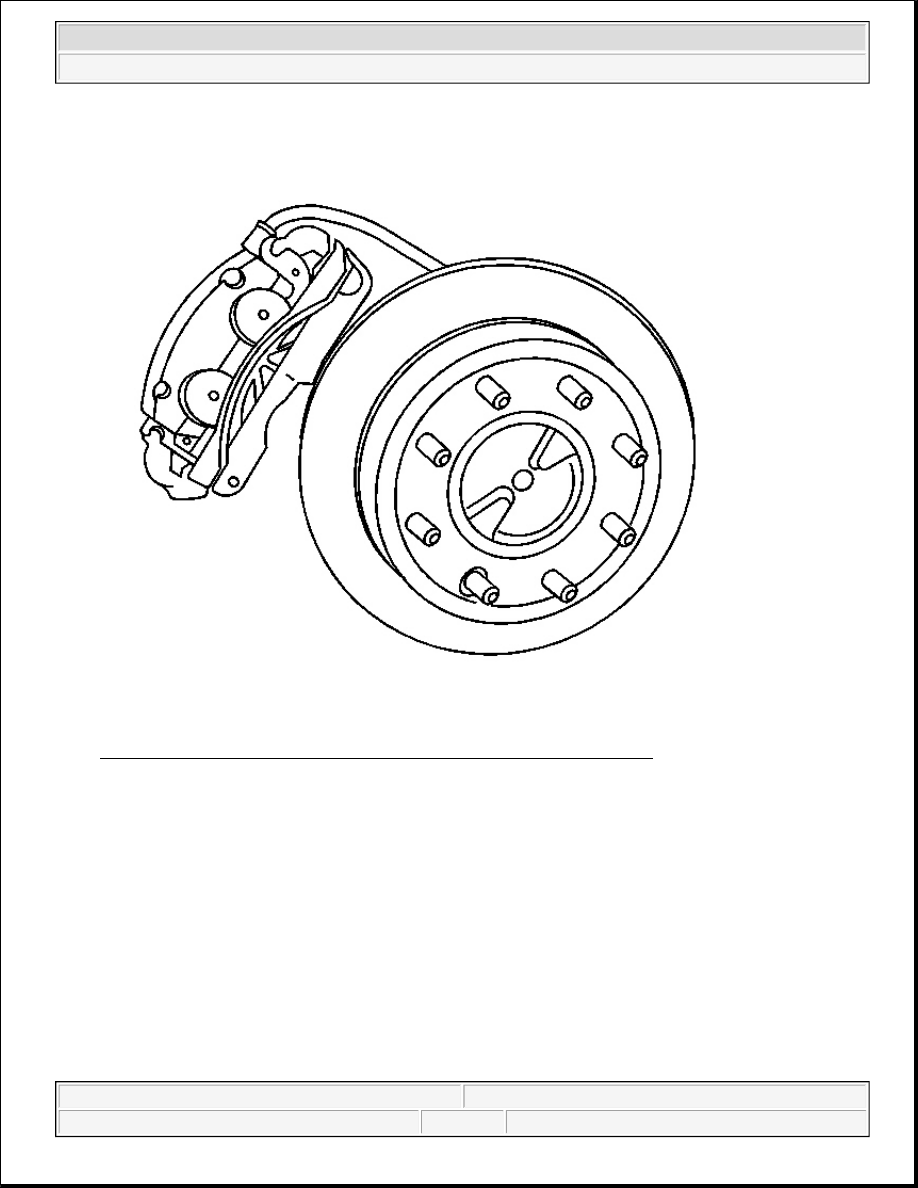

Fig. 100: Brake Caliper & Bracket - Rear (Except Dual Wheels or NYS)
Courtesy of GENERAL MOTORS CORP.

14. Remove the brake caliper and bracket assemblies from the rear axle and support them with heavy

mechanics wire or equivalent. DO NOT disconnect the hydraulic brake flexible hose from the caliper.

NOTE:

Support the brake caliper with heavy mechanic's wire, or equivalent,
whenever it is separated from its mount and the hydraulic flexible brake
hose is still connected. Failure to support the caliper in this manner will
cause the flexible brake hose to bear the weight of the caliper, which may
cause damage to the brake hose and in turn may cause a brake fluid leak.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2

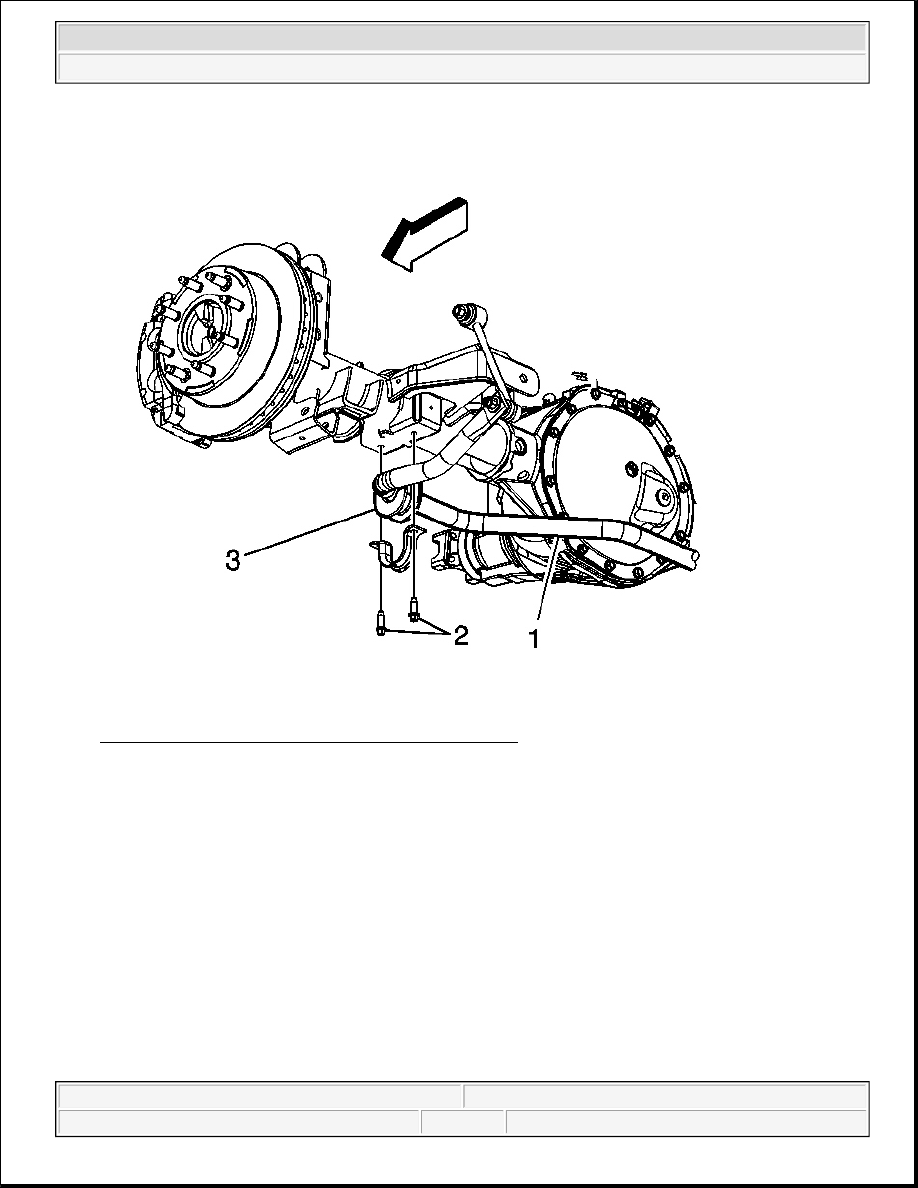

Fig. 101: Rear Stabilizer Shaft Insulator Bracket Bolts
Courtesy of GENERAL MOTORS CORP.

15. Remove the rear stabilizer shaft insulator bracket bolts (2) from the rear axle.

16. Pivot the stabilizer shaft (1) to the rear and secure it out of the way.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



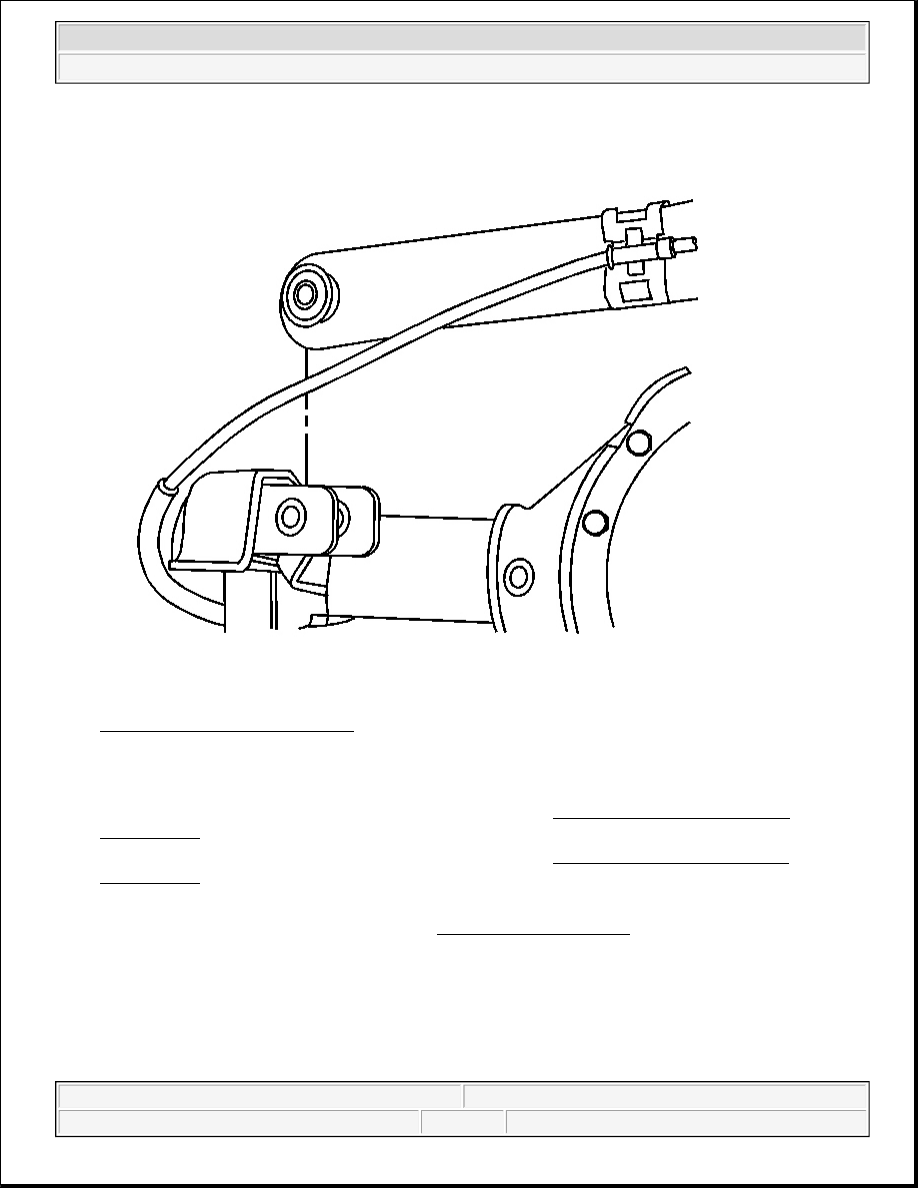

Fig. 102: Track Bar & Rear Axle
Courtesy of GENERAL MOTORS CORP.

17. Disconnect the track bar from the rear axle and suspend it out of the way.

18. Disconnect the lower control arms from the rear axle. Refer to Rear Axle Lower Control Arm

Replacement in Rear Suspension.

19. Disconnect the upper control arms from the rear axle. Refer to Rear Axle Upper Control Arm

Replacement in Rear Suspension.

20. Remove the lower shock nuts and bolts from the rear axle shock bracket.

21. Remove the coil springs, if equipped. Refer to Coil Spring Replacement in Rear Suspension.

If equipped with air suspension, the air springs will remain attached to the frame and will not need to be
removed.

22. Remove the rear axle assembly from the vehicle.

Installation Procedure
