1. Install the differential side bearings by doing the following:

1. In order to protect the differential case, install the J 36597 in the case on the side opposite the

bearing installation.

2. Install the J 29710 (2) and the J 8092 (1) onto the differential case bearing as shown.

3. Drive the bearing onto the case using the J 29710 and the J 8092 .

2. Install the differential assembly. Refer to Differential Replacement .

REAR AXLE REPLACEMENT

Removal Procedure

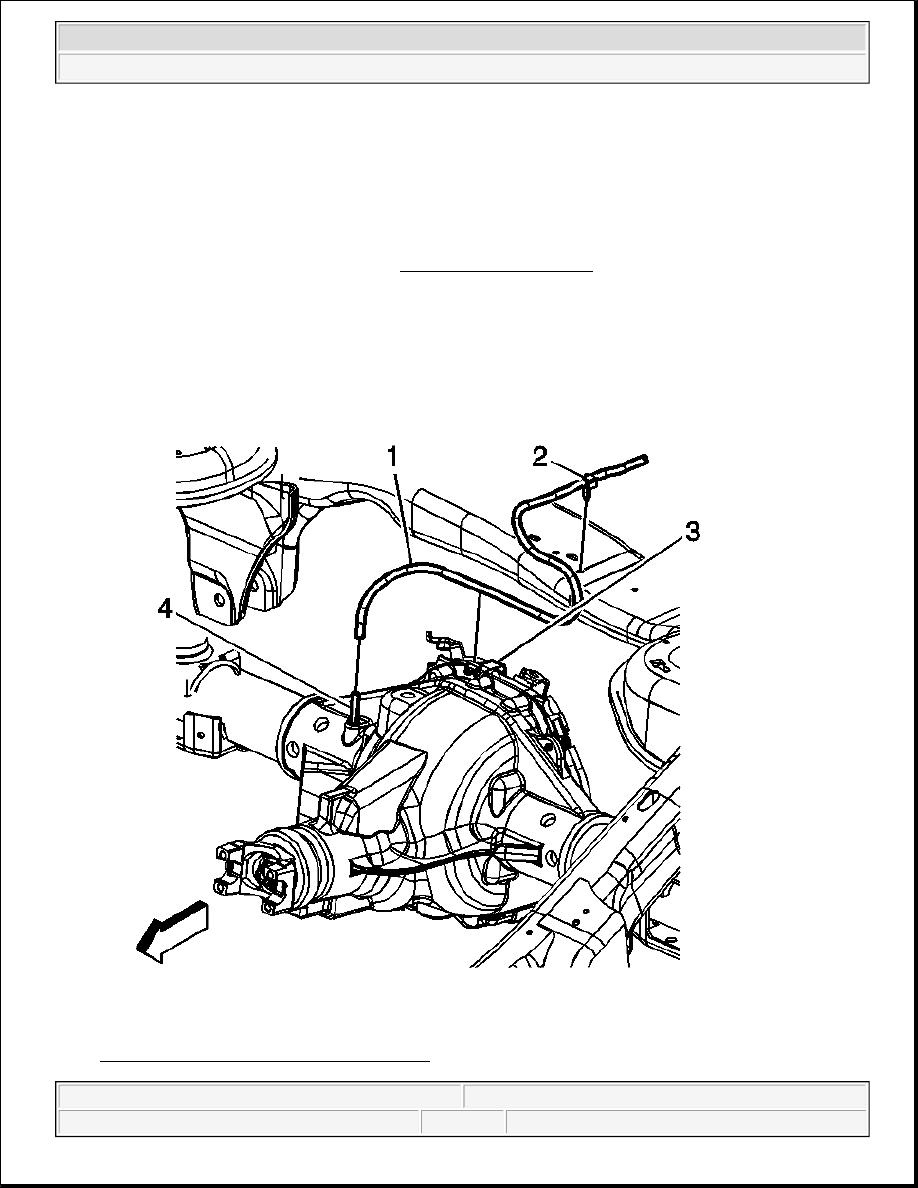

Fig. 96: Rear Axle Vent Hose & Vent Tube
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



1. Depressurize the air suspension system, if equipped. Refer to Air Suspension Depressurization

Procedure in Air Suspension.

2. Disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic

Adjuster in Park Brake.

3. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

4. Place jack stands at the front of the vehicle.

5. Support the rear axle with jack stands.

6. Remove the rear tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation in Tires

and Wheels.

7. Disconnect the rear axle vent tube (1).

8. Remove the rear propeller shaft. Refer to Propeller Shaft Replacement - Rear in Propeller Shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



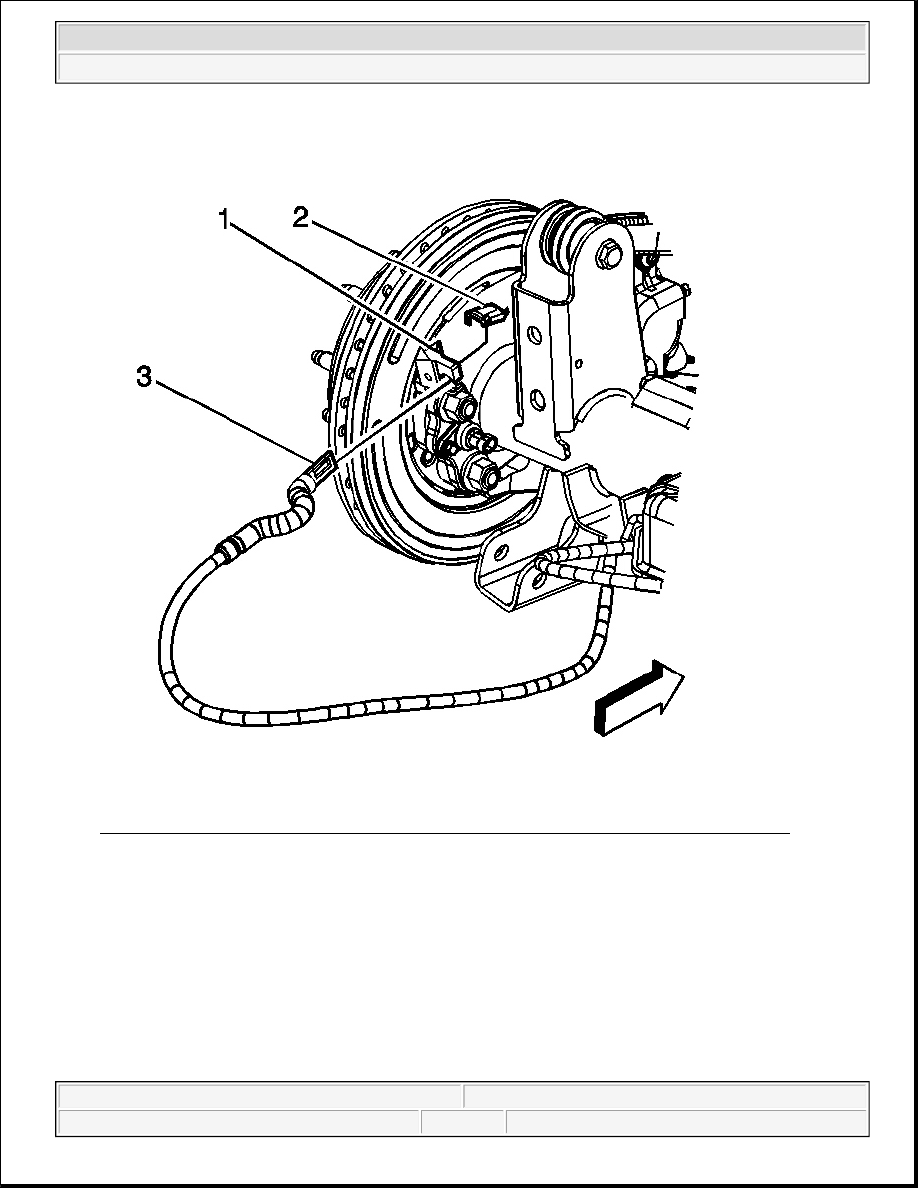

Fig. 97: Left-Rear Park Brake Cable, Backing Plate, Park Brake Actuator & Cable Guide
Courtesy of GENERAL MOTORS CORP.

9. Disconnect the left-rear park brake cable (3) from the backing plate (1), the park brake actuator (2), and

the cable guide at the rear axle.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



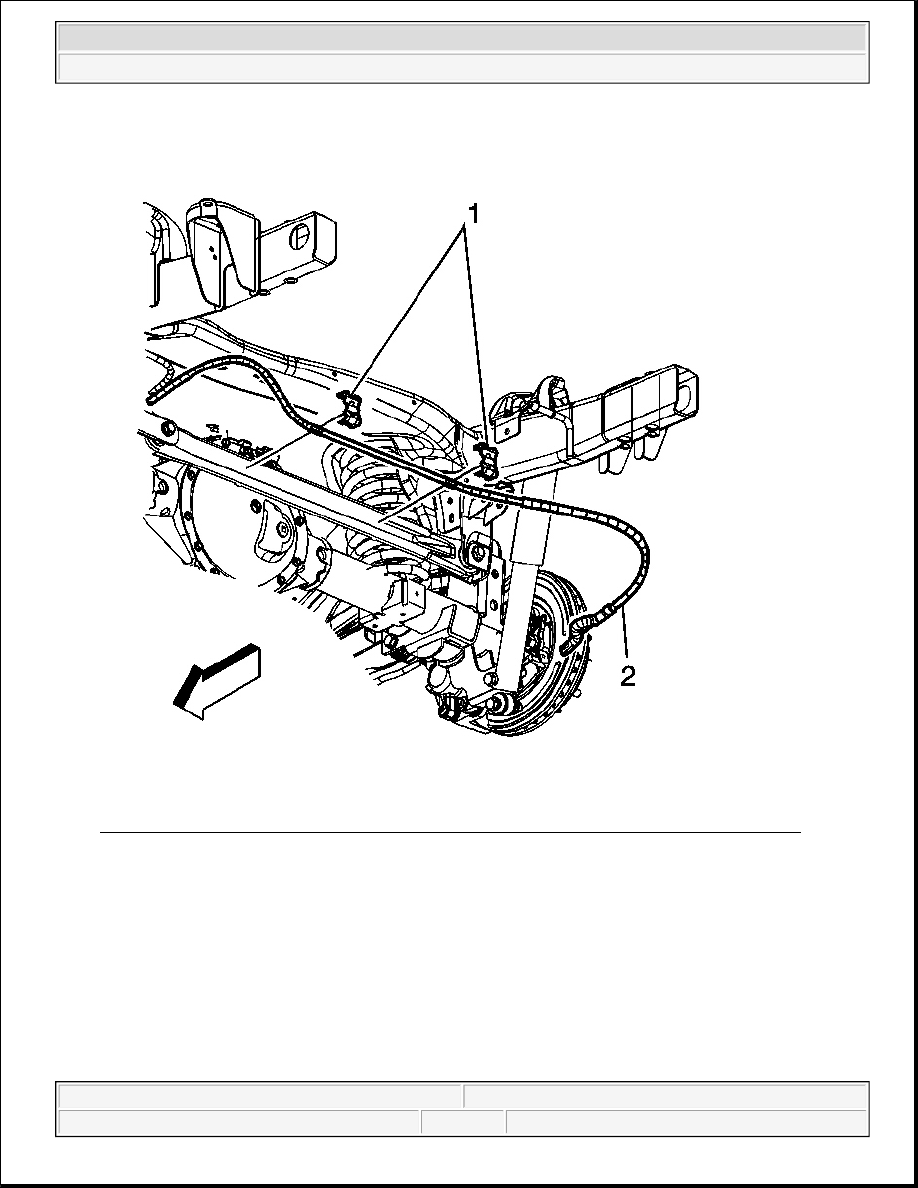

Fig. 98: Right-Rear Park Brake Cable, Backing Plate, Park Brake Actuator & Cable Guide
Courtesy of GENERAL MOTORS CORP.

10. Remove the park brake cable clips (1) from the track bar.

11. Disconnect the right-rear park brake cable (2) from the backing plate, the park brake actuator, and from

the cable guide at the rear axle.
