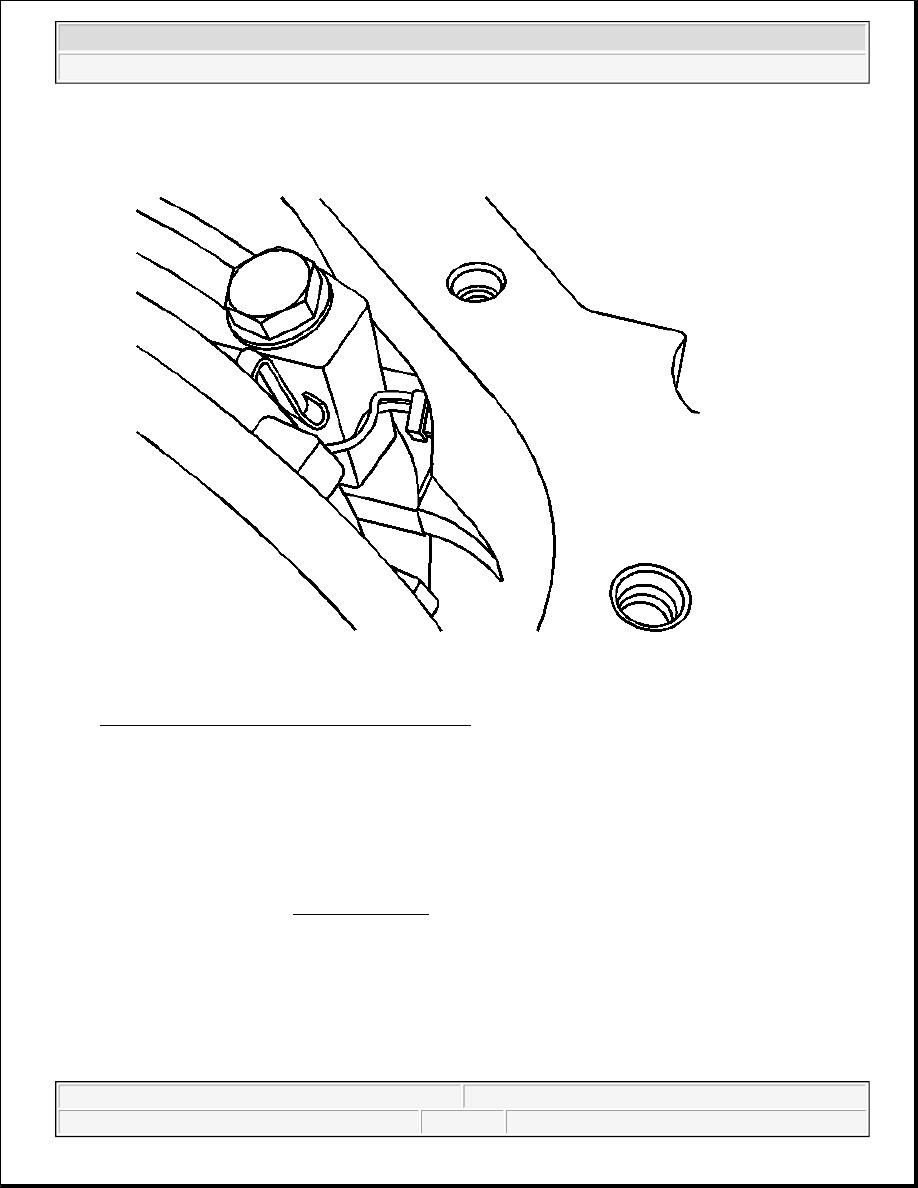

Fig. 88: Left Side Differential Bearing Cap Bolts
Courtesy of GENERAL MOTORS CORP.

13. Install the left side differential bearing cap.

Route the locking differential coil assembly wires around the differential bearing cap.

14. Install the left side differential bearing cap bolts.

15. Tighten the bearing cap bolts.

Tighten: Tighten the bearing cap bolts to 85 N.m (63 lb ft).

16. Install the locking differential coil assembly lock.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



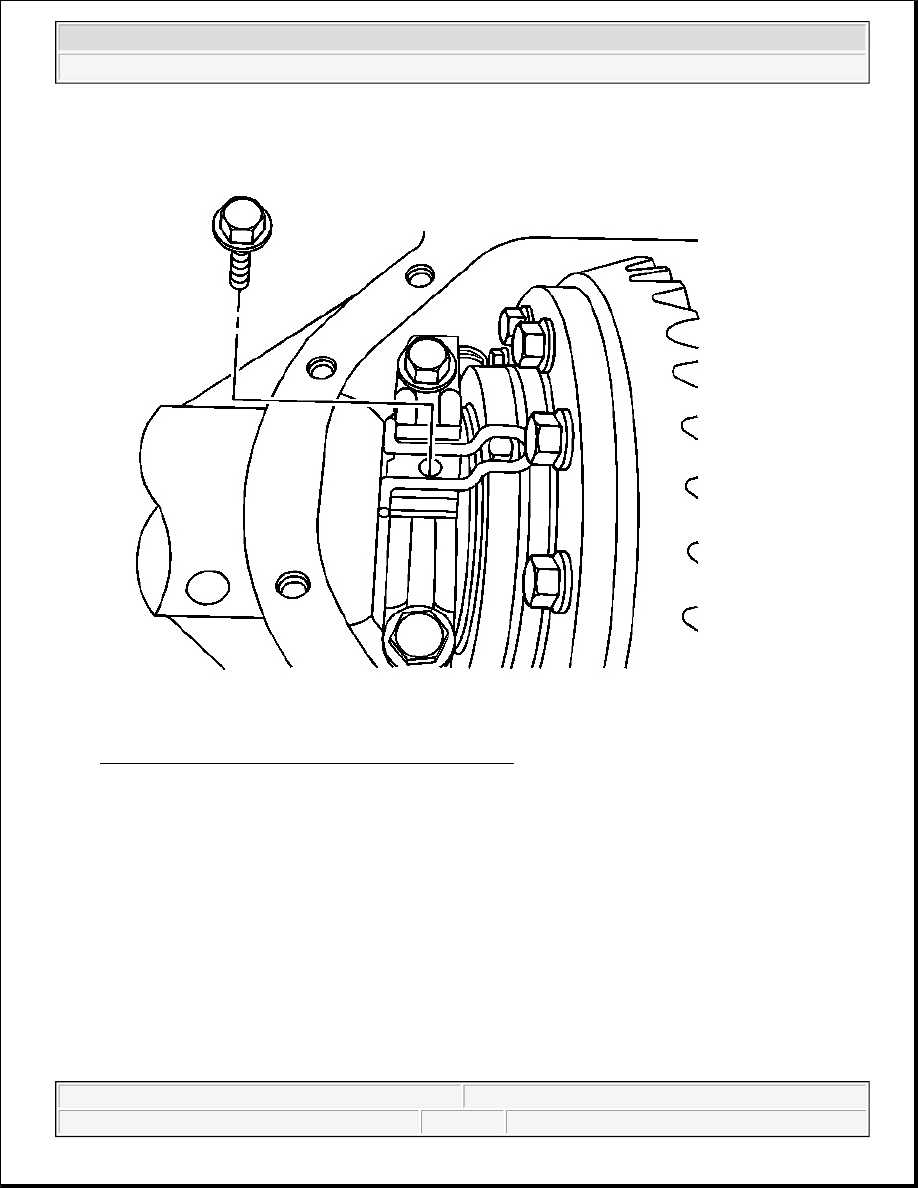

Fig. 89: Locking Differential Coil Assembly Lock Bolt
Courtesy of GENERAL MOTORS CORP.

17. Install the new locking differential coil assembly lock bolt.

Tighten: Tighten the locking differential coil assembly lock bolt to 26 N.m (19 lb ft).



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



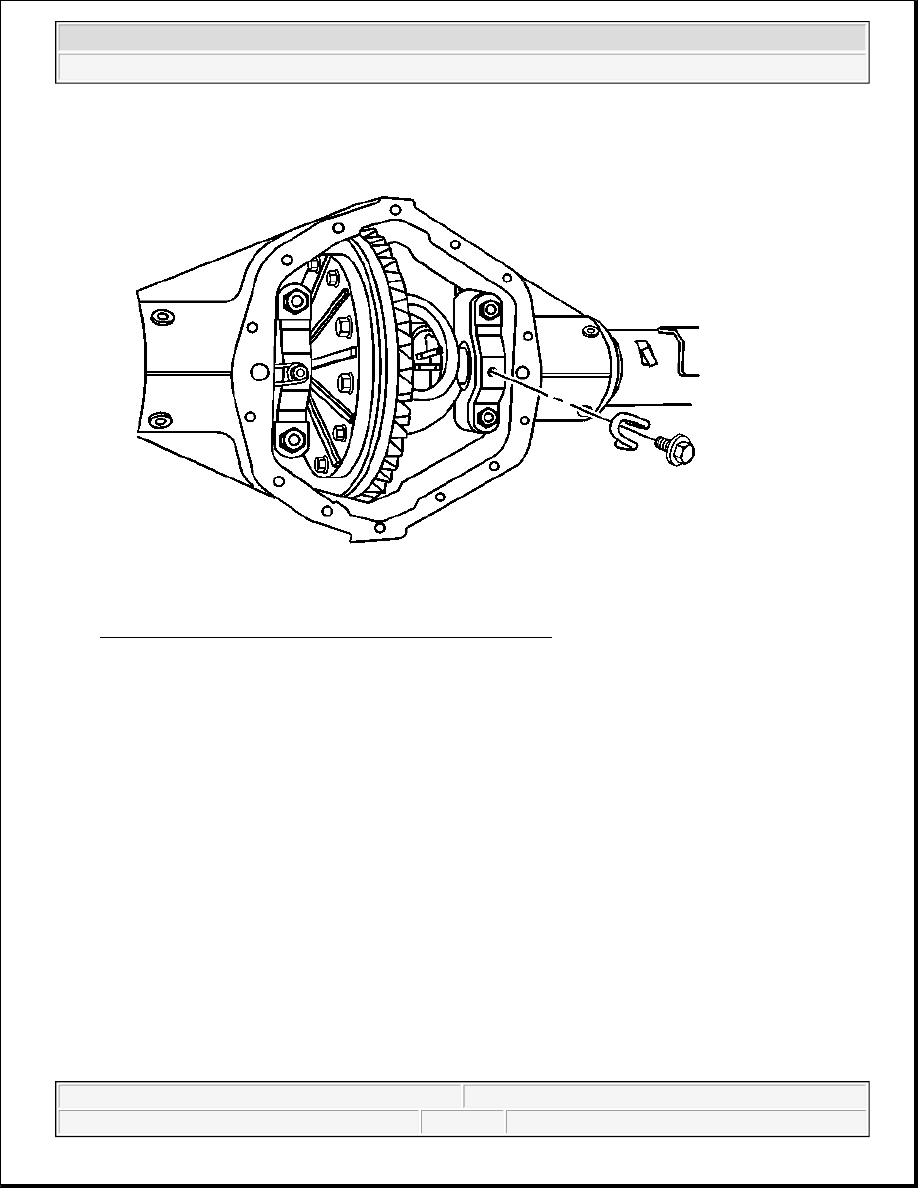

Fig. 90: Right Side Differential Bearing Adjuster Nut Lock
Courtesy of GENERAL MOTORS CORP.

18. Install the right side differential bearing adjuster nut lock.

19. Install the differential bearing adjuster nut lock bolt.

Tighten: Tighten the differential bearing adjuster nut lock bolt to 26 N.m (19 lb ft).



2004 Hummer H2

2004 DRIVELINE/AXLE Rear Drive Axle - Hummer H2



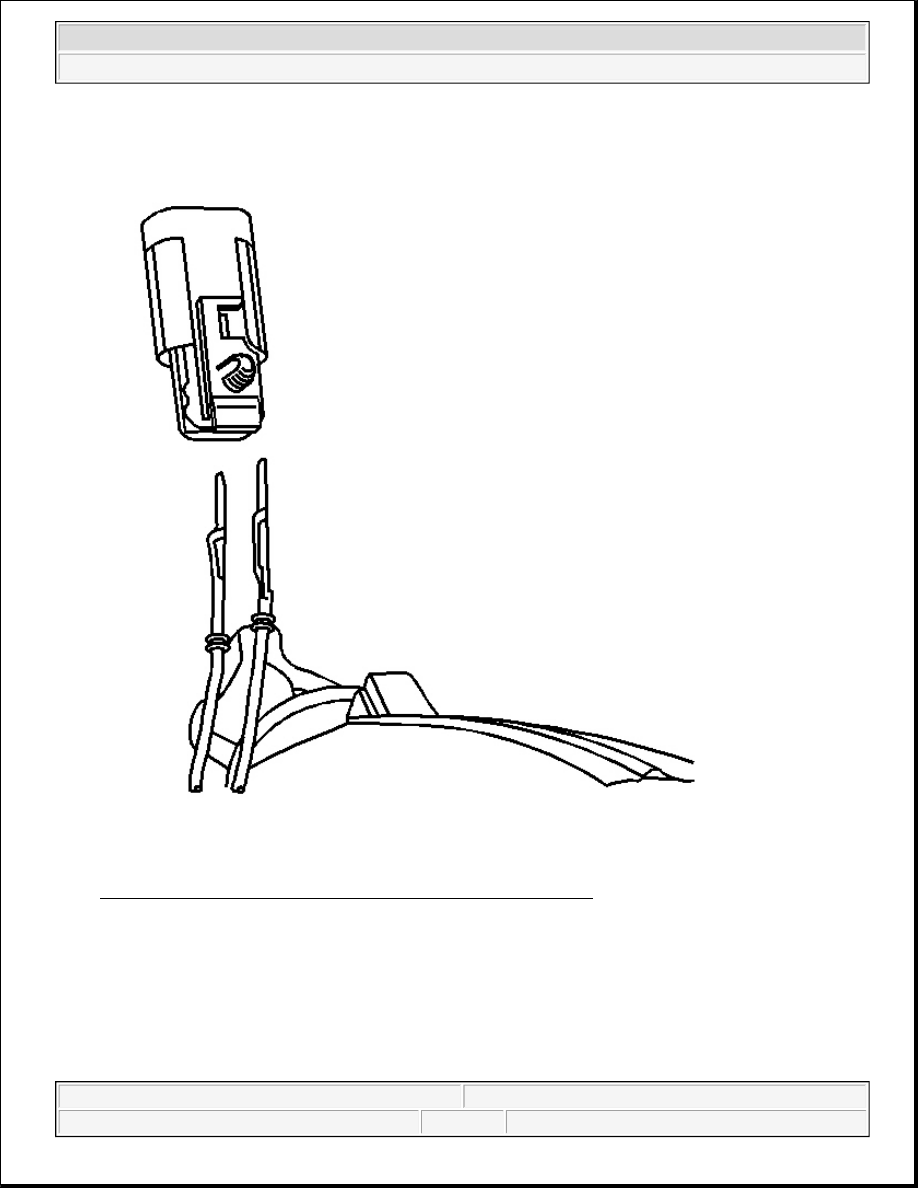

Fig. 91: Electronic Locking Differential Coil Connector Housing
Courtesy of GENERAL MOTORS CORP.

20. Install the locking differential coil assembly wires to the locking differential coil connector.
