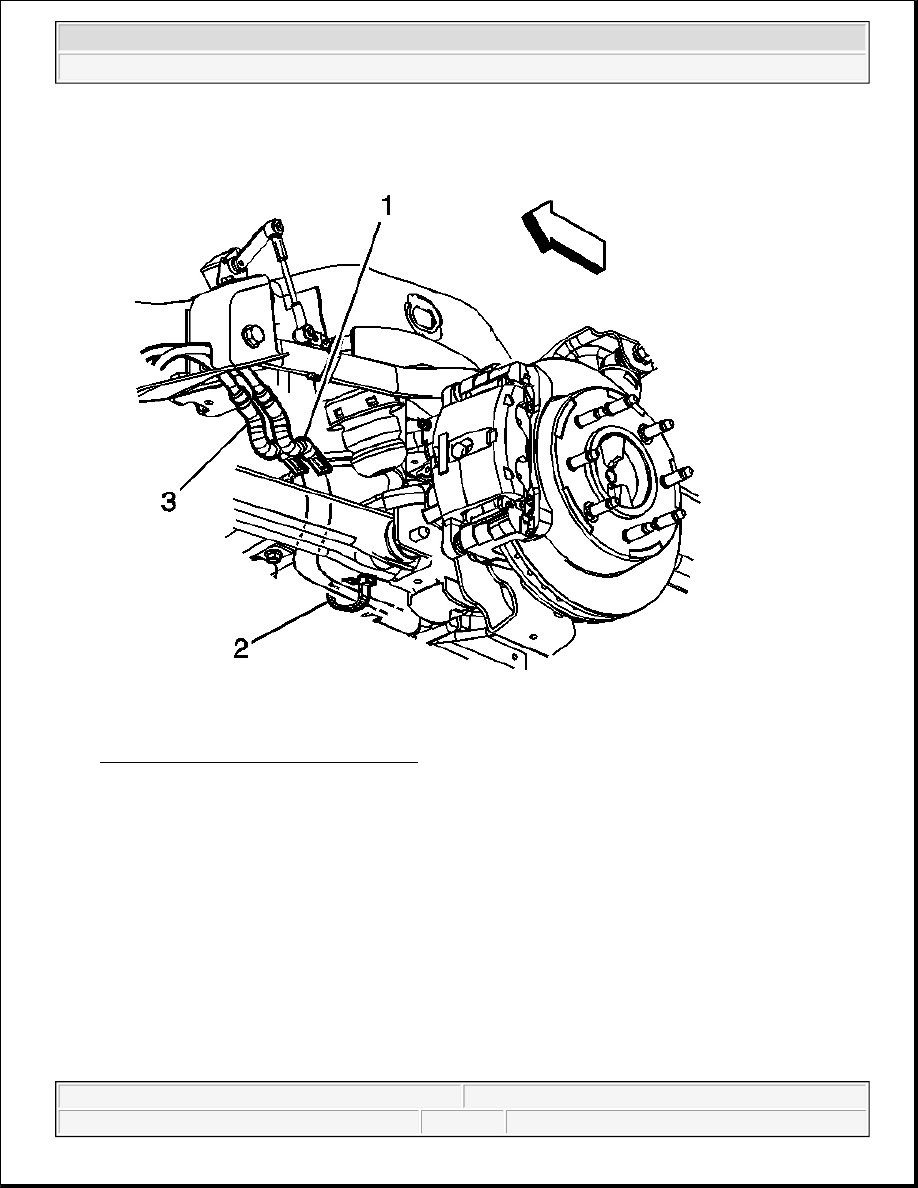

Fig. 40: Right Rear Cable & Cable Guide
Courtesy of GENERAL MOTORS CORP.

1. Install the right rear cable taking care to correctly route the cable (3) through the cable guide (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



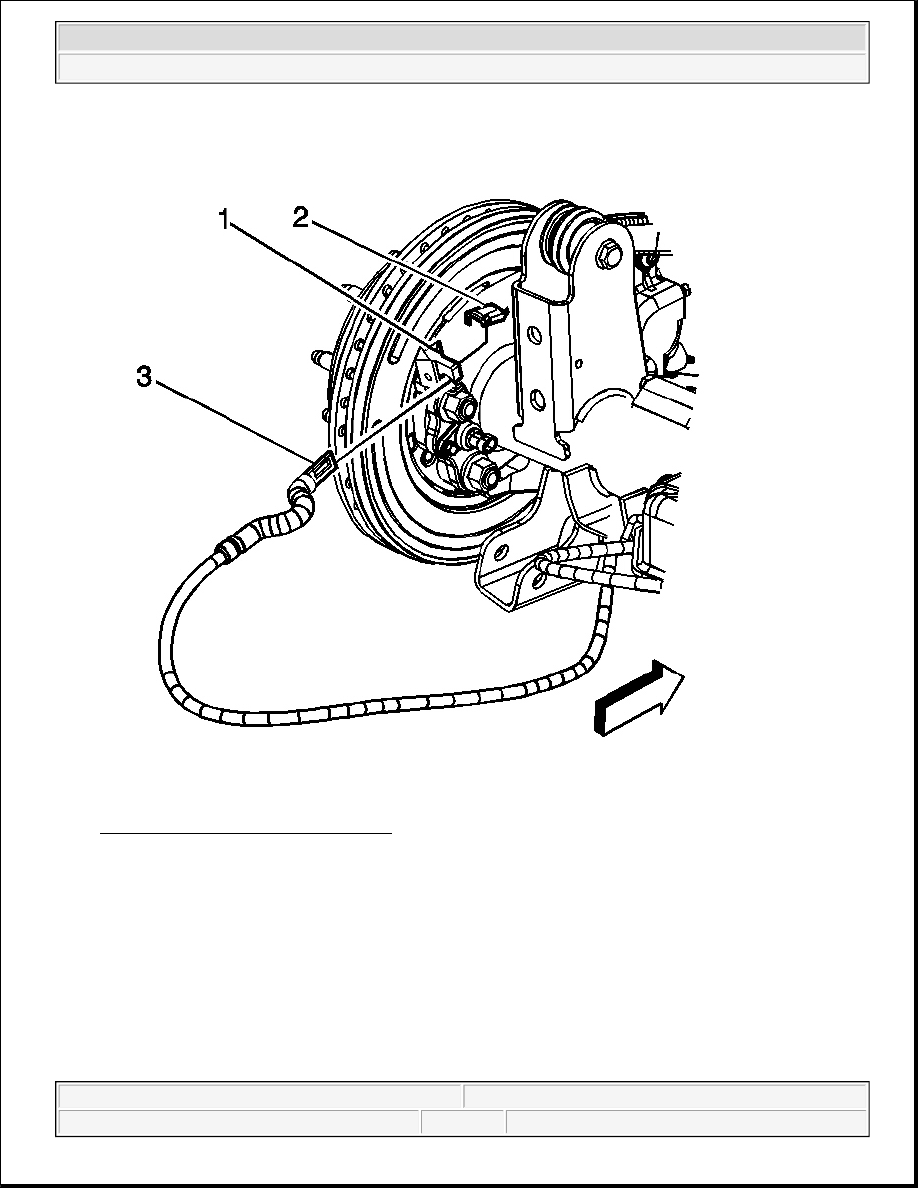

Fig. 41: Cable, Lever & Backing Plate
Courtesy of GENERAL MOTORS CORP.

2. Install the cable (3) to the lever (2).

3. install the cable (3) to the backing plate (1) by compressing the spring, routing the cable through the slot

in the backing plate and pressing the cable into the backing plate until the locking tabs snap into place.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



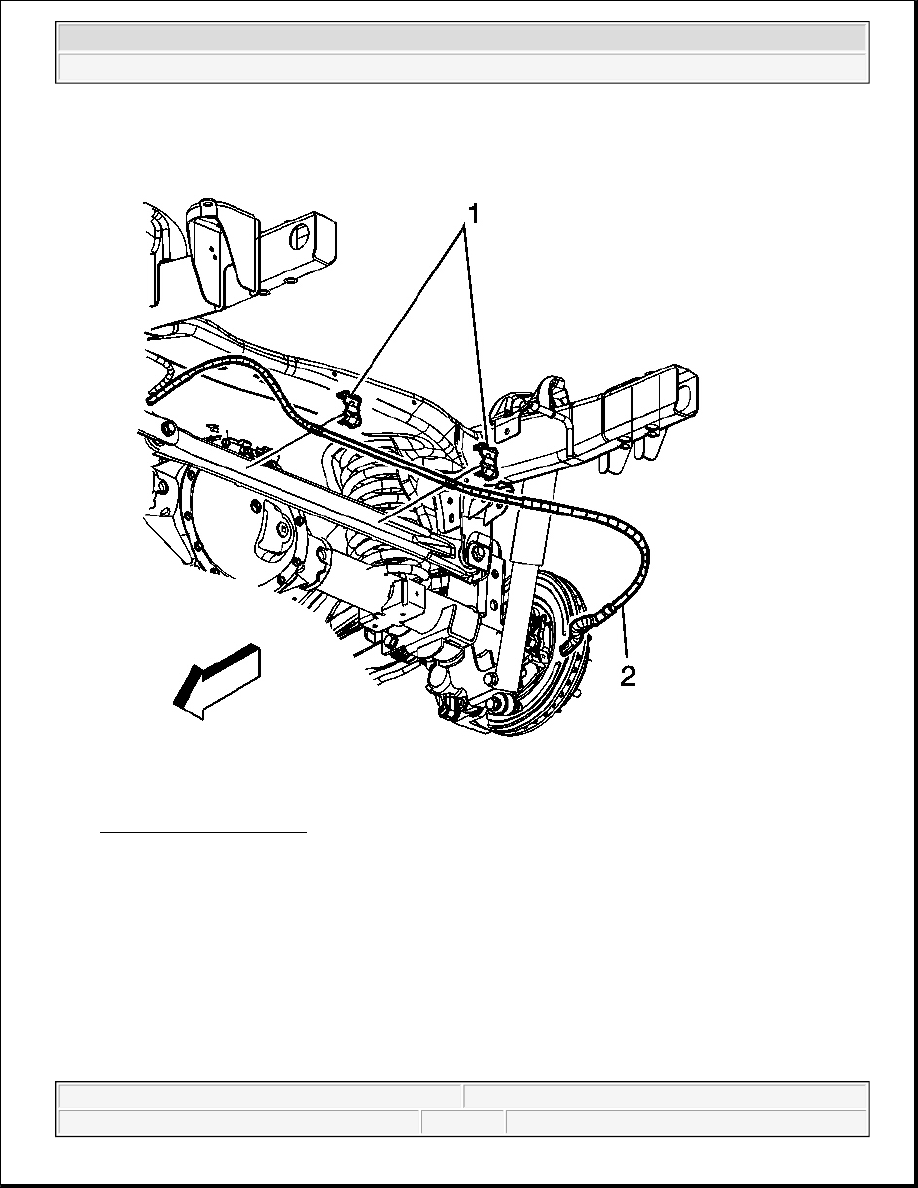

Fig. 42: Track Bar & Clips
Courtesy of GENERAL MOTORS CORP.

4. Position the right rear cable (2) and the clips (1) on the track bar.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



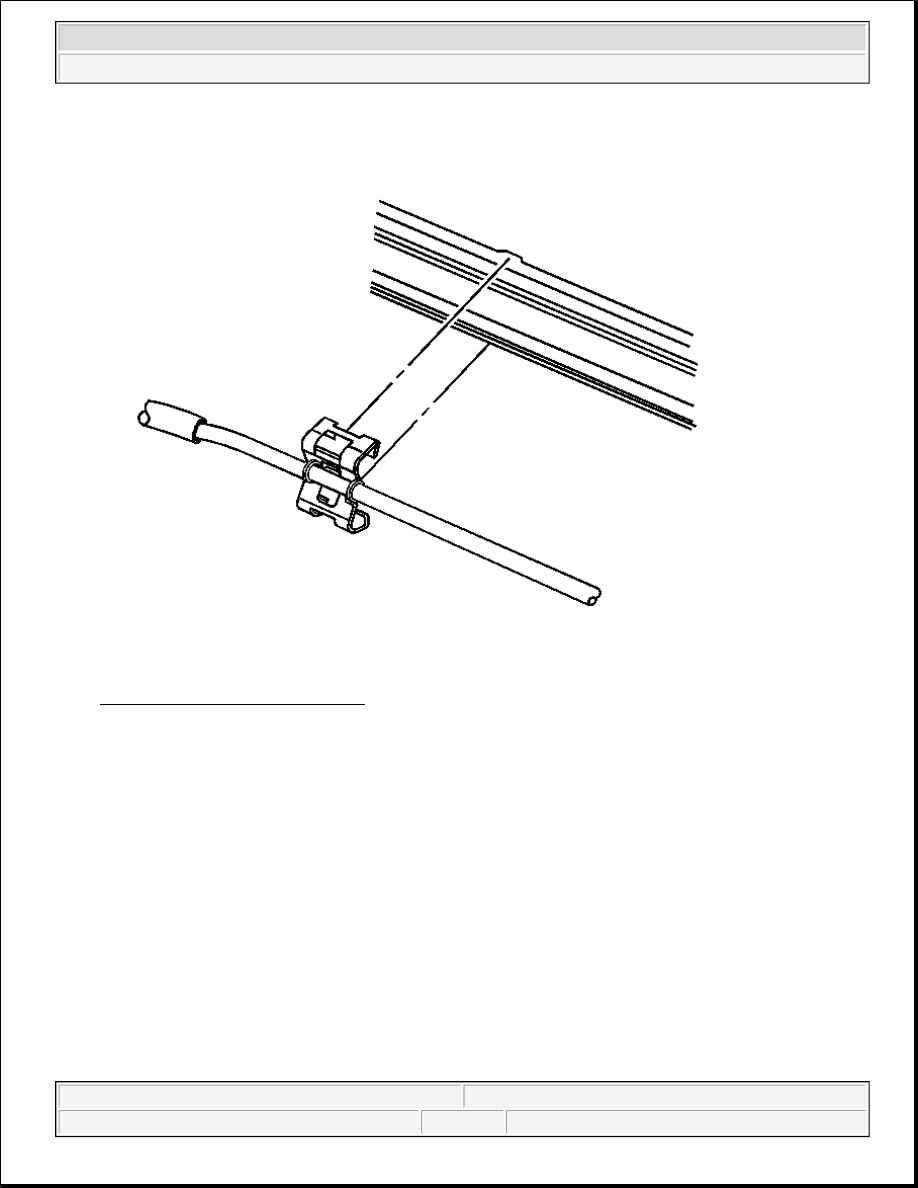

Fig. 43: Installing Track Bar Clips
Courtesy of GENERAL MOTORS CORP.

5. Install the track bar clips to the locating tabs on the track bar.
