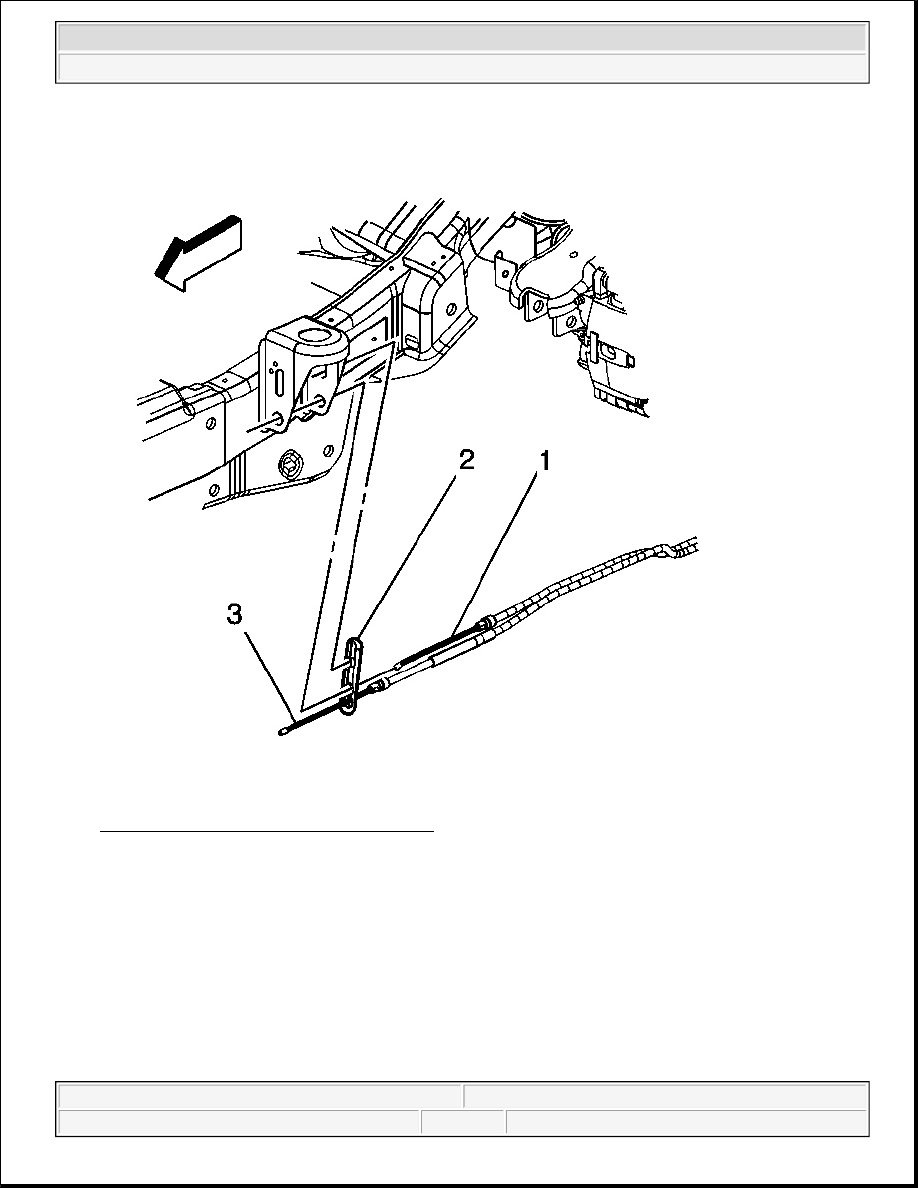

Fig. 44: Right Rear Cable & Cable Support
Courtesy of GENERAL MOTORS CORP.

6. Install the right rear cable (1) to the cable support (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



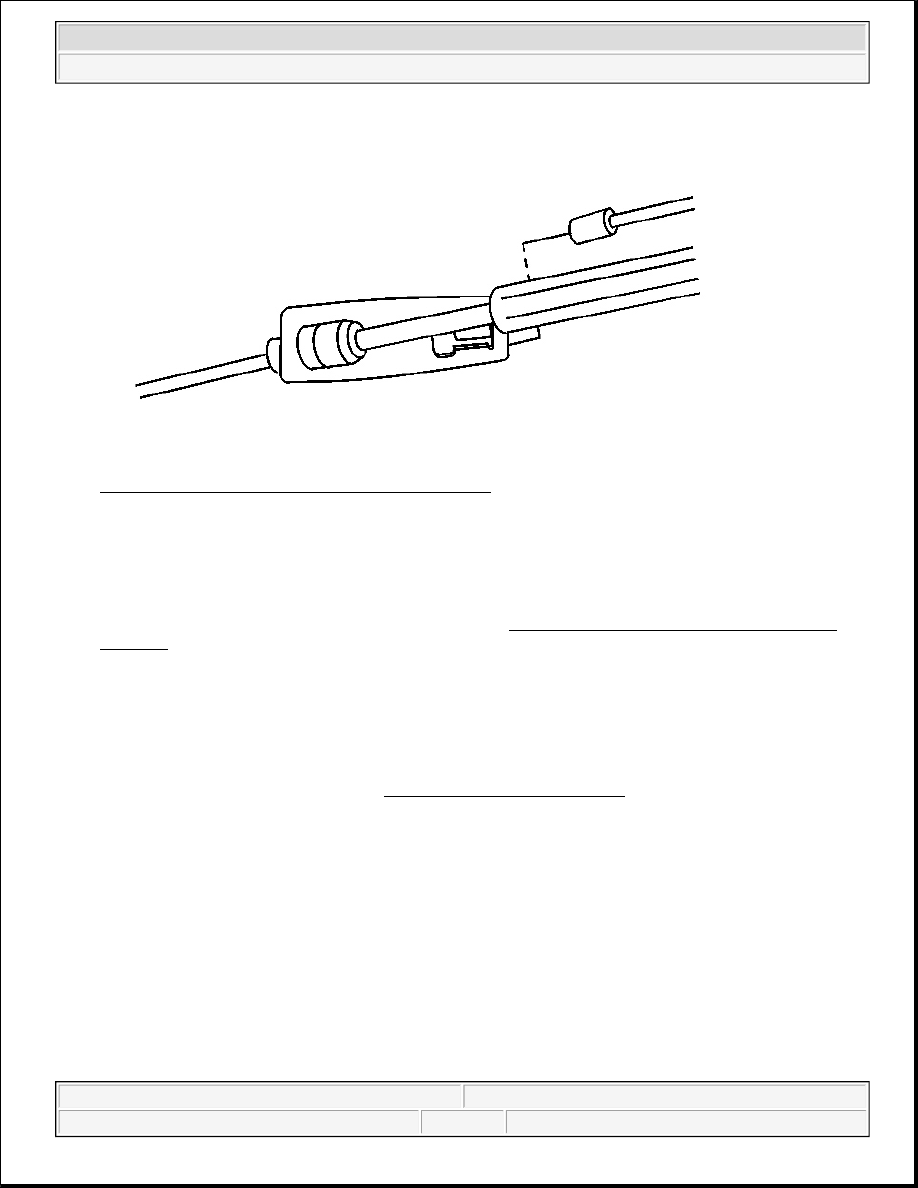

Fig. 45: Right Rear Park Brake Cable & Equalizer
Courtesy of GENERAL MOTORS CORP.

7. Install the right rear cable to the equalizer.

8. Remove the safety stands.

9. Lower the vehicle.

10. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster .

PARK BRAKE CABLE GUIDE REPLACEMENT

Removal Procedure

1. Release the parking brake.

2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



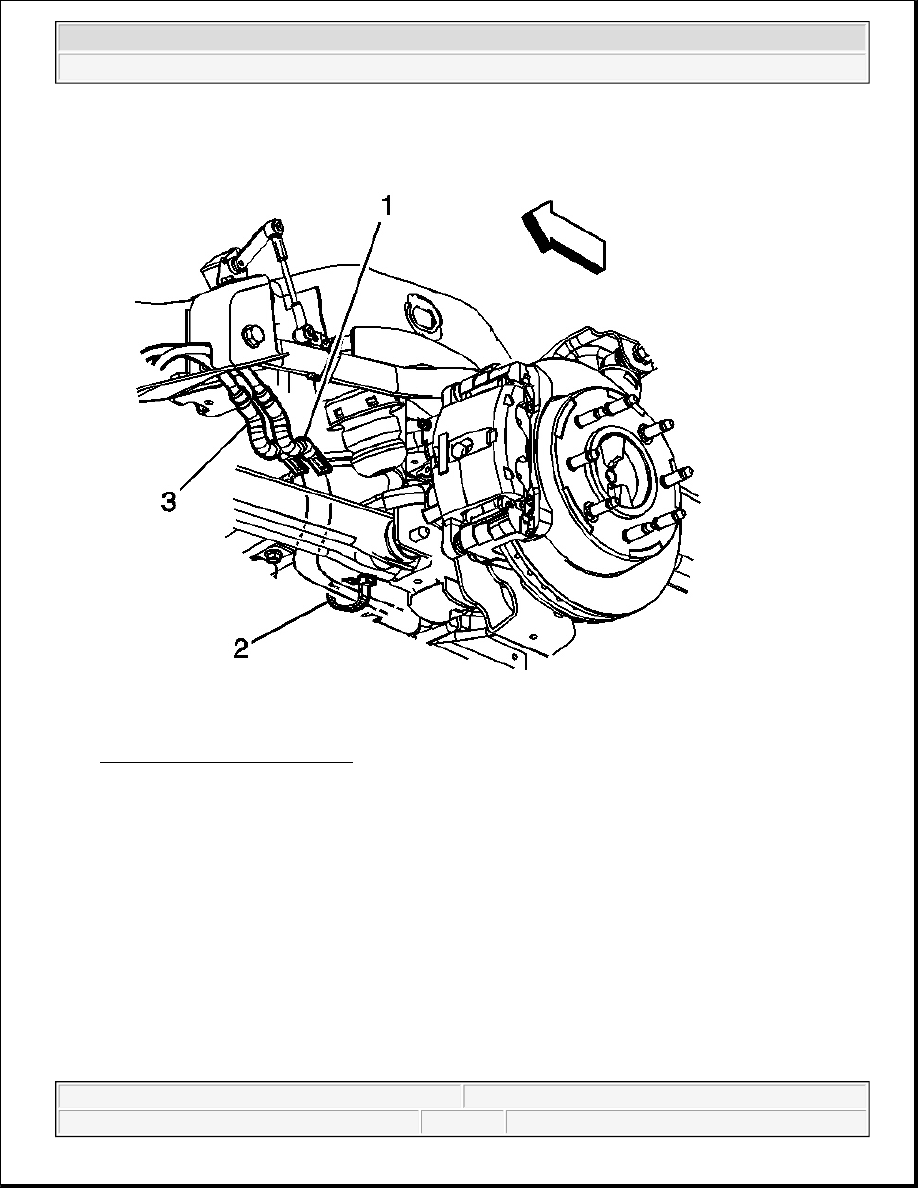

Fig. 46: Park Brake Cable Guide
Courtesy of GENERAL MOTORS CORP.

3. Remove the park brake cable guide bolt.

4. Remove the park brake cable guide (2).

5. Remove the park brake guide from the park brake cable.

Installation Procedure



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 47: Park Brake Cable Guide
Courtesy of GENERAL MOTORS CORP.

1. Install the park brake cable guide to the park brake cable.

2. Install the park brake cable guide (2).

3. Install the park brake cable guide bolt.

Tighten: Tighten the bolt to 12 N.m (106 lb in).

4. Remove the safety stands.

5. Lower the vehicle.

NOTE:

Refer to Fastener Notice in Cautions and Notices.
