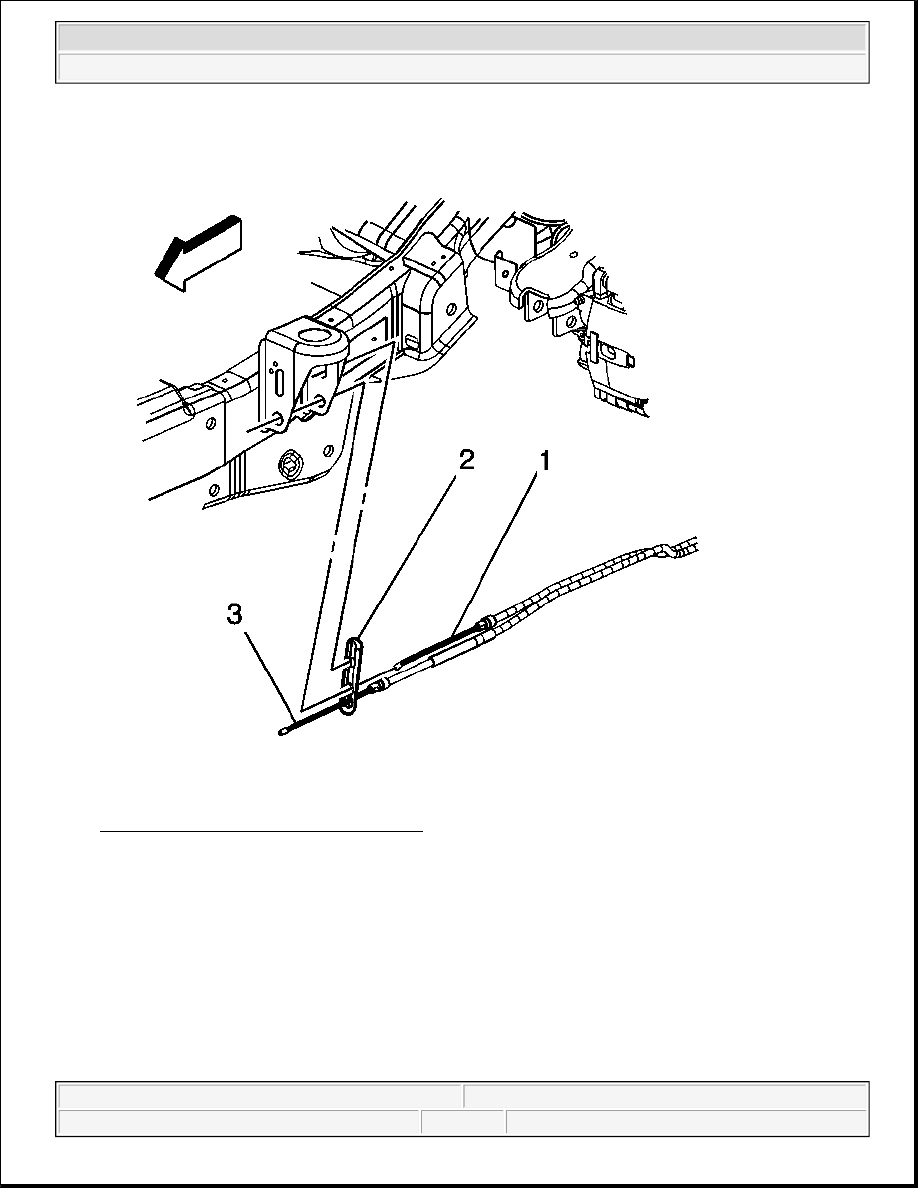

Fig. 32: Left Rear Cable & Cable Support
Courtesy of GENERAL MOTORS CORP.

4. Install the left rear cable (3) to the cable support (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



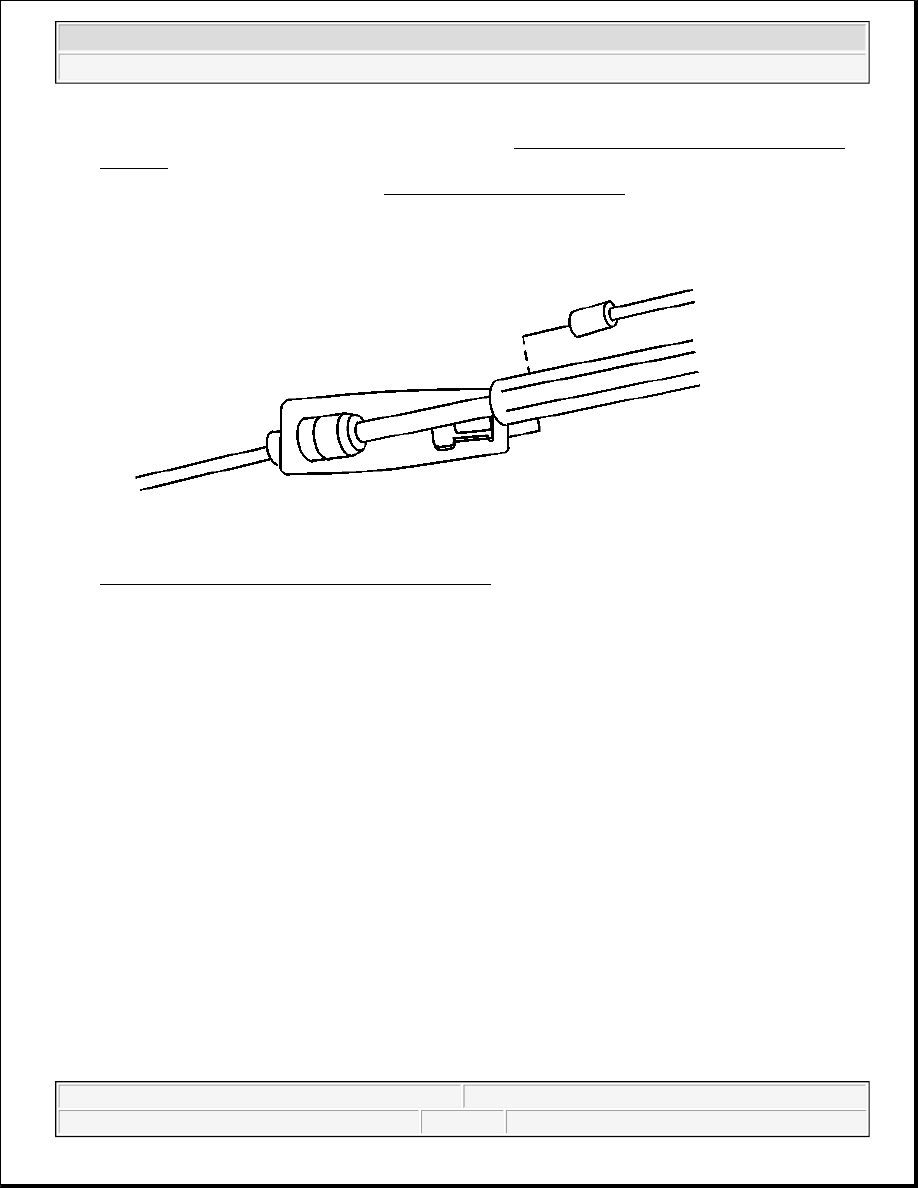

Fig. 33: Left Rear Cable & Equalizer
Courtesy of GENERAL MOTORS CORP.

5. Install the left rear cable (4) to the equalizer (1) until the locking tabs snap into place.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

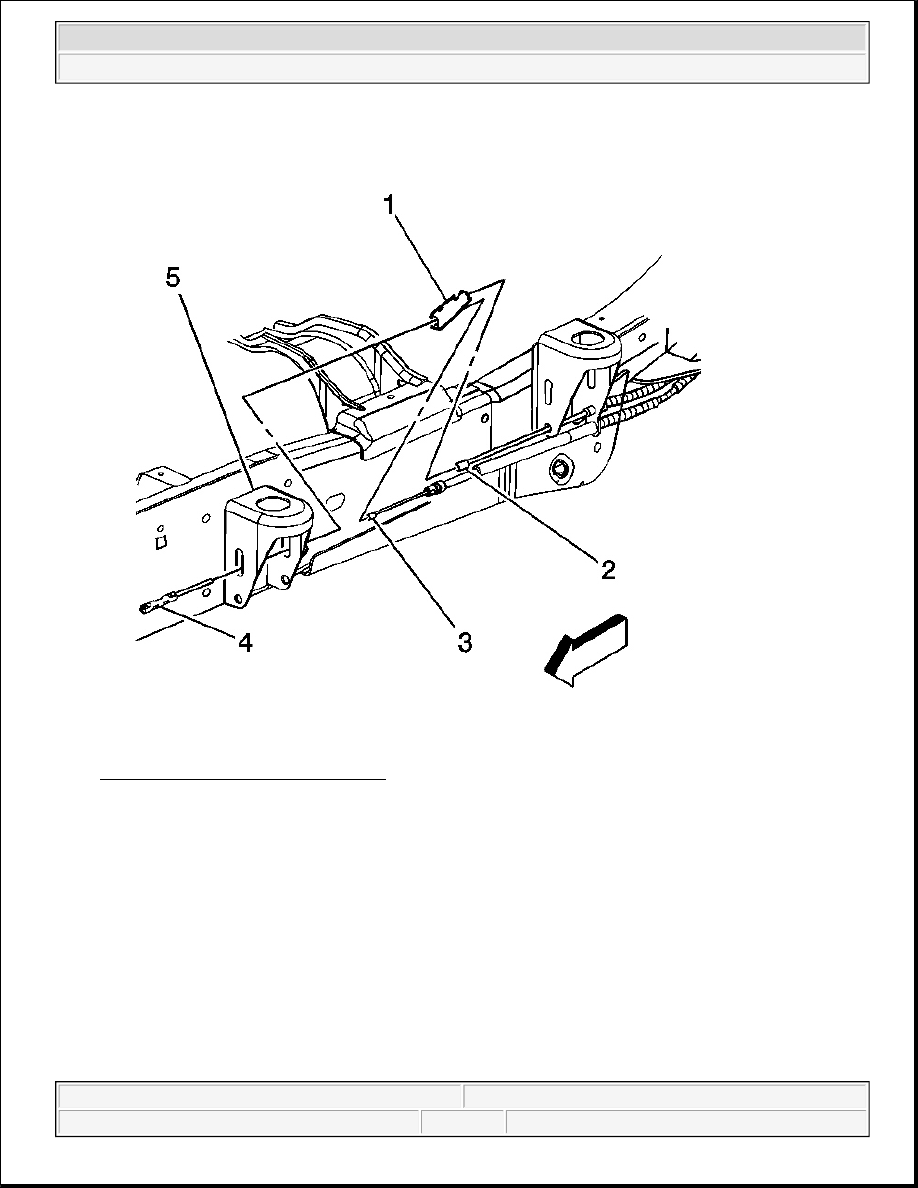

Fig. 34: Front/Intermediate Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

6. Connect the left rear cable to the front cable.

7. Remove the safety stands.

8. Lower the vehicle.

9. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster .

PARK BRAKE CABLE REPLACEMENT - RIGHT REAR

Removal Procedure



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



1. Disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic

Adjuster .

2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

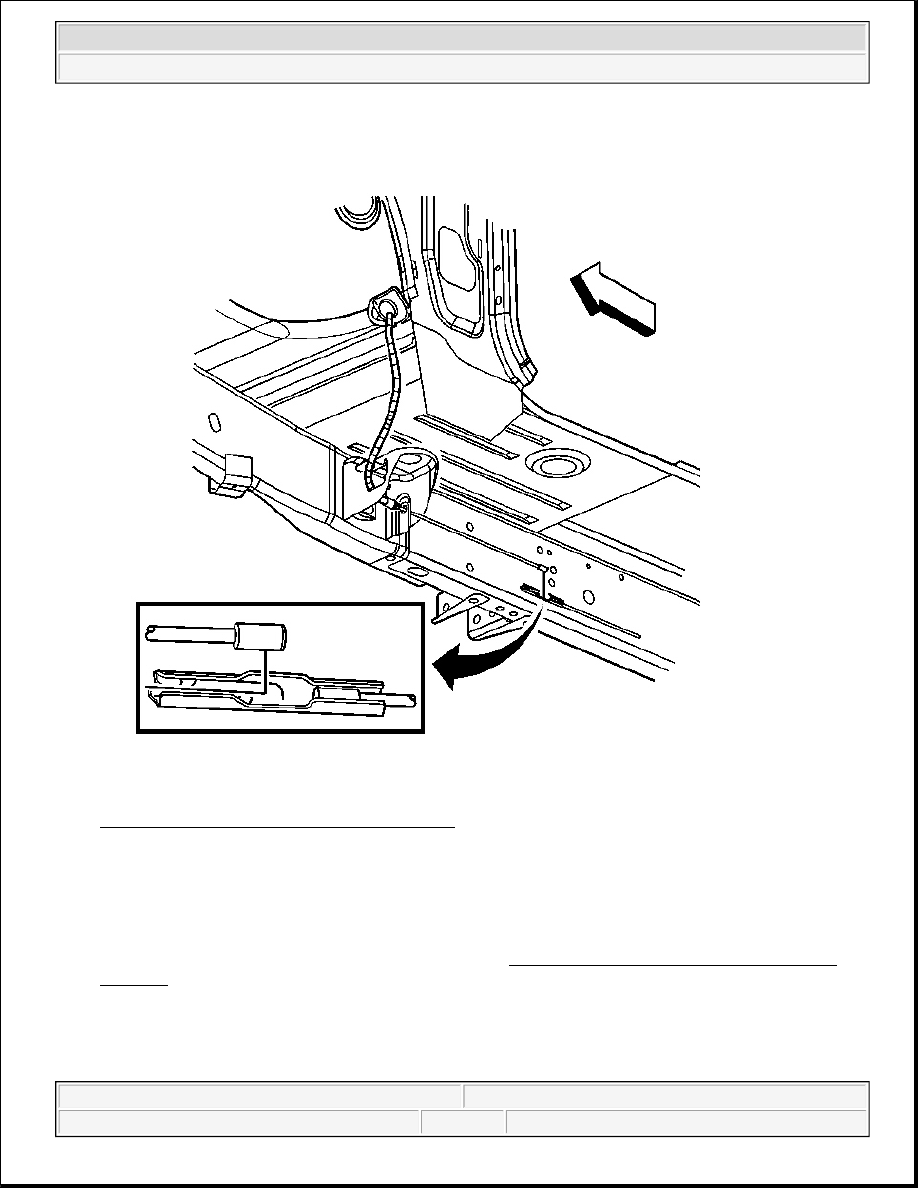

Fig. 35: Right Rear Park Brake Cable & Equalizer
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the right rear cable from the equalizer.
