4. Enable the park brake cable automatic adjuster. Hold the park brake pedal in the FULL upward position.
Pull rearward on the front park brake cable until the tension is released from the scribe or nail installed
through the holes in the pedal assembly. See Fig. 53 . Remove the scribe or screwdriver. Slowly release
the park brake cable until it returns to its original position. Release the park brake pedal. Lower the
vehicle. Apply and release the park brake pedal to ensure that there is no binding or sticking.
PARK BRAKE CABLE GUIDE
Removal & Installation
1. Release the parking brake. Raise and support the vehicle. Remove the park brake cable guide bolt.
Remove the park brake cable guide. Remove the park brake guide from the park brake cable.
2. Install the park brake cable guide to the park brake cable. Install the park brake cable guide.
3. Install the park brake cable guide bolt. Tighten the bolt to specification. See TORQUE
SPECIFICATIONS . Remove the safety stands. Lower the vehicle.
PARK BRAKE PEDAL ASSEMBLY
Removal
1. Disconnect the negative battery cable
2. Disable the park brake cable automatic adjuster. Raise and support the vehicle. Hold the pedal in the full
upward position. Pull rearward on the front park brake cable until the pedal drum reaches its full reset
position. Insert a scribe or the shaft of a thin screwdriver on an upward angle through the hole in the front
of the pedal assembly, past the retracted pedal drum, and into the hole in the back of the pedal assembly.
See Fig. 53 . Slowly release the cable.

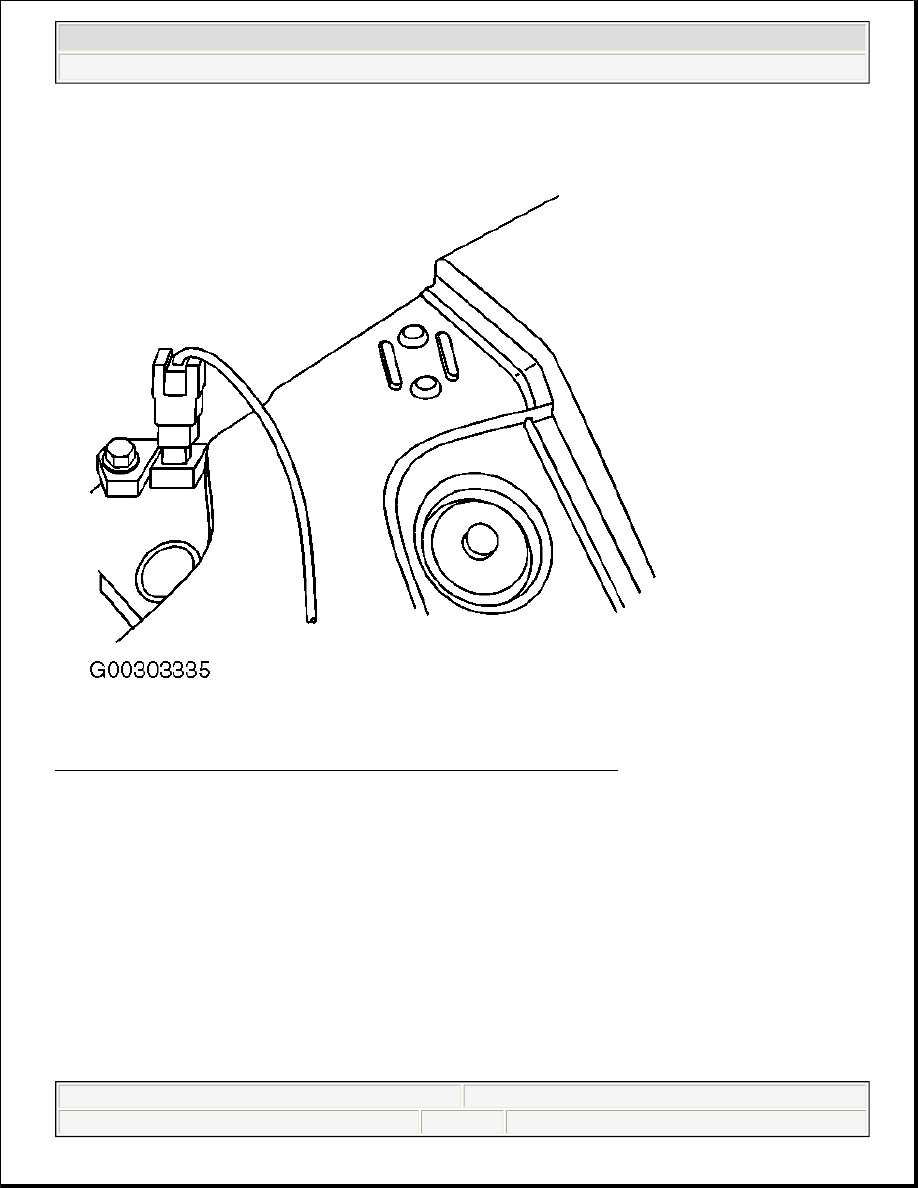

3. Remove the left side hinge pillar panel. Remove the MID-Bussed Electrical Center bracket. Disconnect
the park brake warning light connection. See Fig. 49 . Disconnect the park brake release cable from the
park brake lever.

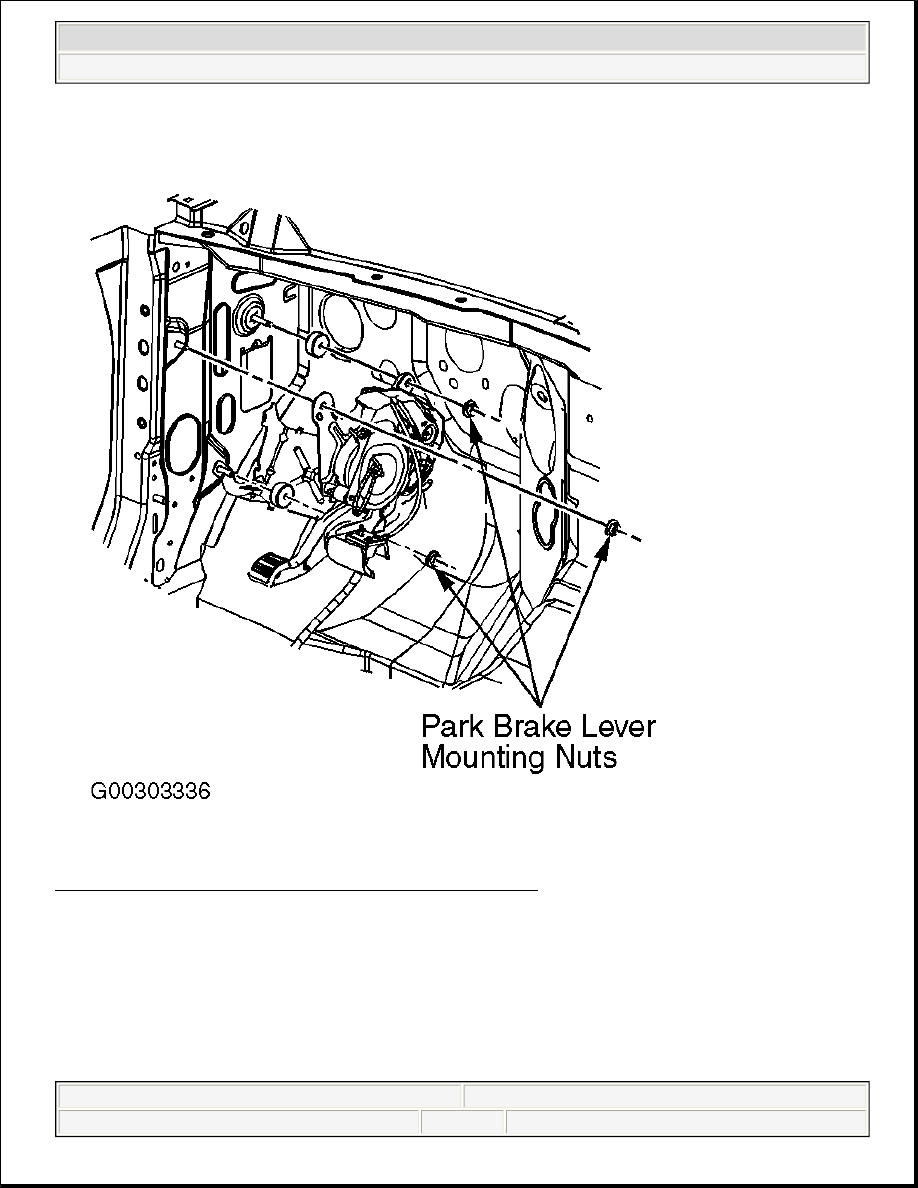

4. Remove the park brake lever mounting nuts. See Fig. 50 . Disconnect the front park brake cable from the
park brake lever. See Fig. 51 . Remove the park brake lever.
CAUTION: Before servicing any electrical component, the ignition key must be in the
OFF or LOCK position and all electrical loads must be OFF, unless
instructed otherwise in these procedures. If a tool or equipment could
easily come in contact with a live exposed electrical terminal, also
disconnect the negative battery cable. Failure to follow these precautions
may cause personal injury and/or damage to the vehicle or its
components.
