Hummer H2. Manual - part 803

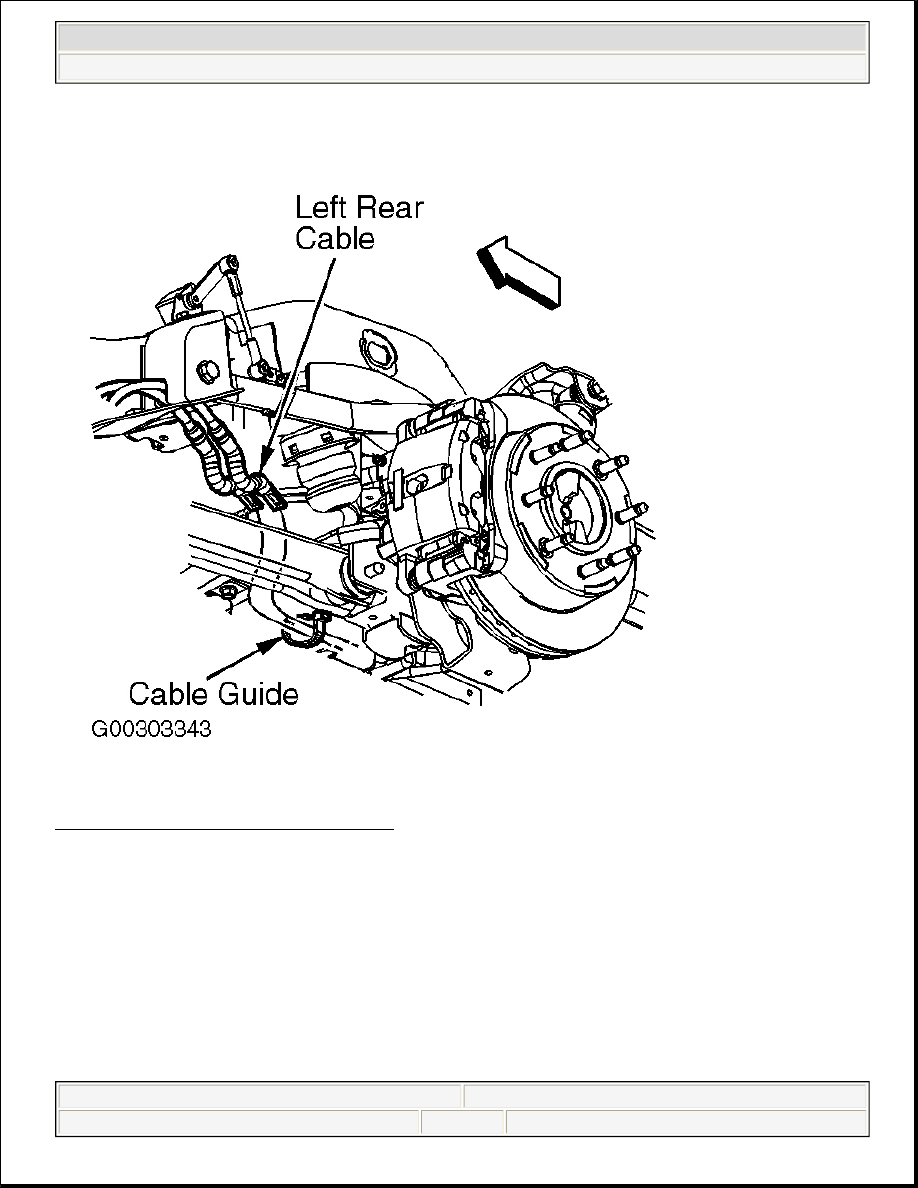

Fig. 45: Removing Cable From Cable Guide
Courtesy of GENERAL MOTORS CORP.

Installation

1. Install the left rear cable taking care to correctly route the cable through the cable guide. Install the cable

to the lever.

2. Install the cable to the backing plate by compressing the spring, routing the cable through the slot in the

backing plate and pressing the cable into the backing plate until the locking tabs snap into place.

3. Install the left rear cable to the cable support. Install the left rear cable to the equalizer until the locking

tabs snap into place. Connect the left rear cable to the front cable. Remove the safety stands. Lower the
vehicle.



2004 Hummer H2

2003-04 BRAKES Disc - Hummer



4. Enable the park brake cable automatic adjuster. Hold the park brake pedal in the FULL upward position.

Pull rearward on the front park brake cable until the tension is released from the scribe or nail installed
through the holes in the pedal assembly. See Fig. 53 . Remove the scribe or screwdriver. Slowly release
the park brake cable until it returns to its original position. Release the park brake pedal. Lower the
vehicle. Apply and release the park brake pedal to ensure that there is no binding or sticking.

Removal (Right Rear)

1. Disable the park brake cable automatic adjuster. Raise and support the vehicle. Hold the pedal in the full

upward position. Pull rearward on the front park brake cable until the pedal drum reaches its full reset
position. Insert a scribe or the shaft of a thin screwdriver on an upward angle through the hole in the front
of the pedal assembly, past the retracted pedal drum, and into the hole in the back of the pedal assembly.
See Fig. 53 . Slowly release the cable.

2. Raise and support the vehicle. Disconnect the right rear cable from the equalizer. See Fig. 46 . Remove

the right rear cable from the cable support. See Fig. 47 .

3. Remove the track bar clips from the track bar. See Fig. 48 . Remove the cable from the backing plate by

compressing the spring to access and depress the locking tabs, pull the cable out of the backing plate, and
routing the cable through the slot in the backing plate. See Fig. 54 .

4. Remove the cable from the lever. Remove the right rear cable from the cable guide. See Fig. 45 . Remove

the cable from the vehicle.

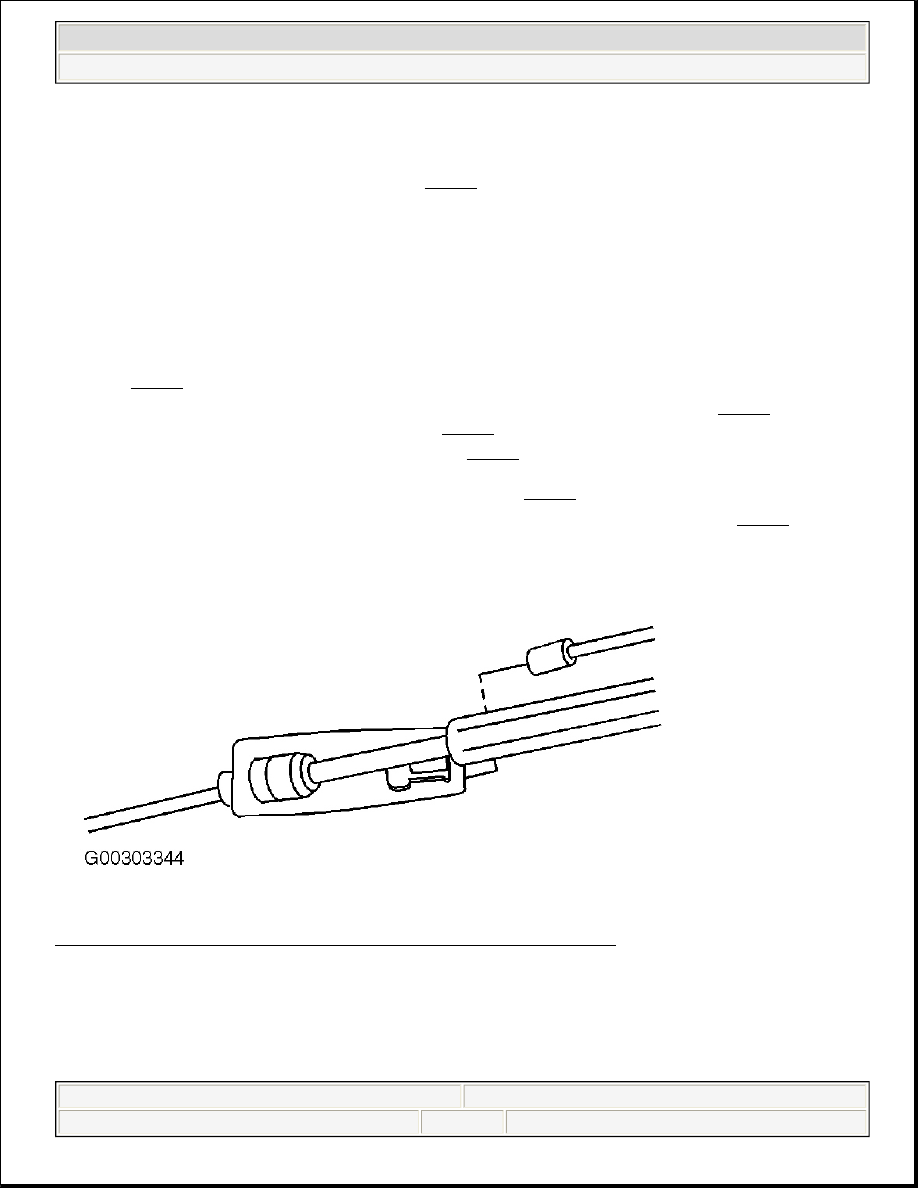

Fig. 46: Disconnecting & Connecting Cable From Equalizer (Right Rear)
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 BRAKES Disc - Hummer



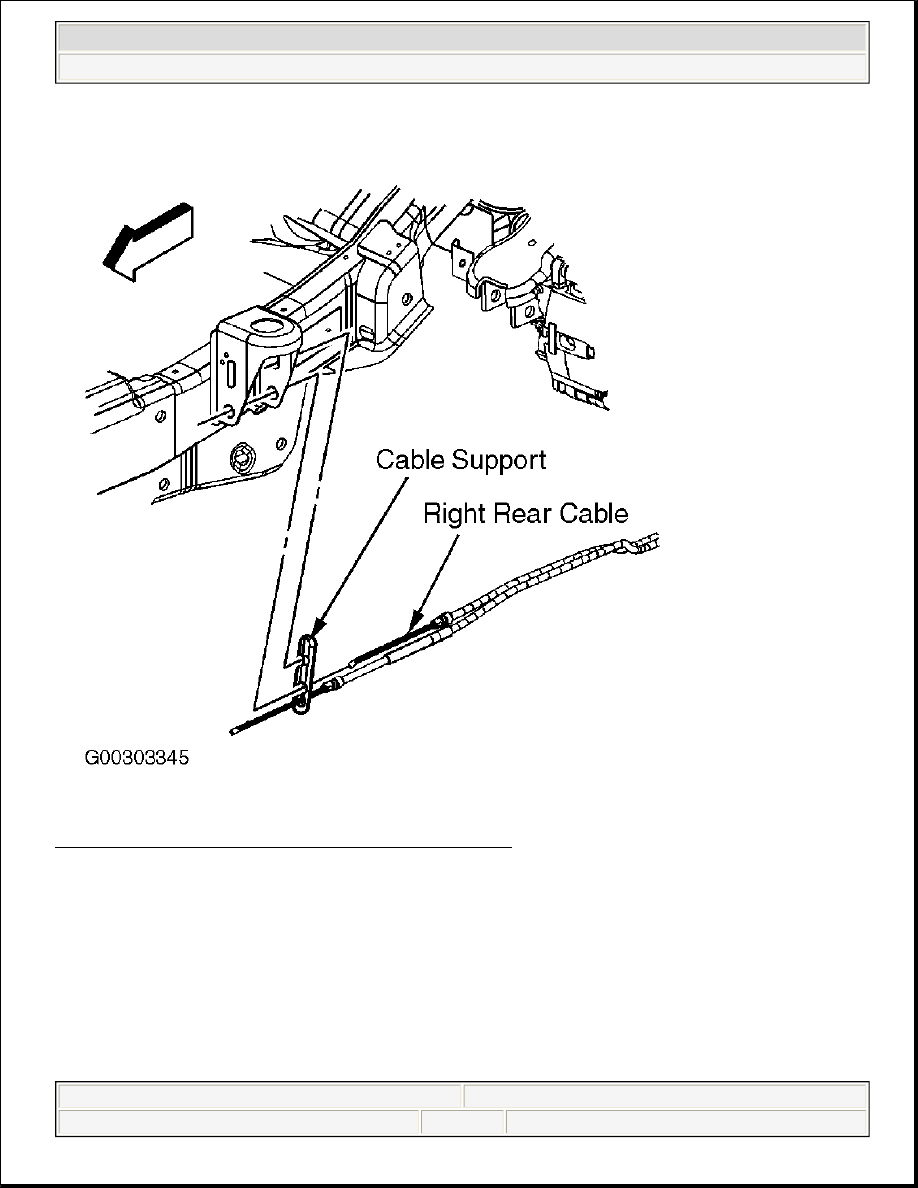

Fig. 47: Removing Cable From Cable Support (Right Rear)
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 BRAKES Disc - Hummer

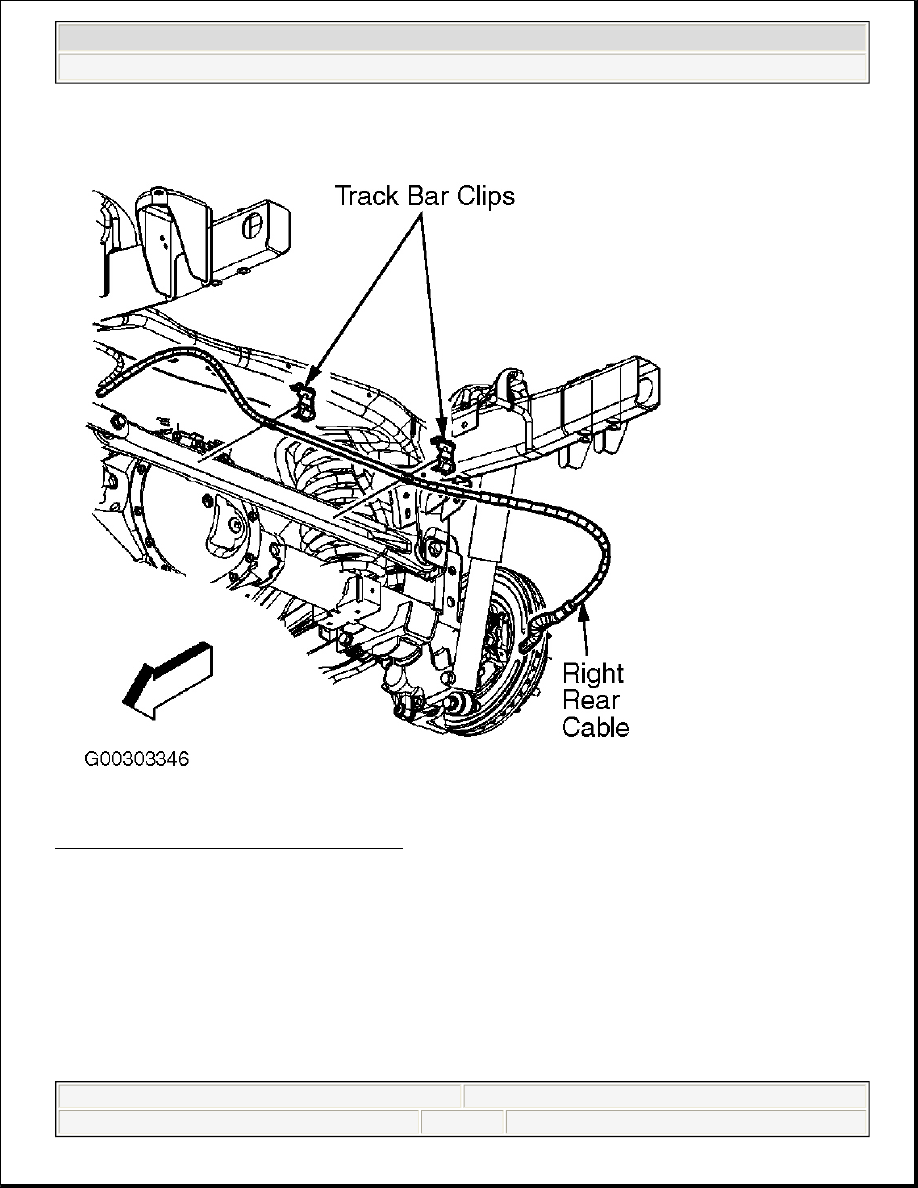

Fig. 48: Removing/Installing Track Bar Clips
Courtesy of GENERAL MOTORS CORP.

Installation

1. Install the right rear cable taking care to correctly route the cable through the cable guide. Install the cable

to the lever. Install the cable to the backing plate by compressing the spring, routing the cable through the
slot in the backing plate and pressing the cable into the backing plate until the locking tabs snap into
place.

2. Position the right rear cable and the clips on the track bar. Install the track bar clips to the locating tabs on

the track bar. Install the right rear cable to the cable support.

3. Install the right rear cable to the equalizer. Remove the safety stands. Lower the vehicle.



2004 Hummer H2

2003-04 BRAKES Disc - Hummer
