Fig. 42: Disengaging/Engaging Grommet & Cable (Front)
Courtesy of GENERAL MOTORS CORP.

Installation

1. Install the cable. Snap the retainer tabs into the body mount. Connect the front cable to the rear cable.

Route the cable in through the floor pan and engage the grommet. Remove the safety stands. Lower the
vehicle.

2. Roll the carpet into place. Install the park brake pedal. See PARK BRAKE PEDAL ASSEMBLY .

3. Enable the park brake cable automatic adjuster. Hold the park brake pedal in the FULL upward position.

Pull rearward on the front park brake cable until the tension is released from the scribe or nail installed
through the holes in the pedal assembly. See Fig. 53 . Remove the scribe or screwdriver. Slowly release



2004 Hummer H2

2003-04 BRAKES Disc - Hummer



the park brake cable until it returns to its original position. Release the park brake pedal. Lower the
vehicle. Apply and release the park brake pedal to ensure that there is no binding or sticking.

Removal (Left Rear)

1. Disable the park brake cable automatic adjuster. Raise and support the vehicle. Hold the pedal in the full

upward position. Pull rearward on the front park brake cable until the pedal drum reaches its full reset
position. Insert a scribe or the shaft of a thin screwdriver on an upward angle through the hole in the front
of the pedal assembly, past the retracted pedal drum, and into the hole in the back of the pedal assembly.
See Fig. 53 . Slowly release the cable.

2. Raise and support the vehicle. Disconnect the left rear cable from the front cable. See Fig. 42 . Remove

the left rear cable from the equalizer by depressing the locking tabs.

3. Remove the left rear cable from the cable support. See Fig. 44 . Remove the cable from the backing plate

by compressing the spring to access and depress the locking tabs, pull the cable out of the backing plate,
and routing the cable through the slot in the backing plate. See Fig. 54 .

4. Remove the cable from the lever. Remove the left rear cable from the cable guide. See Fig. 45 . Remove

the cable from the vehicle.



2004 Hummer H2

2003-04 BRAKES Disc - Hummer



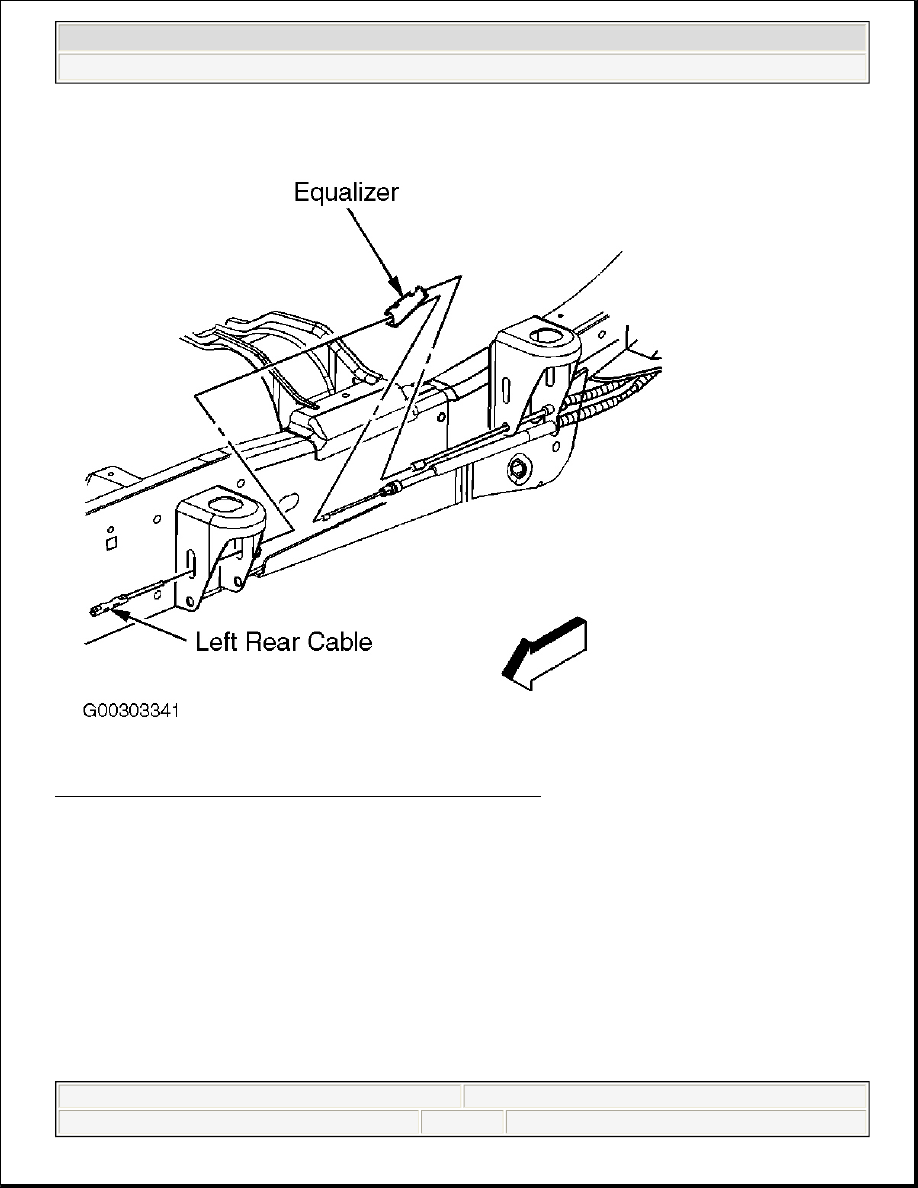

Fig. 43: Removing/Installing Cable From Equalizer (Left Rear)
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 BRAKES Disc - Hummer



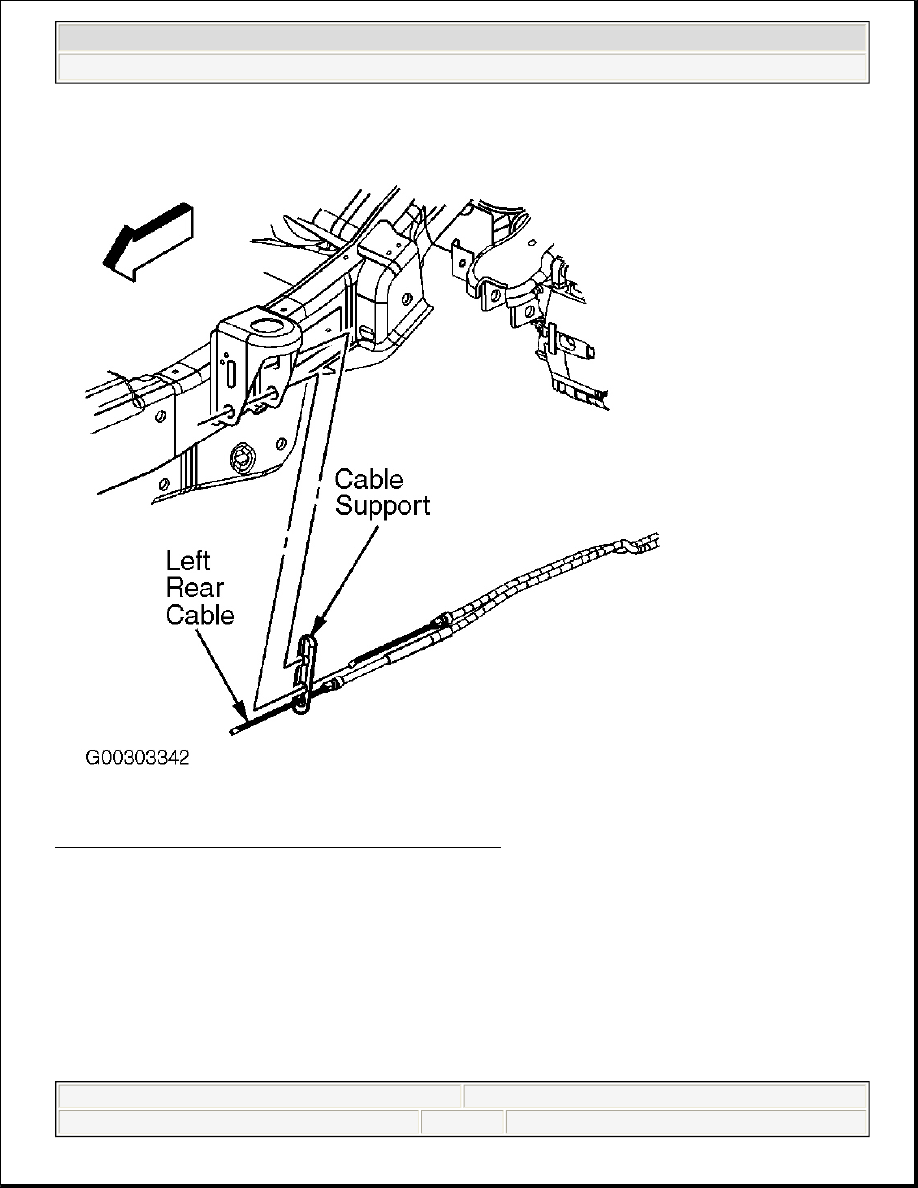

Fig. 44: Removing Cable From Cable Support (Left Rear)
Courtesy of GENERAL MOTORS CORP.
