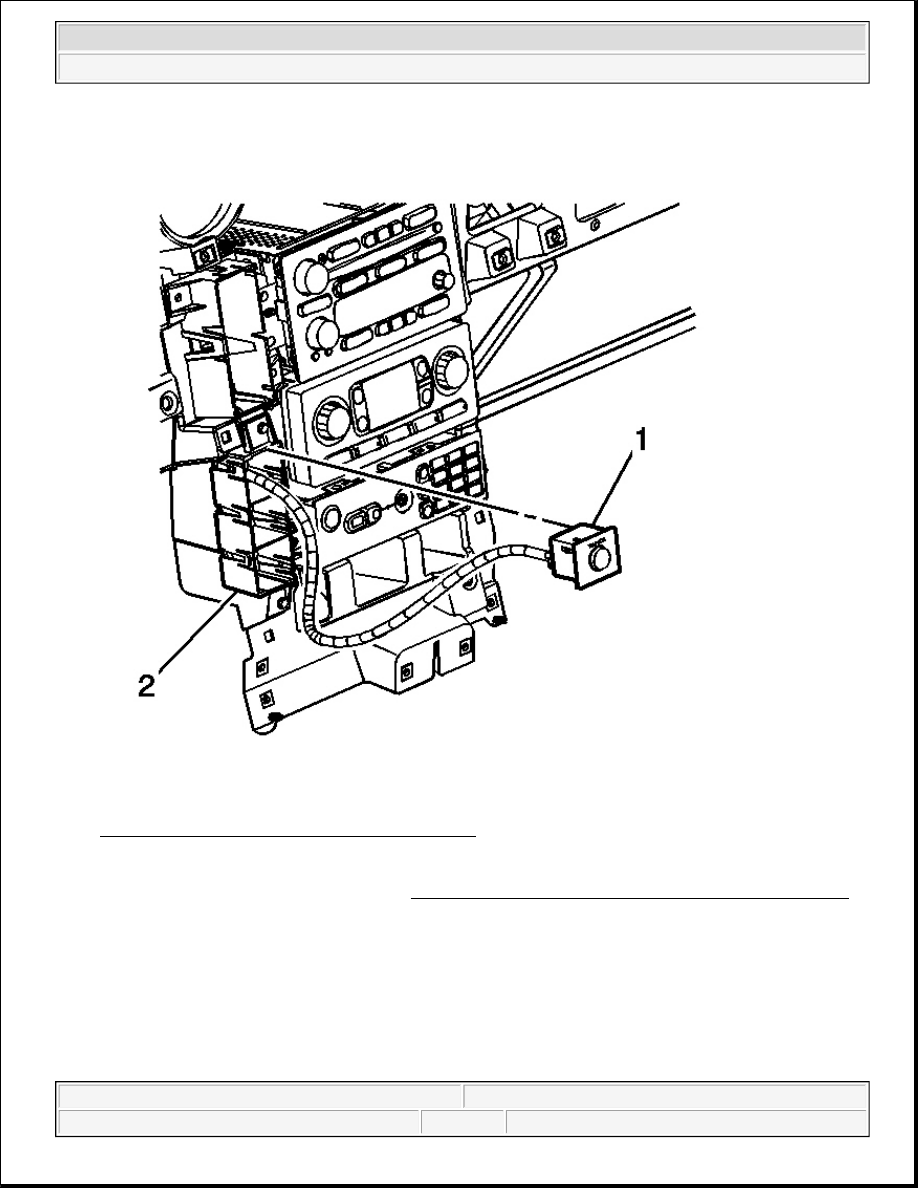

Fig. 19: Traction Control Switch & I/P Assembly
Courtesy of GENERAL MOTORS CORP.

1. Remove the center I/P trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center

in Instrument Panel, Gauges and Console.

2. Gently lift the retaining tabs and remove the traction control switch (1) from the instrument panel (I/P)

assembly (2).

3. Disconnect the harness connector from the traction control switch (1).

Installation Procedure



2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2

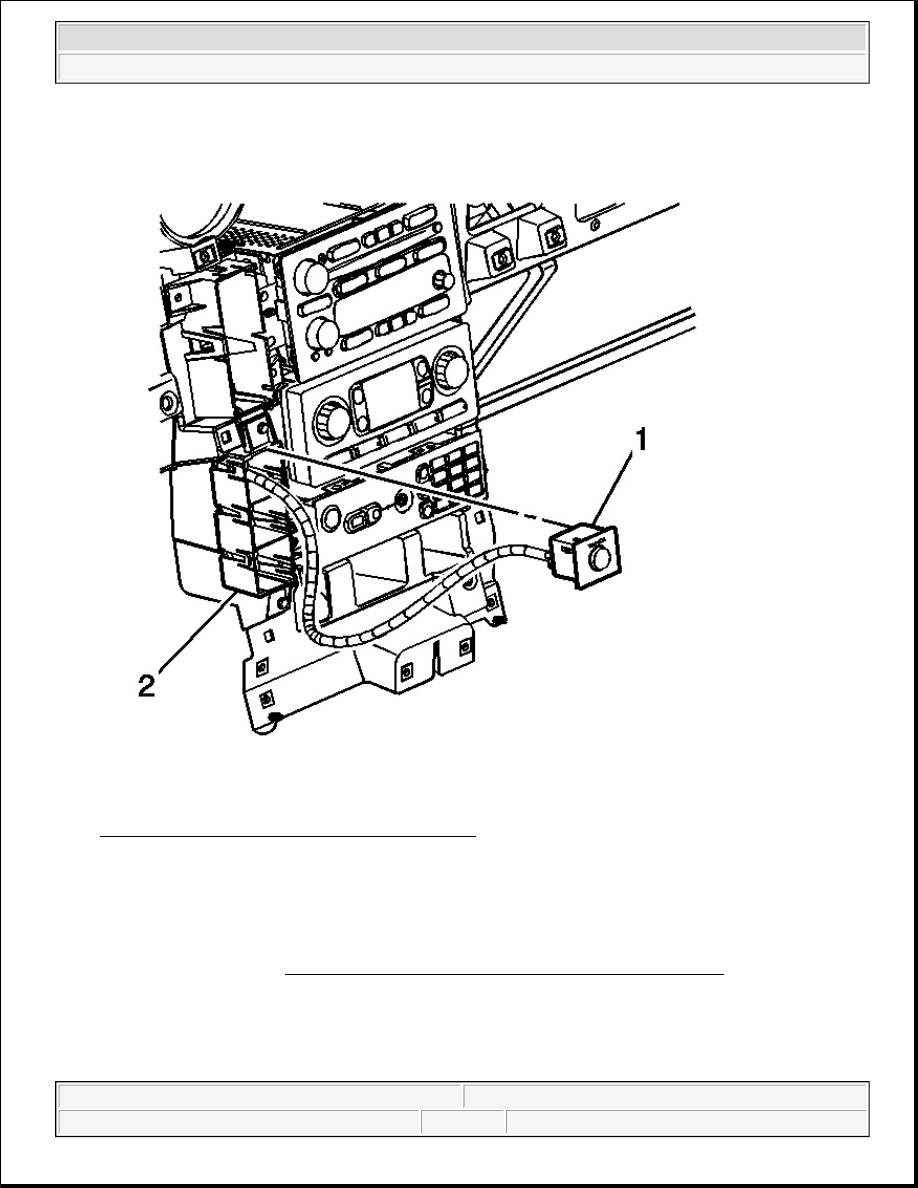

Fig. 20: Traction Control Switch & I/P Assembly
Courtesy of GENERAL MOTORS CORP.

1. Connect the harness connector to the traction control switch (1).

2. Install the traction control switch (1) into the I/P assembly (2).

3. Ensure that the switch (1) is secure into both retaining tabs.

4. Install I/P bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center in Instrument

Panel, Gauges and Console.

LONGITUDINAL ACCELEROMETER REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2

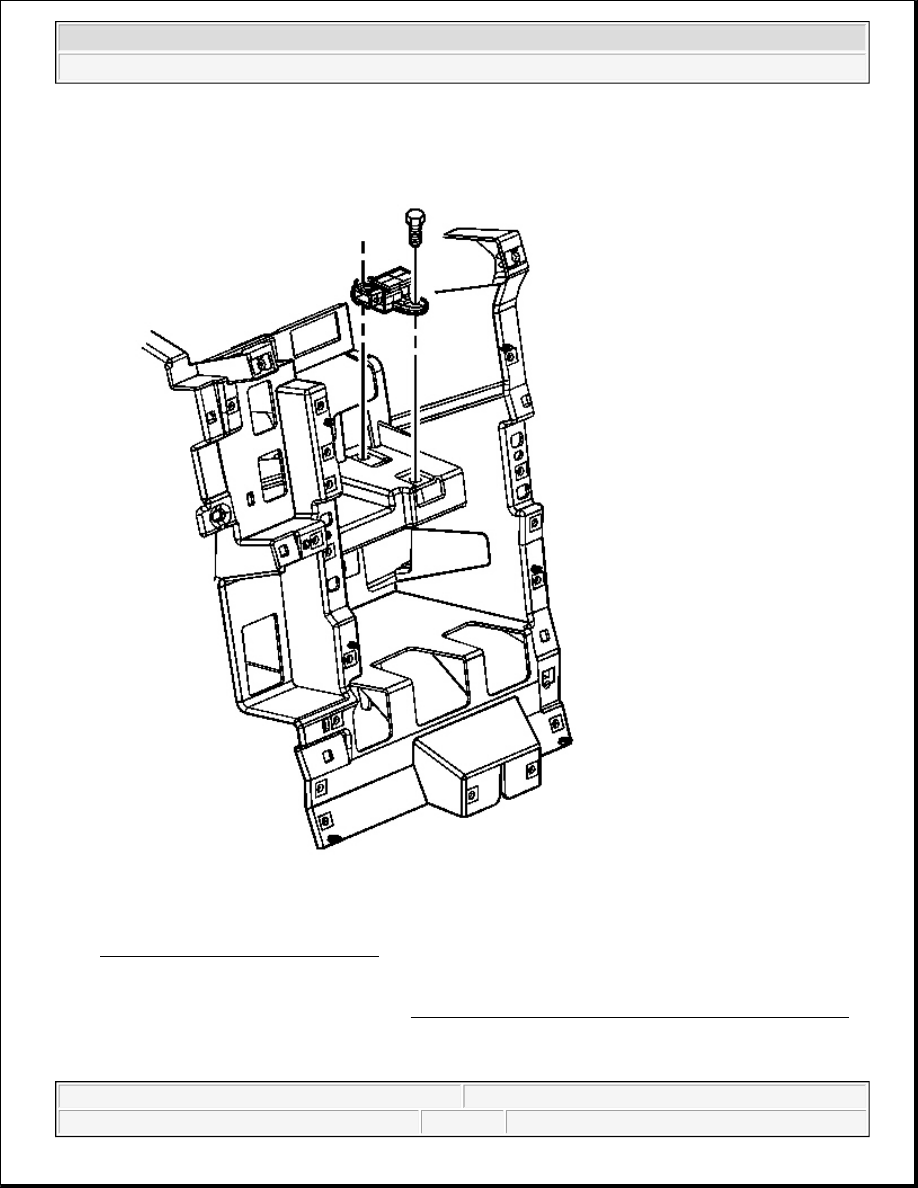

Fig. 21: Longitudinal Accelerometer
Courtesy of GENERAL MOTORS CORP.

1. Remove the center I/P trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center

in Instrument Panel, Gauges and Console.

2. Remove the longitudinal accelerometer retaining screws.



2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2



3. Remove the longitudinal accelerometer.

Installation Procedure

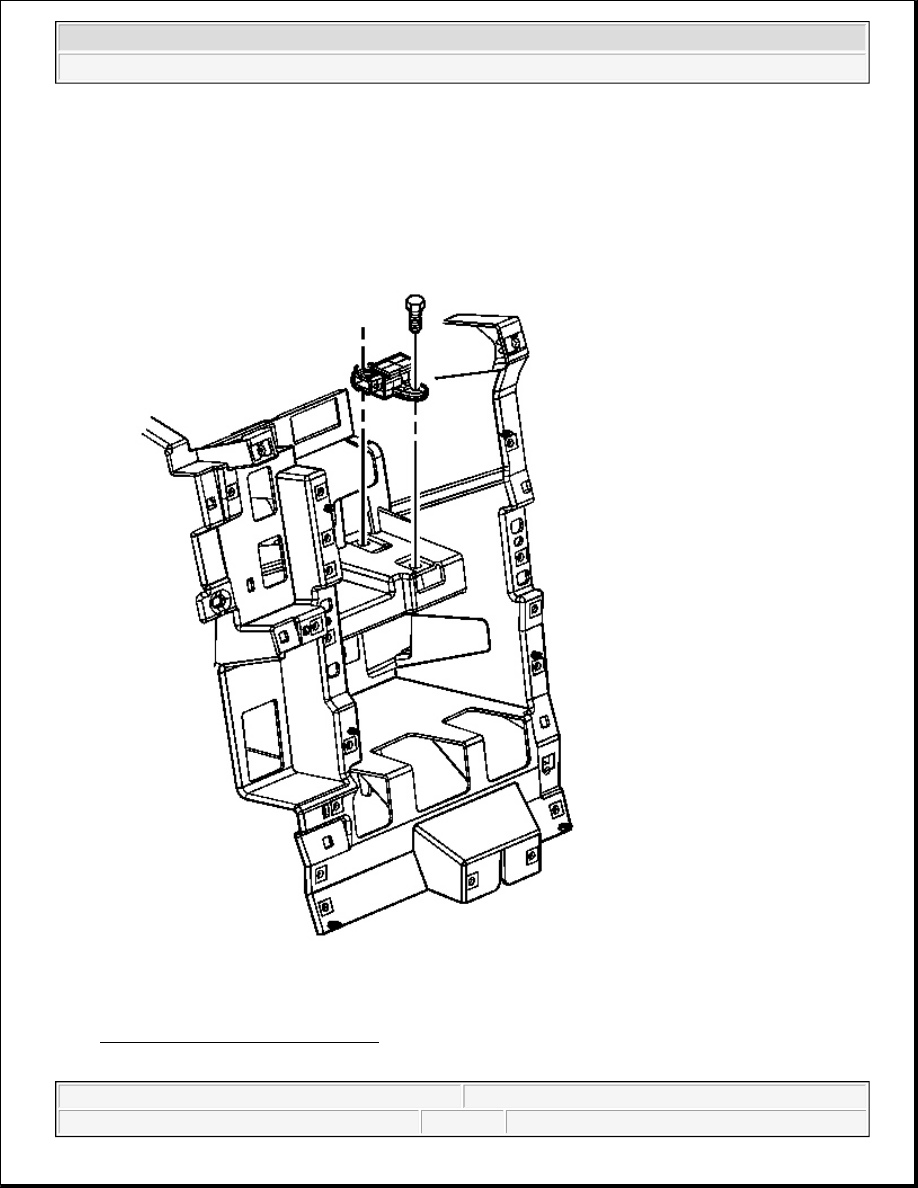

Fig. 22: Longitudinal Accelerometer
Courtesy of GENERAL MOTORS CORP.
