Hummer H2. Manual - part 755

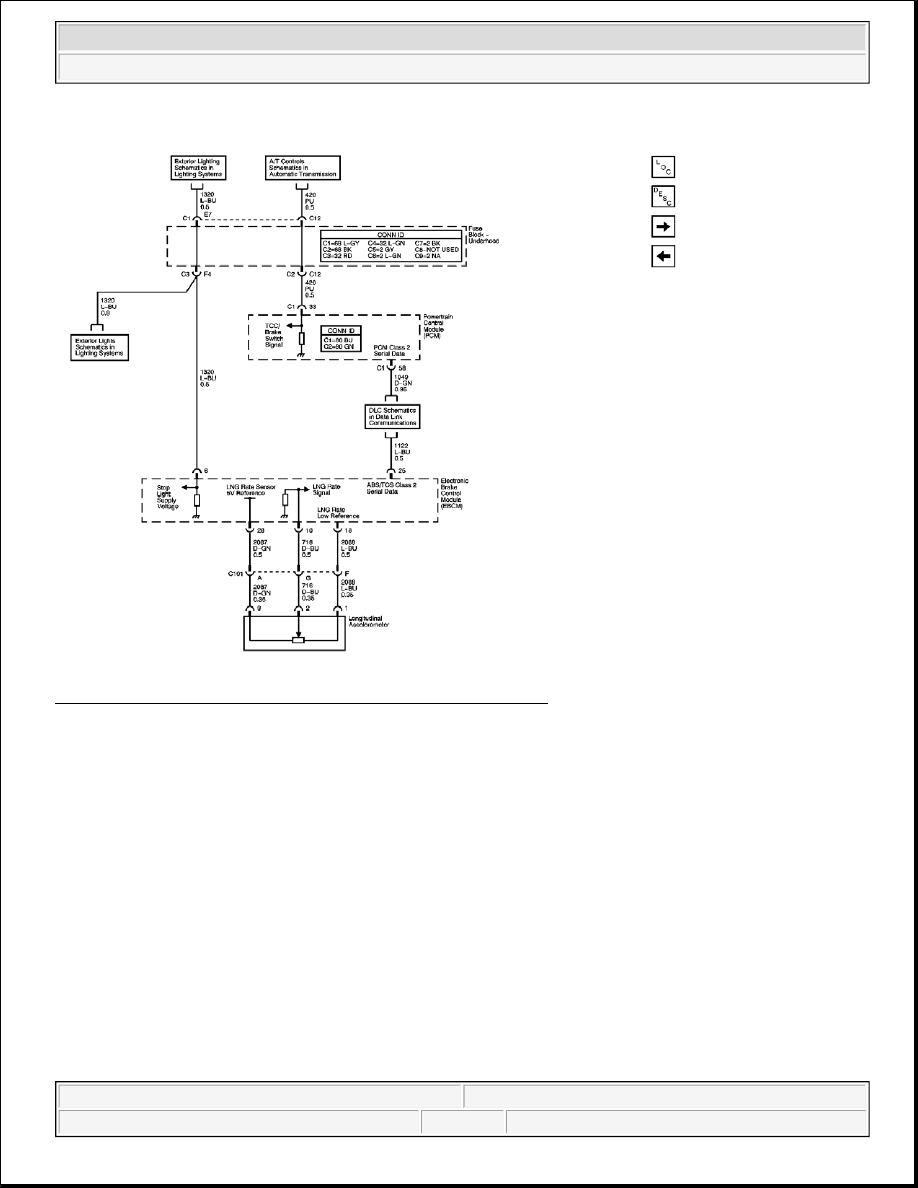

Fig. 2: Stoplamp Switch and Longitudinal Accelerometer Inputs
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2

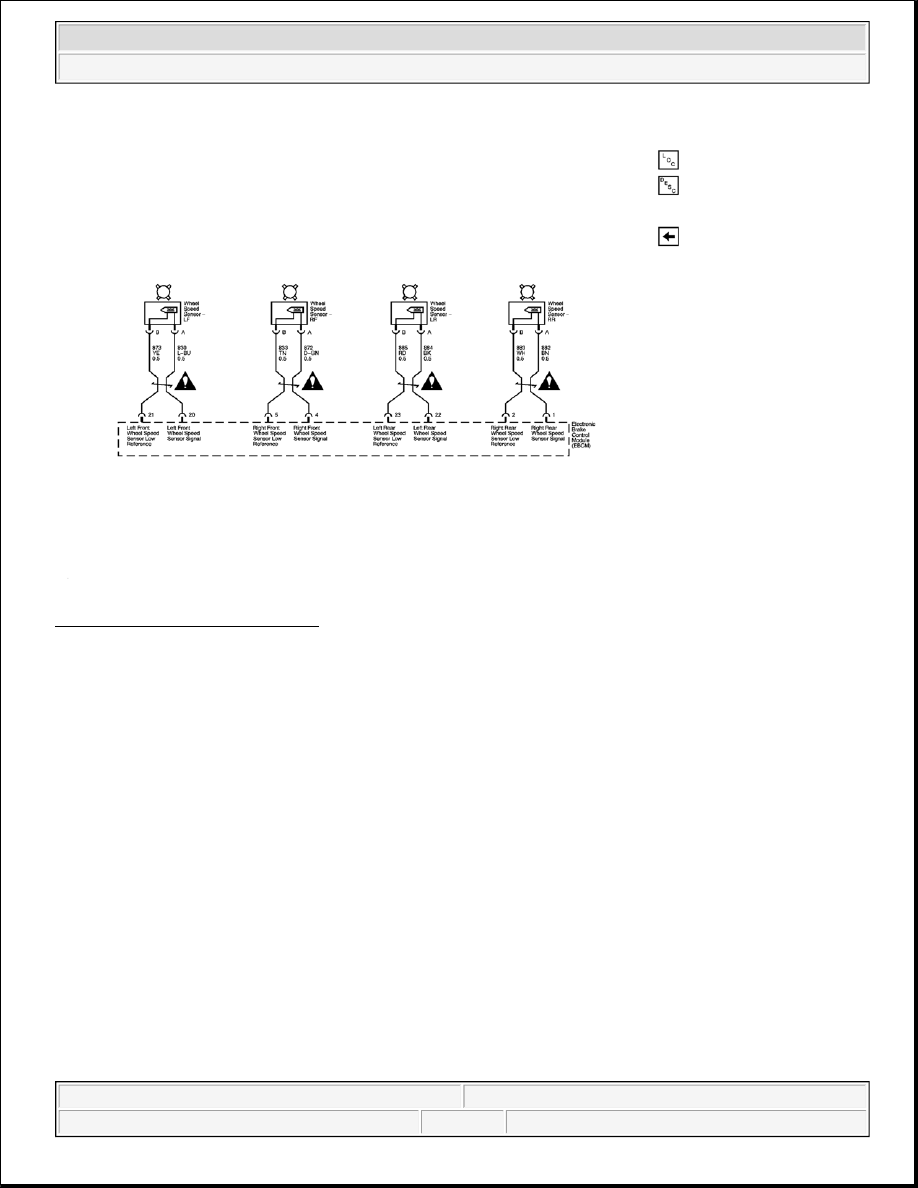

Fig. 3: Wheel Speed Sensor Inputs
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

ABS COMPONENT VIEWS



2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2



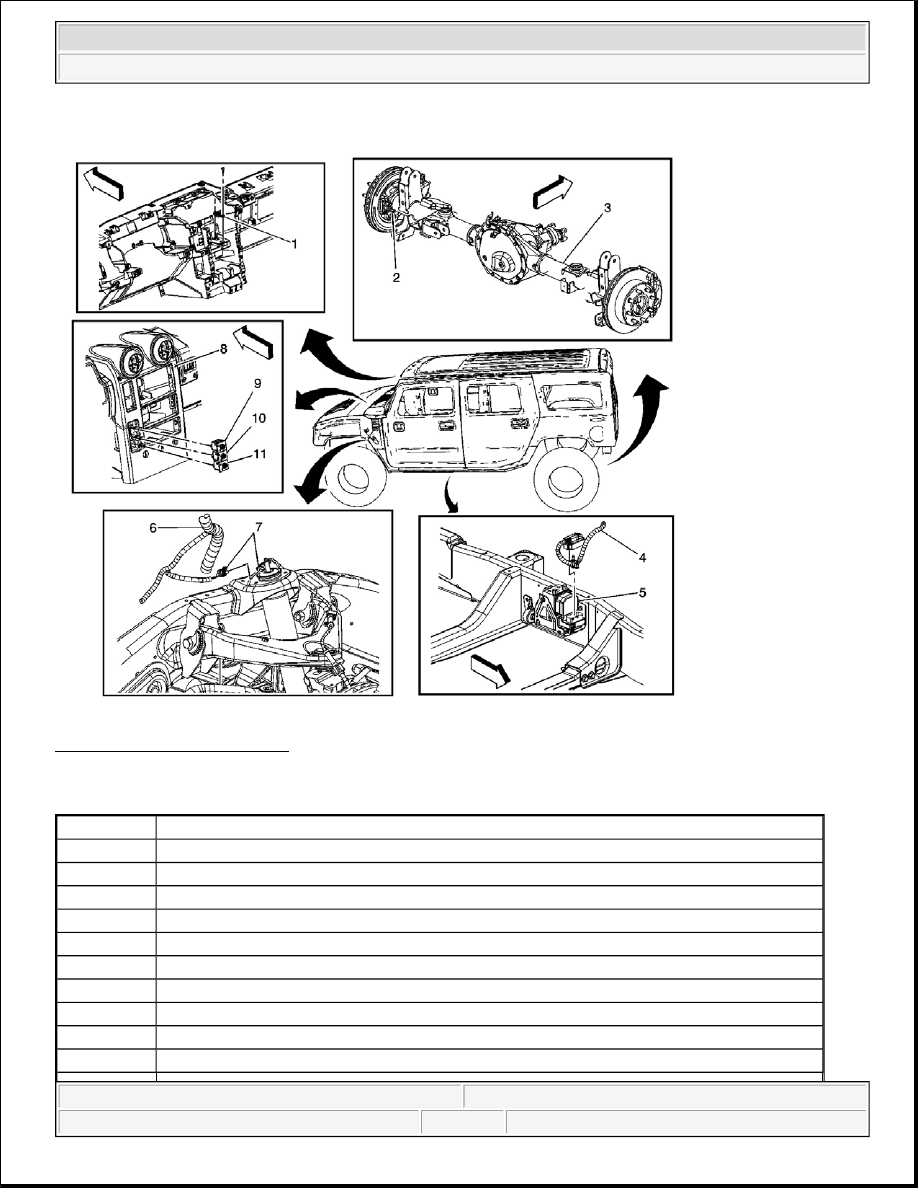

Fig. 4: ABS Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 4

Callout

Component Name

1

Longitudinal Accelerometer

2

Wheel Speed Sensor (WSS) - LR (RR Similar)

3

Rear Axle Assembly

4

Chassis Harness

5

Electronic Brake Control Module (EBCM)

6

Chassis Harness

7

Wheel Speed Sensor (WSS) Connector - LF (RF Similar)

8

Front Console

9

Traction Control Switch

10

Tow/Haul Switch



2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2



ABS CONNECTOR END VIEWS

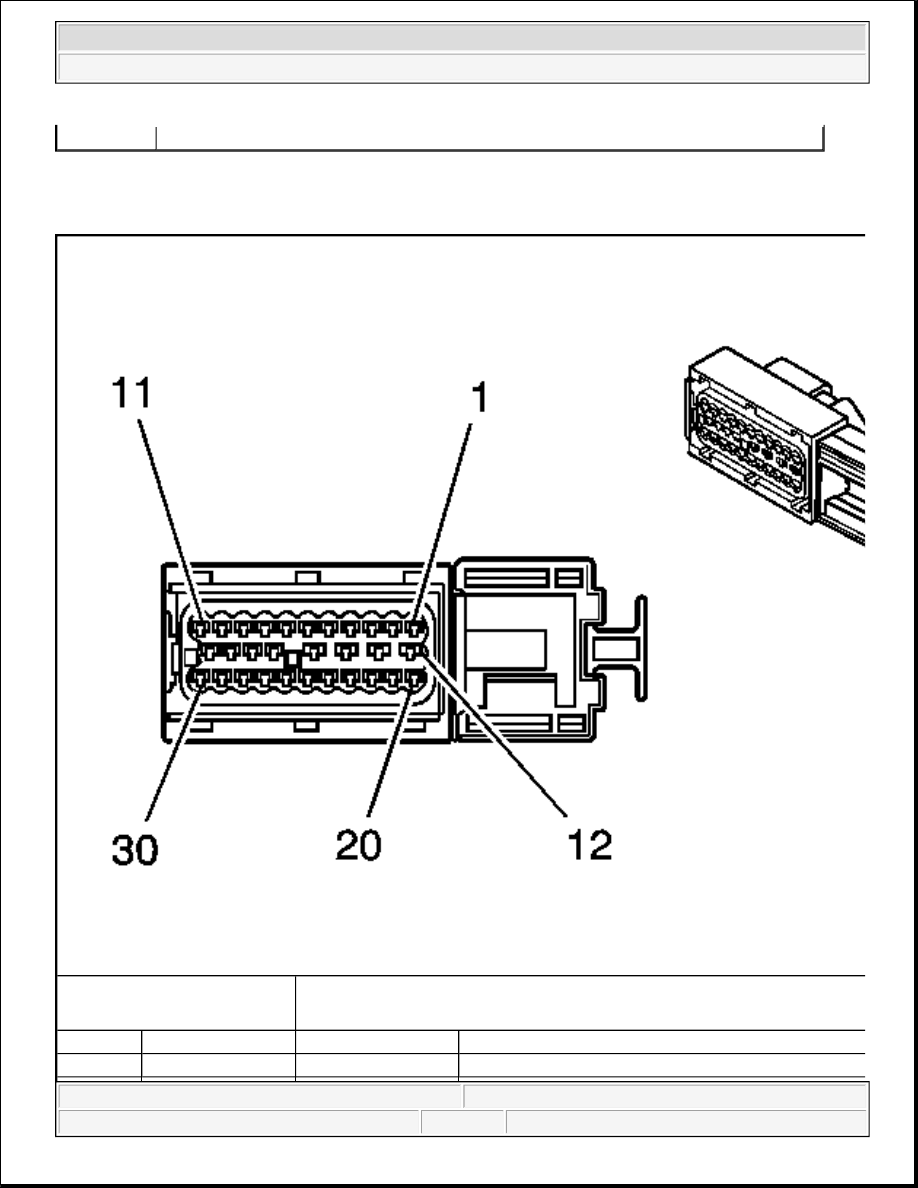

Electronic Brake Control Module Terminal Identification (EBCM)

11

Selectable Ride Switch

or

Connector Part Information

z

12191495

z

30-Way F GT 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

1

BN

882

Right Rear Wheel Speed Sensor Signal



2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2
