SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS

Special Tools

Illustration

Tool Number/Description

J 38778

Door Trim Pad and Garnish Clip Remover



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



2004 BRAKES

Anti-Lock Brake System - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SCHEMATIC AND ROUTING DIAGRAMS

ABS SCHEMATIC ICONS

ABS Schematic Icons

Application

Specification

Metric

English

EBCM to BPMV Torx Bolts

5 N.m

39 lb in

EHCU Bracket to Frame Bolts

25 N.m

18 lb ft

EHCU to Bracket

9 N.m

7 lb ft

Front Brake Lines to BPMV

25 N.m

18 lb ft

Front Wheel Speed Sensor Mounting Bolt

17 N.m

12 lb ft

Longitudinal Accelerometer Screw

10 N.m

89 lb in

Master Cylinder Brake Lines to BPMV

25 N.m

18 lb ft

Rear Brake Line to BPMV

25 N.m

18 lb ft

Rear Wheel Speed Sensor Mounting Bolt

14 N.m

124 lb in

Icon

Icon Definition

IMPORTANT:

Twisted-pair wires provide an
effective shield that helps protect
sensitive electronic components
from electrical interference. If the
wires were covered with shielding,
install new shielding.
In order to prevent electrical
interference from degrading the
performance of the connected
components, you must maintain the
proper specification when making
any repairs to the twisted-pair wires
shown :

z

The wires must be twisted a
minimum of 9 turns per 31 cm
(12 in) as measured anywhere
along the length of the wires.



2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2





2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2



ABS SCHEMATICS

z

The outside diameter of the
twisted wires must not exceed
6.0 mm (0.25 in).



2004 Hummer H2

2004 BRAKES Anti-Lock Brake System - Hummer H2



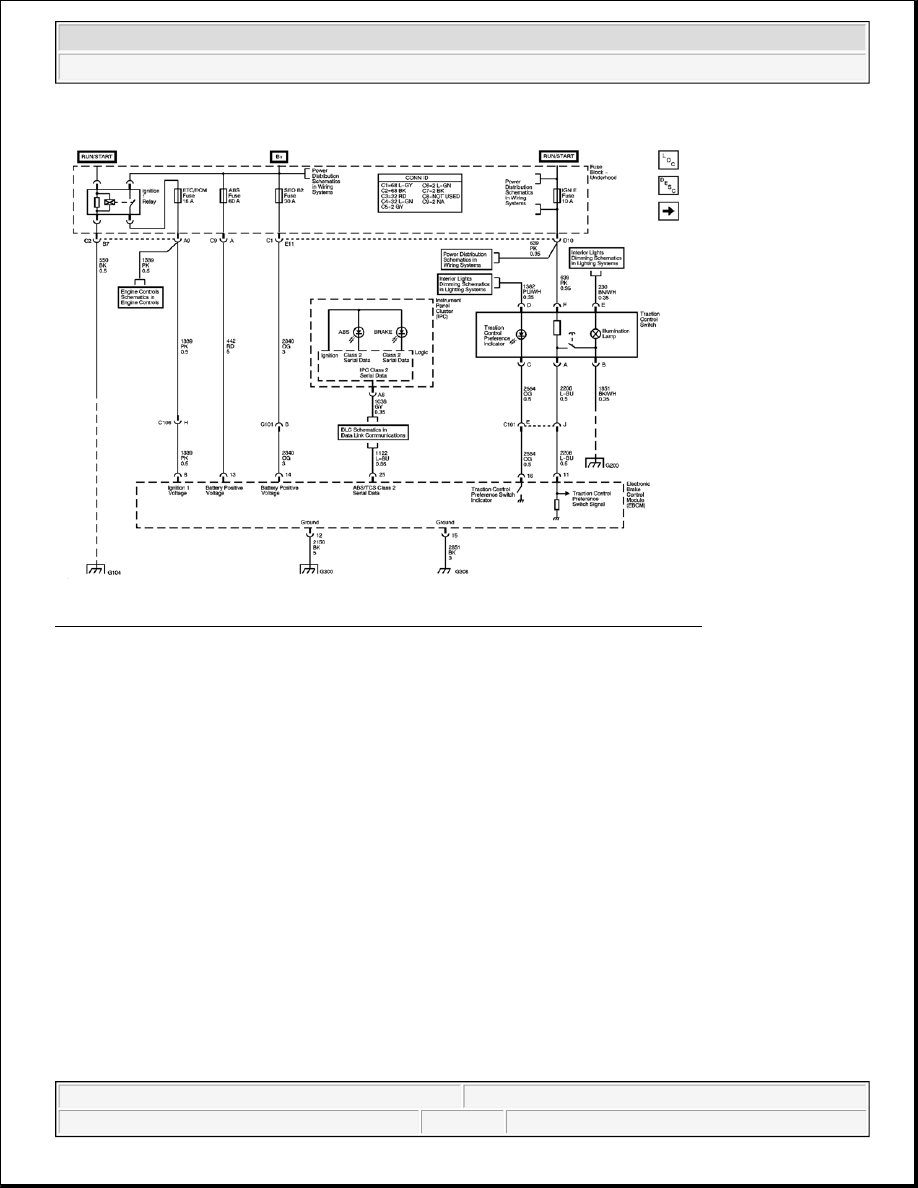

Fig. 1: EBCM Power, Ground, DLC, Indicator Lamps, and Traction Control Switch
Courtesy of GENERAL MOTORS CORP.
