Fig. 41: Rear Wiper Motor
Courtesy of GENERAL MOTORS CORP.

6. Disconnect the rear wiper motor electrical connectors from the liftgate (4).

7. Remove the rear wiper control module.

8. Remove the fasteners (1) retaining the wiper motor to the liftgate (2).

9. Remove the rear wiper motor from the liftgate.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



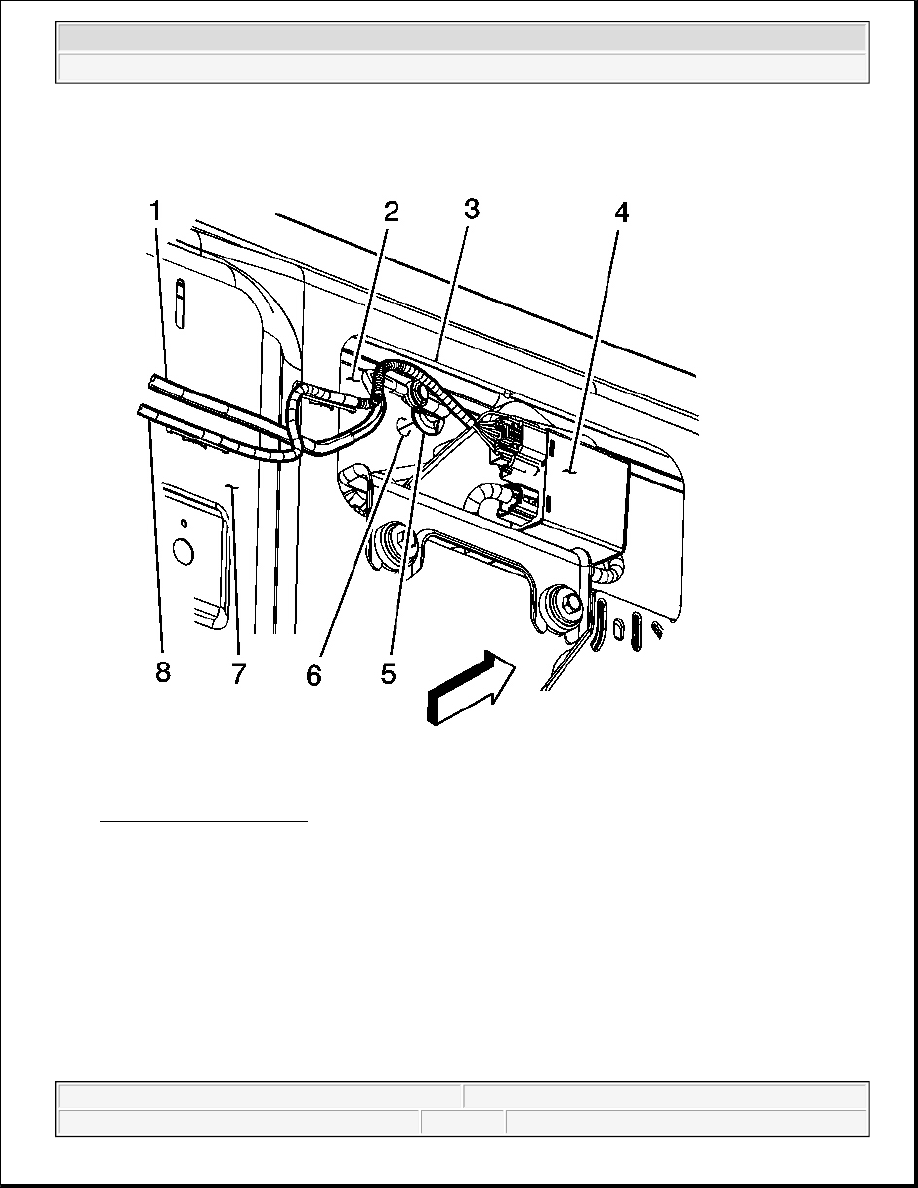

Fig. 42: Rear Wiper Motor
Courtesy of GENERAL MOTORS CORP.

1. Position the rear wiper motor (4) into place in the liftgate (2).

2. Install the fasteners retaining the wiper motor (4), but do not tighten.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



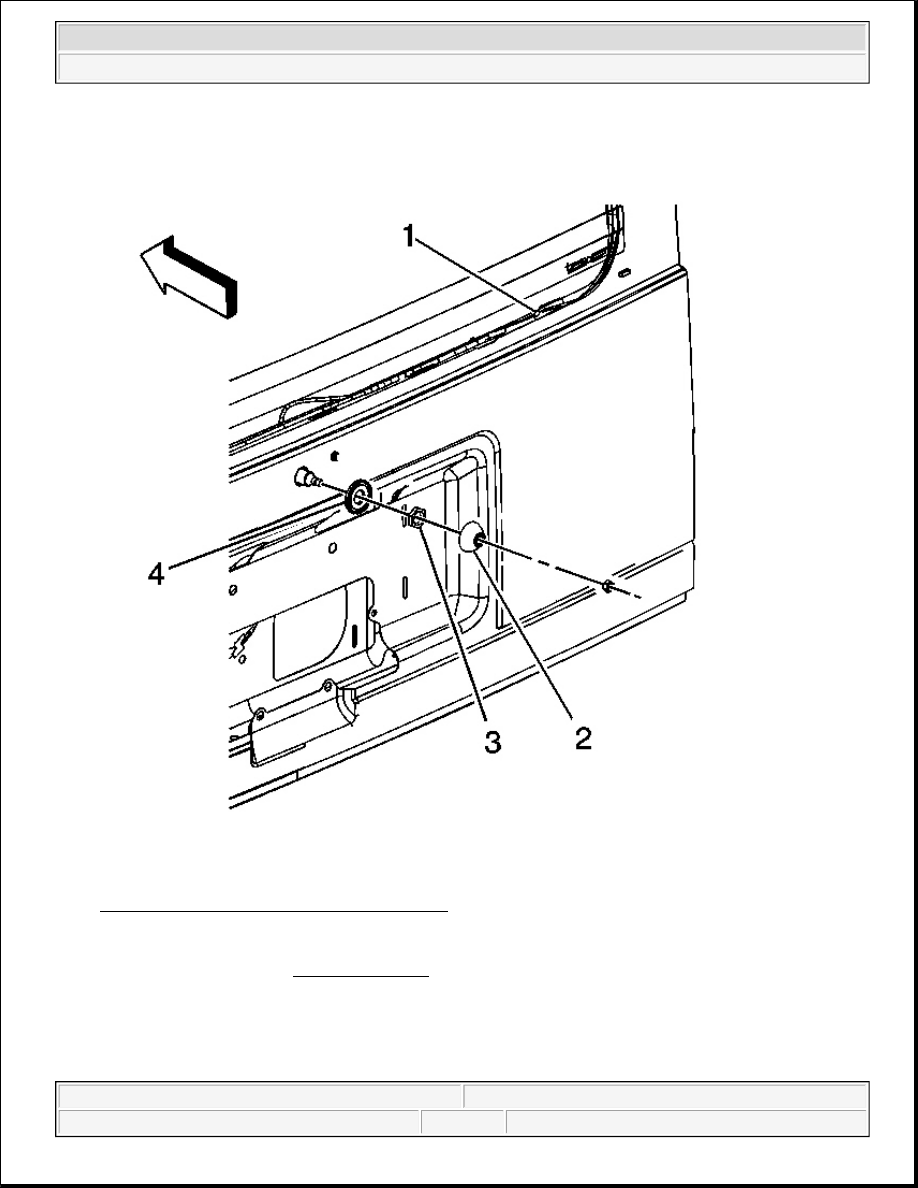

Fig. 43: Rear Wiper Arm Nut & Weatherseal
Courtesy of GENERAL MOTORS CORP.

3. Install the weatherseal (4) and the rear wiper arm nut (3).

Tighten: Tighten the rear wiper arm nut to 6 N.m (4 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



4. Tighten the rear wiper motor fasteners.

Tighten: Tighten the rear wiper motor fasteners to 9 N.m (7 lb ft).

5. Connect rear wiper motor electrical connectors.

6. Install the rear wiper motor control module.

7. Install the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate in Body Rear End.

8. Install the beauty cover (1).

9. Install the rear wiper arm. Refer to Wiper Arm Replacement - Rear .

WIPER/WASHER SWITCH REPLACEMENT - REAR

Removal Procedure

1. Remove the trim bezel. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Left in

Instrument Panel, Gauges and Console.
