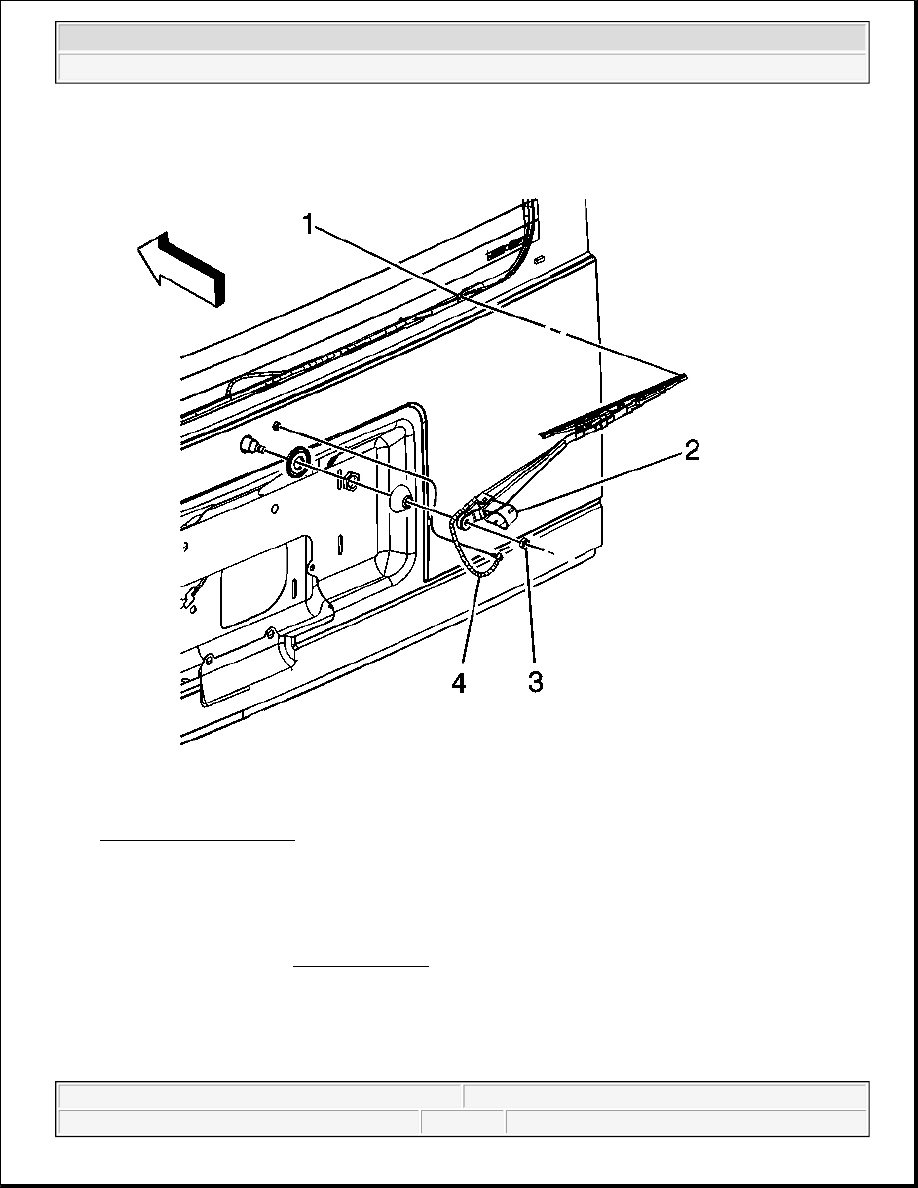

Fig. 33: Rear Wiper Arm
Courtesy of GENERAL MOTORS CORP.

1. Align the wiper arm to the vehicle by aligning the tip of the wiper to the locating mark (1) on the

window.

2. Install the nut retaining the wiper arm to the wiper motor.

Tighten: Tighten the nut to 17 N.m (12.5 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



3. Swivel the wiper arm cover (2) closed.

4. Connect the washer hose (4).

5. Inspect the rear wiper for proper operation.

WIPER ARM BLADE REPLACEMENT - REAR

Removal Procedure

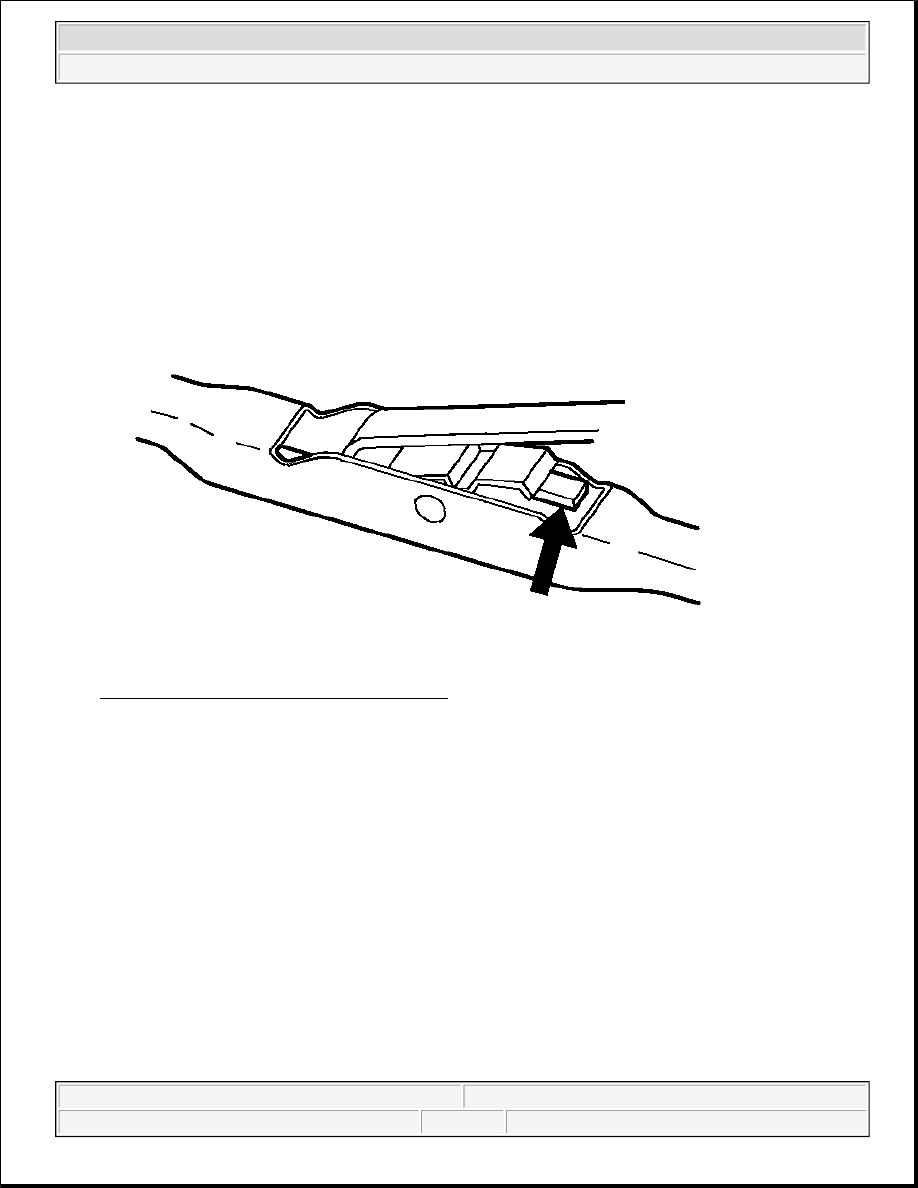

Fig. 34: Identifying Wiper Blade Release Tab
Courtesy of GENERAL MOTORS CORP.

1. Push in the button of the wiper blade clip and remove the wiper blade from the inside radius of the wiper

arm.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2

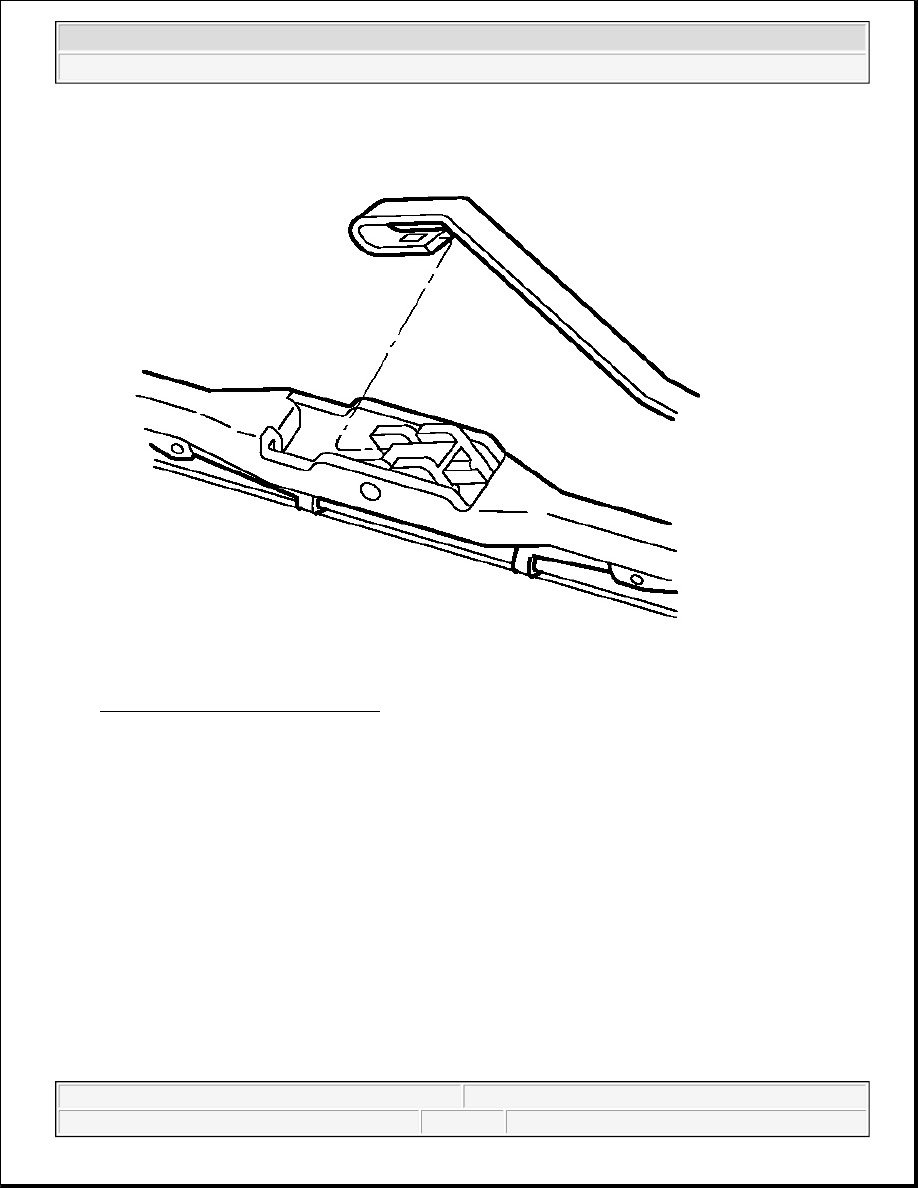

Fig. 35: Wiper Arm To Wiper Blade
Courtesy of GENERAL MOTORS CORP.

2. Bring the wiper arm out through the opening in the wiper blade.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



Fig. 36: Wiper Arm To Wiper Blade
Courtesy of GENERAL MOTORS CORP.

1. Insert the hook of the wiper arm through the opening in the wiper blade.
