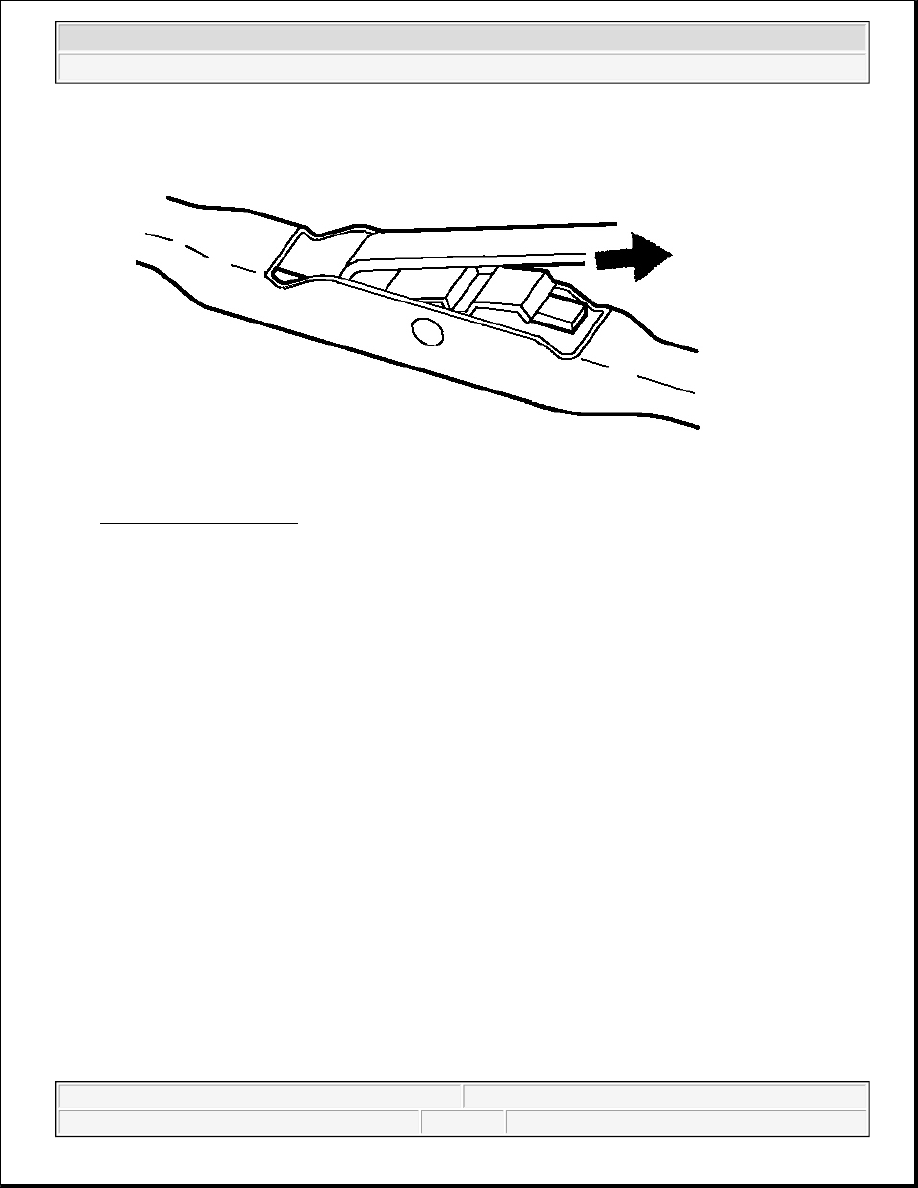

Fig. 37: Wiper Blade Clip
Courtesy of GENERAL MOTORS CORP.

2. Position the wiper blade pivot in the inside radius of the wiper arm hook.

3. Pull the wiper blade pivot into the wiper arm hook until the pivot locks into the hook.

4. Operate the wipers and inspect for proper operation.

BLADE ELEMENT REPLACEMENT - REAR

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



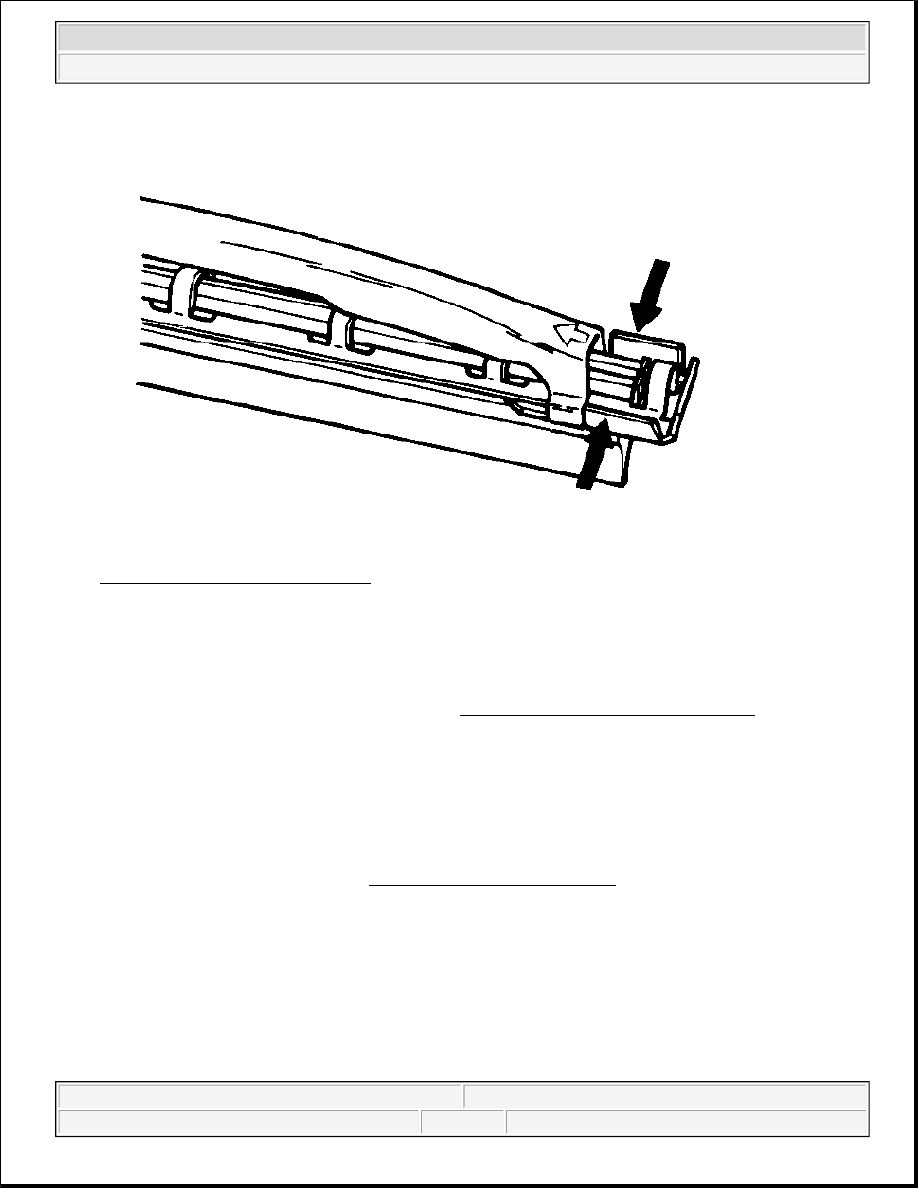

Fig. 38: Rear Wiper Blade Element
Courtesy of GENERAL MOTORS CORP.

1. Remove the wiper blade from the wiper arm. Refer to Wiper Arm Blade Replacement - Rear .

2. Squeeze the wiper blade element tabs together.

3. Pull the wiper blade element out through the wiper blade claws.

Installation Procedure

IMPORTANT: Replace the wiper blade element if it is removed from the wiper blade.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



Fig. 39: Rear Wiper Blade Element
Courtesy of GENERAL MOTORS CORP.

1. Slide the wiper blade element through the bottom claw of the wiper blade.

2. Guide the wiper blade element through the wiper blade claws until both of the locking tabs engage the

bottom claw set.

3. Install the wiper blade on the wiper arm. Refer to Wiper Arm Blade Replacement - Rear .

WIPER MOTOR REPLACEMENT - REAR

Removal Procedures

1. Remove the rear wiper arm. Refer to Wiper Arm Replacement - Rear .

IMPORTANT: Cycle the wiper one time to ensure it is in the parked position.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2



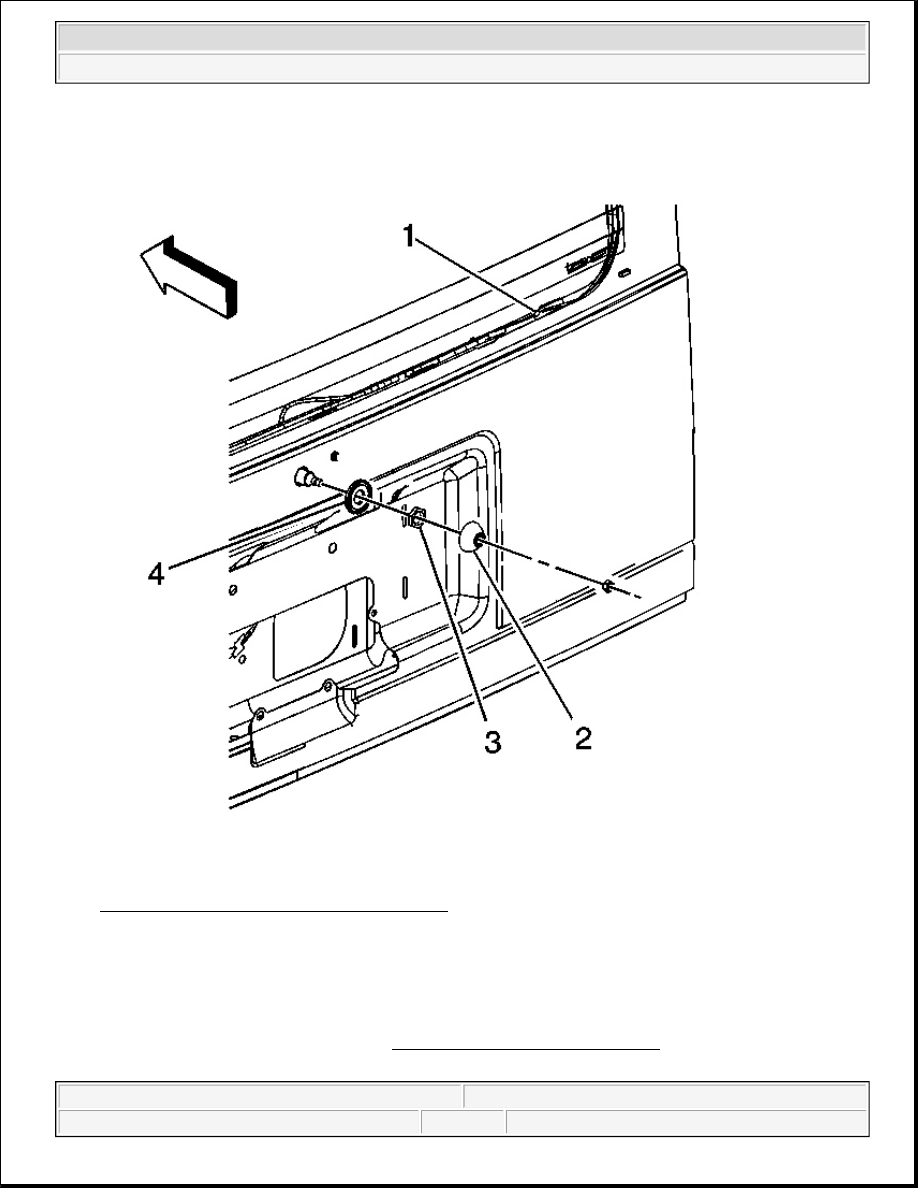

Fig. 40: Rear Wiper Arm Nut & Weatherseal
Courtesy of GENERAL MOTORS CORP.

2. Remove beauty cover (2) by twisting counterclockwise.

3. Remove the rear wiper arm nut (3) and the weatherseal (4).

4. Open the liftgate.

5. Remove the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate in Body Rear End.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wipers/Washer Systems - Hummer H2
