Fig. 42: Identifying Rear Lift Window
Courtesy of GENERAL MOTORS CORP.

4. With the aid of an assistant, remove the window from the opening.

Installation Procedure

1. Install the stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary

Windows .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



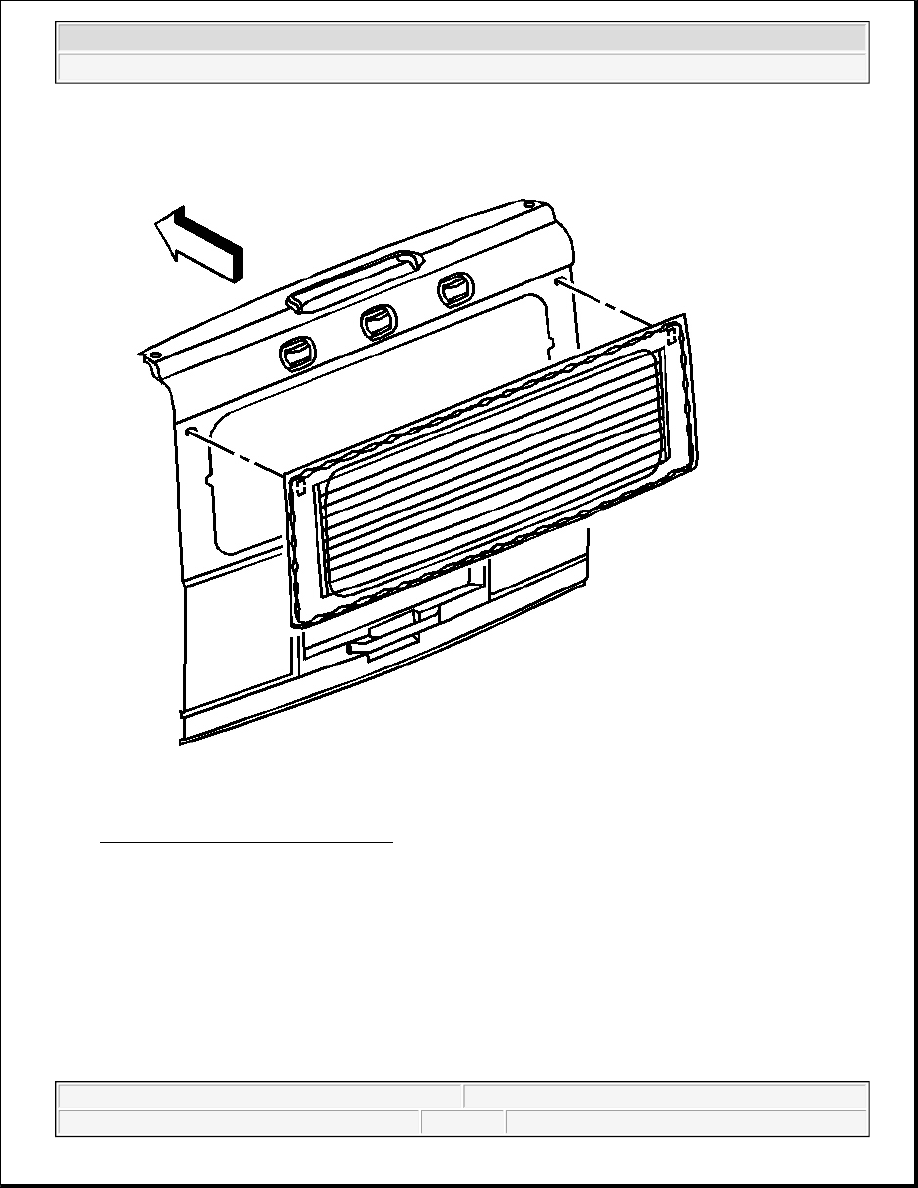

Fig. 43: Identifying Rear Lift Window
Courtesy of GENERAL MOTORS CORP.

2. Connect the electrical connector to the window defogger on the window, if equipped.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



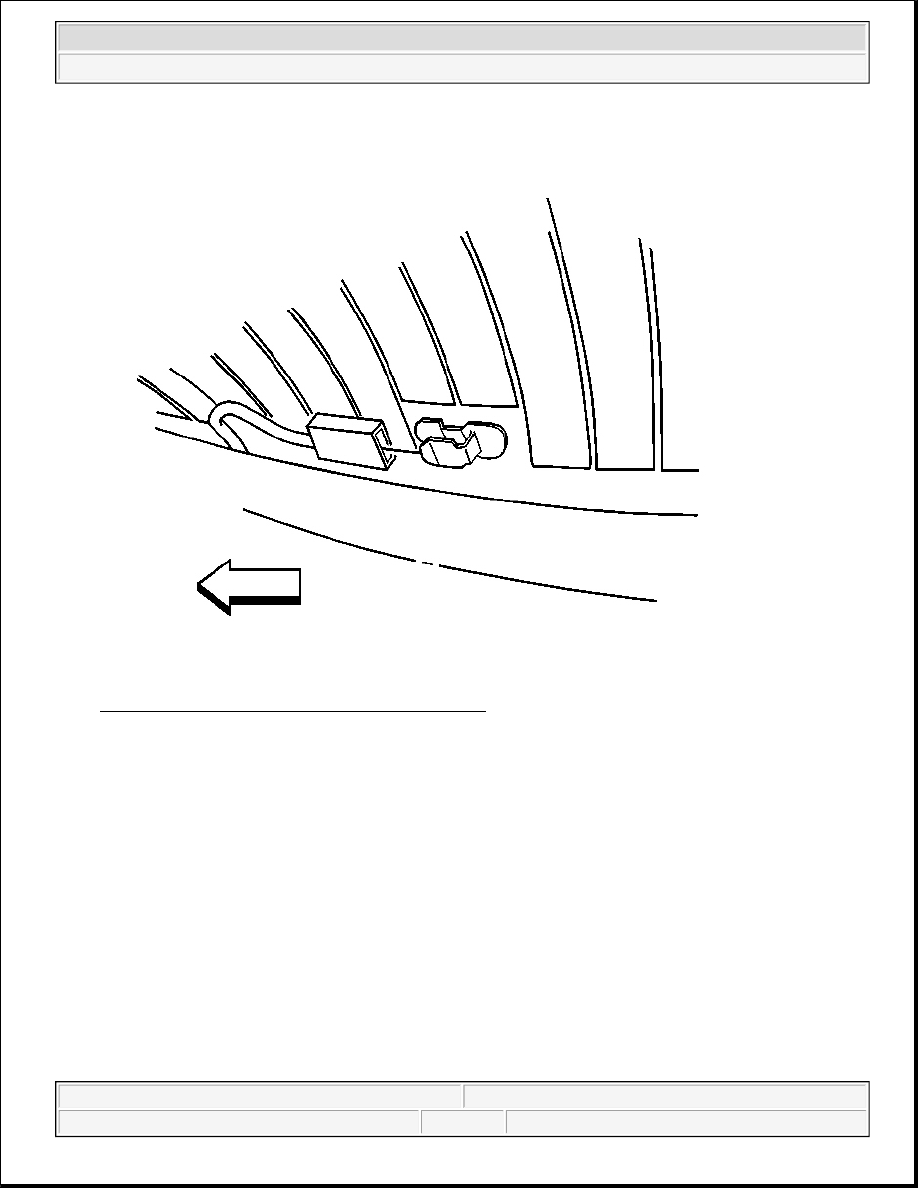

Fig. 44: Electrical Connector & Window Defogger
Courtesy of GENERAL MOTORS CORP.

3. Install the window garnish molding to the door frame.

4. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior

trim.

DESCRIPTION AND OPERATION

ADHESIVE SERVICE KIT DESCRIPTION

The GM Adhesive Caulking Kit P/N 12346392 contains the following items:

z

4 different primers

z

A tube of urethane adhesive with a nozzle

z

4 daubers

z

Instructions with warnings



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



z

Use the urethane adhesive caulking kit for replacement of any urethane adhesive-installed window using
the Full Cut Method.

You may use an equivalent urethane adhesive system if the system meets GM Specification GM 3651M.
Always follow the system manufacturer's instructions for application, handling, and curing.

AUTOMATIC DAY-NIGHT MIRROR DESCRIPTION AND OPERATION

Inside Rearview Mirror with the Automatic Day-Night Feature System Components

The inside rearview mirror with the automatic day-night feature system consists of the following components:

z

Inside rearview mirror

z

Ambient air temperature sensor

Power and Ground of the Inside Rearview Mirror

z

With the ignition ON, ignition voltage is supplied to the mirror from the IGN E fuse in the underhood
fuse block.

z

Ground for the mirror is provided by G302.

Inside Rearview Mirror with the Automatic Day-Night Feature System Operation

The inside rearview mirror uses 2 photocell sensors. One sensor is the headlight sensor, located on the face side
of the mirror. The headlight sensor is used to determine light conditions present at the mirror face. The other
sensor is the ambient light sensor, located on the rear of the mirror or windshield side. The ambient light sensor
is used to determine the exterior light conditions. With a low exterior light condition detected, and a high light
condition from behind of the car, at the headlight sensor, the inside rearview mirror will automatically darken
the face of the mirror.

In the daytime, the mirror is in a normal state because of the high exterior light condition that is indicated by the
ambient light sensor. With the gear selector lever in the REVERSE position, backup lamp supply voltage is
supplied as an input to the inside rearview mirror. The mirror monitors this input to disable the automatic day-
night feature. This allows the driver to see objects in the mirror clearly when backing up, even during the night.

Compass

The mirror uses 2 magnetic field sensors for compass direction. One sensor is for north and south, the other is
for east and west. The mirror supplies a signal and low reference to each sensor. As the vehicle travels with or
against the earths magnetic pull, there will be a change in voltage on one or both sensors. As a result of the
change in voltage, the mirror changes the heading on the compass display.

Temperature Display

The inside rearview mirror monitors the ambient air temperature sensor. As the outside air temperature gets
warmer, the ambient air temperature sensor will lower resistance. The inside rearview mirror monitors this
