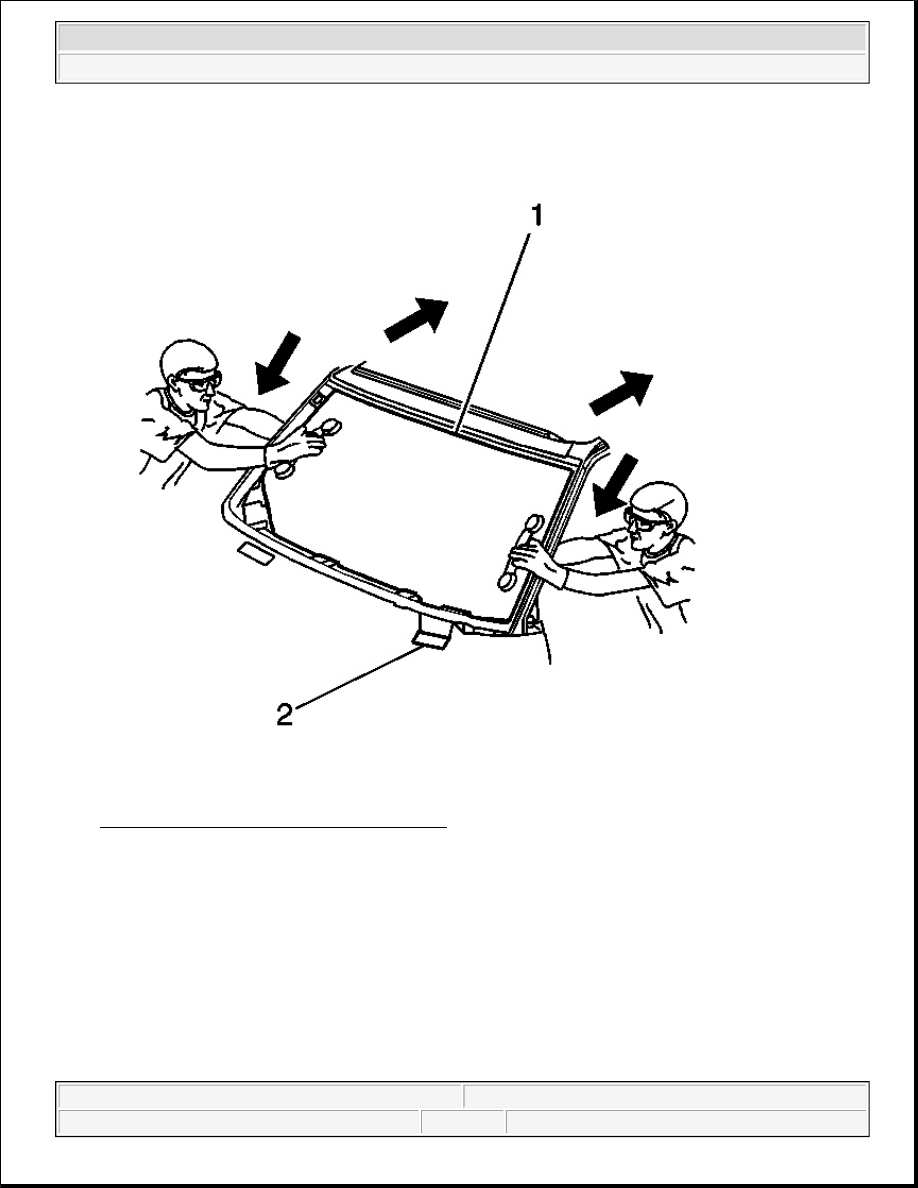

Fig. 35: Placing Window On Lower Supports
Courtesy of GENERAL MOTORS CORP.

21. With the aid of an assistant, place the window in the opening.

If installing a windshield place the windshield on the lower supports (2), if equipped.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

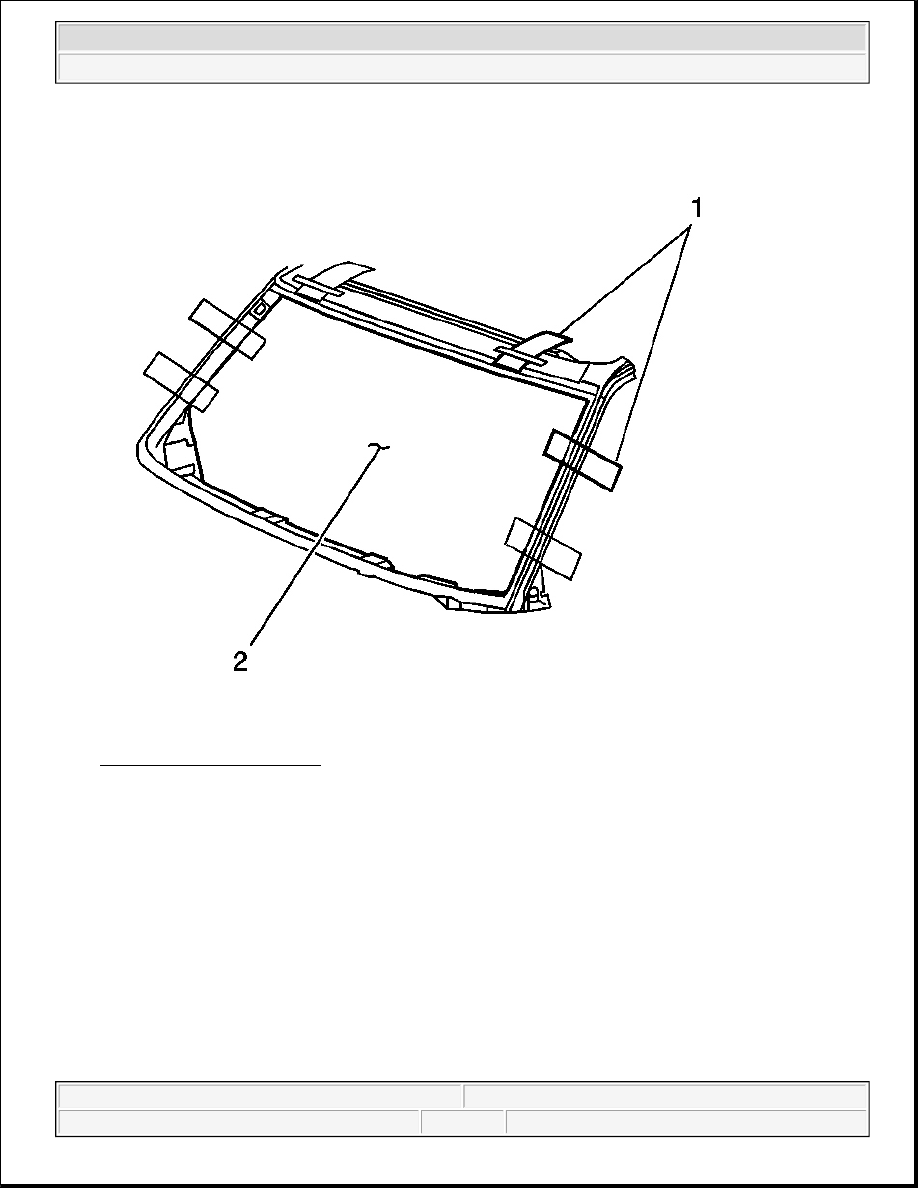

Fig. 36: Aligning Windshield
Courtesy of GENERAL MOTORS CORP.

22. Align the masking tape (1) lines on the window (2) and the body.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

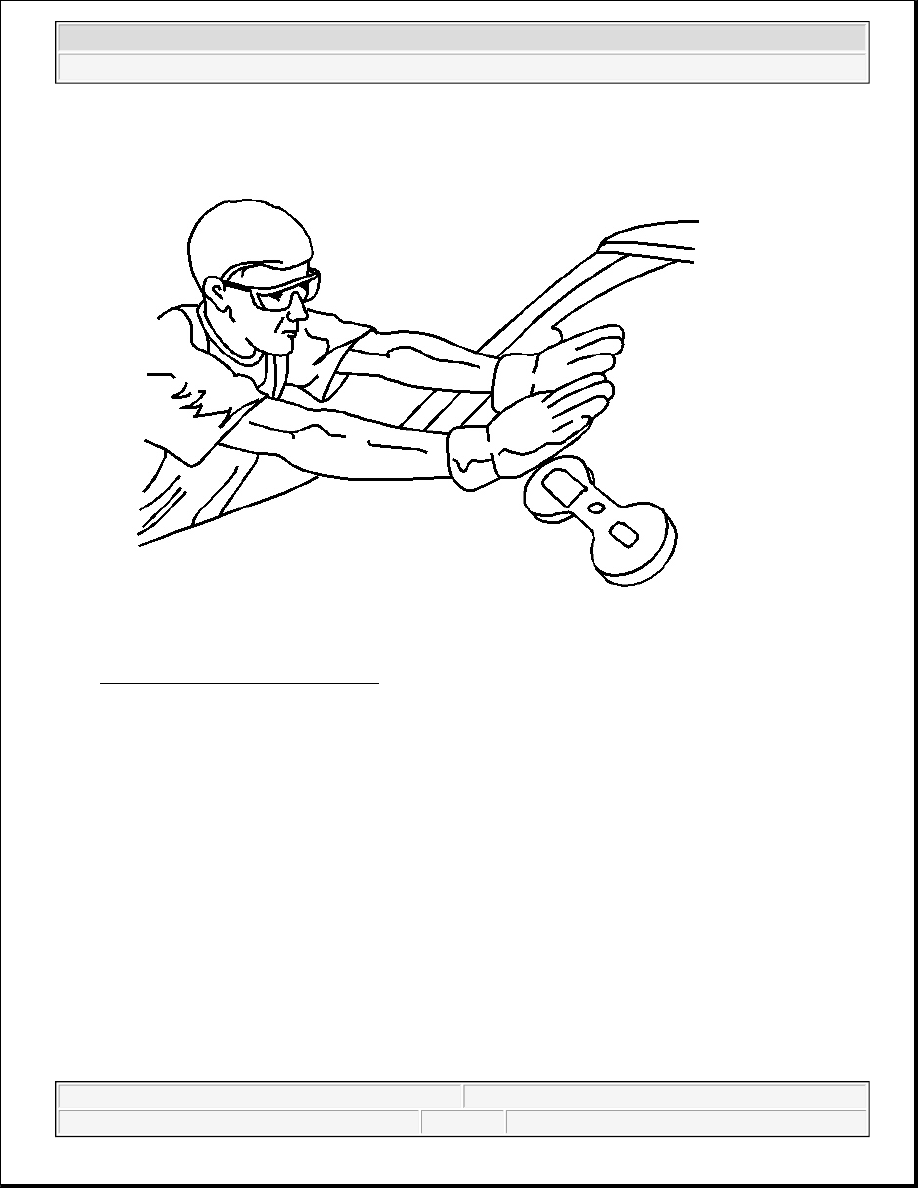

Fig. 37: Pressing Window Into Place
Courtesy of GENERAL MOTORS CORP.

23. Press the window firmly into place.

24. Tape the window to the body in order to minimize movement until the urethane adhesive cures.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

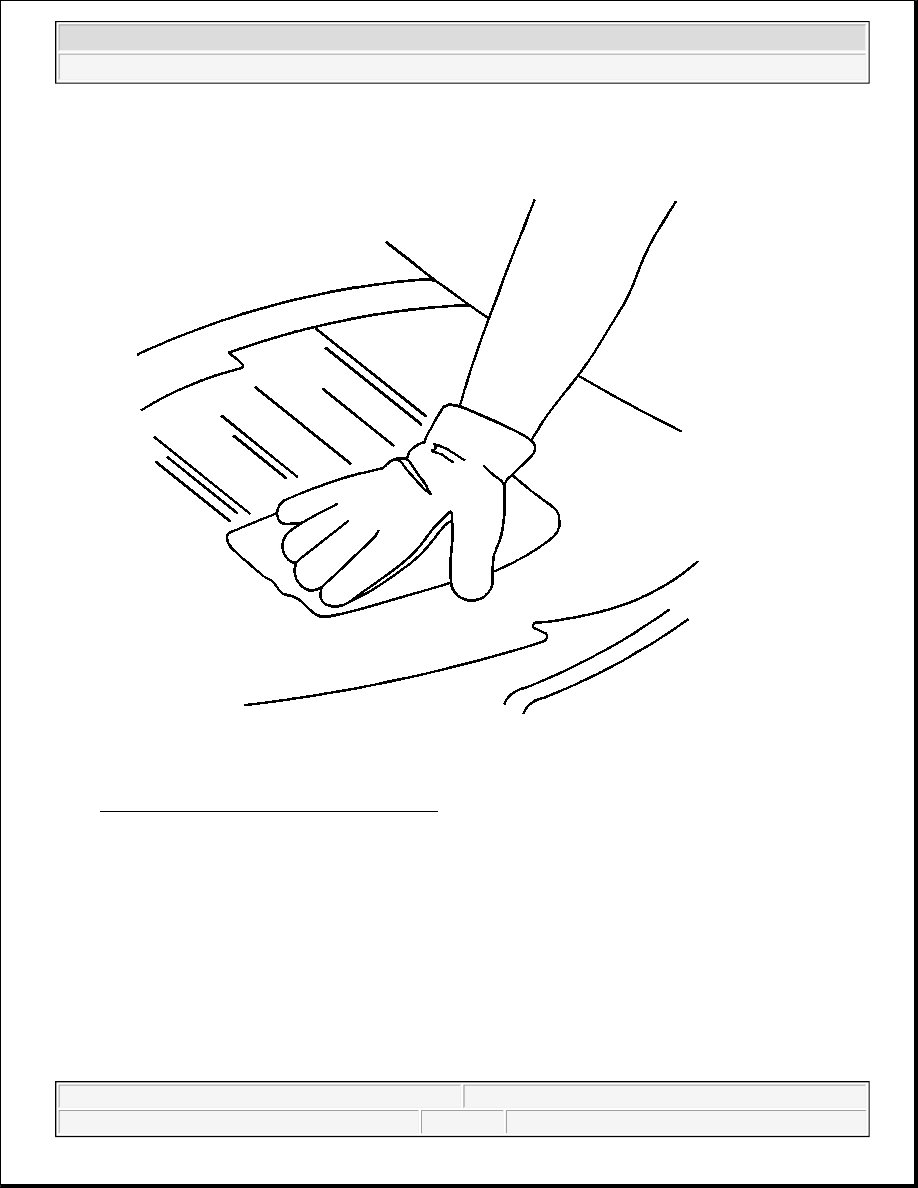

Fig. 38: Cleaning Excess Urethane Adhesive
Courtesy of GENERAL MOTORS CORP.

25. Clean any excess urethane adhesive from the body.
