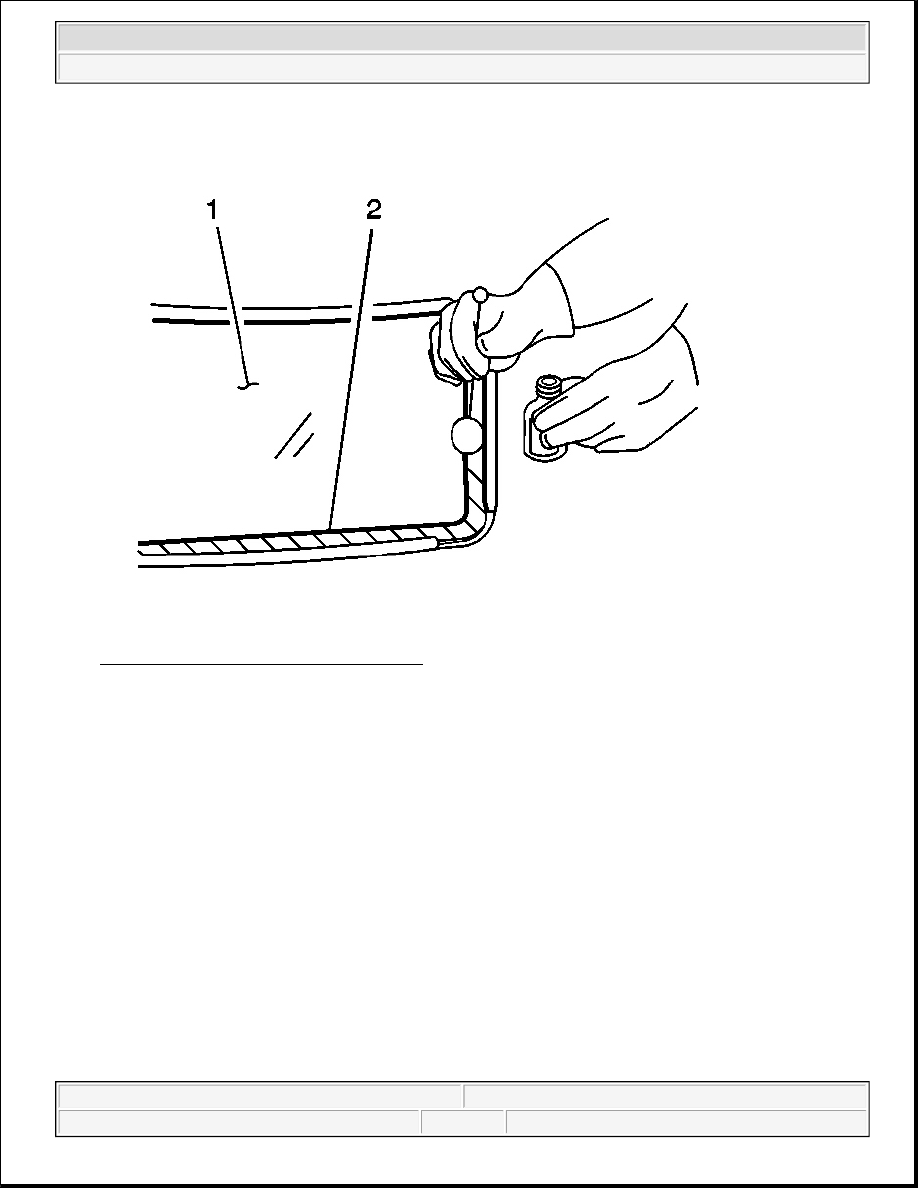

Fig. 31: Applying Glass Primer (Black #2)
Courtesy of GENERAL MOTORS CORP.

15. Shake the glass primer black #2 for at least 1 minute.

16. Use a new dauber in order to apply the glass primer black #2 to the same areas (2) that glass prep clear #1

was applied.

17. Allow the glass primer to dry for approximately 10 minutes.

IMPORTANT: The glass primer black #2 is effective up to 8 hours after applying it to the

glass. The primed surface of the glass must be kept clean.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

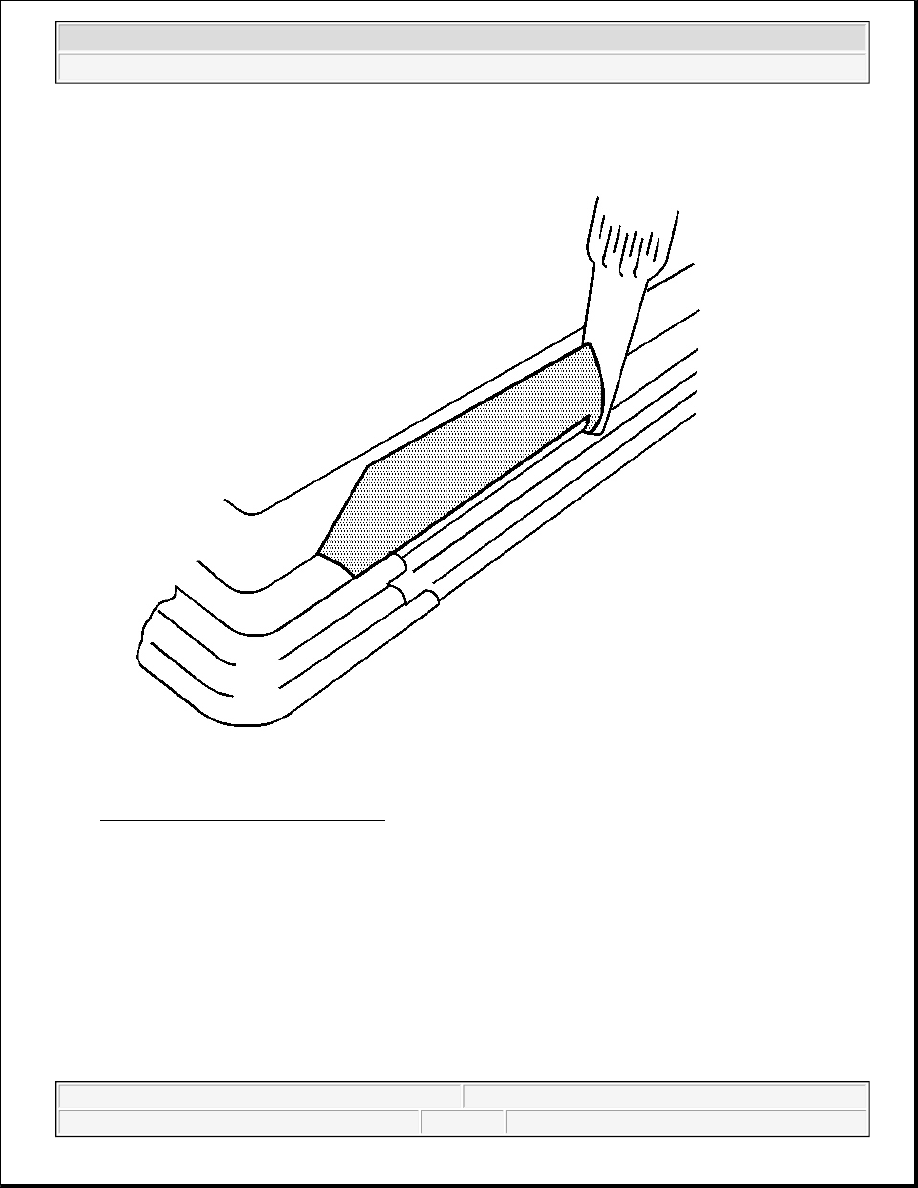

Fig. 32: Modified Applicator Nozzle
Courtesy of GENERAL MOTORS CORP.

18. Cut the applicator nozzle in order to provide a bead of 12.7 mm (1/2 in) wide and 12.7 mm (1/2 in) high.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

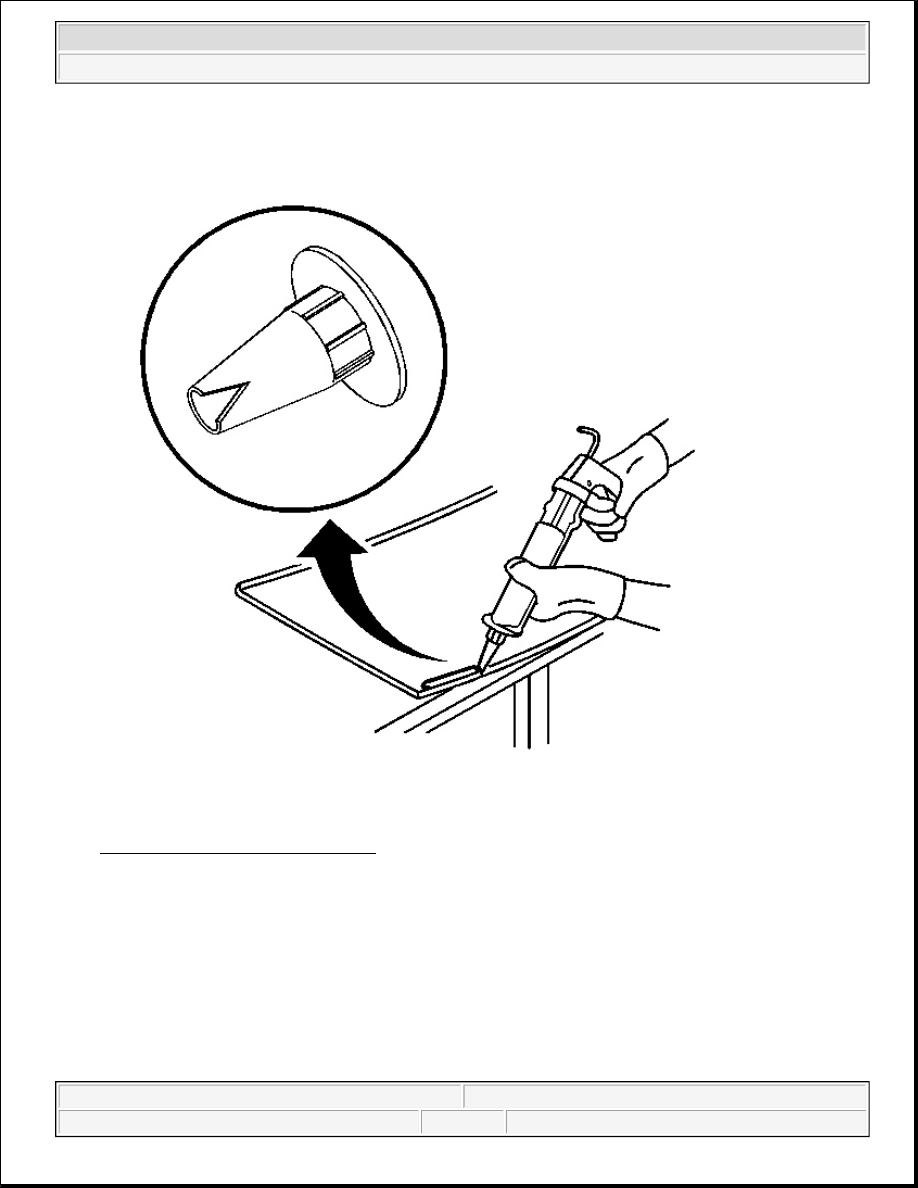

Fig. 33: Applying Urethane Adhesive
Courtesy of GENERAL MOTORS CORP.

19. Use a cartridge-type caulking gun in order to apply a smooth, continuous bead of urethane adhesive.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

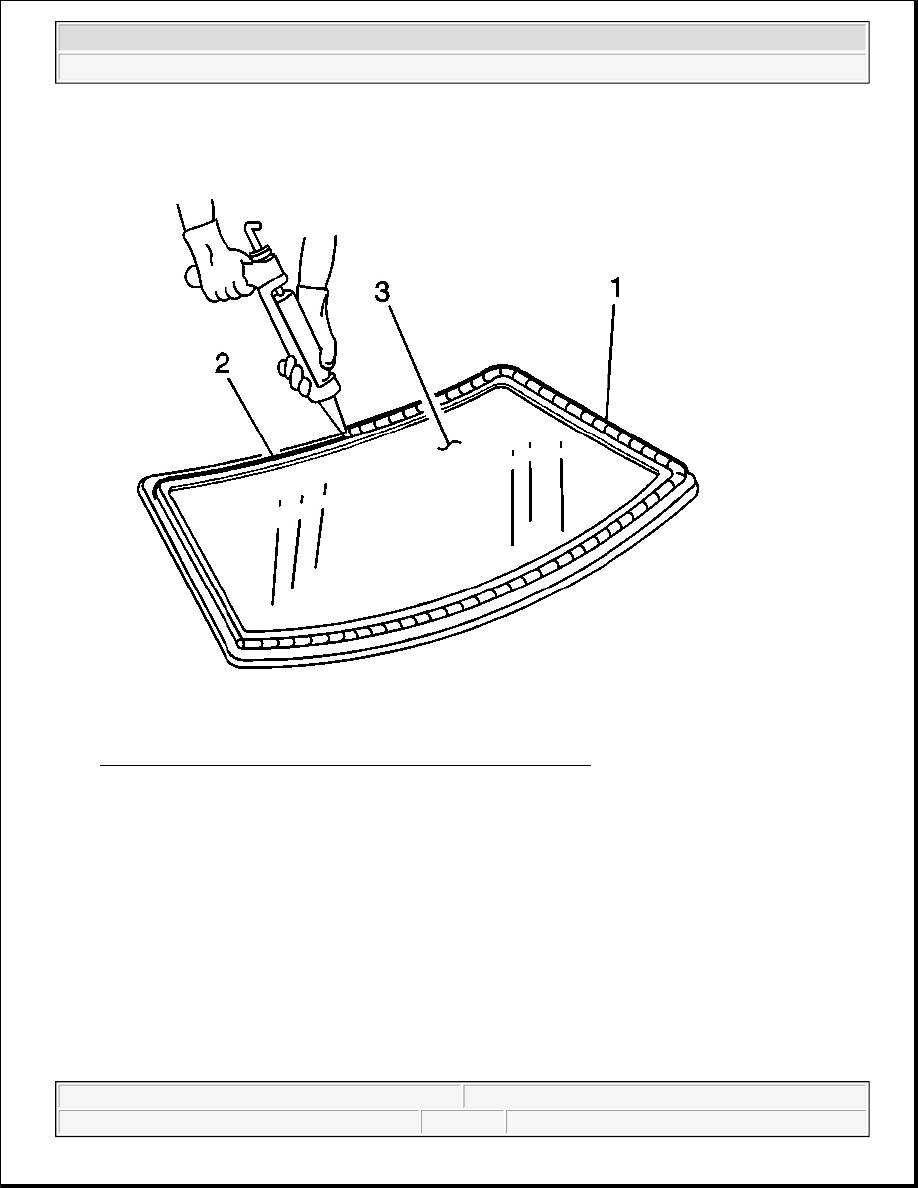

Fig. 34: Applying Urethane Adhesive To Window Inner Surface
Courtesy of GENERAL MOTORS CORP.

20. Use the edge of the window or the inside edge of the reveal molding as a guide for the nozzle in order to

apply the urethane adhesive (1) to the inner surface of the window (3).
