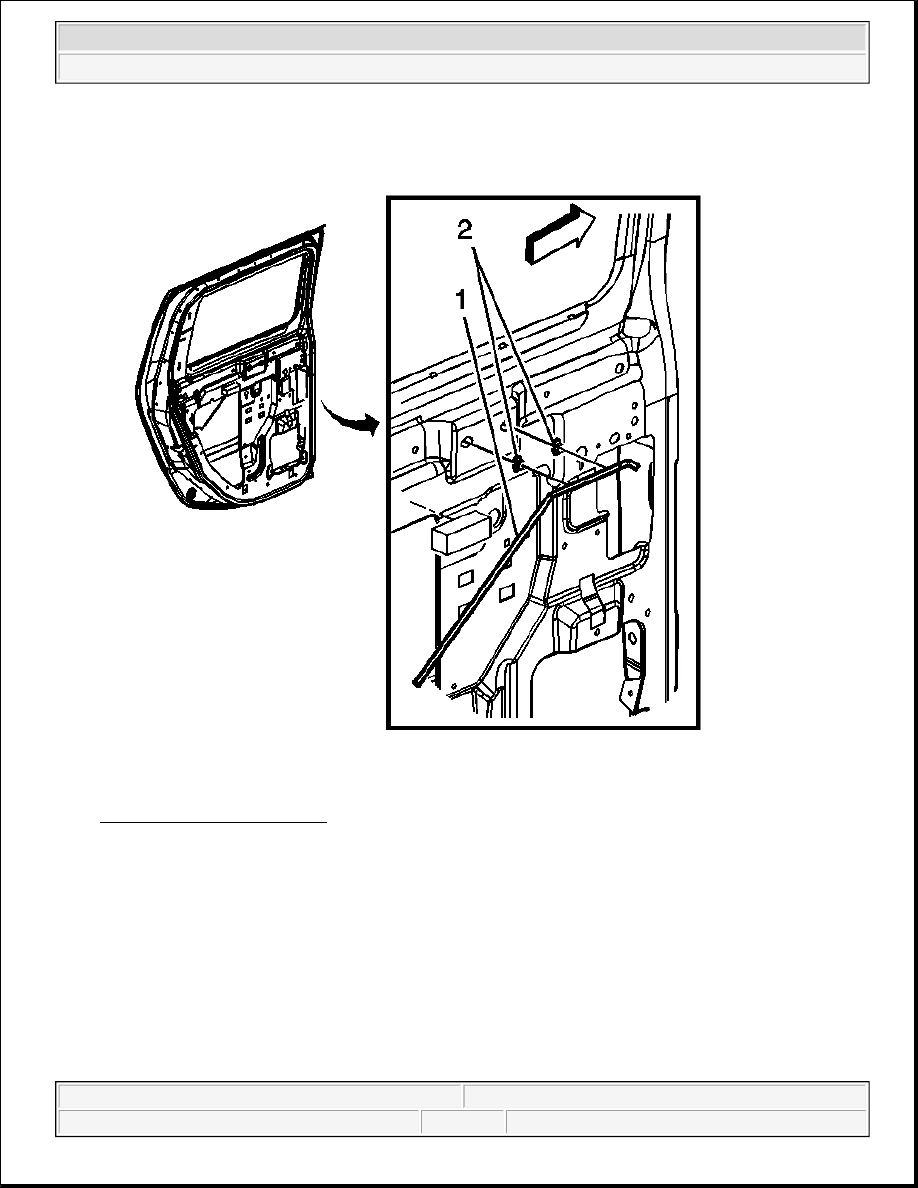

Fig. 86: Manual Locking Rod
Courtesy of GENERAL MOTORS CORP.

2. Install the manual locking rod (1) to the door by securing the rod in the retainers (2).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 87: Rear Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

3. Connect the outside door handle rod (1) by securing the rod in the retaining clip on the door latch.

4. Connect the lock actuator electrical connector.

5. Operate the door handle functions to ensure proper operation.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



6. Install the window run channel. Refer to Window Run Channel Replacement - Rear Door .

7. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .

8. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

STRIKER REPLACEMENT - DOOR

Removal Procedure

1. Mark the striker position with a grease pencil prior to removal, to retain proper alignment.

2. Open the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



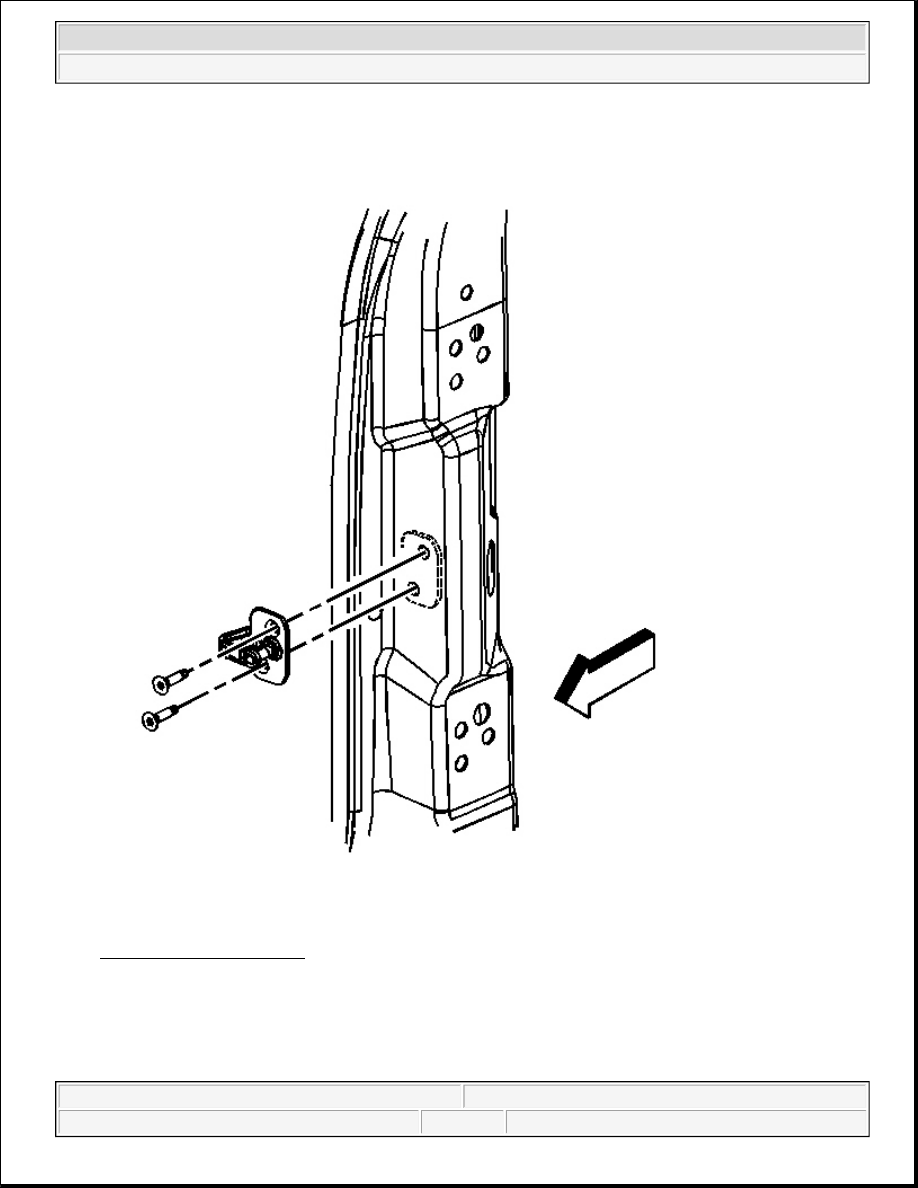

Fig. 88: Door Lock Striker
Courtesy of GENERAL MOTORS CORP.

3. Remove the fasteners retaining the striker to the door frame.

4. Remove the striker.
