Installation Procedure

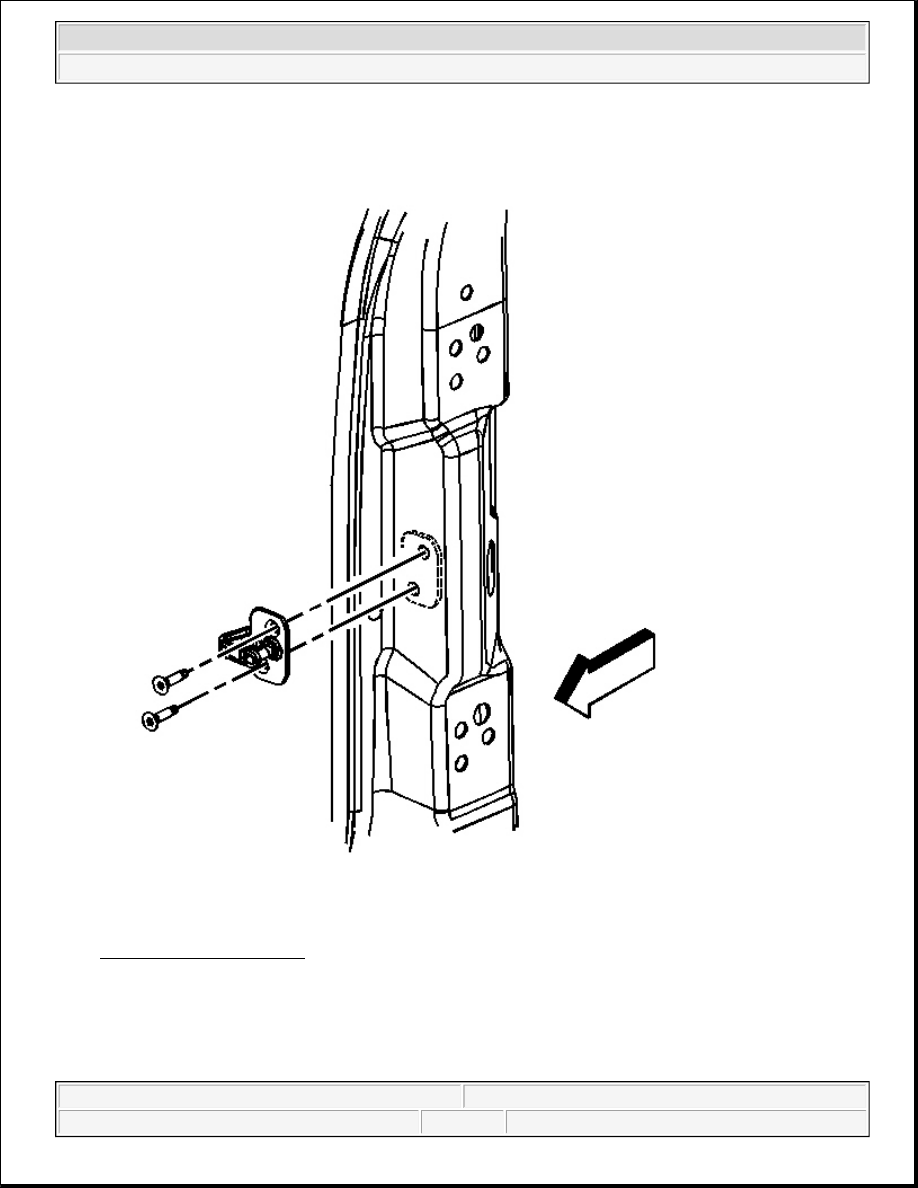

Fig. 89: Door Lock Striker
Courtesy of GENERAL MOTORS CORP.

1. Align the striker with the alignment marks made with the grease pencil.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Install the fasteners retaining the striker to the door frame.

Tighten: Tighten the fasteners to 27 N.m (20 lb ft).

3. Operate the door to check for proper operation and alignment.

LOCK STRIKER ADJUSTMENT - DOOR

To determine if striker adjustment is required, proceed as follows:

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



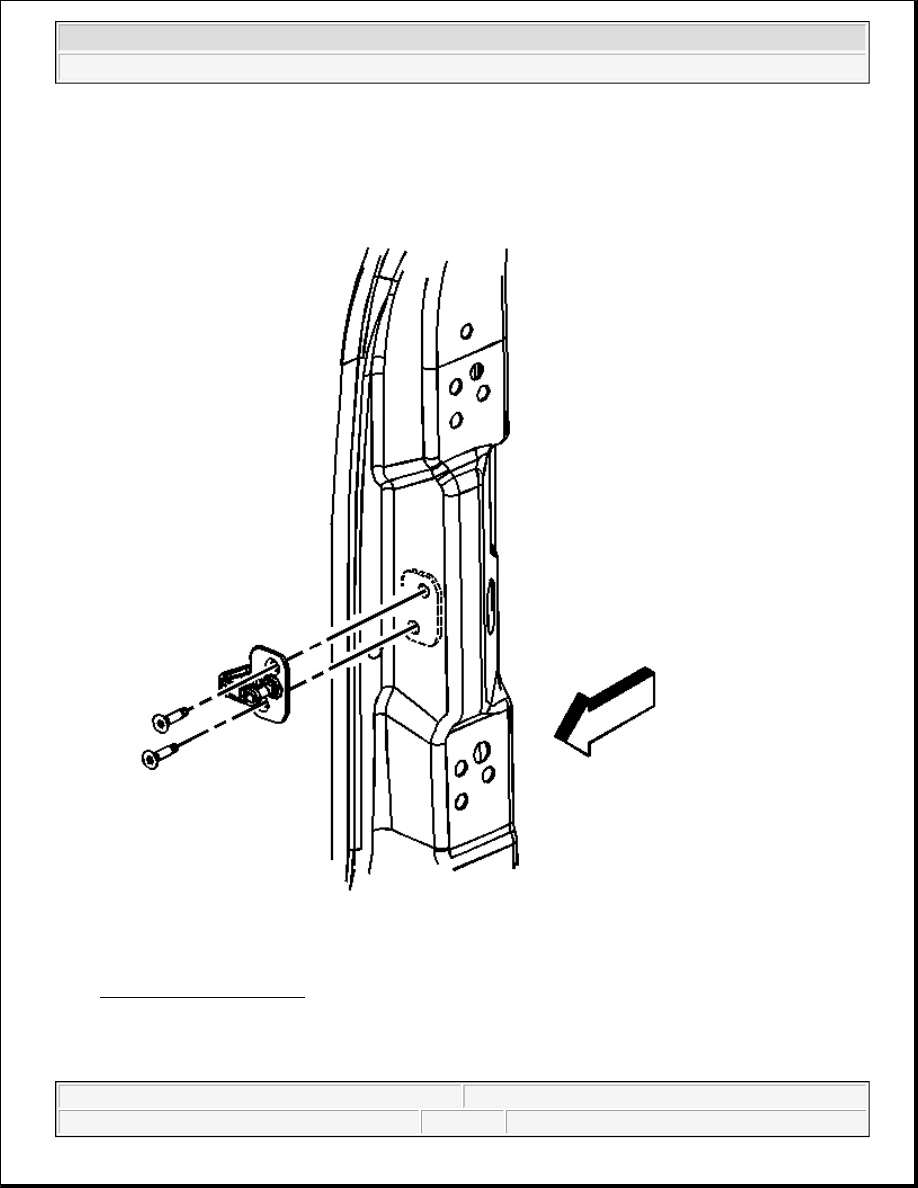

Fig. 90: Door Lock Striker
Courtesy of GENERAL MOTORS CORP.

1. Make certain the door is properly aligned within the door opening before proceeding with the striker

adjustment.

2. Close the door onto the striker and note if the door drags on the striker causing the door to move upward



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



or downward upon contact with the striker. Also note the closing effort to fully engage the latch.

3. Using a soft marker, mark around the striker for reference of the original position. Loosen the striker.

4. Move the striker to eliminate drag on the striker and door latch and to achieve the proper door position

within the door opening. Start with the up/down position, then position the striker to achieve proper
alignment to the door opening. Set the in/out adjustment for the proper door seal engagement making sure
the door closing efforts are correct.

5. Tighten the striker-to-body bolts.

Tighten: Tighten the door striker-to-body bolts to 27 N.m (20 lb ft).

DOOR HARDWARE LUBRICATION

The mechanical components of the door assembly receive lubrication during the assembly. If any door hardware
mechanism needs additional lubrication, use multi-purpose lubricant GM P/N 12346241 or Canadian P/N
10953474 or equivalent.

WIRING HARNESS REPLACEMENT - FRONT DOOR

Removal Procedure

1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

2. Remove water deflector. Refer to Water Deflector Replacement - Front Door .

3. Disconnect the speaker electrical connector.

4. Disconnect the door lock actuator electrical connector.

5. Disconnect the power mirror electrical connector.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
