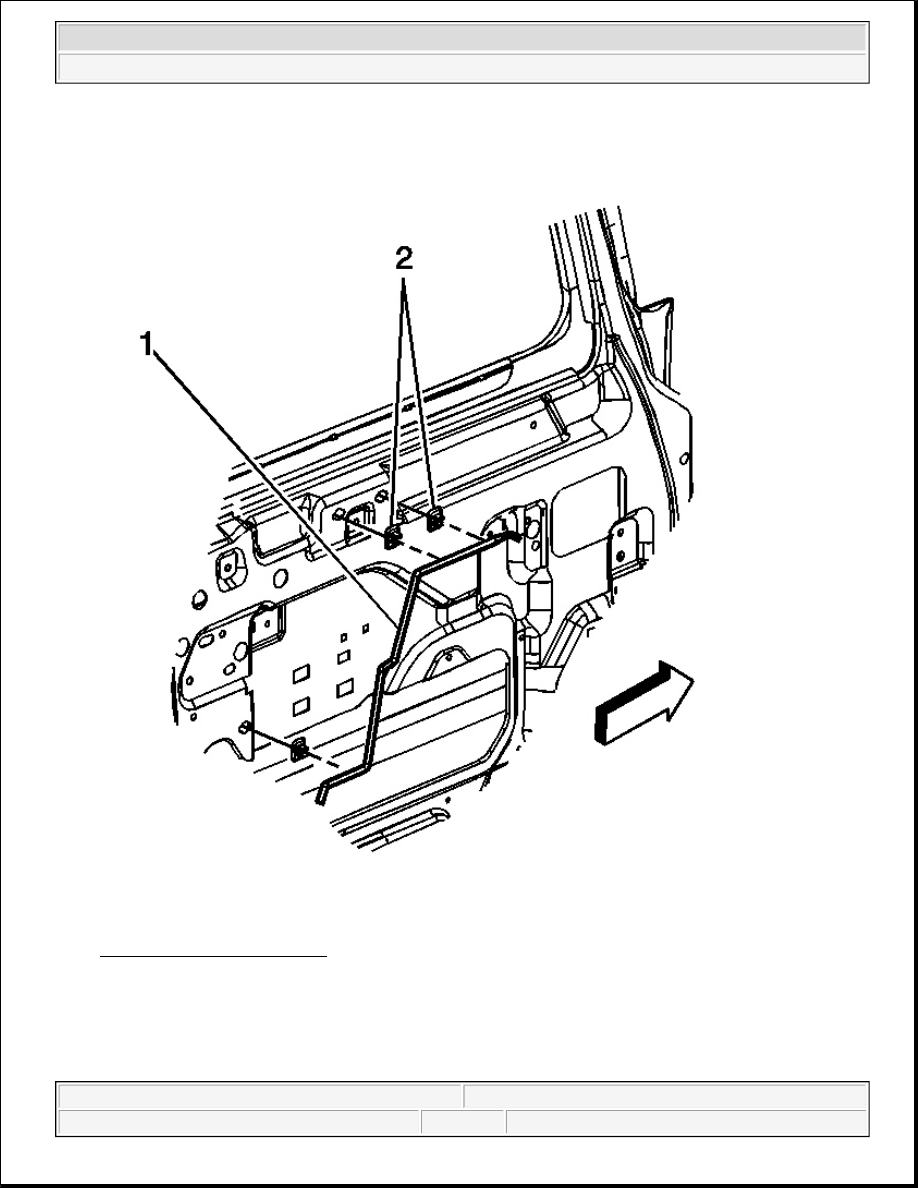

Fig. 79: Manual Locking Rod
Courtesy of GENERAL MOTORS CORP.

2. Install the manual locking rod (1) to the door by securing the rod in the retainers.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



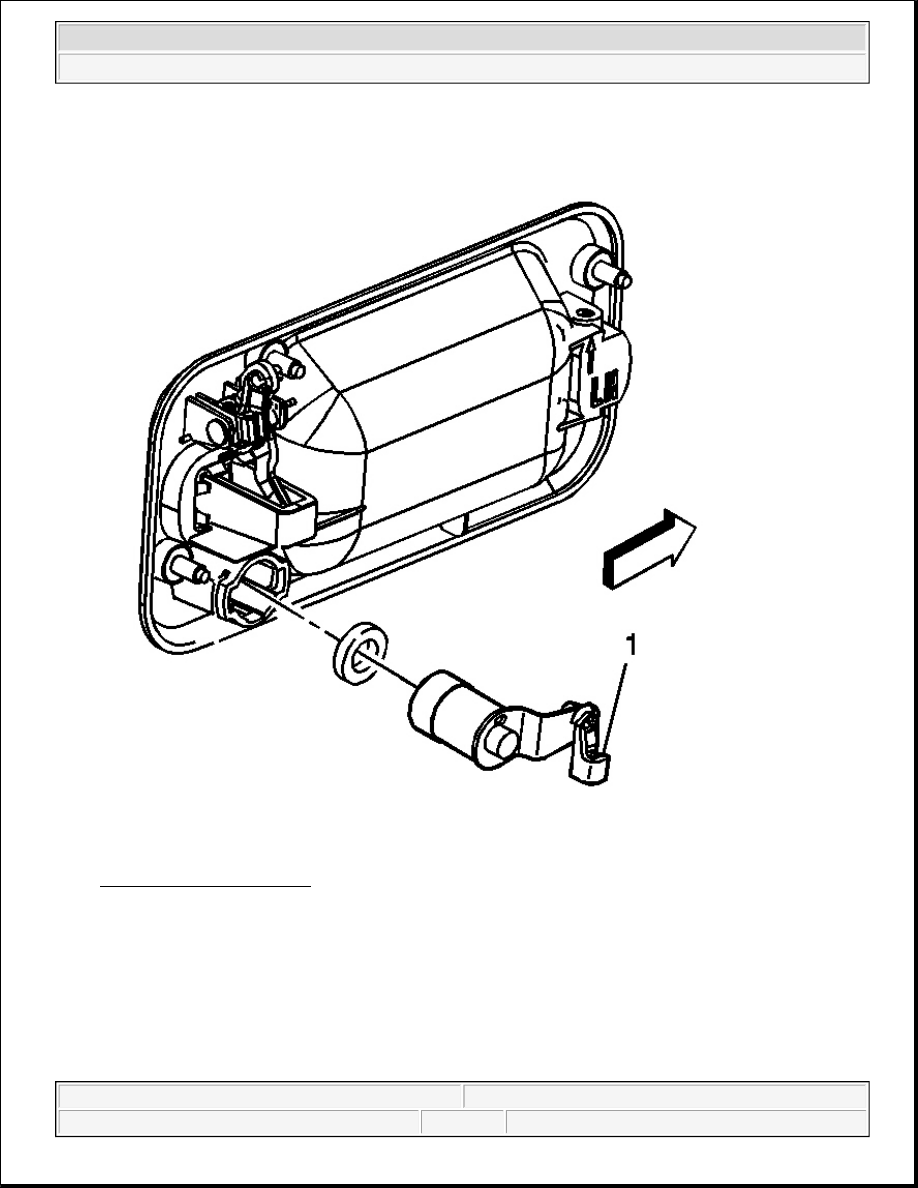

Fig. 80: Lock Cylinder Rod
Courtesy of GENERAL MOTORS CORP.

3. Connect the lock cylinder rod by securing rod in the retaining clip (1).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



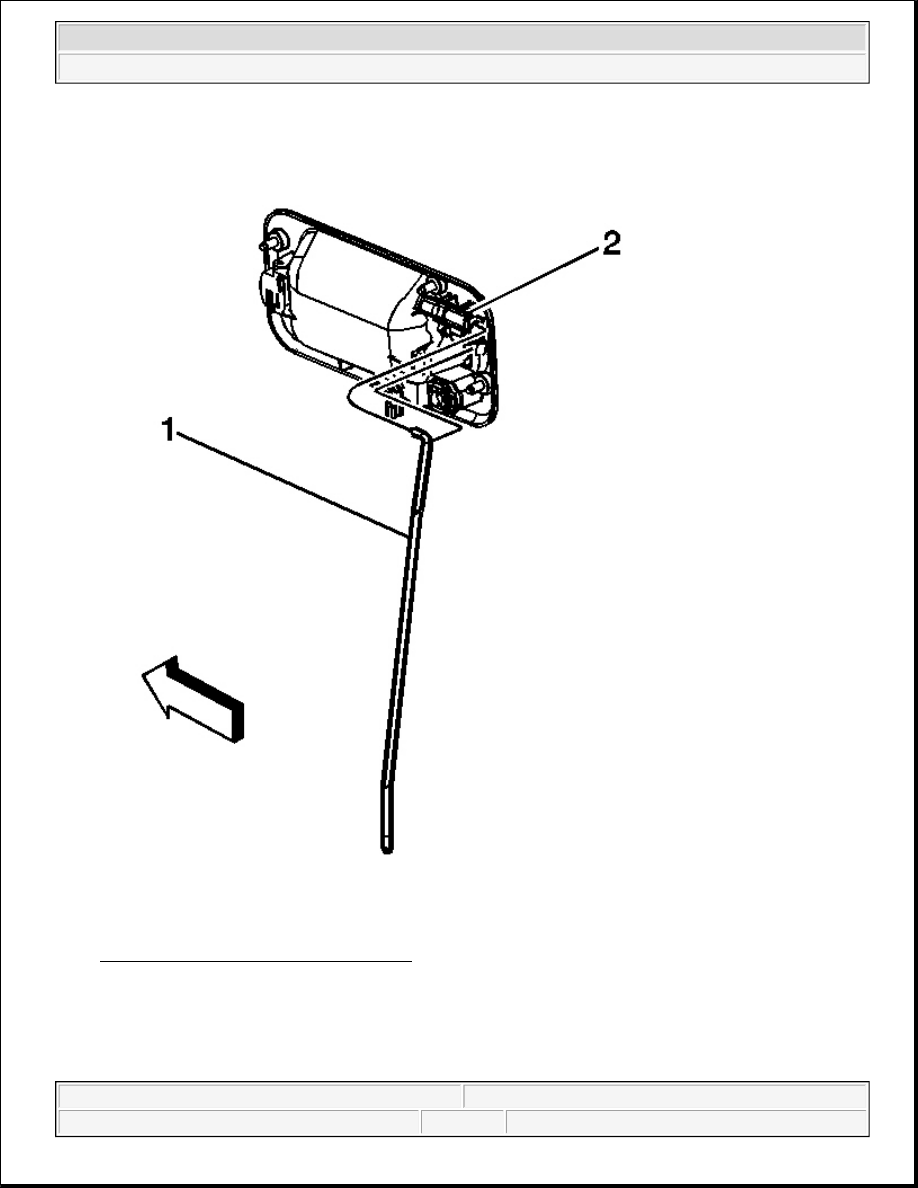

Fig. 81: Front Outside Door Handle Rod
Courtesy of GENERAL MOTORS CORP.

4. Connect the outside door handle rod (1) by securing the rod in the retaining clip on the door latch.

5. Connect the lock actuator electrical connector.

6. Operate door handle functions to ensure proper operation.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



7. Install the window run channel. Refer to Window Run Channel Replacement - Front Door .

8. Install water deflector. Refer to Water Deflector Replacement - Front Door .

9. Install door trim panel. Refer to Trim Panel Replacement - Side Front Door .

LATCH REPLACEMENT - REAR DOOR

Removal Procedure

1. Open the door.

2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .

3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

4. Disconnect the lock actuator electrical connector.
