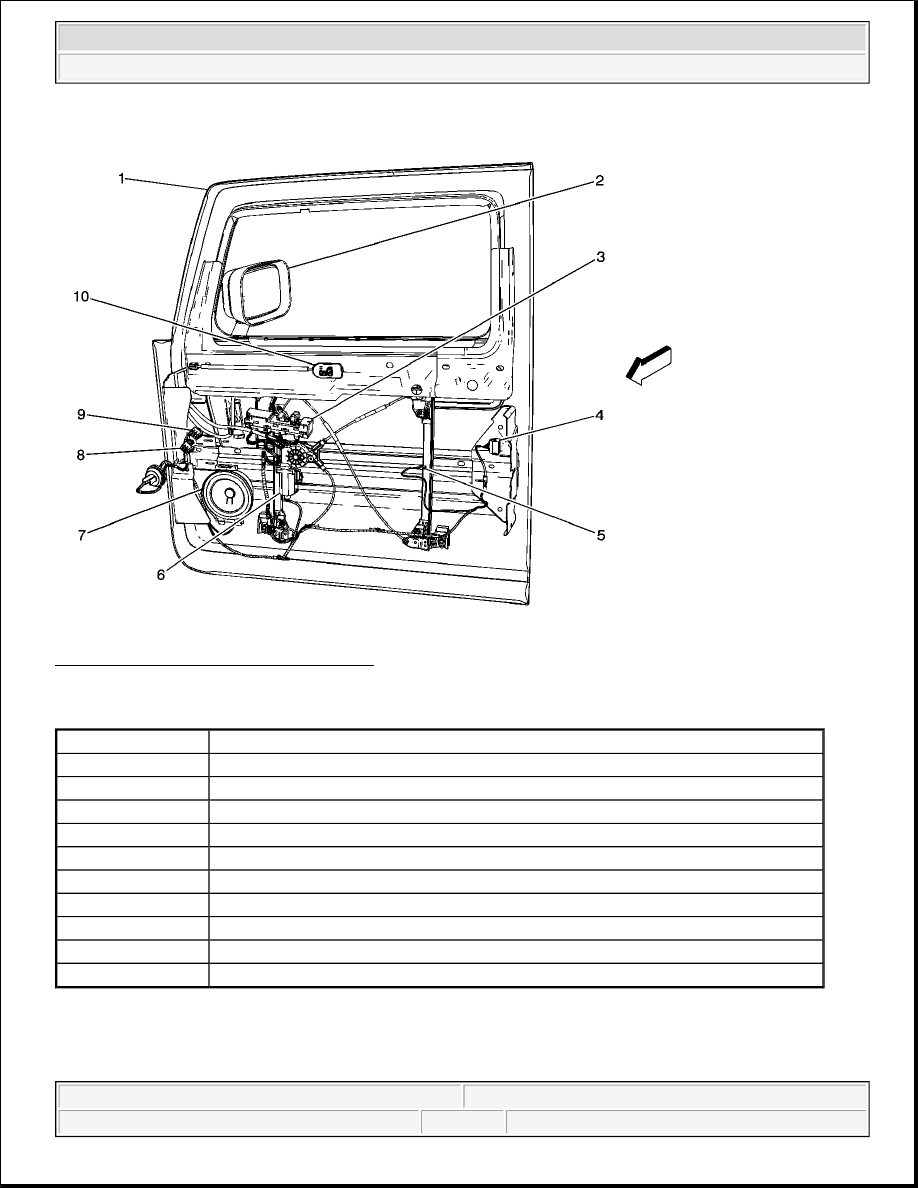

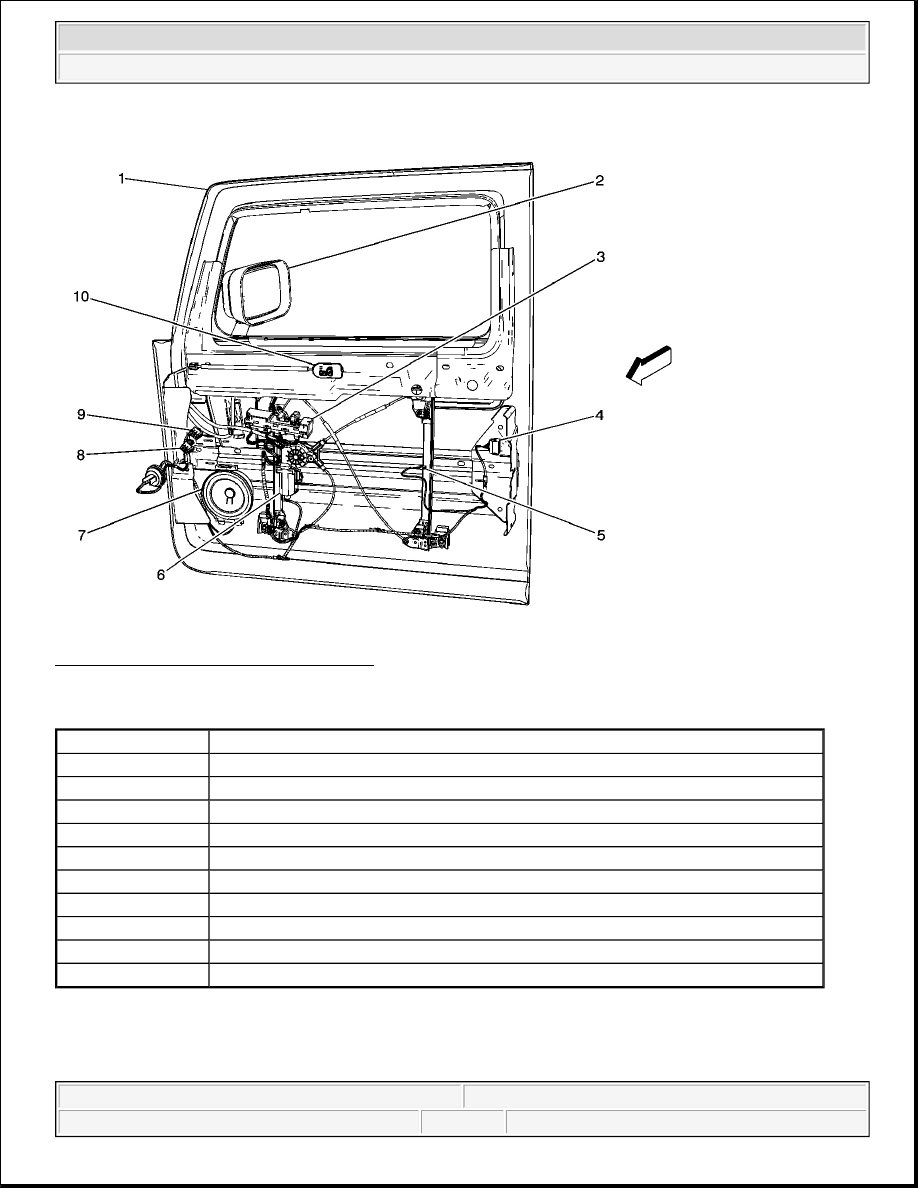

Fig. 9: Passenger Door Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 9

Callout

Component Name

1

Passenger Door

2

Outside Rearview Mirror

3

Passenger Door Module (PDM)

4

Door Latch Assembly - Passenger

5

Courtesy Lamp - Right Door

6

Window Motor - Front Passenger

7

Speaker - RF Door

8

Junction Block - I/P - C2

9

Junction Block - I/P - C7

10

Heated Seat Switch



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



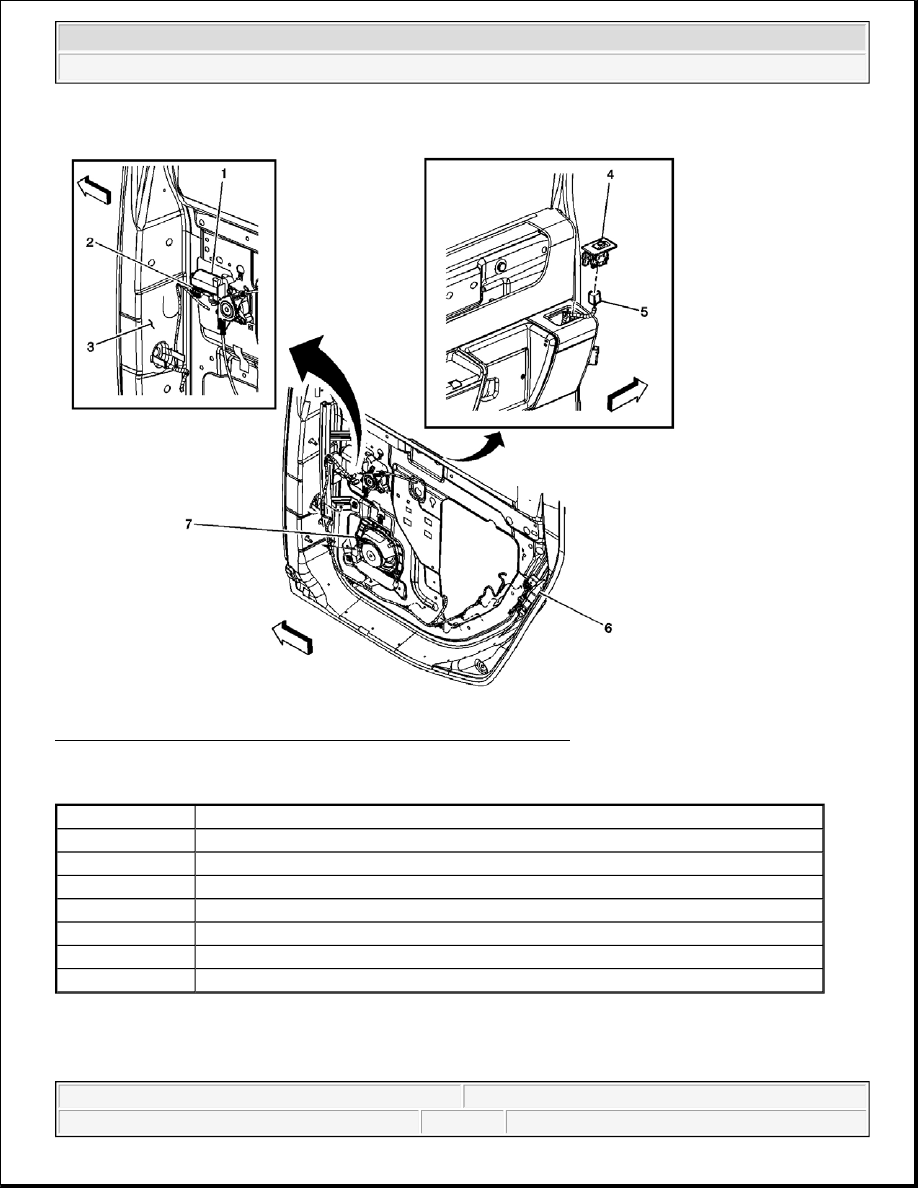

Fig. 10: Left Rear Door Component Views (RT Rear Door Similar)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 10

Callout

Component Name

1

Door Window Motor - LR

2

Door Window Motor Connector - LR

3

Door Harness Pass-Through Grommet

4

Door Window Switch - LR

5

Door Window Switch Connector - LR

6

Door Latch Assembly - LR

7

Speaker - LR Door



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



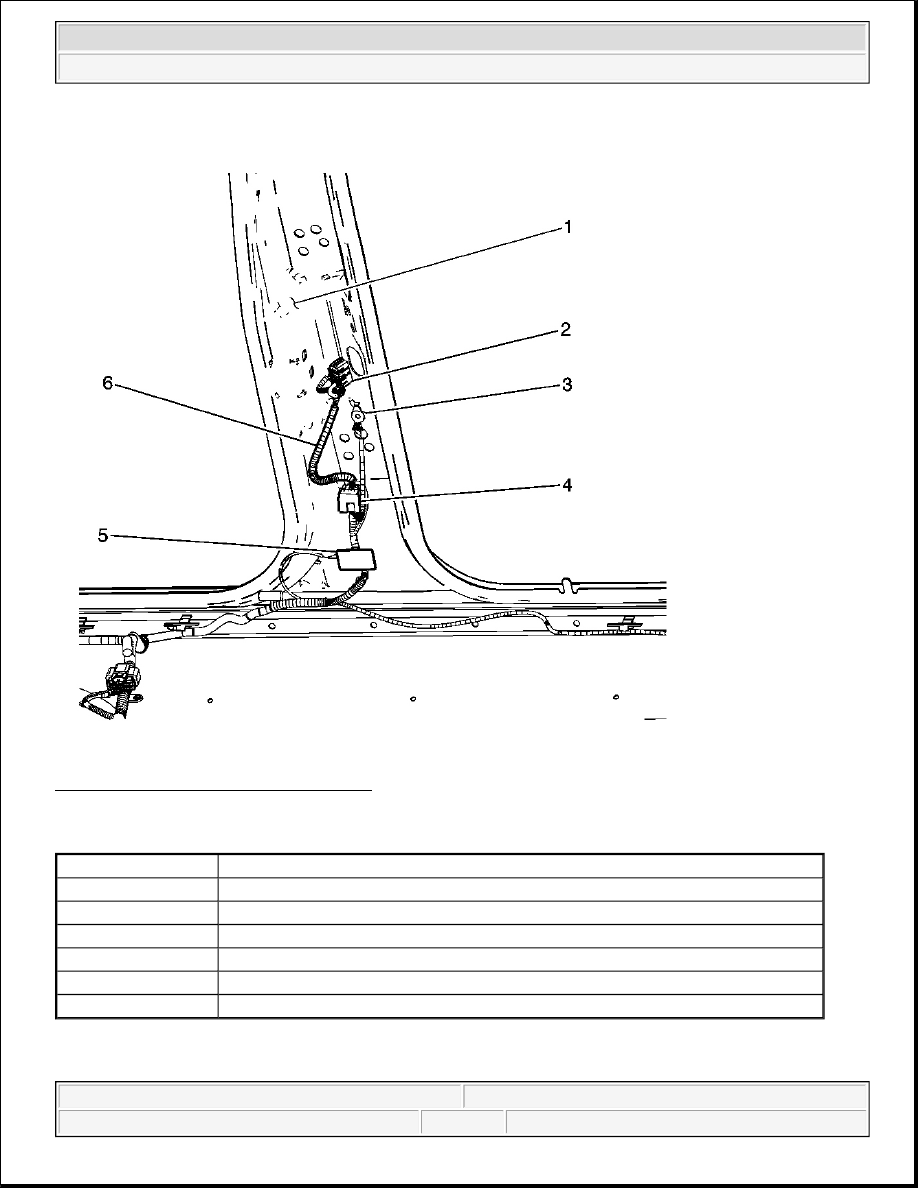

Fig. 11: Liftgate Relay Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 11

Callout

Component Name

1

Right B-Pillar

2

C390

3

G306

4

Liftgate Lock Relay

5

Courtesy Lamp - Right B-Pillar

6

Body Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



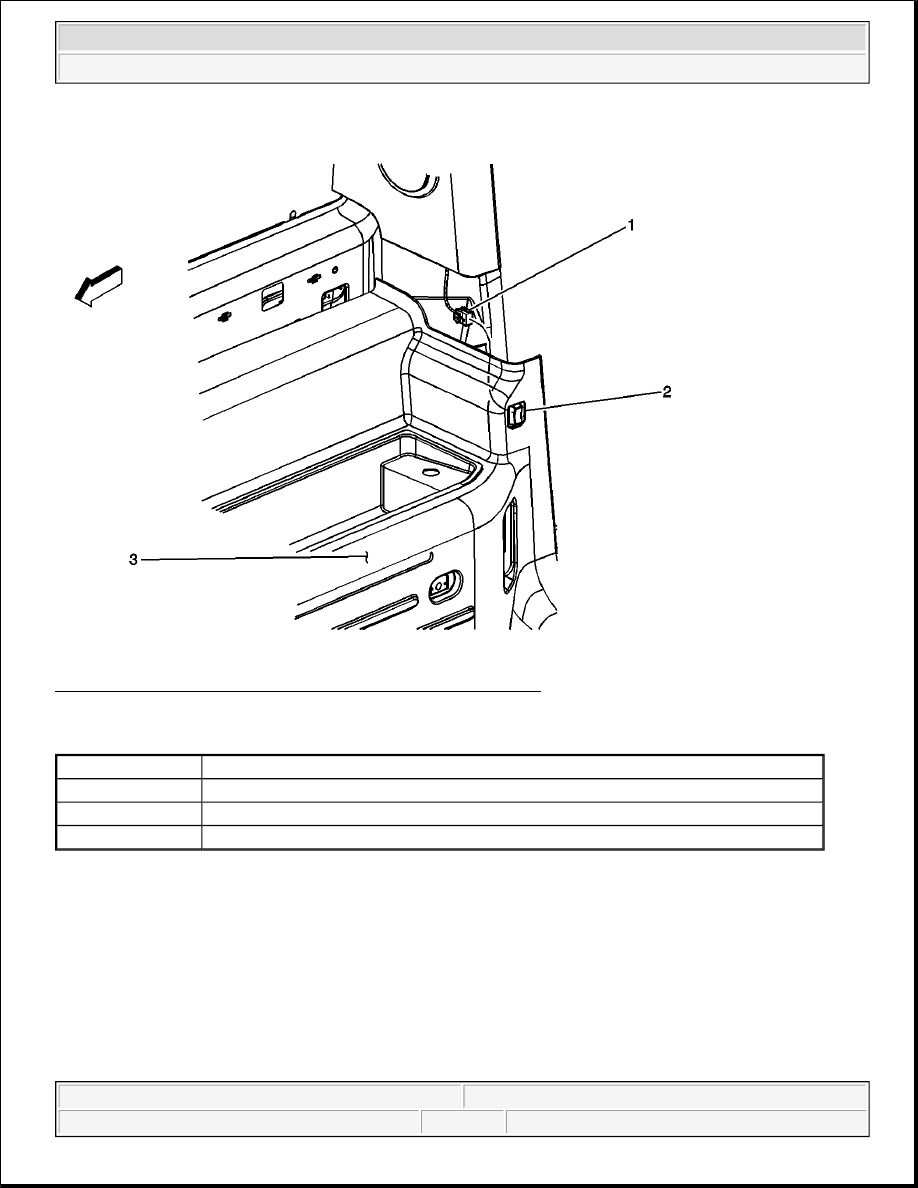

Fig. 12: Door Lock Switch-Rear Cargo Area Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 12

Callout

Component Name

1

Door Lock Switch Connector - Rear

2

Door Lock Switch - Rear

3

Rear Storage Bin



2004 Hummer H2
