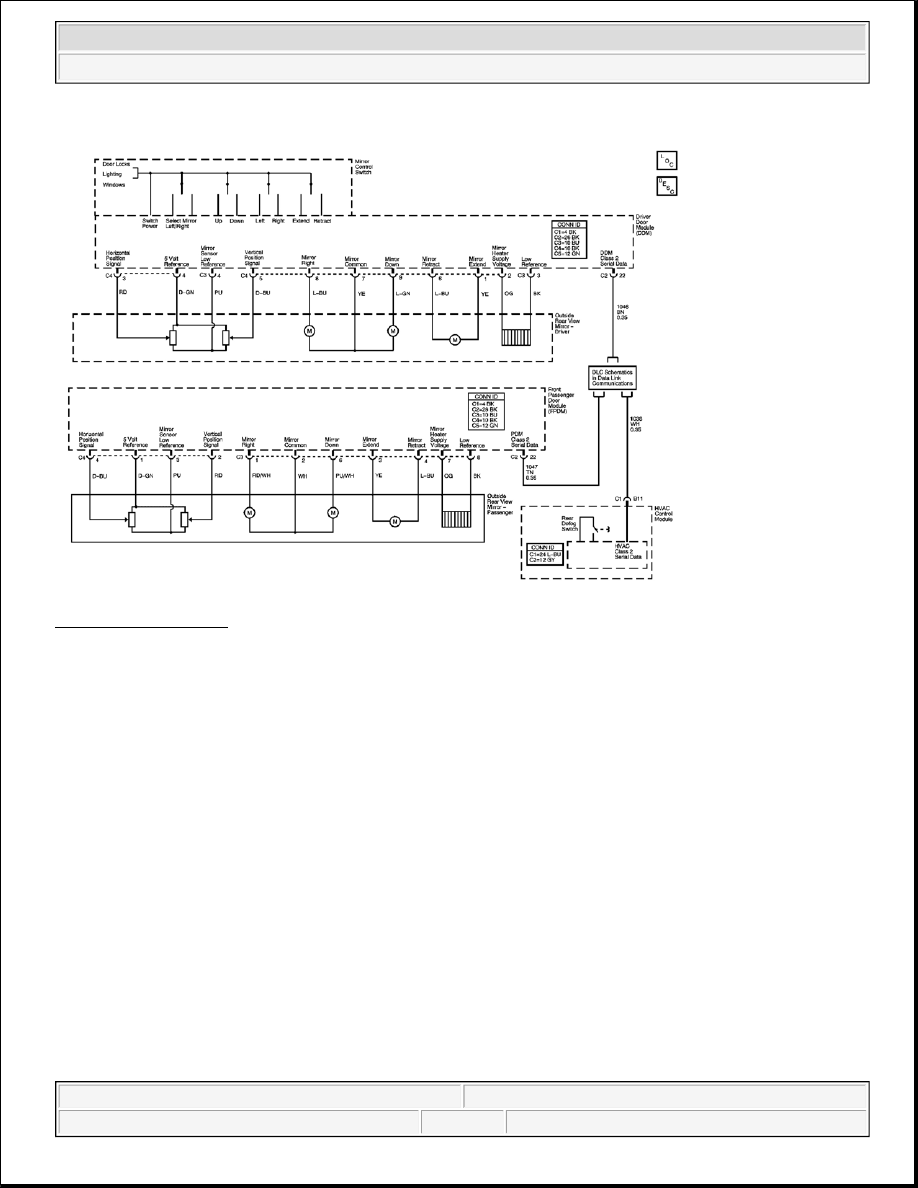

Fig. 5: Outside Mirror
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

POWER DOOR SYSTEMS COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



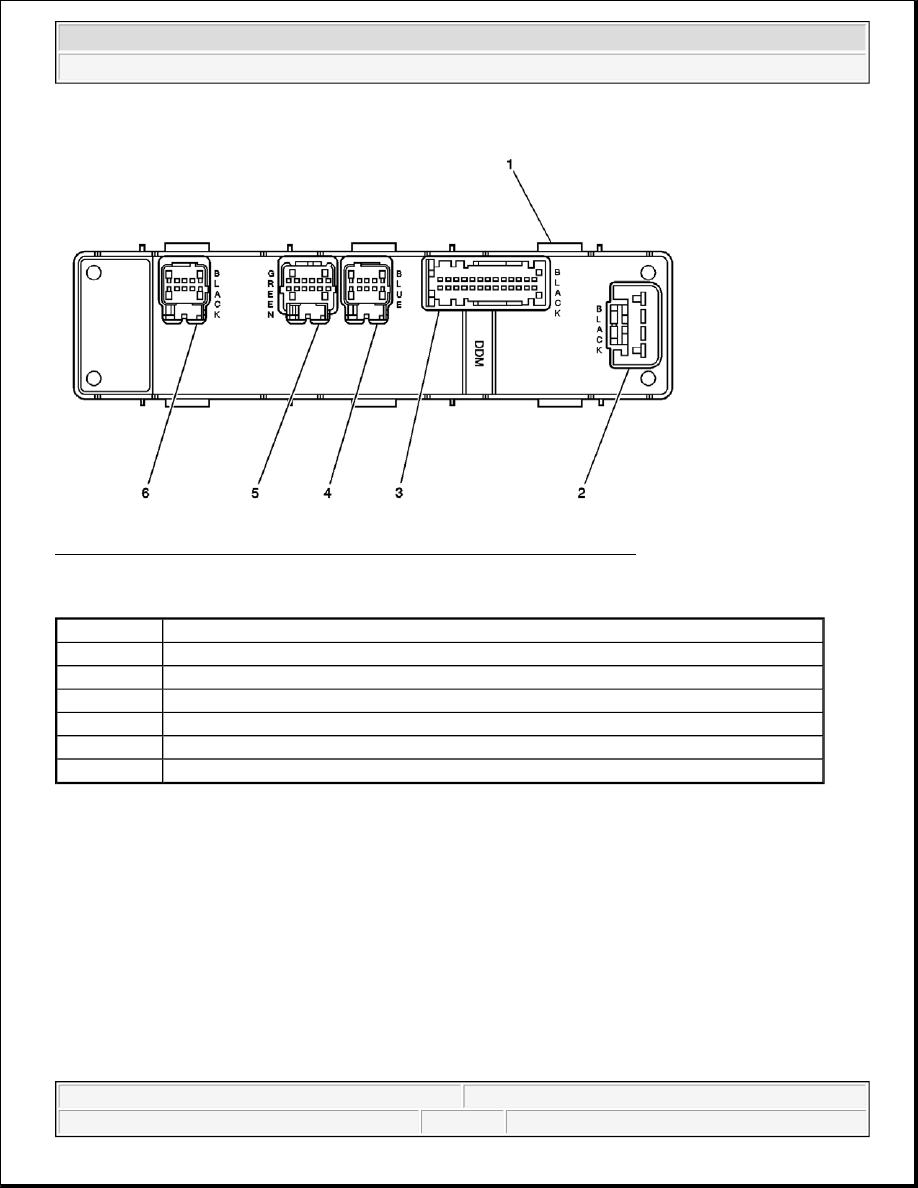

Fig. 6: Driver Door Module (DDM) Connector Locations Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 6

Callout

Component Name

1

DDM

2

DDM - C1 (Black)

3

DDM - C2 (Black)

4

Mirror Harness Connector - C3 (Blue)

5

Memory/Heated Seat Switch Connector - C5 (Green)

6

Mirror Harness Connector - C4 (Black)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



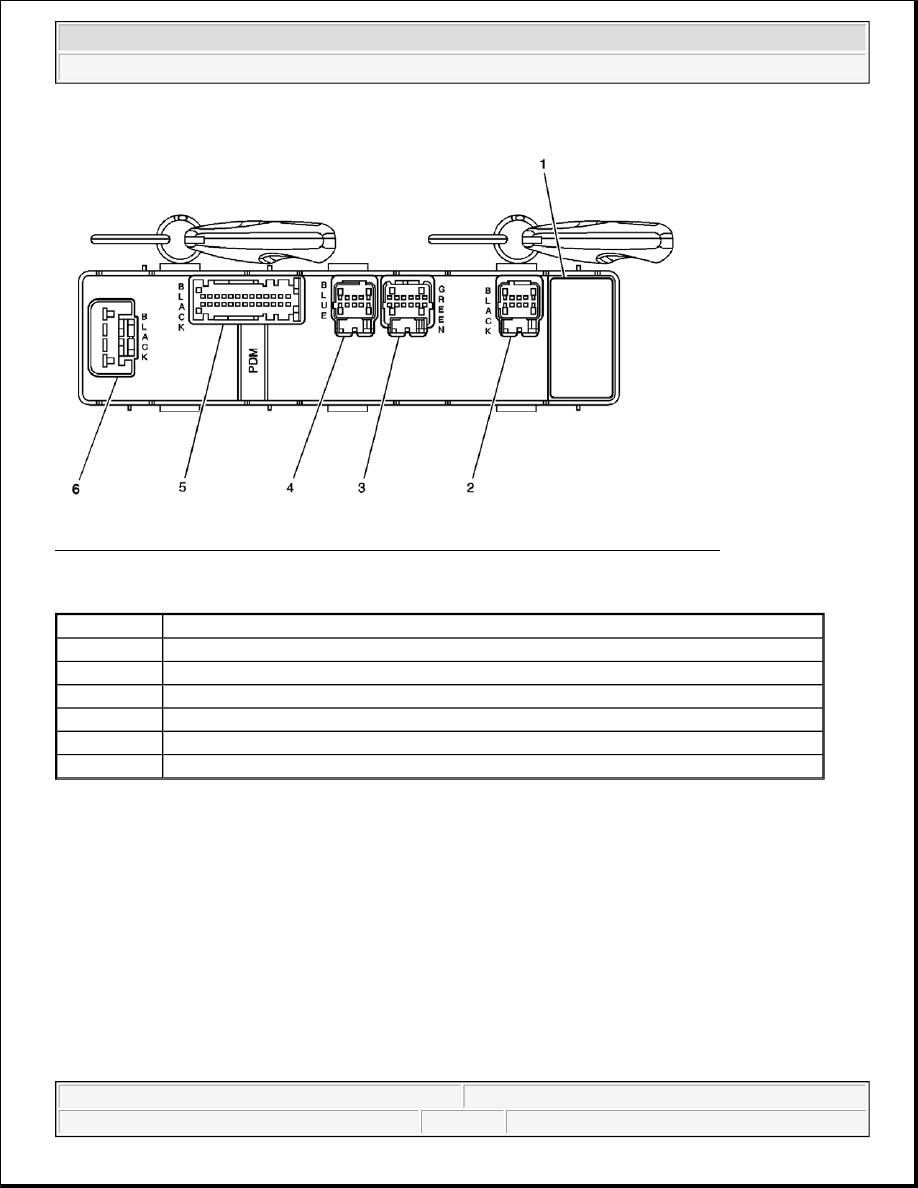

Fig. 7: Front Passenger Door Module (FPDM) Connector Locations Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 7

Callout

Component Name

1

FPDM

2

Mirror Harness Connector - C4 (Black)

3

Memory/Heated Seat Switch Connector - C5 (Green)

4

Mirror Harness Connector - C3 (Blue)

5

FPDM - C2 (Black)

6

FPDM - C1 (Black)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 8: Driver Door Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 8

Callout

Component Name

1

Driver Door

2

Outside Rearview Mirror

3

Memory/Heated Seat Switch

4

Memory/Heated Seat Switch Connector - C5 (Green)

5

Driver Door Module (DDM)

6

Fuse Block - I/P - C3

7

Speaker - LF Door

8

Window Motor - Driver

9

Courtesy Lamp - Left Door

10

Door Latch Assembly - Driver

11

Door Latch Assembly Connector - Driver
