2004 ACCESSORIES & EQUIPMENT

Doors - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SCHEMATIC AND ROUTING DIAGRAMS

POWER WINDOW SCHEMATICS

Application

Specification

Metric

English

Door Check Link Bolts

9 N.m

7 ft lb

Door Check Link Nuts

9 N.m

7 ft lb

Door Handle Nuts

9 N.m

7 ft lb

Door Hinge Bolts

25 N.m

73 ft lb

Lock Actuator Bolts - Door

9 N.m

7 ft lb

Lock Striker Bolts

27 N.m

20 ft lb

Outside Mirror Bolts

25 N.m

19 ft lb

Window Clamp Bolts

9 N.m

7 ft lb

Window Regulator Bolts

9 N.m

7 ft lb

Window Run Channel Bolts

9 N.m

7 ft lb

Window Stabilizer Bolts

9 N.m

7 ft lb



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

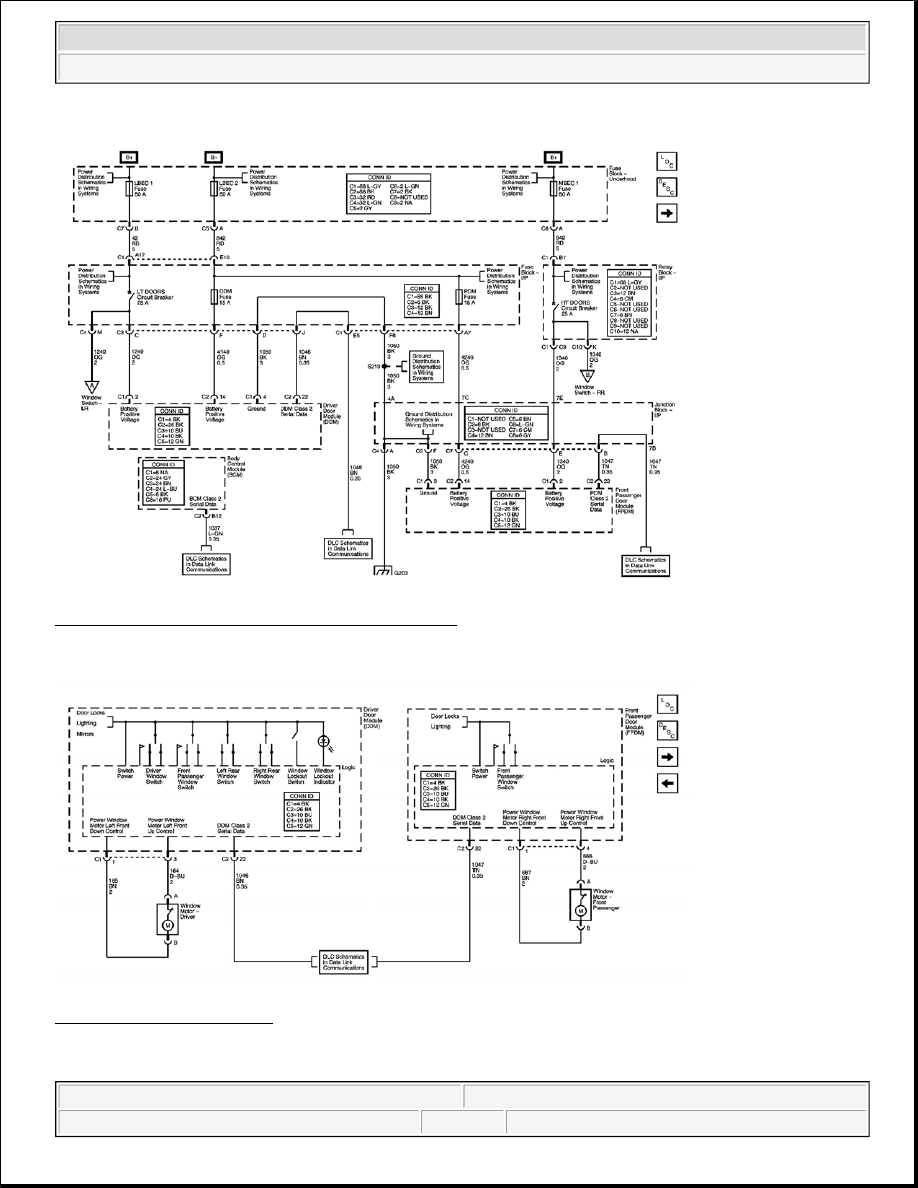

Fig. 1: Door Modules - Power, Grounding, and DLC
Courtesy of GENERAL MOTORS CORP.

Fig. 2: Front Door Windows
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

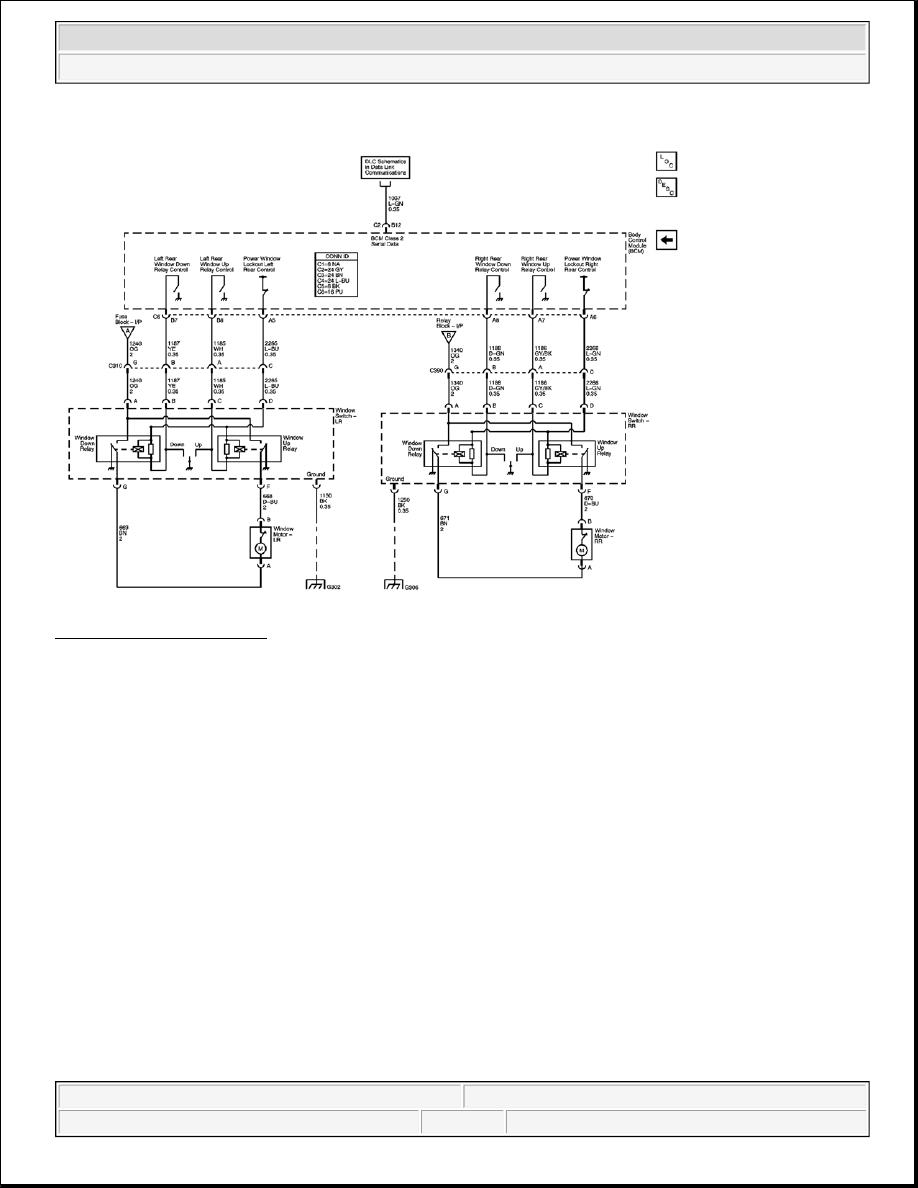

Fig. 3: Rear Door Windows
Courtesy of GENERAL MOTORS CORP.

DOOR LOCK/INDICATOR SCHEMATICS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

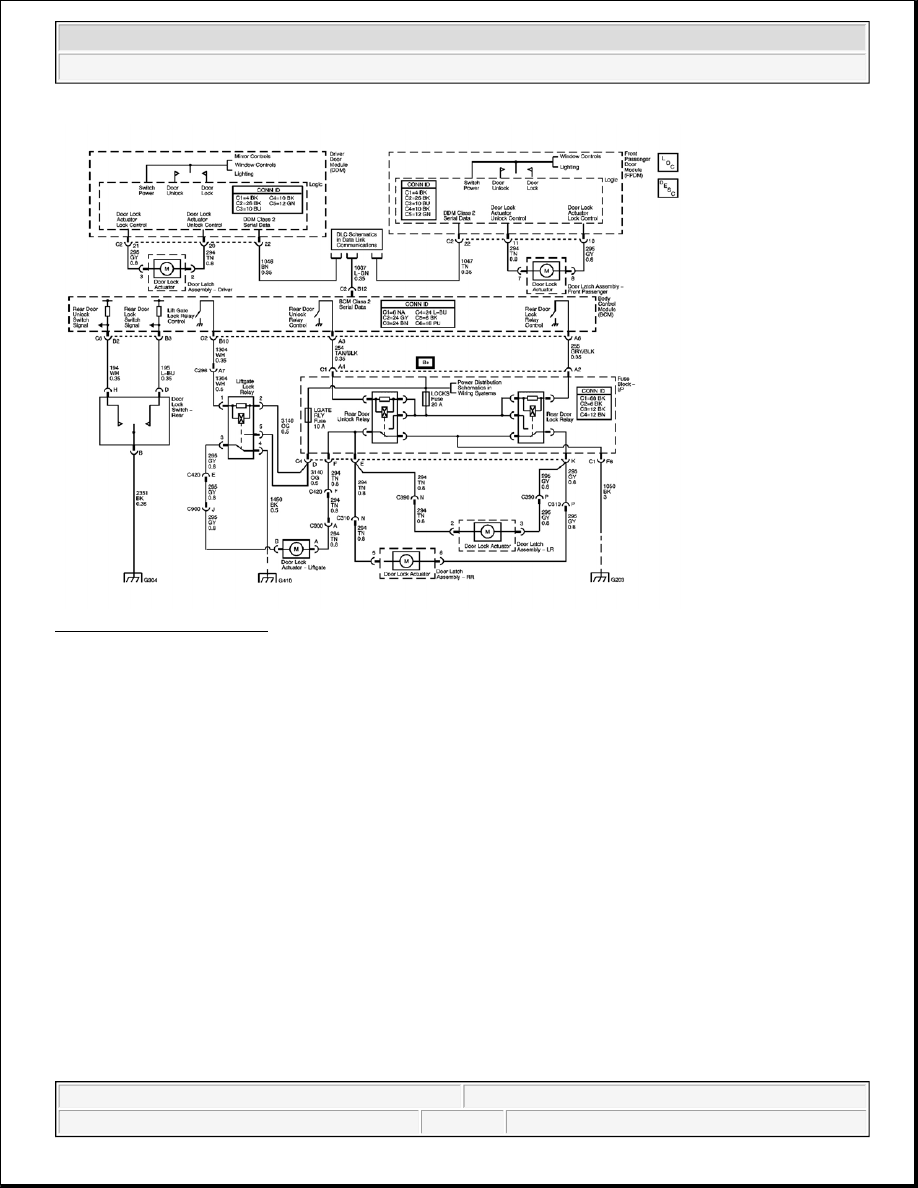

Fig. 4: Door/Lock Indicator
Courtesy of GENERAL MOTORS CORP.

OUTSIDE MIRROR SCHEMATICS
