1. Place the window module in position in the door.

2. Install the 5 fasteners (1) to the window regulator.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

3. Connect the window motor electrical connector.

4. Place the window in the window clamps, and tighten the clamps.

Tighten: Tighten the clamps to 9 N.m (7 lb ft).

5. Operate the window module to inspect for proper operation.

6. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

7. Install the trim panel. Refer to Trim Panel Replacement - Side Front Door .

MODULE REPLACEMENT - REAR POWER WINDOW

Removal Procedure

1. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door .

2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

3. Position the window in a position that allows access to the window clamp bolts.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2

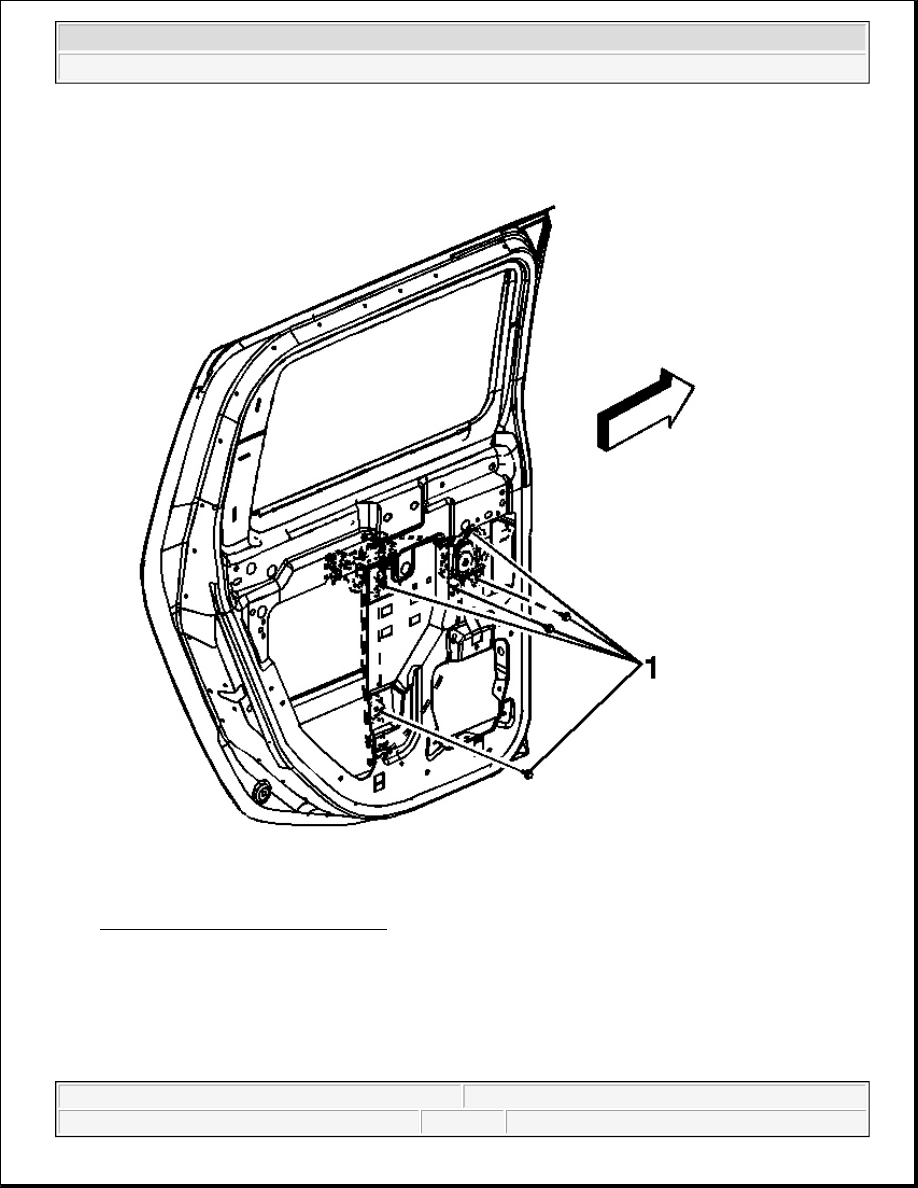

Fig. 97: Rear Power Window Module
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the window motor electrical connector.

5. Position the window in the full up position and tape in place.

6. Slightly loosen the fasteners on the window clamps.

7. Remove the 5 fasteners (1) retaining the window module to the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



8. Remove the window module from the door.

Installation Procedure

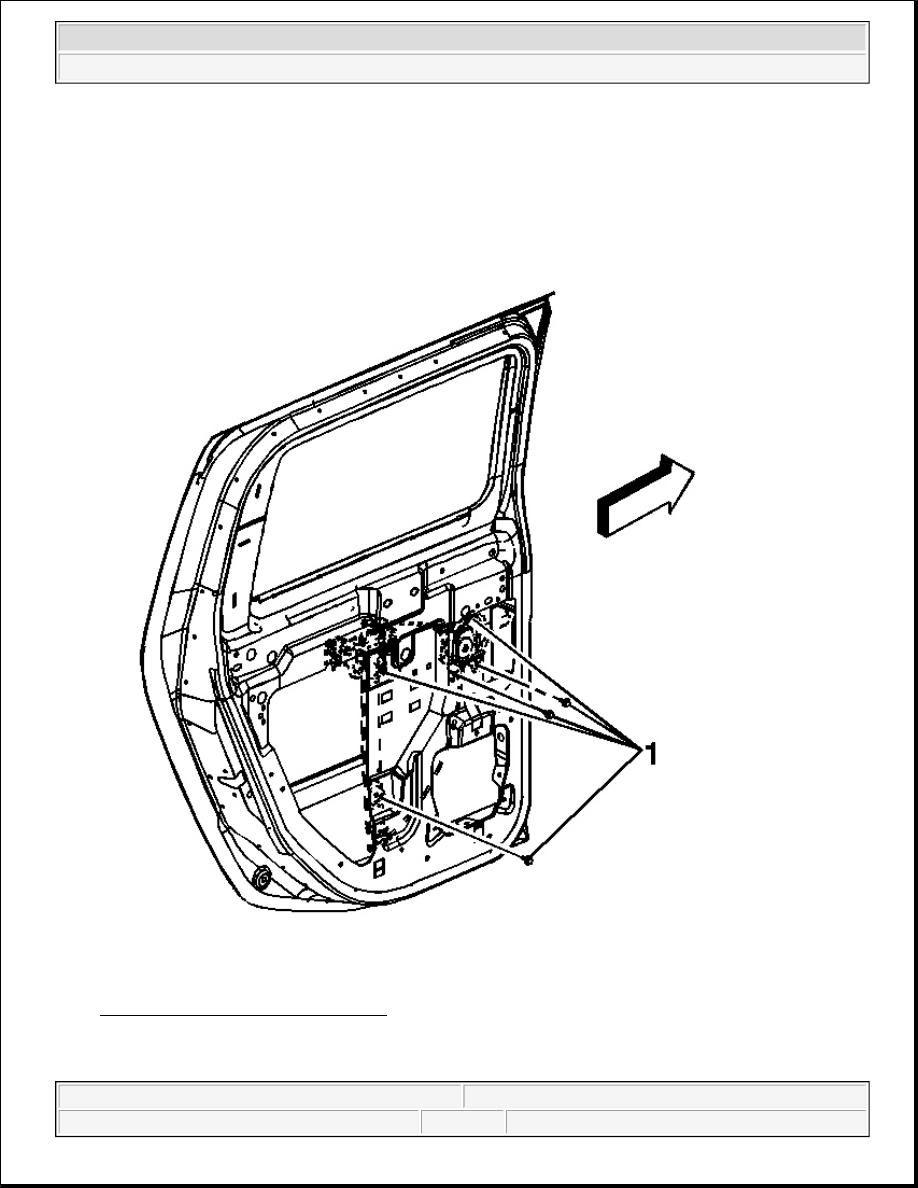

Fig. 98: Rear Power Window Module
Courtesy of GENERAL MOTORS CORP.

1. Place the window module in position in the door.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



2. Install the 5 fasteners (1) to the window regulator.

Tighten: Tighten the fasteners to 9 N.m (7 lb ft).

3. Place the window in the window clamps, and tighten the clamps.

Tighten: Tighten the clamps to 9 N.m (7 lb ft).

4. Connect the window motor electrical connector.

5. Operate the window module to inspect for proper operation.

6. Install the water deflector. Refer to Water Deflector Replacement - Front Door .

7. Install trim panel. Refer to Trim Panel Replacement - Side Front Door .

WINDOW REGULATOR MOTOR REPLACEMENT - FRONT DOOR

Removal Procedure

1. Remove the window module. Refer to Module Replacement - Front Power Window .

NOTE:

Refer to Fastener Notice in Cautions and Notices.
